Product Details:
|
| Condition: | New | Automatic: | Full Automatic |
|---|---|---|---|
| Plastic Processed: | PE | Main Electrical: | Siemens And Schneider |
| After Sales Service: | Engineer Overseas Service | Application: | Pipe |
| Length: | 20mx2.5mx2.2m | Pipe Diamteter: | 16-630mm |
| High Light: | ppr pipe production line,cpvc pipe making machine |
||

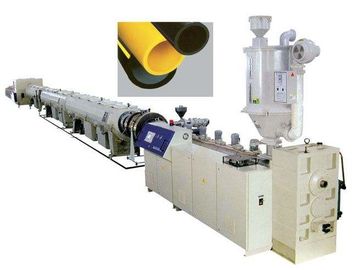

HDPE PE PPR Pipe Extrusion Machine , PPR Pipe Making Machine Production Line
Product Description:
HDPE Single Screw Extruder, with different die head, and downstream machines, which can produce different size of plastic pipe, diameter ranging from 12mm to 1600mm.
WE use Siemens Beide motor, ABB inverter, Omron temperature controller, and CHENG brand gearbox, etc. You can also choose PLC touch screen to control the operation, which can save the labor, and improve the prduction efficiency.
Product Advantages:
1. Long groove between feed throat and screw to improve output highly.
2. Accurate temperature control system on feed section to match different plastics.
3. Unique screw design to achieve higher plasticizing and products quality.
4. Gearbox of high torsion balance to realize stable running.
5. H shape frame to decrease vibrating.
6. PLC (Simatic Multi Panel) operation panel to ensure synchronization.
7. Energy conservation, easy to maintenance.
Application Area:
1. Urban tap water supply, direct drinking water supply and different quality water supply.
2. Coal gas, liquefied gas and natural gas distribution and transportation.
3. Corrosive water drainage.
4. Water conservancy and farm irrigation works.
Guides before Quotation:
1. What is the raw material you are going to have crushing?
2. What capacity you want to get?
3. What is the size you want to get for the final material?
4. What is your power voltage ( Frequency, Phase)?
Pre-Sales and After-Sales Service:
1. Provide all the machines for the complete production according to customer's requirements.
2. Provide complete service for factory layoutsand other information to help customer to build the factory.
3. Provide the raw material to the customer if need.
4. Provide good service for machine installation and training, until the customers can run the machines and make stable production.
5. Provide after-sell service for all the life, except one year quality guarantee,
6. Provide good quality, good price and good service to customer, for long-term cooperation. We are the professional and trustable supplier for
turnkey projects. Let us do win-win business together.
1. pe pipe production line process flow:
Vacuum loader → Hopper dryer→ Single screw extruder → PE pipe mould→ Vacuum calibration tank→Shower cooling tank → Hauling off machine → Chipless pipe cutting machine → Pipe stacker
2. pe pipe production line applications
PE pipe machine is mainly used to manufacturing PE plastic pipe, and GF series tube auxiliary equipments can also use to process oher plastic Extruder and GF series tube auxiliary equipments take the features of advanced, reliable & applied together, and provide strong certification for high-quality tube for customers
Main Technical Parameter:
| PE-63 | 65mm | 33:1 | 16-63 | 37 | 80 | 24 |
| PE-110 | 65mm | 33:1 | 75-110 | 55 | 110 | 30 |
| PE-160 | 75mm | 33:1 | 90-160 | 90 | 150 | 32 |
| PE-250 | 75mm | 33:1 | 110-250 | 110 | 200 | 42 |
| PE-315 | 90mm | 33:1 | 160-315 | 160 | 240 | 44 |
| PE-400 | 90mm | 33:1 | 200-400 | 185 | 300 | 50 |
| PE-500 | 120mm | 33:1 | 250-500 | 280 | 350 | 56 |
| PE-630 | 120mm | 33:1 | 315-630 | 280 | 480 | 56 |
| PE-800 | 150mm | 33:1 | 400-800 | 315 | 550 |
72 |
