Sanitary Plumbing Hdpe Pipe Manufacturing Machines With Calibration Cooling Tanks

China Sanitary Plumbing Hdpe Pipe Manufacturing Machines With Calibration Cooling Tanks supplier
Sanitary Plumbing Hdpe Pipe Manufacturing Machines With Calibration Cooling Tanks supplier Sanitary Plumbing Hdpe Pipe Manufacturing Machines With Calibration Cooling Tanks supplier Sanitary Plumbing Hdpe Pipe Manufacturing Machines With Calibration Cooling Tanks supplier Sanitary Plumbing Hdpe Pipe Manufacturing Machines With Calibration Cooling Tanks supplier

Large Image :  Sanitary Plumbing Hdpe Pipe Manufacturing Machines With Calibration Cooling Tanks

Product Details:

Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE / ISO
Model Number: LB-630

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T,
Supply Ability: 15 SETS PER MONTH
Contact Now
Detailed Product Description
Extruder Power (kw): 260KW PIPE DIAMETER: 315-630MM

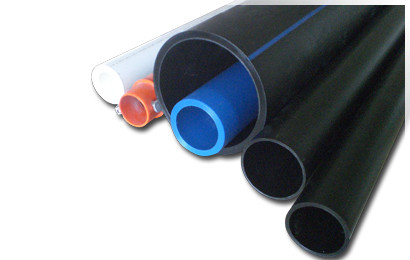

COLOUR: BLACK, ORANGE APPLICATION: SANITARY PLUMBING PIPE
MARK LINE: SINGLE SCREW EXTRUDER SCREW DIAMETER: 150MM

PE SANITARY PLUMBING PIPES PRODUCTION LINE WITH CALIBRATION AND COOLING TANKS



LANGBO MACHINERY is a company that makes manufacturing of PE/PP-R pipe machinery. Company principles are manufacturing without compromising high quality and standards and being customers oriented.

Applications include plastic profile, pipe and pelletizing extruders or complete extrusion lines. All machines and lines are tailor-made according to the customer’s demands and needs.

We always aim to provide high performance extruders and energy efficient systems as well as reliable and fast spare parts delivery, service and support.

All Extrusion pipe lines can be equipped with various auxiliary equipments in order to meet our customer’s requests and provide solution from a single source.

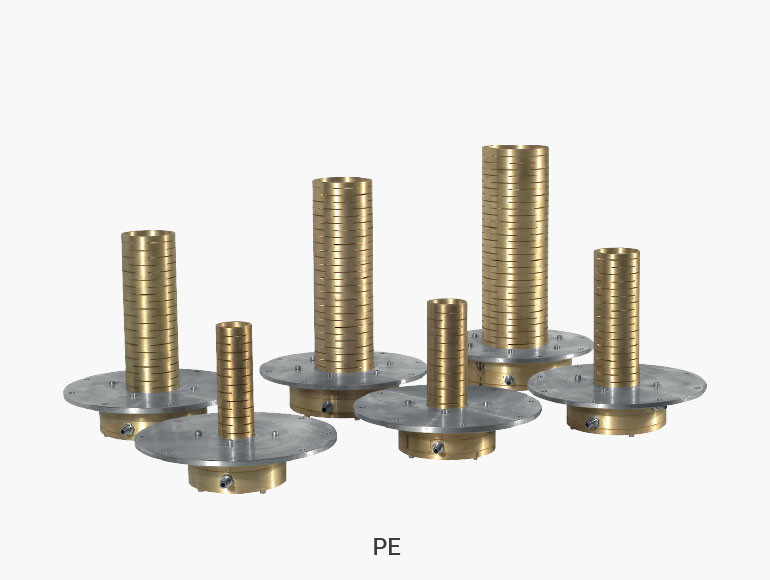

We provide vacuum tanks for the calibration and cooling process of plastic pipes covering diameters from 16 to 800 mm. All of our tanks are built in stainless steel which guarantees total absence of corrosion. Motorized longitudinal movement lets precise and fast positioning during the process.

Stainless steel tank

Motor driven longitudinal movement

Product Range

Diameters from 16 to 800 mm

Vacuum tank length from 6 to 9 mt

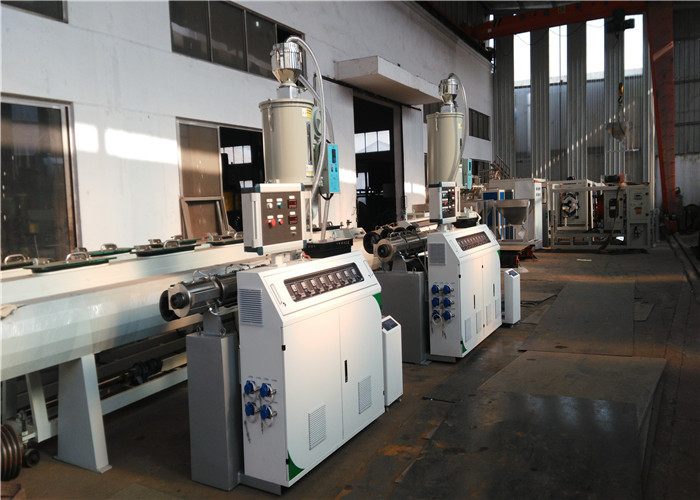

THE COMPLETE EXTRUSION LINES CONSIST OF FOLLOWING ITEMS:

  • Single Screw Extruder:

It is used for melting and stirring plastic material. LANGBO adapts special screw and barrel type that provide perfect mixing and homogenous. Our Extruder has 2.5kg/h-1000kg/h capacity for PE pipe.

We use special gear box for the Extruder which has axial bearings. Transfer the motor to the screw. For minimizing electricity consumption, we use the famous brand of driving motor of “SIEMENS” on our Extruder. Automation system designed with PLC and touch panel controller can be selected.

  • Die-Head:

Our die-head designing gives ideal viscosity to melt material for pipe producing. It gives tube or shape to plastic after processing. All faces the plastic in contact with is polish, so that frication losses minimized.

LANGBO produce single layer, two layer and multi layer pipe die-heads. Foil cover head. Over steel pipe plastic covering die-head and other special die-head.

  • Vacuum Tank:

LANGBO Vacuum Tanks are manufactured with stainless steel.

Our nozzles designing for maximum cooling performance. Cooled water sprinkles to hot plastic pipe outside face from the nozzles.

With high power water pump, cooled water can reach to pipe completely.

Our vacuum tank’s pressure can be adjusted, so vacuum pressure can be fixed according to pipe requirement.

We sealing gasket for every lid on the vacuum tank. This stops vacuum leakage and minimizing energy consumption.

  • Haul-offs:

With the material we have used in our haul-offs, we have very good adhesion to the pipe and ensure slip prevented.

The needed speed for setting of pallets can be changed with electrical inverter. Different line speeds are adjusted by using control panel easily.

We manufacture haul-offs depending on pipe diameter from 2 pallets to 10 pallets.

Our haul-offs can work synchronously with pipeline. As the extruder speed increasing automatically, haul-offs speed is increased.

  • Cutter:

LANGBO planetary saw cuts the pipe at designed length without any burr.

Cutting speed during the cutting is synchronous with the line speed by PLC, so accurate length is provided.

Pipe length to be cut is easily adjusted via the touch screen.

Pipe length measure by encode so desired length can cut precisely.

  • Tipping Table: It operates on pneumatic cylinder.
  • Coiler:

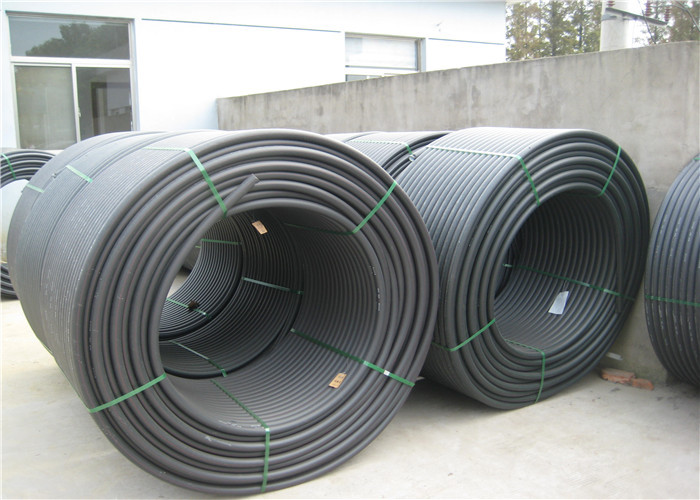

LANGBO plastic pipe coiler designed for winding PE pipes, corrugated and dripping pipes. We use torque motor for positioning pipe on the coiler that provides accuracy of coiling.

Our coilers can coil diameter of 16mm pipe up to diameter of 125mm of pipes.

With the torque setting, tension of the pipe coming from the line can be adjusted easily and at the end of coil winding, the coil is removed very easily as well.





All Extrusion pipe lines can be equipped with various auxiliary equipments in order to meet our customer’s requests and provide solution from a single source.



Volumetric and gravimetric dosing units
Raw material loading units
Belling machines
Corrugators
Ink jet marking units
Winding units
Tilting table



SPECIFICATIONS:



MODEL PIPE DIAMETER (MM) EXTRUDER MODEL MOTOR POWER
LB-63 20-63 SJ65/33 55AC
LB-110 20-110 SJ65/33 55AC
LB-160 75-160 SJ75/33 90AC
LB-250 90-250 SJ75/33 110DC
LB-315 110-315 SJ90/33 160DC
LB-450 160-450 SJ90/33 160DC
LB-630 315-630 SJ120/33 280DC
LB-800 500-800 SJ150/33 315DC
LB-1200 710-1200 SJ150/34 400DC

Sanitary Plumbing Hdpe Pipe Manufacturing Machines With Calibration Cooling TanksSanitary Plumbing Hdpe Pipe Manufacturing Machines With Calibration Cooling Tanks
