100 Sewage Pe Pipe Extrusion Line High Production Capacity 120mm Screw Diameter

China 100 Sewage Pe Pipe Extrusion Line High Production Capacity 120mm Screw Diameter supplier
100 Sewage Pe Pipe Extrusion Line High Production Capacity 120mm Screw Diameter supplier 100 Sewage Pe Pipe Extrusion Line High Production Capacity 120mm Screw Diameter supplier 100 Sewage Pe Pipe Extrusion Line High Production Capacity 120mm Screw Diameter supplier 100 Sewage Pe Pipe Extrusion Line High Production Capacity 120mm Screw Diameter supplier

Large Image :  100 Sewage Pe Pipe Extrusion Line High Production Capacity 120mm Screw Diameter

Product Details:

Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE / ISO
Model Number: LB-630

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Packaging Details: NORMAL PACKAGE
Delivery Time: 60 WORKING DAYS
Payment Terms: L/C, T/T,
Supply Ability: 5 SETS PER MONTH
Contact Now
Detailed Product Description
Extruder Power (kw): 280D.C. PIPE DIAMETER: 630MM
COLOUR: BLACK, ORANGE APPLICATION: SEWAGE WATER
CITTER: PLANETARY CUTTER SCREW DIAMETER: 120MM

PE 100 SEWAGE PIPES PRODUCTION LINE WITH HIGH PRODUCTION CAPACITY

LANGBO Extrusion operates in the manufacturing of plastic extrusion machines and systems for over many years. LANGBO Extrusion is the reliable solution partner from planning and process engineering for the optimum solution through set-up, start-up and operation of extrusion systems.
Applications include plastic profile, pipe and pelletizing extruders or complete extrusion lines. All machines and lines are tailor-made according to the customer’s demands and needs.
We always aim to provide high performance extruders and energy efficient systems as well as reliable and fast spare parts delivery, service and support.
All Extrusion pipe lines can be equipped with various auxiliary equipments in order to meet our customer’s requests and provide solution from a single source.

COMPONENTS AND FEATURES:


We manufacture plastic pipe line have been designed for fully automatic operation.
All of components we use in our machine and the lines have CE certificate. Our pipe lines designed for using factory place efficiently.

LANGBO MACHINERY is a company that makes manufacturing of PE/PP-R pipe machinery. Company principles are manufacturing without compromising high quality and standards and being customers oriented.

The complete extrusion consists of following items:

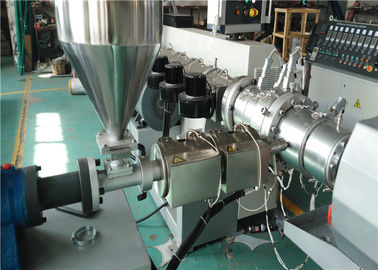

  • Single Screw Extruder:

Extruder machine is applied for melting and stirring PE.

LANGBO employs the specific screw and barrel for material type that provides perfect mixing and homogeneous.

Our single screw extruders are featured high level technical solution such as screw geometry that is suitable for processing the plastic pipe extrusion. We use high wear resistant screw and barrel to make accurate control of melt conditions, homogenous temperature and pressure without variation and surging.

We use special gearbox for the extruder, which has axial bearings. Transfer the motor to the screw. For minimizing electricity consumption, we use the famous brand of driving motor of “SIEMENS” on our Extruder. Automation system designed with PLC and touch panel controller can be selected.

  • Die-Head:

Our die-head designing gives ideal viscosity to melt material for pipe producing. It gives tube or shape to plastic after processing. All faces the plastic in contact with is polish, so that frication losses minimized.

We produce single layer, two layer and multi layer pipe die-heads. Foil cover head. Over steel pipe plastic covering die-head and other special die-head.

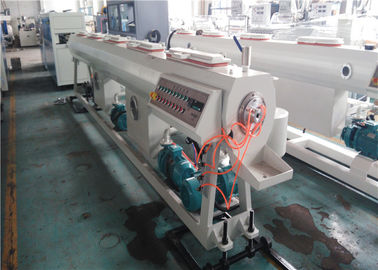

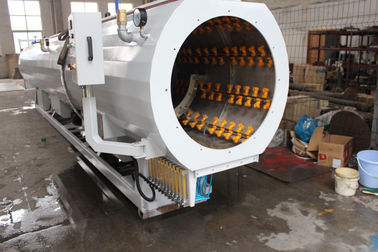

  • Vacuum Tank:

The Vacuum Tanks are manufactured with stainless steel.

Our nozzles designing for maximum cooling performance. Cooled water sprinkles to hot plastic pipe outside face from the nozzles.

With high power water pump, cooled water can reach to pipe completely.

Our vacuum tank’s pressure can be adjusted, so vacuum pressure can be fixed according to pipe requirement.

We sealing gasket for every lid on the vacuum tank. This stops vacuum leakage and minimizing energy consumption.

  • Haul-off:

With the material we have used in our haul-off, we have very good adhesion to the pipe and ensure slip prevented.

The needed speed for setting of pallets can be changed with electrical inverter. Different line speeds are adjusted by using control panel easily.

We manufacture haul-off depending on pipe diameter from 2 pallets to 10 pallets.

Our haul-offs can work synchronously with pipeline. As the extruder speed increasing automatically, haul-offs speed is increased.

  • No Swarf/Dust Cutter:

The planetary saw cuts the pipe at designed length without any burr.

The cutting speed during the cutting is synchronous with the line speed by PLC, so accurate length is provided.

Pipe length to be cut is easily adjusted via the touch screen.

Pipe length measure by encode so desired length can cut precisely.

  • Tipping Table:

It operates on pneumatic cylinder.

  • Pipe coiler:

The coiler is applied for winding PE pipes, corrugated pipes and dripping pipes.

We use torque motor for positioning pipes on the coil, that provides accuracy of coiling.

Our coilers can coil dia.16mm pipe up to dia. 125mm pipe. With the torque setting, tension of the pipe coming from the extrusion line can be adjusted easily.

SPECIFICATIONS:

MODEL PIPE DIAMETER (MM) EXTRUDER MODEL MOTOR POWER
LB-63 20-63 SJ65/33 55AC
LB-110 20-110 SJ65/33 55AC
LB-160 75-160 SJ75/33 90AC
LB-250 90-250 SJ75/33 110DC
LB-315 110-315 SJ90/33 160DC
LB-450 160-450 SJ90/33 160DC
LB-630 315-630 SJ120/33 280DC
LB-800 500-800 SJ150/33 315DC
LB-1200 710-1200 SJ150/34 400DC

LANGBO Extrusion offers several types of cutting units for pipe applications. For medium and large diameter pipes, we supply our planetary cutting units. For small diameter pipes, we offer our guillotine and saw cutter.
Planetary Cutter:
Cutting and chamfering rigid pipes
Synchronization with extruder speed
Low maintenance cost
Adjustable cutting speed
Product Range: Pipe range from 50 to 800 mm
Saw Cutter:
Cutting pipes up to 63 mm
Low maintenance cost
Adjustable cutting speed
Cutting pipes up to 63 mm
Pipe range from 16 to 63 mm
Guillotine Cutter: GK 32 Features
Special design for pipes
Dust and chip-free cutting system
Low maintenance cost
Pipe range from 16 to 32 mm
