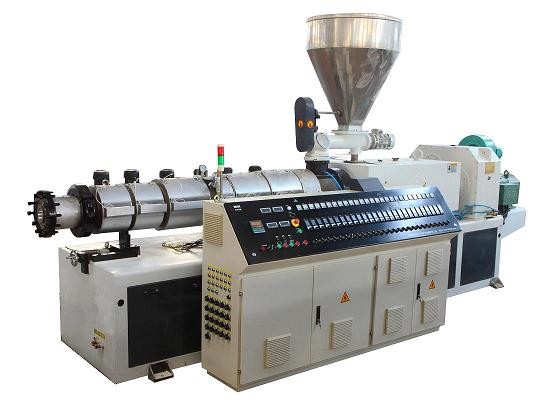

Large Image :  SJSZ51 Conical Twin Screw Extruder Machine Siemens Schneider High Plasitify

Product Details:

Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE ISO
Model Number: LB

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: USD EUR
Packaging Details: NORMAL PACKAGE
Delivery Time: 15 SETS PER MONTH
Payment Terms: L/C, T/T
Supply Ability: 15 SETS PER MONTH
Contact Now
Detailed Product Description
Dimension: 4235*1520*2450 Main Electrical Part: Siemens Schneider
Model Number: SJSZ51/105 65/1132 80/156 Condition: New
Screw Design: Twin Screw Inverter: ABB

SJSZ51 conical twin screw extruder,plastic extrusion machine for PVC pipe/profile/panel



conical twin screw extruder for pvc pipe/profile/panel



1. CE&ISO certification
2. high plasitify with low consumpt
3. Turn-key project



Features Specifications:



1. Model sjsz double screw extruder is a kind of special equipment for extruding WPC/ PVC compound. With different kinds of molds and auxiliary machines, it can produce all sorts of PVC plastic pipe, profile, plate material, sheet material, bar material and granulation.


2. The conical twin screws have applied oil cooling system. Barrel is cooled by special wind cooling system.



3. The conical twin screw extruder system has applied special computer control. According to customers requirements, most reasonable structure of conical twin screw can be made so as to achieve best plasticity performance and material quality.



4. The conical twin screw is made by high precision special digital screw miller; extruding property can be highly harmonized. It has firstly introduced advanced technique of producing screw with variable pitch and depth, so that the material can be more softly sheared and cut.



5. The distribution box is specially designed, pull force bearing is fully imported, and the drive life span can be prolonged. It can bear larger extruding pressure.



6. The electrical system has mainly applied imported parts, it has multiple alarm system, and there are few problems which can be easily eliminated. The cooling system has applied special design, heat emission area is enlarged, the cooling is rapid, and temperature control tolerance can be ± 1degree.





echnical Parameter:



Model number Screw diameter (mm) Rotational speed of screw (rpm) Effective work length (mm) Main motor power (kw) Heating power of Barrel (kw) Production capacity (kg/h) Central height of machine (mm) Net weight Overall size (mm)
SJSZ45 45/90 1-45 1070 15 9.6 70 1000 2800 3300*1200*2000
SJSZ51 51/105 1-45.5 1100 22 11.5 80 1000 3000 3360*1290*2100
SJSZ55 55/110 1-40 1200 22 18 150 1000 3500 3620*1350*2200
SJSZ65 65/132 1-38 1440 37 24 250 1000 4000 4235*1520*2450
SJSZ80 80/156 1-36.9 1800 55 36 360 1000 5000 4750*1550*2460
SJSZ92 92/188 1-34.7 2500 110 88 1000 1000 5500 6000*1600*2500
