20-110mm PPR Pipe Extrusion Production Line Hot Water

20-110mm PPR Pipe Extrusion Production Line Hot Water

Introduction:

PPR pipe system is a new product widely used in developed countries in the world. It uses homogeneous fusion technology in cold and hot water transportation engineering. Its comprehensive technical performance and economic indicators are far better than other similar products, especially its excellent sanitary performance. The whole process of using waste recycling from production can meet the extremely high requirements of sanitation and environmental protection Pressure, heat preservation, energy saving, long service life and economic advantages.

Extrusion line details:

Material →Color Mixer →Material Feeding →Single Screw Extruder →Extrusion Mould & calibrator → vacuum Calibration Cooling Tank → Spray Cooling Tank →Printer → Haul-off Unit →cutter →stacker or Coiler

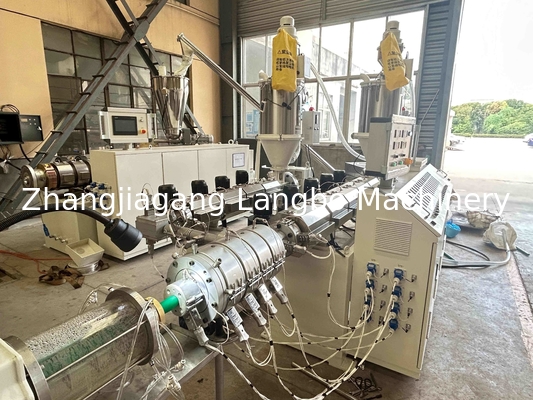

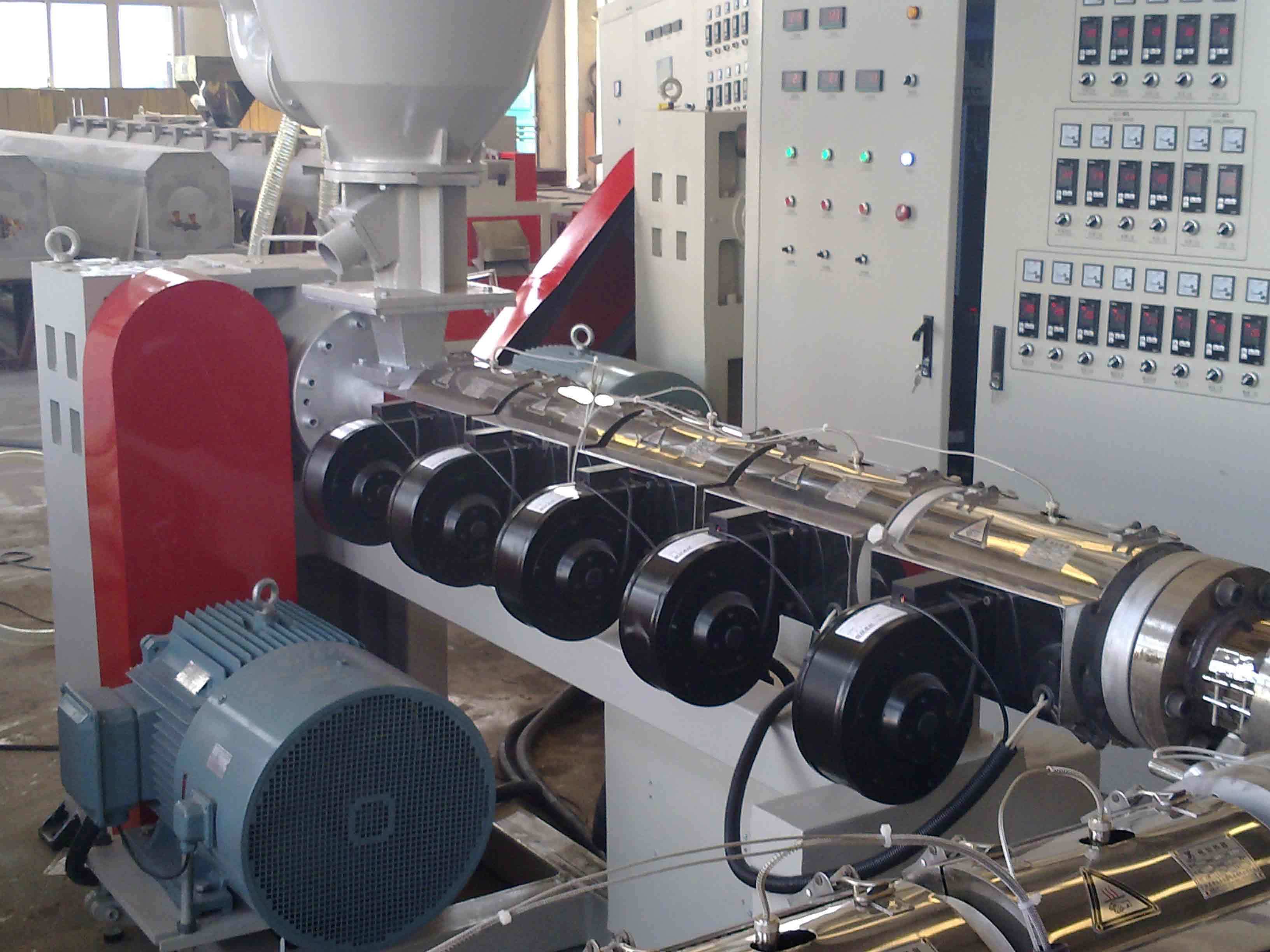

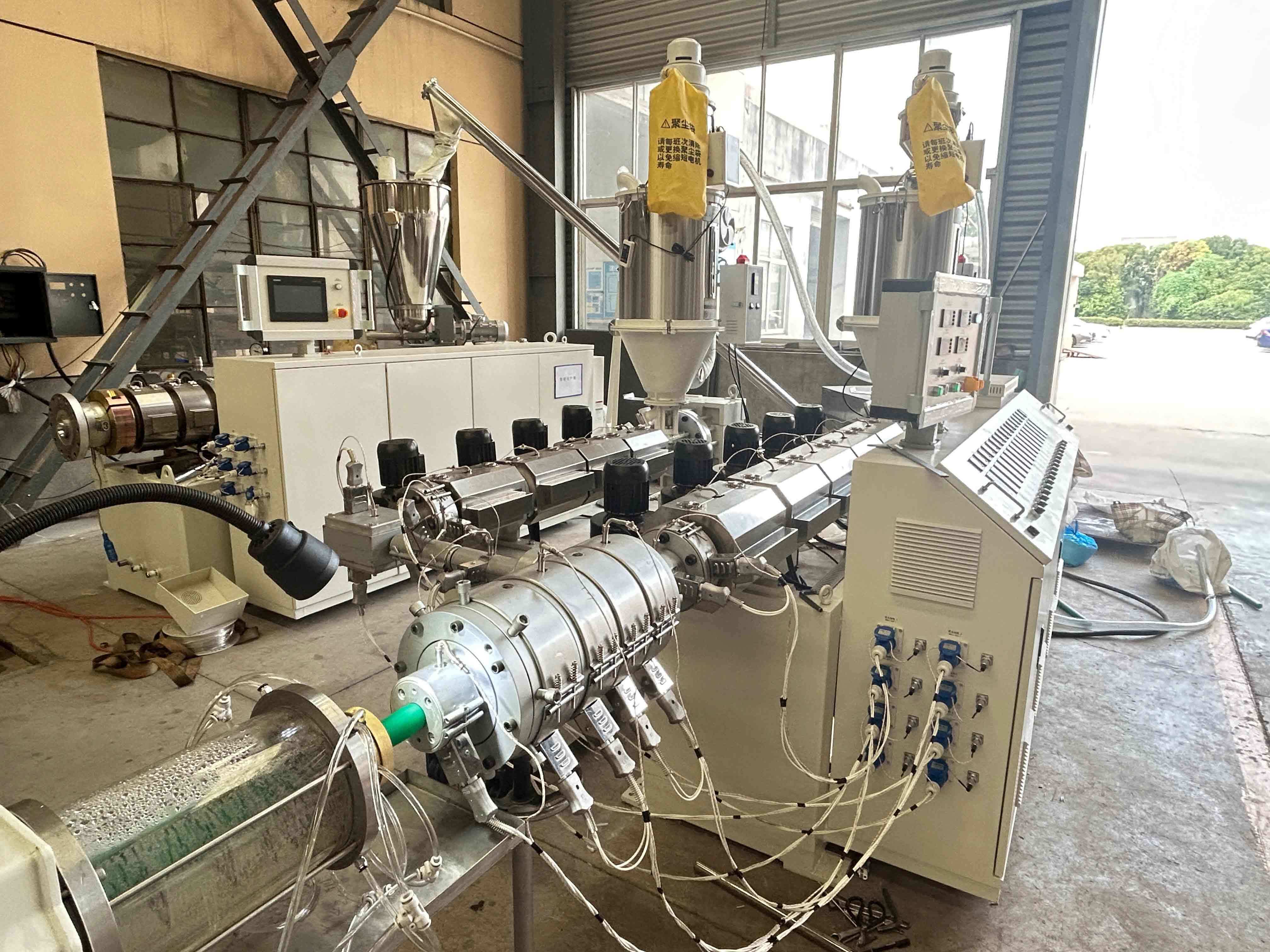

1. The main machine adopts screws specially used for polyolefin. Equipped with auto vacuum charger and auto constant temperature dryer hopper, it possesses features of high production, good plasticization and stable extruding.

2. Die heads of helical type and basket type are perfect for polyolefin, and can help to produce sound melting pressure, and improve the plasticization capacity. Meanwhile, stable material-flow and pressure grade can be guaranteed.

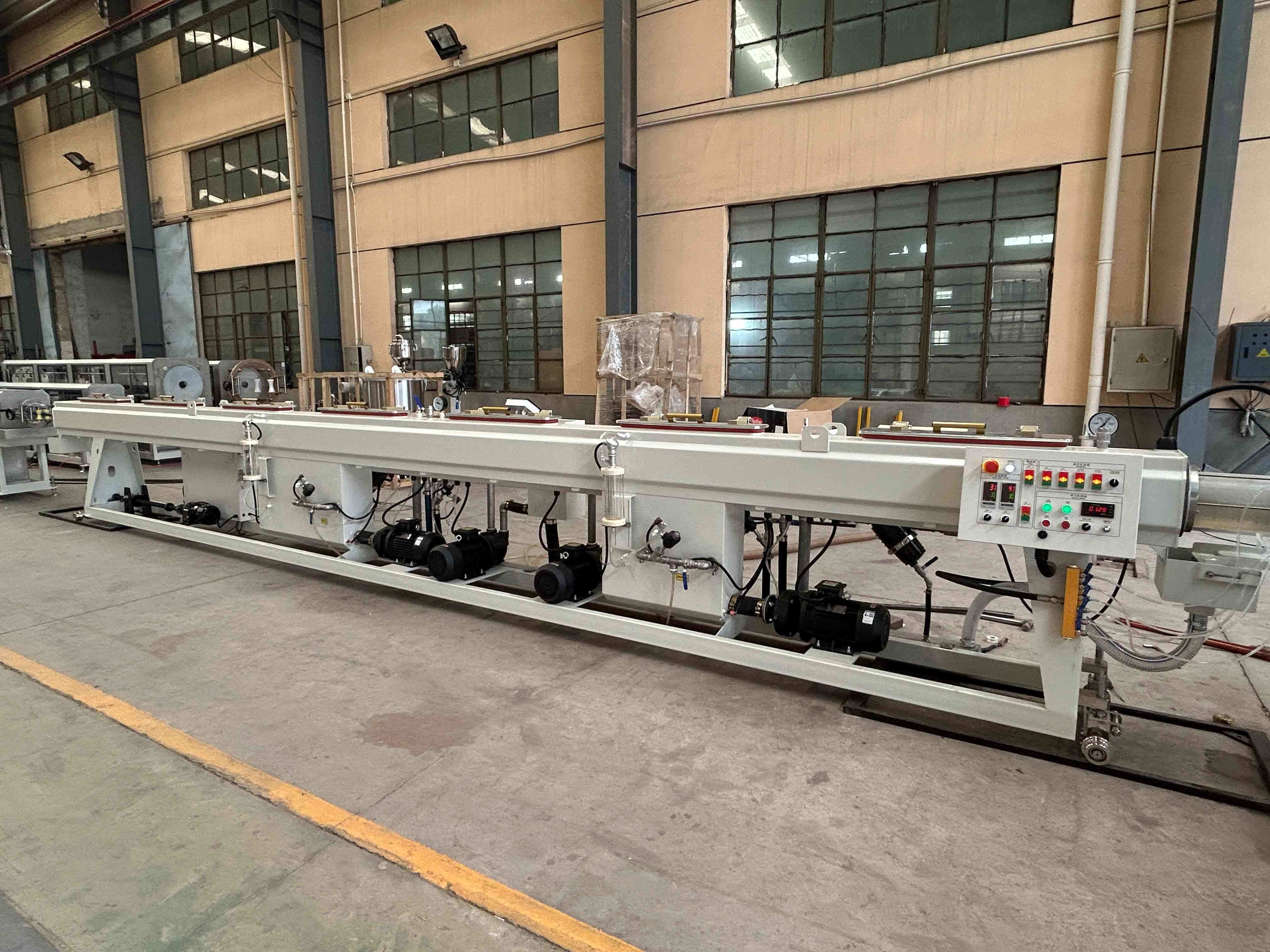

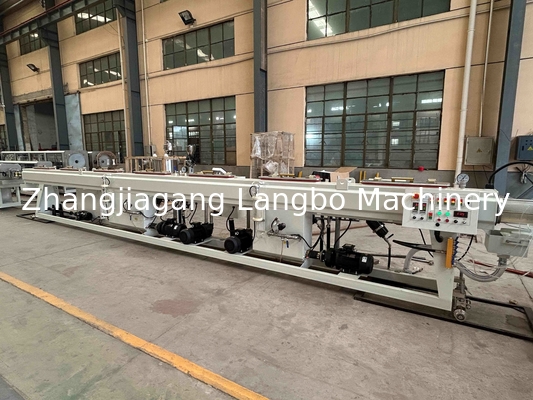

3. Advanced vacuum calibrating method improves the cleanliness and hardness of surface. Reasonable high-speed sprinkling cooling water tank guarantees the pipe quality and high speed stable extruding.

4. Caterpiller of the hauling machine adopts anti abrassion alloy material, which realizes stable traction, wide frequency adjustment range and long lifespan.

Features

1. The optimum spiral bush highly improves the output of the pipe extruder
2. Accurate temperature control system ensures material melting performance
3. Unique screw design achieves better plasticizing and high-quality products
4. Precisely designed gearbox with a high torsion guarantees stable running
5. H sharp frame to decrease vibrating of an extruder
6. Advanced PLC operation system realizes synchronization and high-quality products
7. Adopt automatic water temperature &level control and special independent filters on both vacuum and cooling tanks

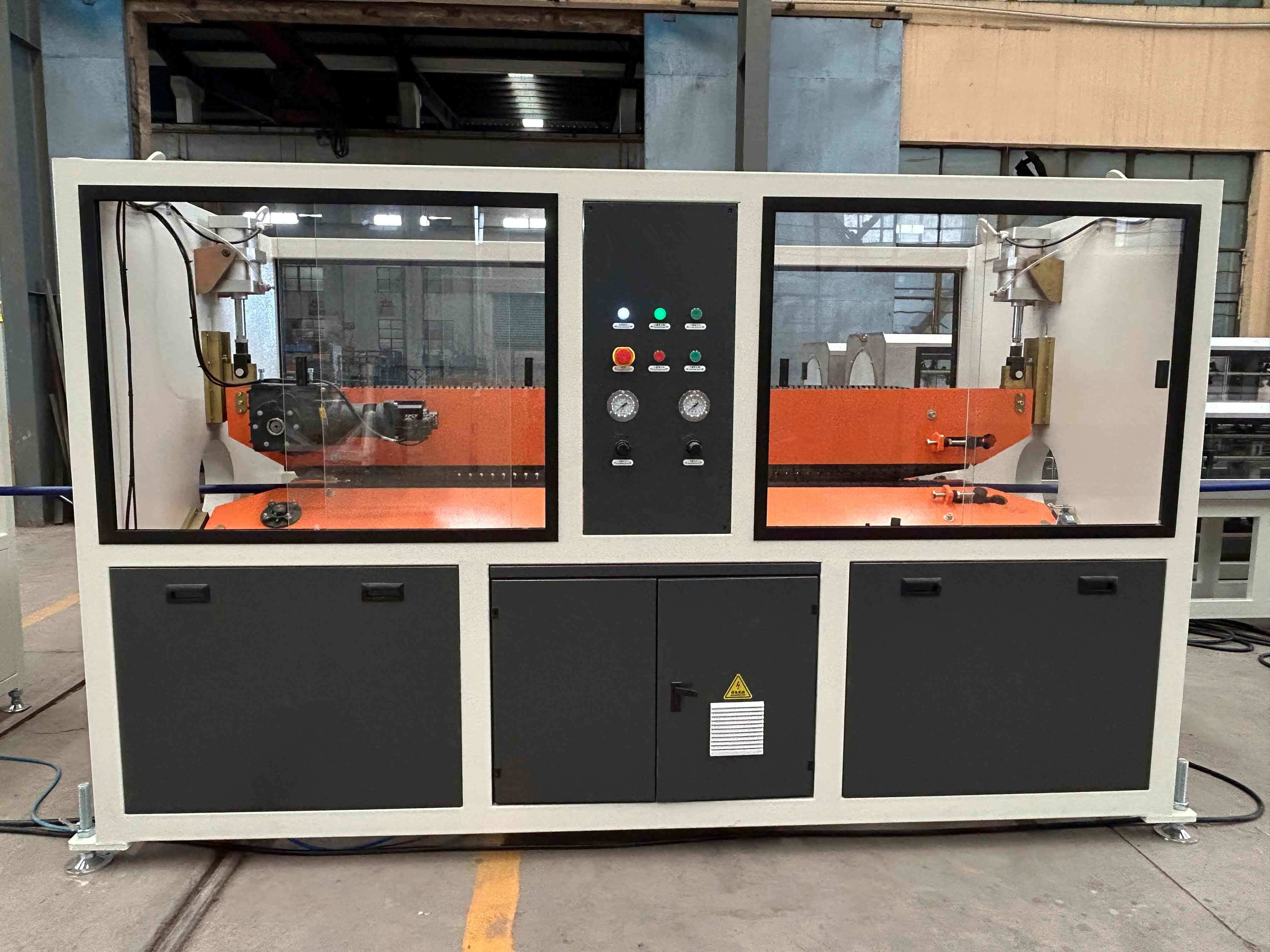

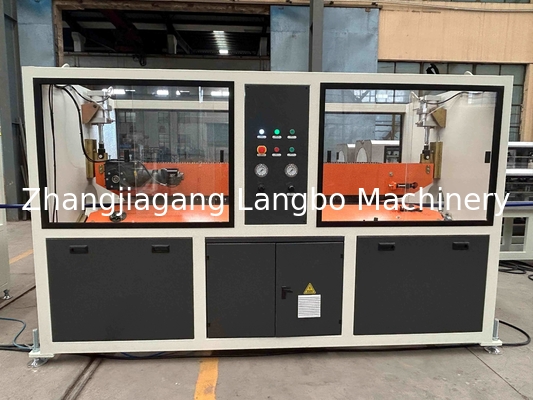

8. Offer a stable haul-off unit with 2-12 caterpillars

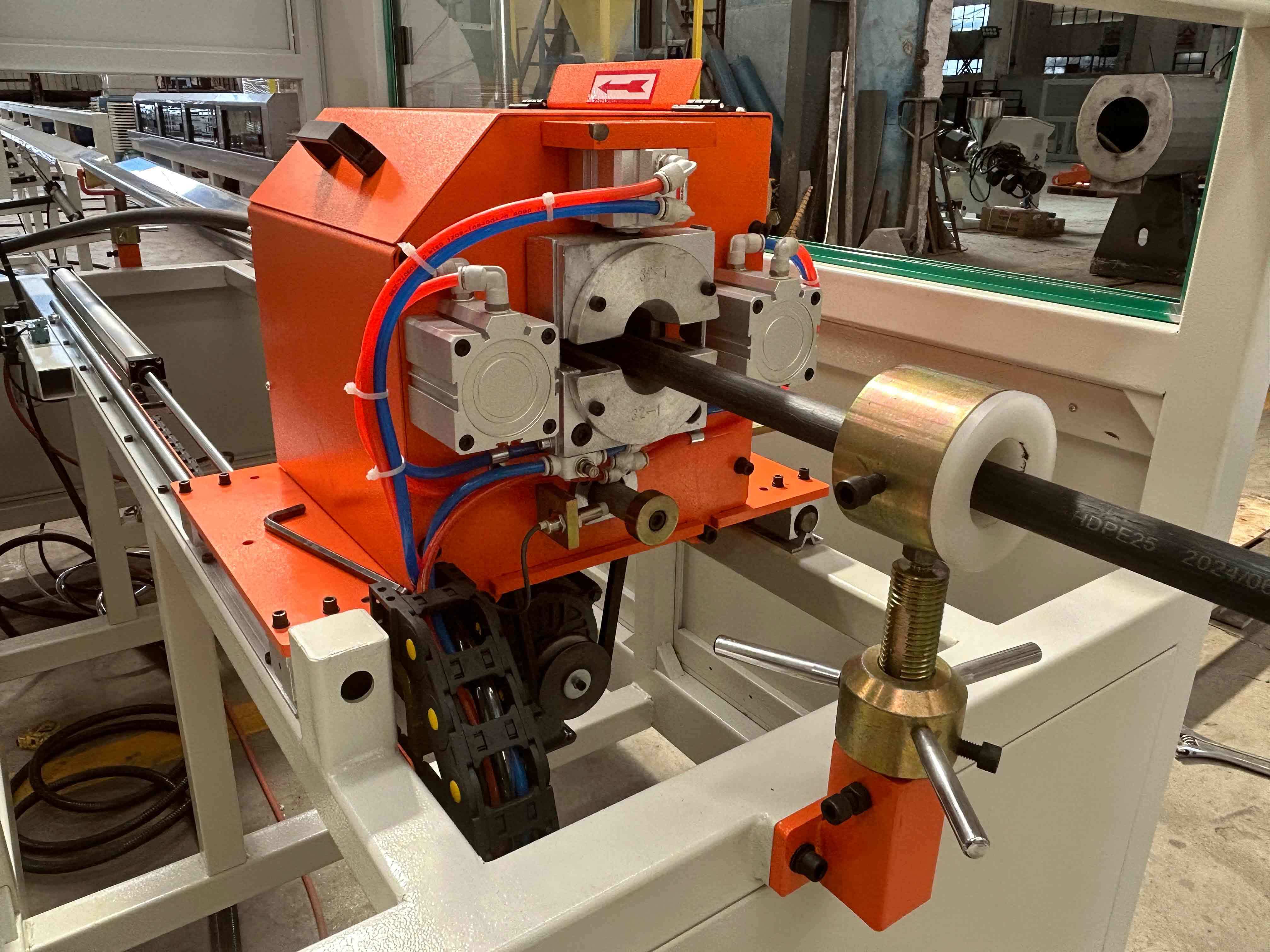

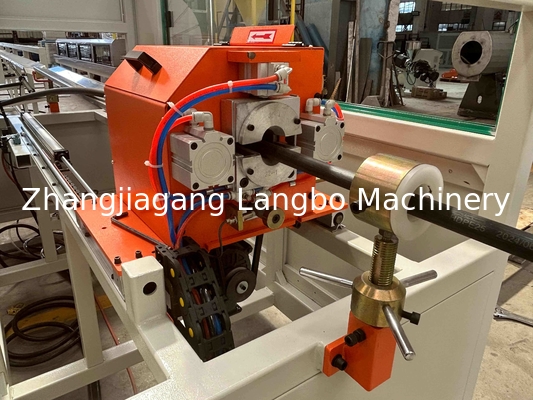

9. Provide saw &chip free cutting options
10. Low energy consumption, excellent performance, and easy maintenance
