Product Description

Our PVC Window Profile Making Machine is a state-of-the-art solution designed for high-efficiency production of premium-quality PVC window profiles. Built with advanced automation and robust construction, this machine ensures precise extrusion, smooth operation, and long-lasting durability.

Processing Process

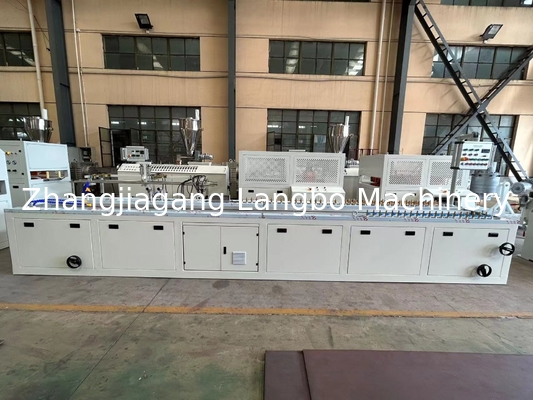

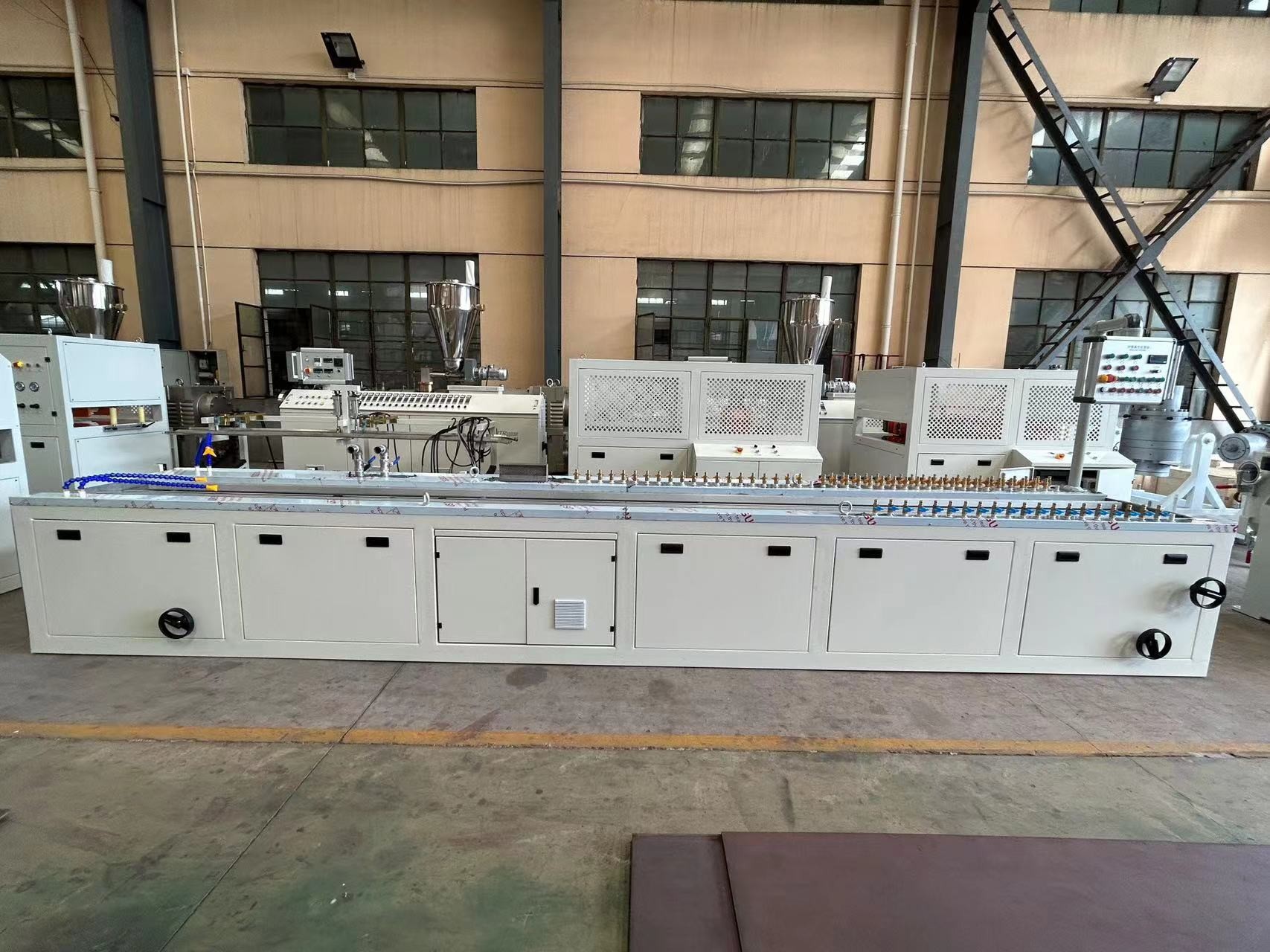

The process flow of this line is PVC powder + additive — mixing—material feeder—conical twin screw extruder— mould and calibrator—vacuum forming table—haul-off machine—cutting machine—stacker.

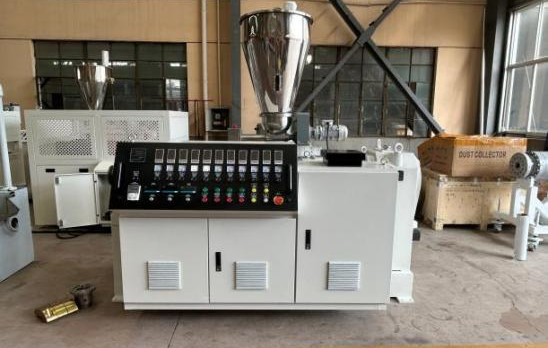

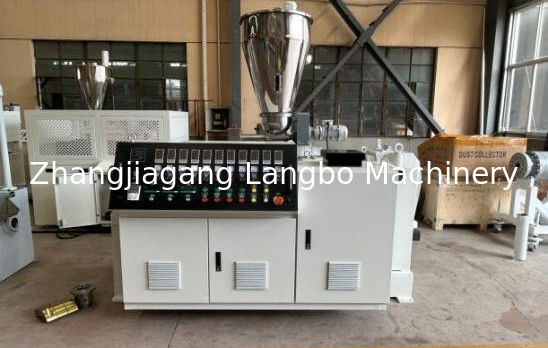

This window and door profile extrusion line adopts conical twin screw extruder, which is suitable for both PVC powder and PVC granules. It has degassing system to ensure the excellent material plasticization. The high speed mould is available, and it can largely increase the productivity.

Specifications

Product detail

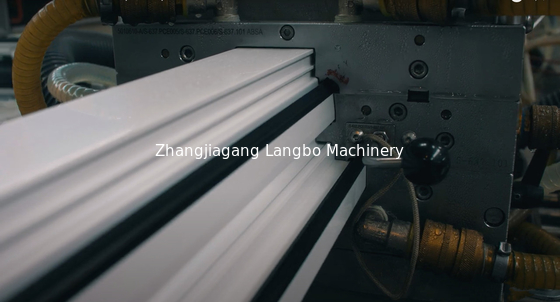

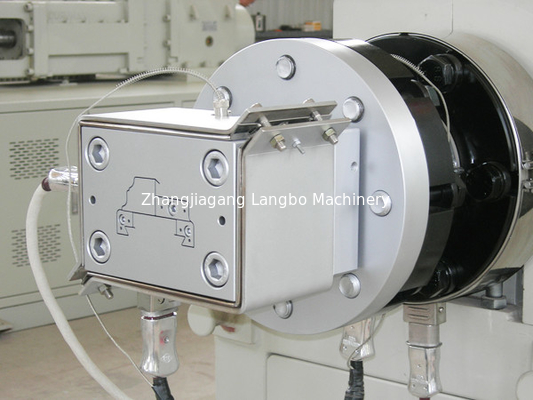

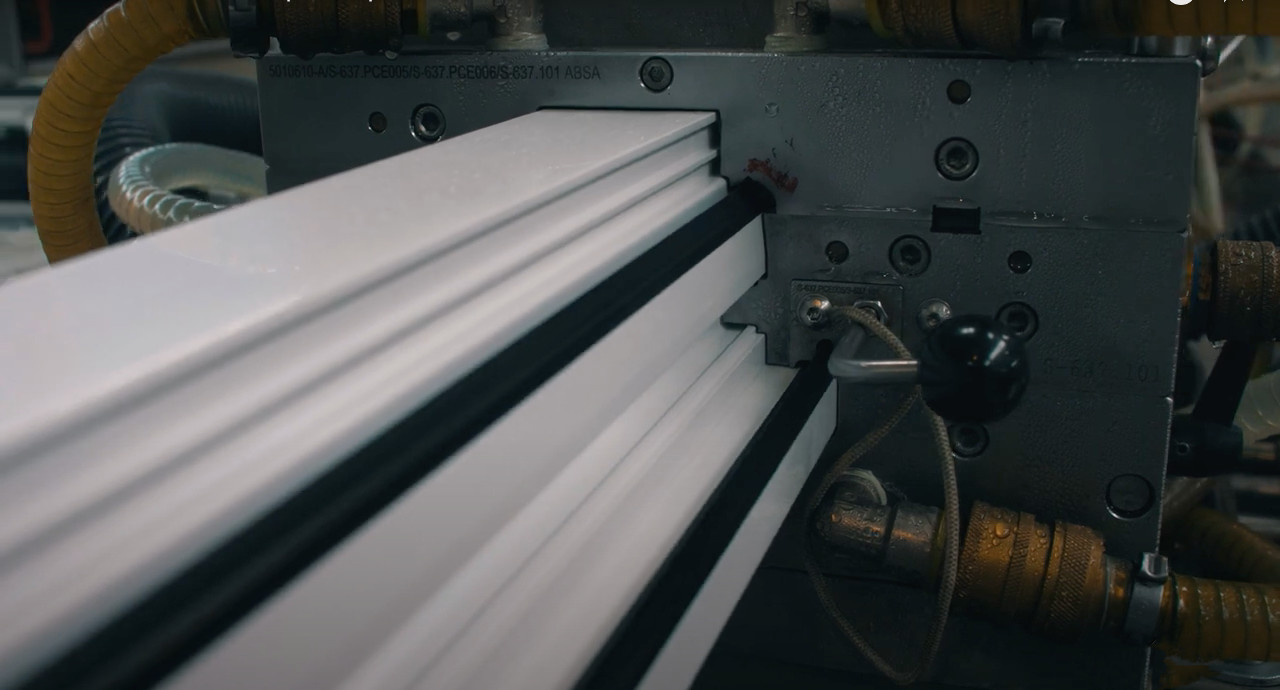

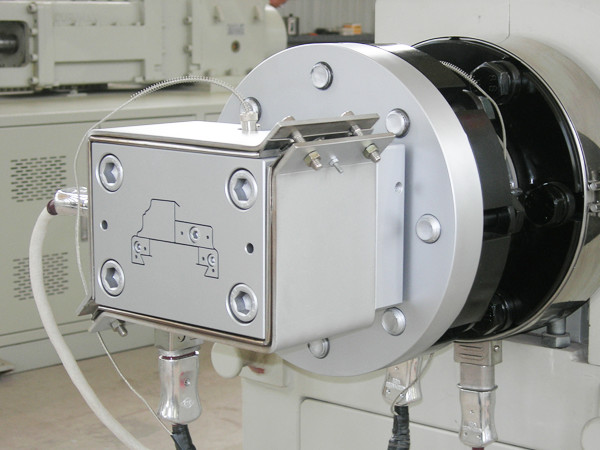

Mould for Window and door Profile

Optimized channel design ask for high flow performance. Highly inspected by our experienced engineer, the precision and stable running of the mould is guaranteed.

Calibration table

Equipped with water circuit and vacuum system, the rapid shaping and cooling by special layout will produce excellent window and door profile. Stable steel frame and high-quality body material like SUS 304 stainless steel guarantee the machine lifetime. We offer several water separator.

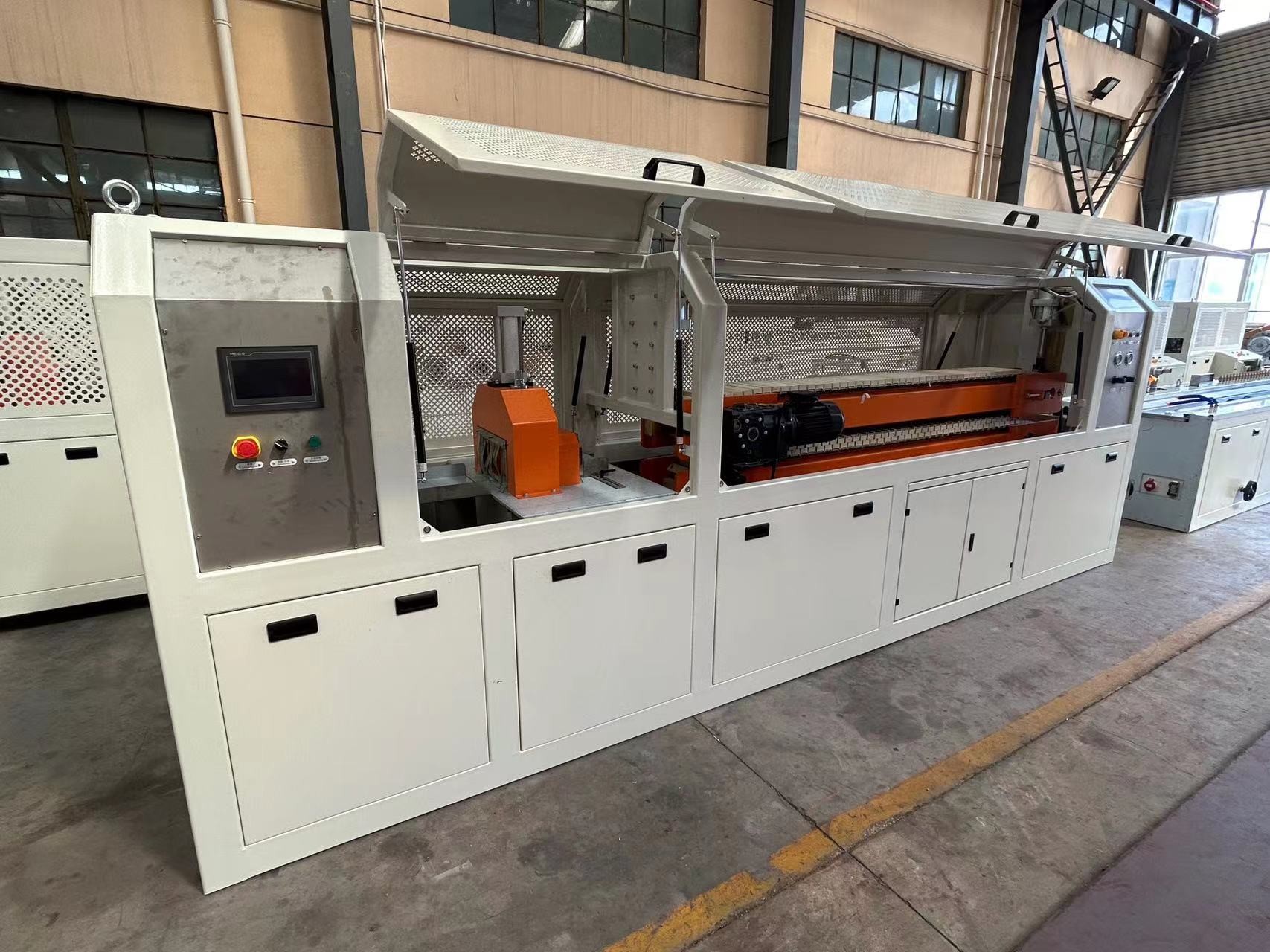

Haul-off and cutting unit

Each caterpillar is driven by independent motor offering sufficient hauling force with even force distribution along caterpillars. Highly Synchronized hauling speed and force ensures stable quality of products. We apply direct cutting for the window and door profile production line.

Stacker

We offer automatic stacker holding the produced window and door profile. It will flip periodically pulling the profiles down.

Plastic pipe production line product application

1.Special designed and well made extruder with high quality helical gear reducer and high efficiency DC motor, high output capacity;

2.Whole line with high degree of automation, easy to operate;

3.New advanced energy saving technology, lowered energy consumption;

4.High quality steel materials, strict producing process make high quality line;

5.Whole line adopt advanced design concept, using well known brand electrical components, enhanced line stability.
