Introduction:

This advanced PPR (Polypropylene Random Copolymer) conduit pipe extrusion machine is designed for high-efficiency production of PPR pipes ranging from 16mm to 630mm in diameter. Suitable for industrial, plumbing, and HVAC applications, this machine ensures high precision, durability, and smooth operation with either a twin-screw or single-screw extruder configuration.

Extrusion line details:

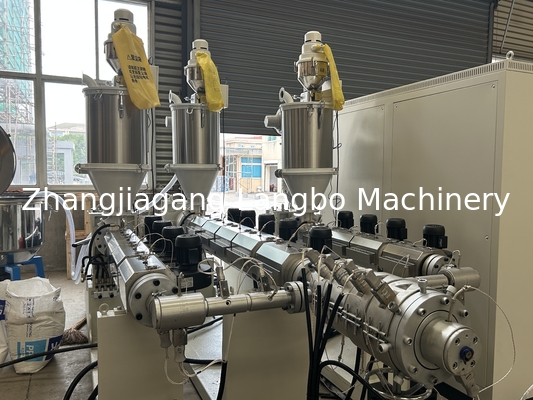

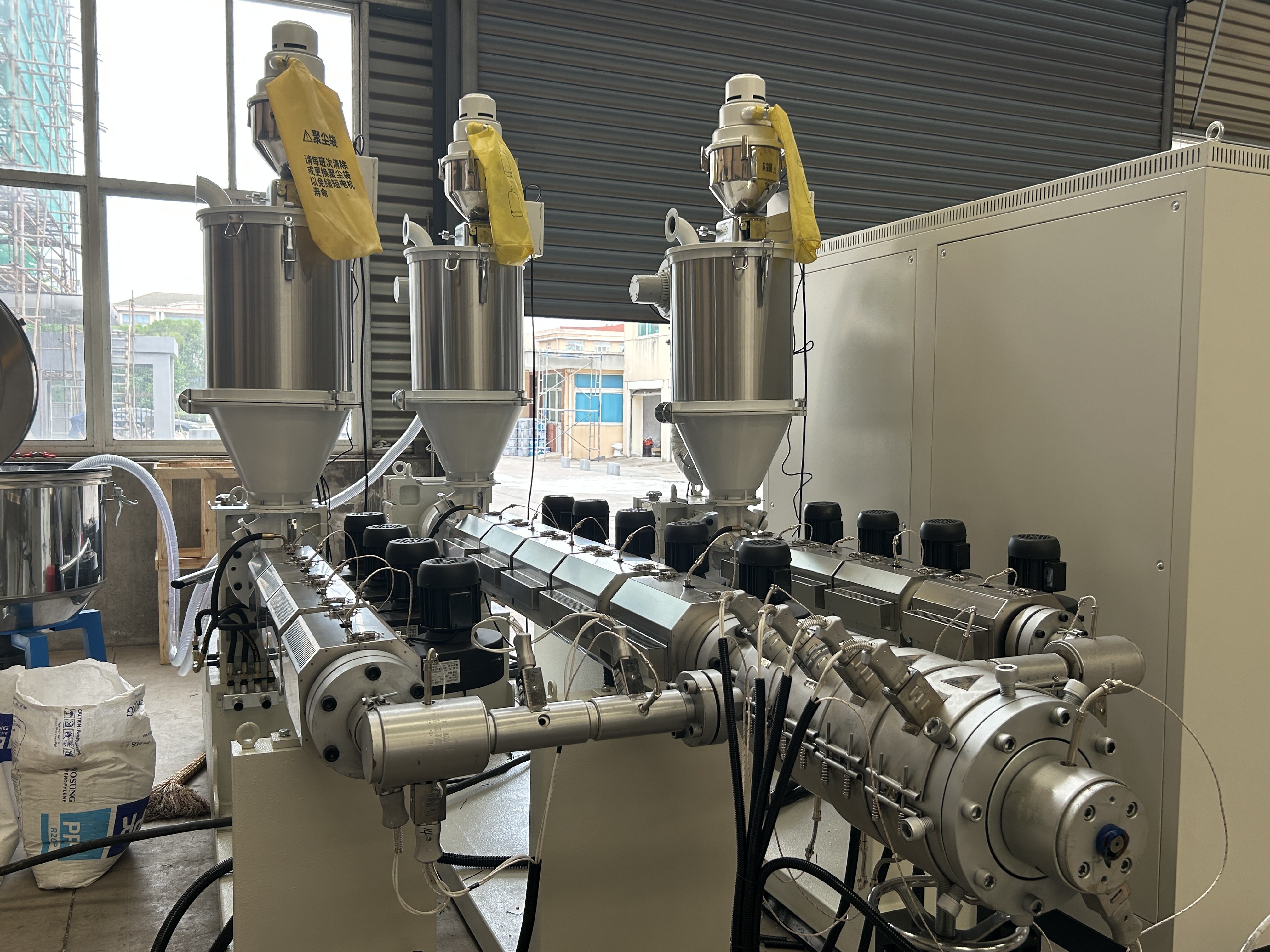

Raw material +master batches → mixing → vacuum feeder→ material dryer → single screw extruder ( small CO-extruder ) → mould → vacuum calibration tank → spray cooling tank ( water tank) → haul-off unit → cutting machine→ stacker

Raw Material Feeding

PPR resin pellets are fed into the hopper of the extruder.

Melting & Extrusion

The single/twin-screw extruder heats and melts the PPR material, pushing it through the die head to form a continuous pipe shape.

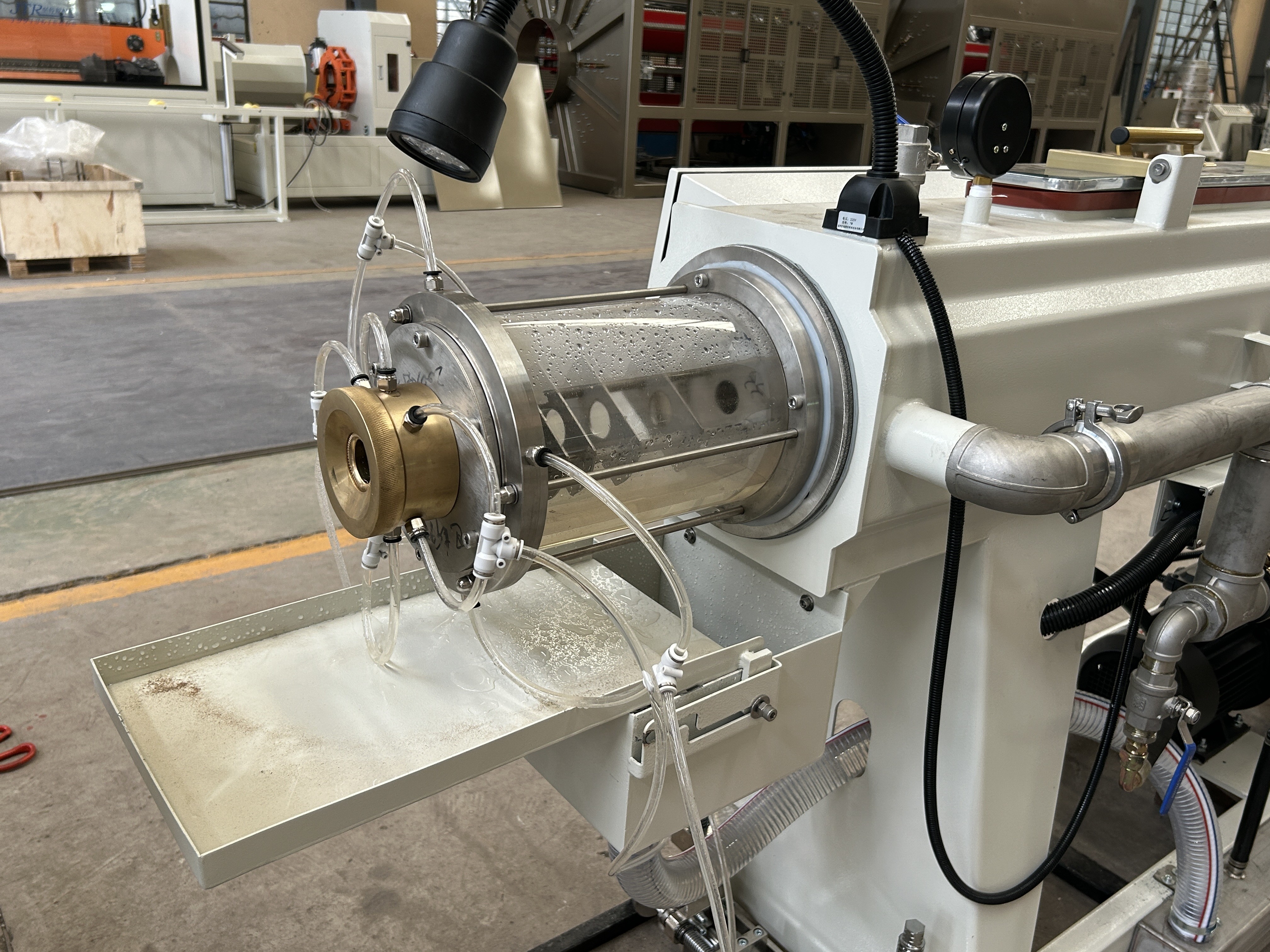

Vacuum Calibration & Sizing

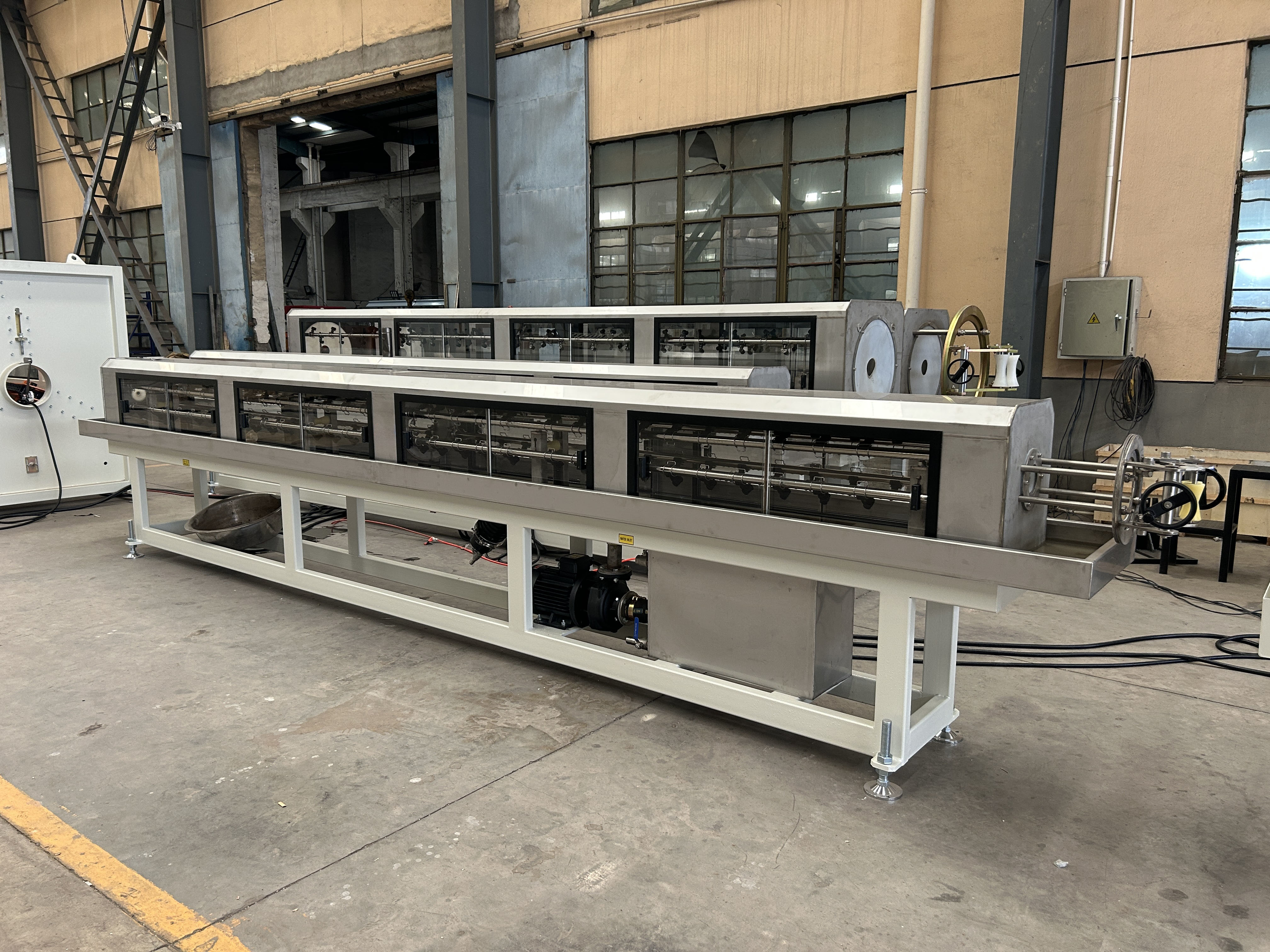

The molten pipe passes through a vacuum calibration tank to ensure precise diameter and wall thickness.

Cooling & Solidification

The pipe is cooled in a water cooling tank to harden and stabilize its structure.

Hauling & Cutting

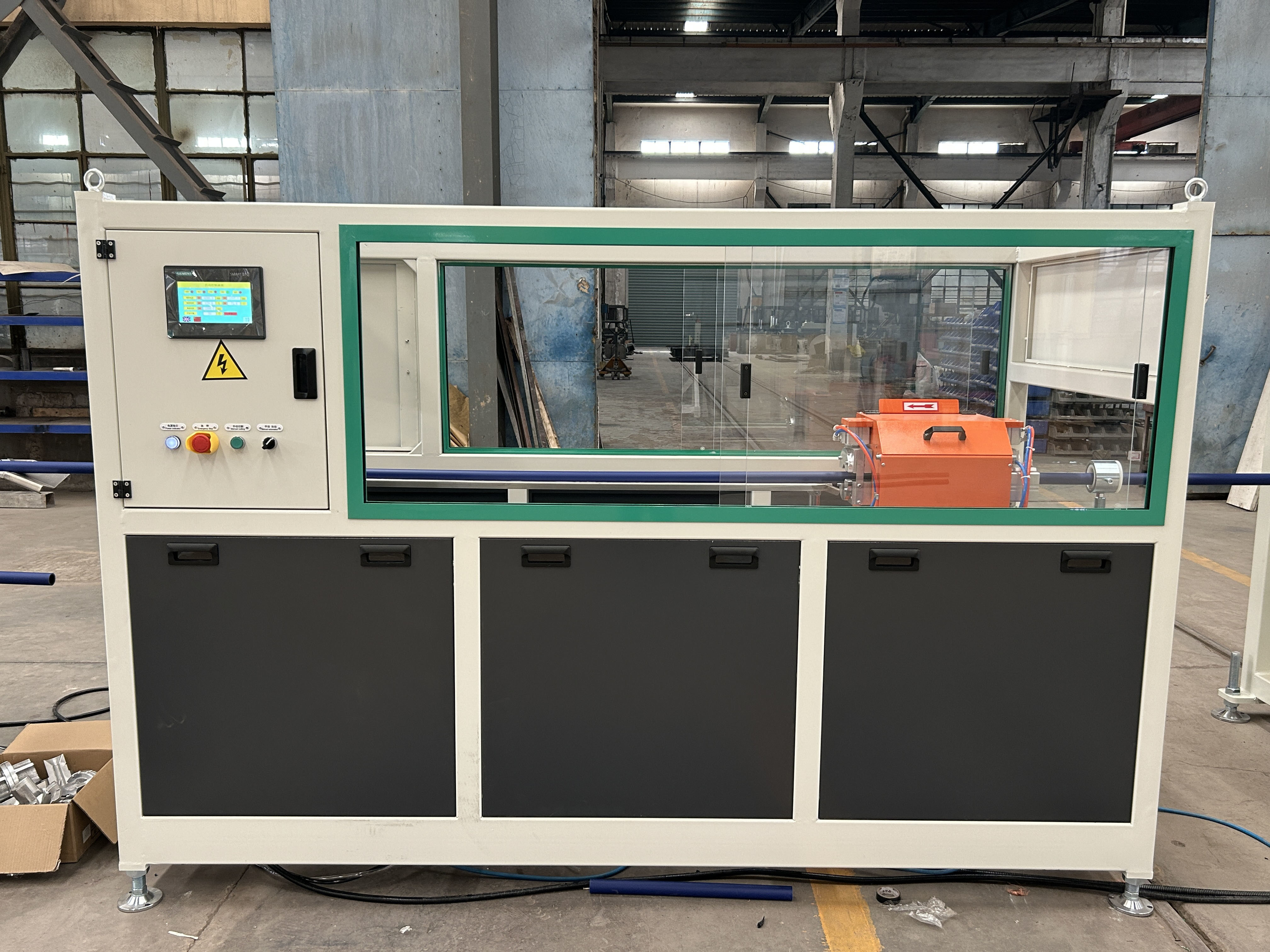

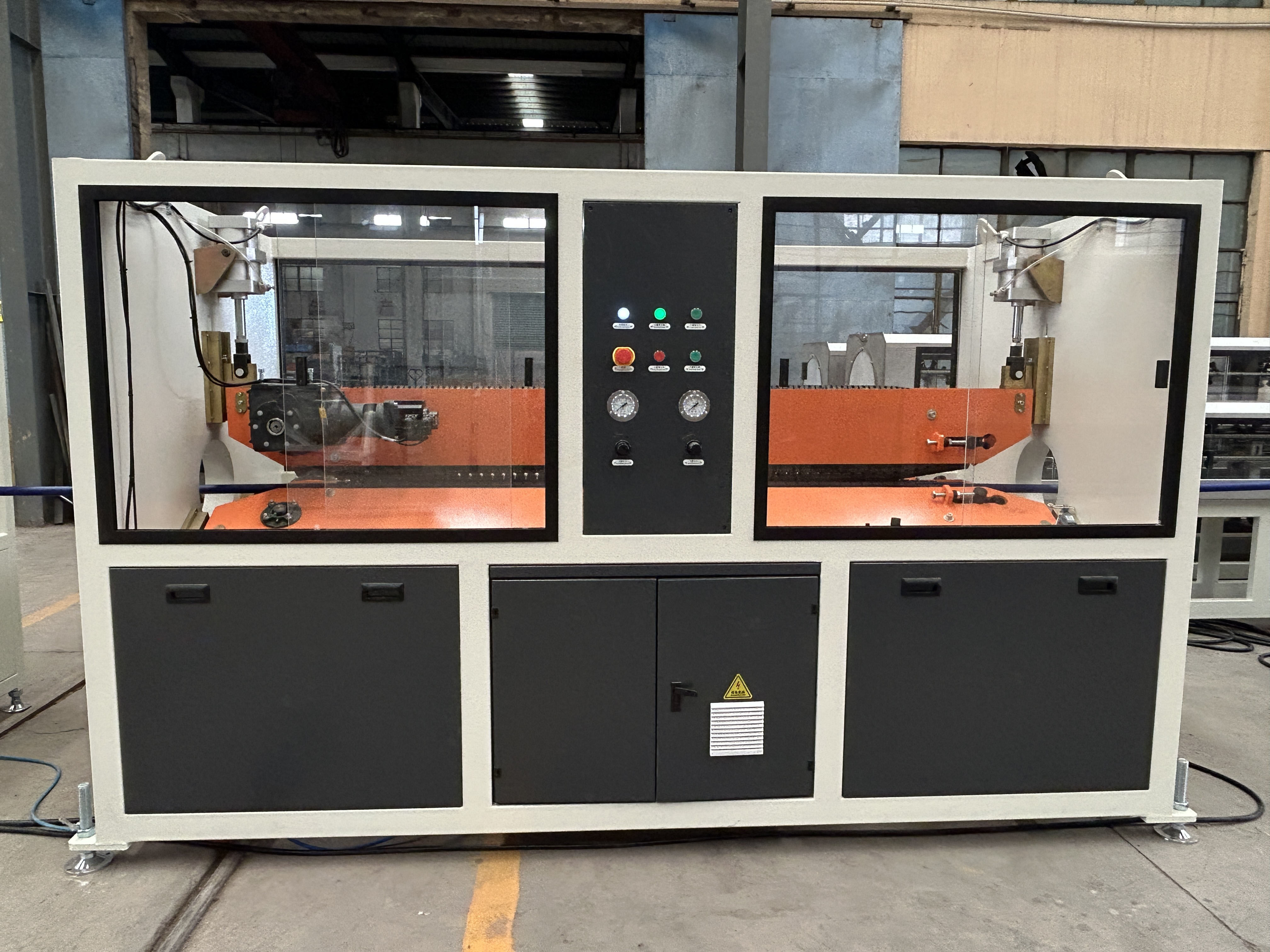

A haul-off machine pulls the pipe at a controlled speed, and an automatic cutter trims it to the required length.

Stacking & Packaging

Finished PPR pipes are collected, inspected, and packed for shipment.

Key Features:

Wide Diameter Range – Produces PPR pipes from 16mm to 630mm for various applications.

Twin/Single Screw Extruder – Offers flexibility for different production needs (higher output with twin-screw, cost-efficiency with single-screw).

High-Quality Extrusion – Ensures uniform wall thickness, smooth surface finish, and excellent mechanical properties.

Automated Control System – PLC-based control for precise temperature, speed, and pressure regulation.

Energy-Efficient – Optimized heating and cooling systems reduce power consumption.

Durable Construction – Robust design with high-grade materials for long-term reliability.

Customizable Options – Adjustable for different pipe sizes, thicknesses, and production speeds.
