PVC Trunk Extrusion Line Cable Wire Protection Trunking Profile Making Machine with Punching Device

1 SET
MOQ
USD,EUR
Price
PVC Trunk Extrusion Line Cable Wire Protection Trunking Profile Making Machine with Punching Device
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
EXTRUDER TYPE: 55/110 CONICAL TWIN SCREW EXTRUDER
PROFILE'S SIZE: 1180MM
MOTOR POWER: 22KW
RAW MATERIAL: PVC POWDER & ADDITIVES
HAUL-OFFS: TWO INDEPENDENT TRACKS
CALIBRATION TABLE: EIGHT MTERS LONG
PACKING METHOD: WOODEN BOX AND FILM PACKAGE
PROFILE SIZE: ACCORDING TO CUSTOMERS' DRAWING
DELIVERY TIME: WITHIN 90 DAYS
Highlight:

Decoration Profile Extrusion Machine

,

Window Frame pvc profile extrusion line

,

Window Frame pvc profile production line
Basic Infomation
Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE,ISO9001
Model Number: LB-1180
Payment & Shipping Terms
Packaging Details: STANDARD PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C,T/T
Supply Ability: 15 SETS PER MONTH
Product Description

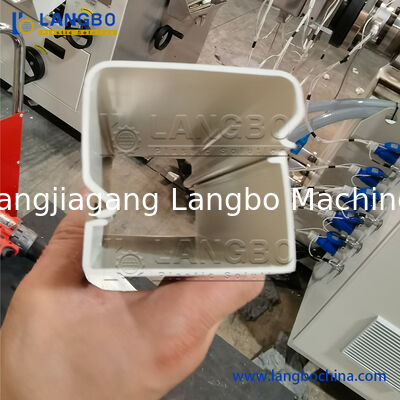

Complete production line for manufacturing PVC trunking profiles with integrated punching device for cable wire protection systems.
Overview
This PVC profile production line is engineered for manufacturing various PVC profiles including window & door profiles, ceiling panels, and cable trunking systems. Custom solutions and molds are developed based on specific profile drawings.
Production Process
The manufacturing workflow follows: PVC powder + additives → material mixing → feeder → twin screw extruder → mold and calibrator → vacuum forming table → haul-off machine → cutting machine → discharge rack.
Featuring a conical twin screw extruder compatible with both PVC powder and granules, this line includes a degassing system for superior material plasticization. High-speed molds significantly enhance production efficiency.
Technical Specifications
Model LB180 LB240 LB300 LB600
Max Product Width (mm) 180 240 300 600
Screw Model SJ55/110 SJ65/132 SJ65/132 SJ80/156
Motor Power 22KW 37KW 37KW 55KW
Cooling Water (m³/h) 5 7 7 10
Compressor (m³/h) 0.2 0.3 0.3 0.4
Total Length (m) 18 22 22 25
Key Components
Conical Twin Screw Extruder
PVC Trunk Extrusion Line Cable Wire Protection Trunking Profile Making Machine with Punching Device 0
Specially engineered screws process dry PVC powder blends efficiently. Our extruder design ensures homogeneous mixing, superior plastification, and optimal conveying efficiency. Features permanent magnet synchronous motor for high energy efficiency and PLC control system for centralized production line management.
Plate Mould System
PVC Trunk Extrusion Line Cable Wire Protection Trunking Profile Making Machine with Punching Device 1
Double strand mold configuration significantly boosts productivity for PVC trunking production. Optimized channel design ensures excellent flow performance, while advanced plate molds produce profiles with exceptional dimensional precision.

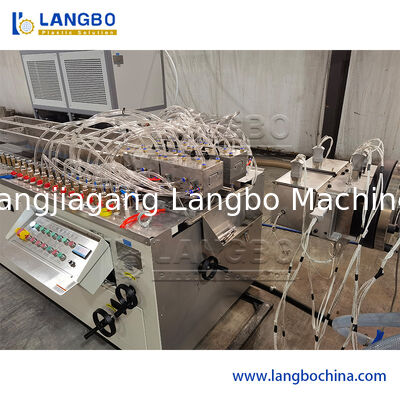

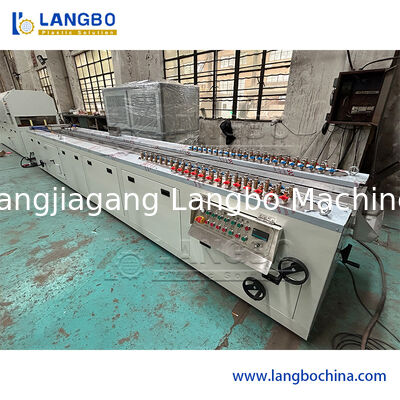

Calibration Table
PVC Trunk Extrusion Line Cable Wire Protection Trunking Profile Making Machine with Punching Device 2
Constructed with stable steel frame and SUS 304 stainless steel body. Multi-dimensional position adjustment system combined with precisely arranged water pumps and vacuum calibrators ensures rapid shaping and cooling of PVC profiles. Adequate table length guarantees proper profile formation.
Haul-off & Cutting System
PVC Trunk Extrusion Line Cable Wire Protection Trunking Profile Making Machine with Punching Device 3
Even force distribution across caterpillars provides sufficient hauling capacity. High-quality rubber components ensure reliable performance. Pneumatic pressure system facilitates easy adjustments and product protection. Customizable cutting options include swarfless and saw cutting methods.
Delivery & Payment Terms
  • Delivery Time: 30 days after order confirmation
  • Warranty: 12 months comprehensive coverage
  • Payment: T/T 30% advance, 70% balance before delivery
  • Packing: Standard export wooden cases
Customer Support Services
  • One-year comprehensive machine guarantee
  • 24/7 technical support availability
  • Overseas installation and commissioning by qualified engineers
  • Post-warranty maintenance guidance and competitively priced spare parts
  • Comprehensive operator training programs
