WPC Wood Plastic Composite Profile Extrusion Production Line
Professional Wood Plastic Profile Flooring Composite Board Extrusion Production Line with top-brand components ensuring long operational lifetime.
Production Capabilities

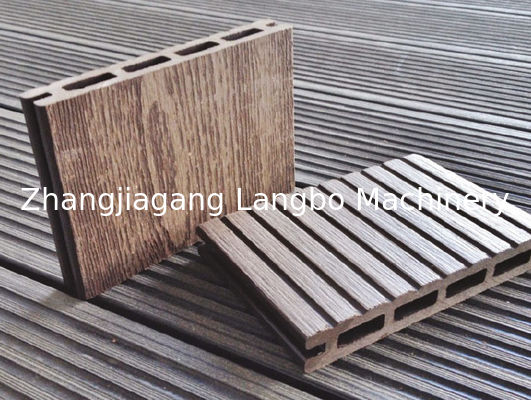

This extrusion line is widely used for producing various WPC profiles, including decking profiles, panels, boards, fencing posts, rails, cladding, and wall panels.
Processing Workflow

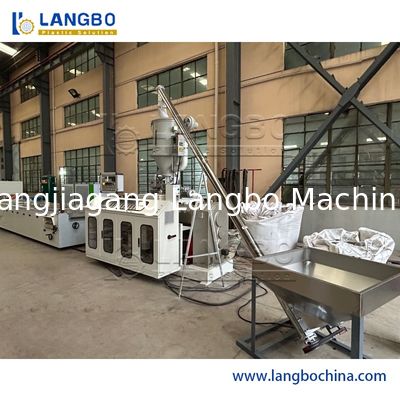

The complete process flow: PP/PE/PVC + wood powder + additive → mixing material feeder → twin screw extruder → mould → calibration table → cutting unit → discharge rack.

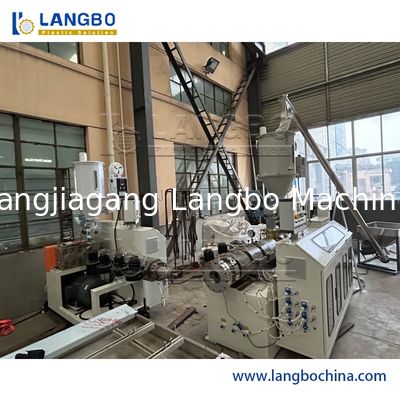

This WPC profile extrusion line features a conical twin screw extruder with degassing system for excellent material plasticization. The mould and calibrator utilize wearable materials, while the haul-off and cutter machines can be designed as complete units or separate machines.
Technical Specifications
| Model |
LB180 |
LB240 |
LB300 |
LB600 |
| Max Product Width (mm) |
180 |
240 |
300 |
600 |
| Screw Model |
SJ55/110 |
SJ65/132 |
SJ65/132 |
SJ80/156 |
| Motor Power |
22KW |
37KW |
37KW |
55KW |
| Cooling Water (m³/h) |
5 |
7 |
7 |
10 |
| Compressor (m³/h) |
0.2 |
0.3 |
0.3 |
0.4 |
| Total Length (m) |
18 |
22 |
22 |
25 |
Key Components
Conical Twin Screw Extruder
Screws are specifically designed for processing dry PVC powder blend. Our conical twin screw extruder design caters to raw material characteristics ensuring homogeneous mixture, better plastification, and conveying efficiency. Features permanent magnet synchronous motor for high energy efficiency and PLC control system for centralized production line management.
Plate Mould
We offer double strand mould for PVC trunking production line, significantly improving productivity. Optimized channel design ensures high flow performance, while advanced plate mould technology produces profiles with high precision.
Calibration Table
Features stable steel frame construction with SUS 304 stainless steel body. Multi-dimension position adjustment system with precisely arranged water pumps and vacuum calibrators ensures rapid shaping and cooling of PVC profiles. Sufficient length guarantees proper profile formation.

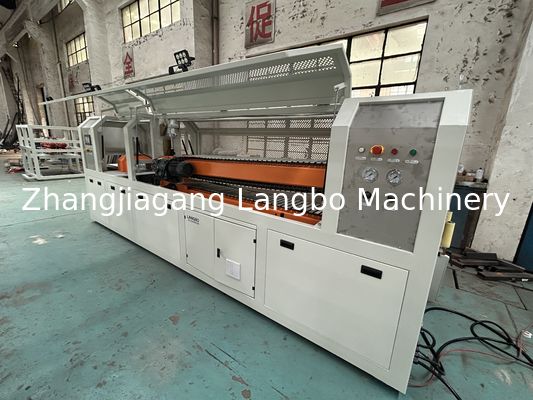

Haul-off & Cutter Combination
Even force distribution along each crawler track provides sufficient hauling force. High-quality rubber components ensure reliable operation. Pneumatic pressure system facilitates easy adjustment and product protection. Two cutting methods available: swarfless and saw cutting, customizable to your requirements.
Delivery & Payment Terms
- Delivery: 30 days after order confirmation
- Warranty: 12 months comprehensive coverage
- Payment: T/T 30% in advance, 70% balance before delivery
- Packing: Standard export wooden cases
Customer Support Services
- One-year guarantee for complete machine
- 24-hour technical support availability
- Overseas installation and commissioning services by our engineers
- Post-warranty maintenance guidance and competitively priced spare parts
- Comprehensive operator training services
