Single Screw PP PE Pipe Extruder With Omron Temperature Contrller
Product Details
| Name: | PE Pipe Extrusion Line | Application: | Pipe Making |
|---|---|---|---|
| Plastic Process: | PE | Temperature Contrller: | Omron |
| Inverter: | ABB | Automatic Grade: | Fully Automatic |
| Screw Design: | Single Screw | Voltage: | 380V 50HZ 3Phase(Customized) |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training | Control: | PLC+Touch Screen |
| Highlight |
hdpe pipe production line,plastic pipe extrusion machine |
||
Product Description
Single Screw PP PE Pipe Extruder With Omron Temperature Contrller
Quick detail:

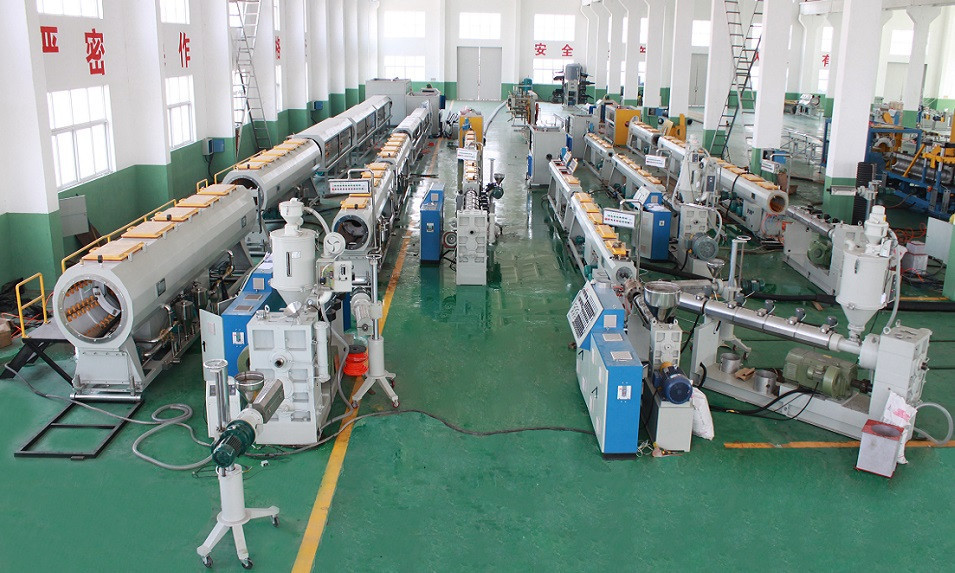

1. Configuration:
PE PP PPR pipe extrusion equipment is consisted of extruder, vacuum calibrator, hauling machine,cutter and
tipping rack, hauling machine unit has come ways of hauling, such as crawler track type, three-claw type, four-
claw type, six-claw type and so on. There are also knife-lifting cutter and planetary cutter
2. Application:
PE PP PPR pipe extrusion equipment is mainly used in the production of water supply and drainage pipes,
which used for agriculture and construction, cable coating and other fields.
Description:

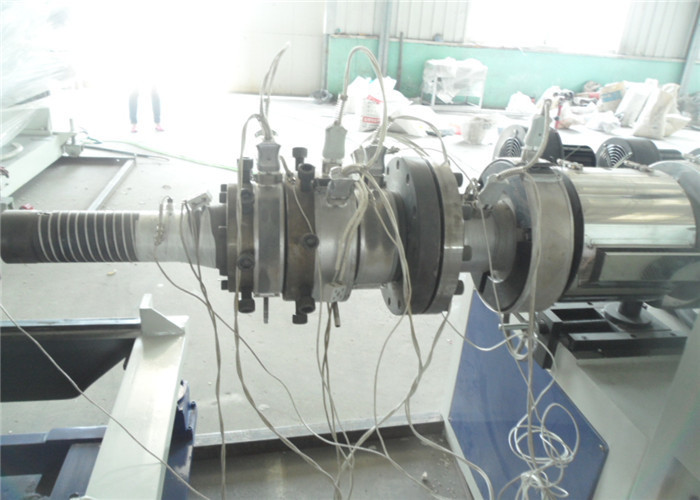

Main structure of PE Pipe Extrusion Machinery:
Adopt low consumption single screw extruder, the extruder L/D ratio is 33:1, nitriding layer is 0.4-0.7mm.Adopt
stainless steel vacuum sizing water tank, to ensure the durablity of the machine.Mould can according to
customer's requirement to do it.
1.screw specication:various kinds of screw specification are optional for client,adopt high quality
screw,38CrMoAlA material with Nitriding treatment.
2.full set of mould can safisfy different diameter pipe production
3.spraying and cooling in high level vacuum condition to ensure shaping the pipe effectively
4.stainless steel material barrel ,recycling water device to keep the reasonable working temperature
5.automatic length accounting device for precise cutting
6.different kinds of cutting way are optional:
1)non chipping machine ,adopt advanced Germany technique
2)planetary cutting machine (main suitable for large diameter pipe)
3)saw blade cutting

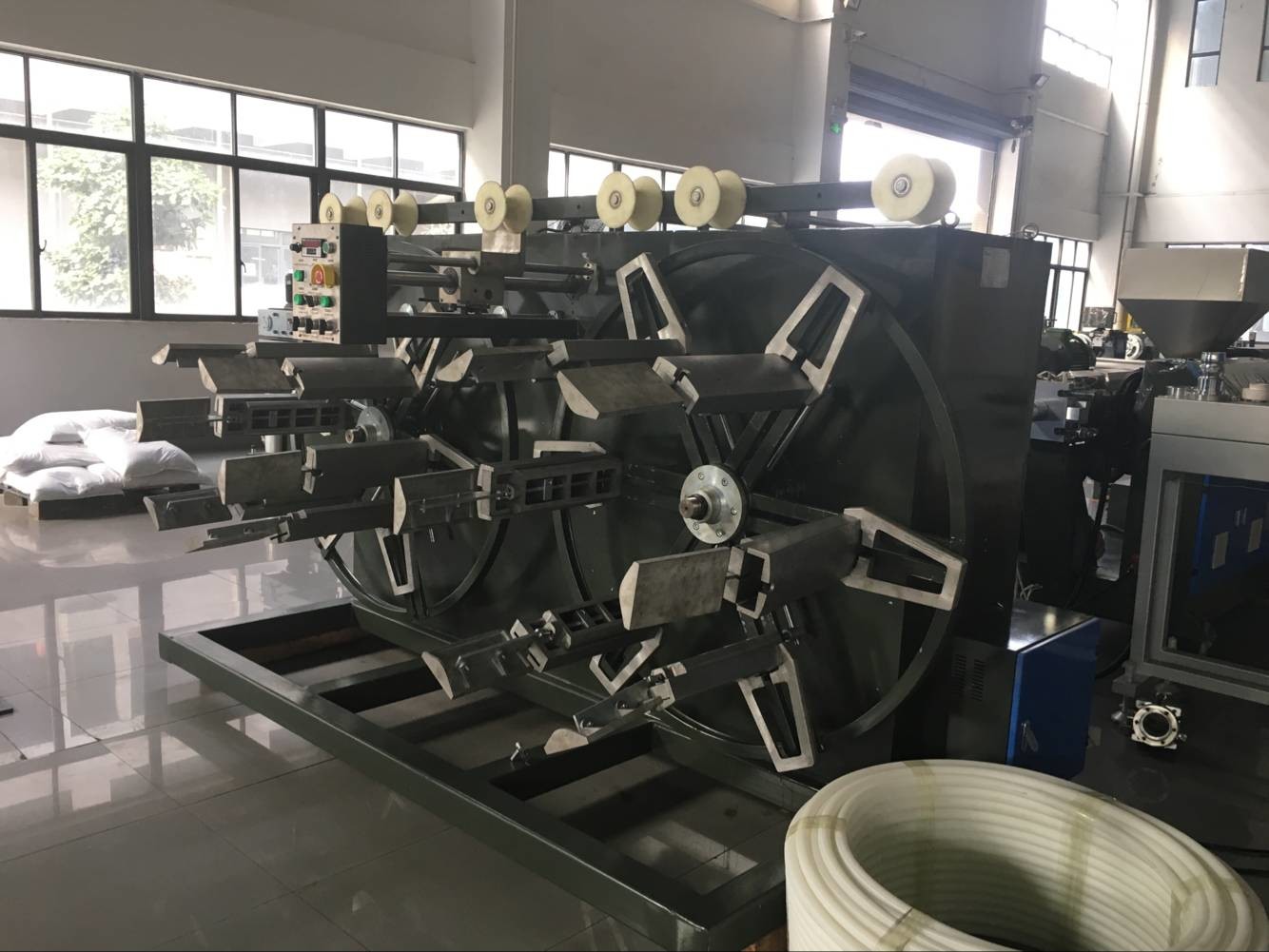

7.stacker main part is stainless steel and adopt pneumatic controlled
Production Line Strucure
| Model | Screw Diameter | L/D Ratio | Production speed | Machine total power | Machine size |
| SJ50/38 | 50mm | 38:1 | 25m/min | 55kw | 27x1.5x3 |
| SJ60/38 | 60mm | 38:1 | 35m/min | 110kw | 34x1.5x3 |
| SJ75/38 | 75mm | 38:1 | 45m/min | 160kw | 58x2.5x3 |
