75-250mm PVC Pipe Electrical Conduit Water Supply Making Machine

Brand Name: LB
Model Number: LB-110
Place of Origin: ZHANGJIAGANG, JIANGSU
Certification: CE ISO9001
Minimum Order Quantity: 1 SET
Price: USD EUR
Supply Ability: 15 SETS PER MONTH
Tags

pvc pipe production line

plastic tube making machine

plastic pipe extrusion line

Product Details

PIPE DIAMETER: 75-250 EXTRUDER'S POWER: 55KW
COLOUR: CUSTOMIZED PIPE UMBERS: SINGLE PIPE
RAW MATERIAL: PVC POWDER & ADDITIVES APPLICATION: WATER SUPPLY PIPE
Voltage: 380V 50Hz Or Customized Automatic Grade: Full-automatically
Screw Design: Twin Screw And Barrel After-sales Service Provided: Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Video Technical Support
Warranty: 18 Months Inverter: ABB
Color: Customizable Raw Material: PVC Powder
Motor: Brand Contactor: OR SCHNIDER
Screw And Barrel: Conical Twin Screw Extruder Screw Diameter: 65/132
Pipe Application: Water Supply Packages: Film And Boxes
Payment: T/T, L/C, Western Union Delivery Time: 60 Days
Highlight

16-630mm PVC Pipe Extruder

,

Customized Voltage PVC Pipe Extruder

,

PE PVC Pipe Extruder

Product Description

75-250mm PVC Pipe Electrical Conduit Water Supply Making Machine
This complete PVC pipe production line manufactures high-quality PVC/UPVC pipes ranging from 16mm to 800mm in diameter. The system is engineered for producing electrical conduit pipes, water supply pipes, and construction plumbing pipes with various diameters and wall thickness specifications.
Applications
The manufactured UPVC pipes serve multiple applications including electrical conduit systems, water supply networks, sewage pipelines, residential decoration, chemical transportation, and gas distribution lines. These pipes feature exceptional strength, structural integrity, chemical resistance, durability, thermal stability, non-toxic safety properties, and cost-effective maintenance.
Production Process
  • PVC powder + additives mixing
  • Material feeding system
  • Twin screw extrusion
  • Molding and calibration
  • Vacuum and cooling tank
  • Spray cooling system
  • Haul-off mechanism
  • Precision cutting
  • Discharge rack or pipe belling
Technical Specifications
Model Pipe Diameter (mm) Extruder Model Motor Power (KW)
LB-32F 16-32 (Four Pipe) SJSZ65/132 37 AC
LB-32E 16-32 (Double Pipe) SJSZ51/105 22 AC
LB-32W 16-32 (Double Pipe) SJSZ65/132 37 AC
LB-40E 16-40 (Double Pipe) SJSZ51/105 22 AC
LB-40W 16-40 (Double Pipe) SJSZ65/132 37 AC
LB-50E 16-50 (Double Pipe) SJSZ51/105 22 AC
LB-50W 16-50 (Double Pipe) SJSZ65/132 37 AC
LB-63W 16-63 (Double Pipe) SJSZ65/132 37 AC
System Components
Mixer Unit
Features specialized mixer design that reduces raw material self-friction, enhancing energy utilization efficiency. Operates with vacuum suction loading, low noise levels, and dust-free working conditions.

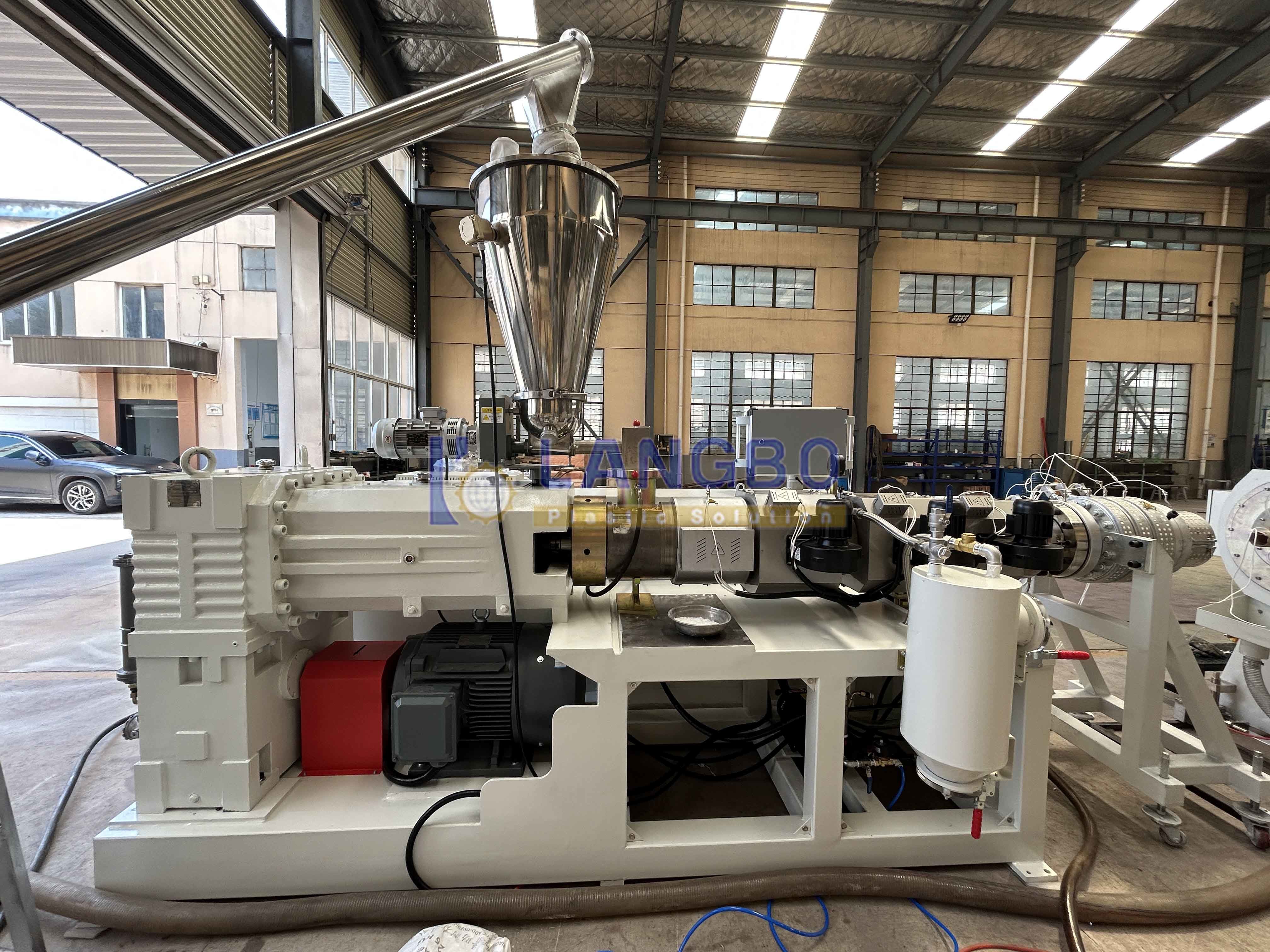

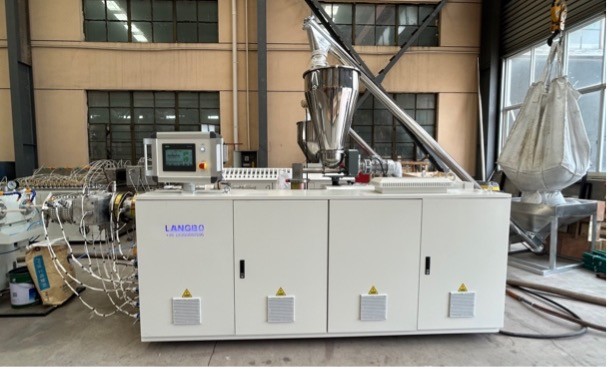

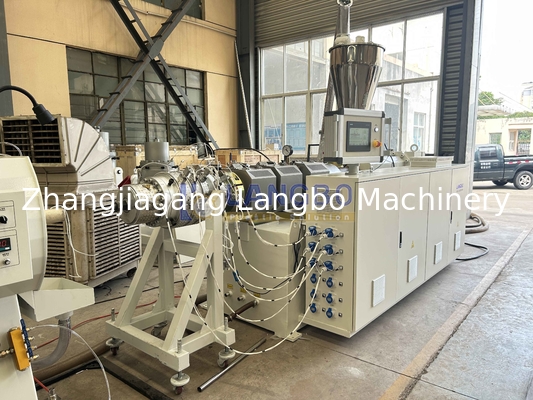

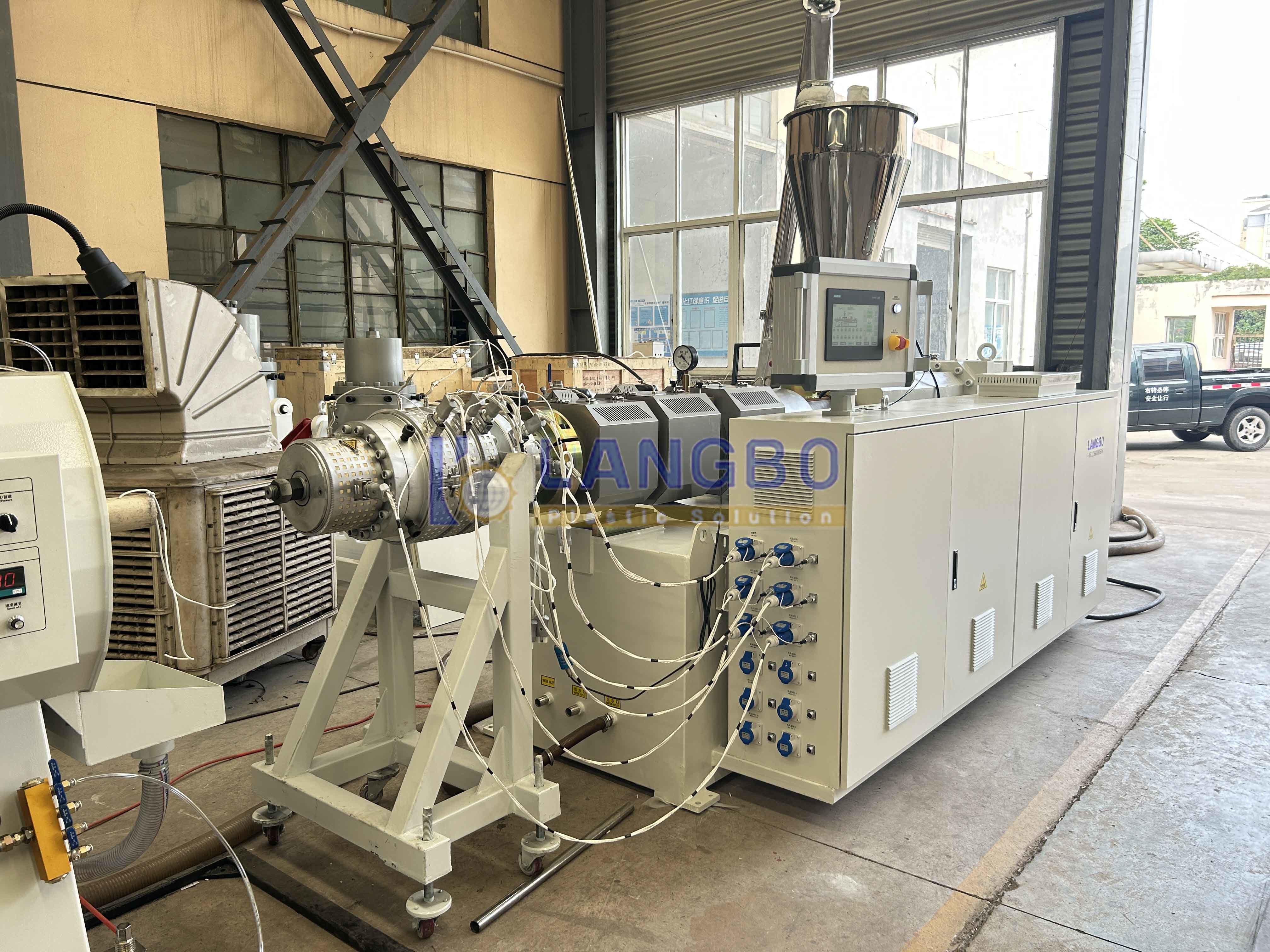

Twin Screw Extruder
Constructed with premium brand components to ensure production stability, efficiency, and machine longevity. The conical twin screw design accommodates raw material characteristics for homogeneous mixing, superior plastification, and optimal conveying efficiency.

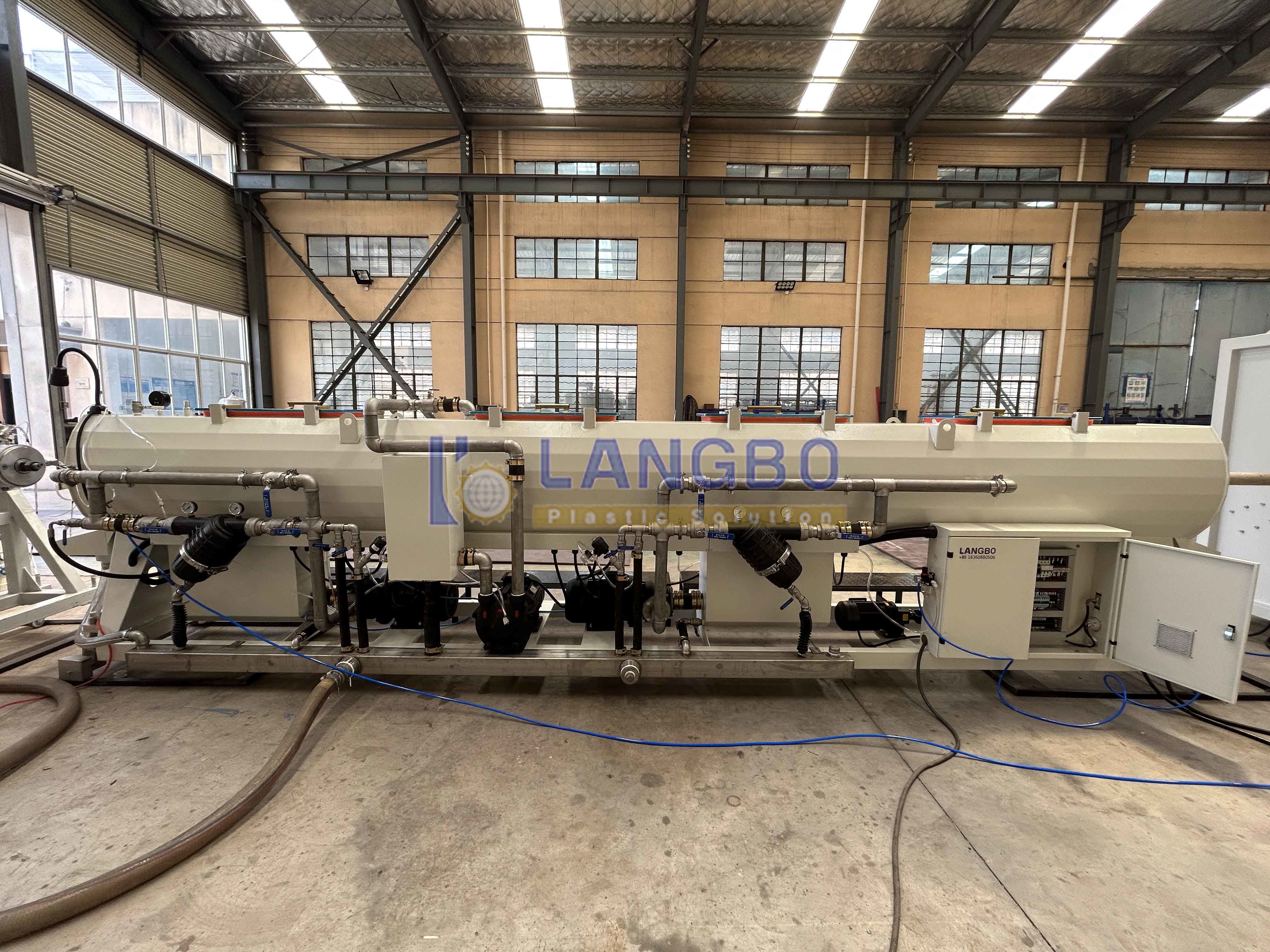

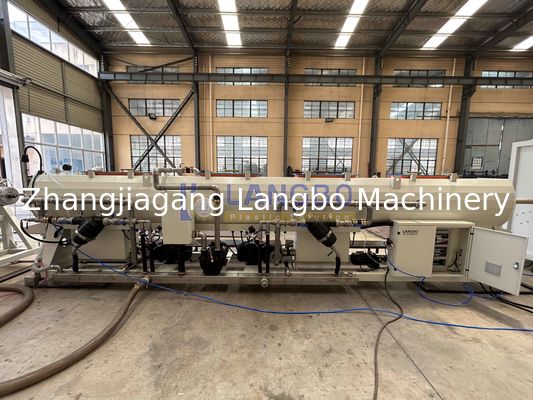

Vacuum Calibration & Cooling System
Two-chamber structure comprising vacuum calibration and cooling sections. Both vacuum tank and spray cooling tank utilize stainless 304 steel construction. Advanced vacuum system ensures precise pipe sizing accuracy.

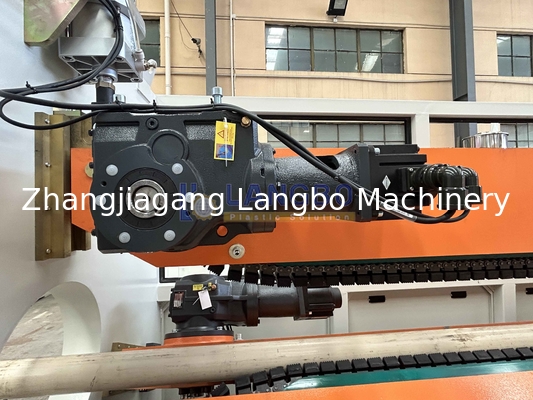

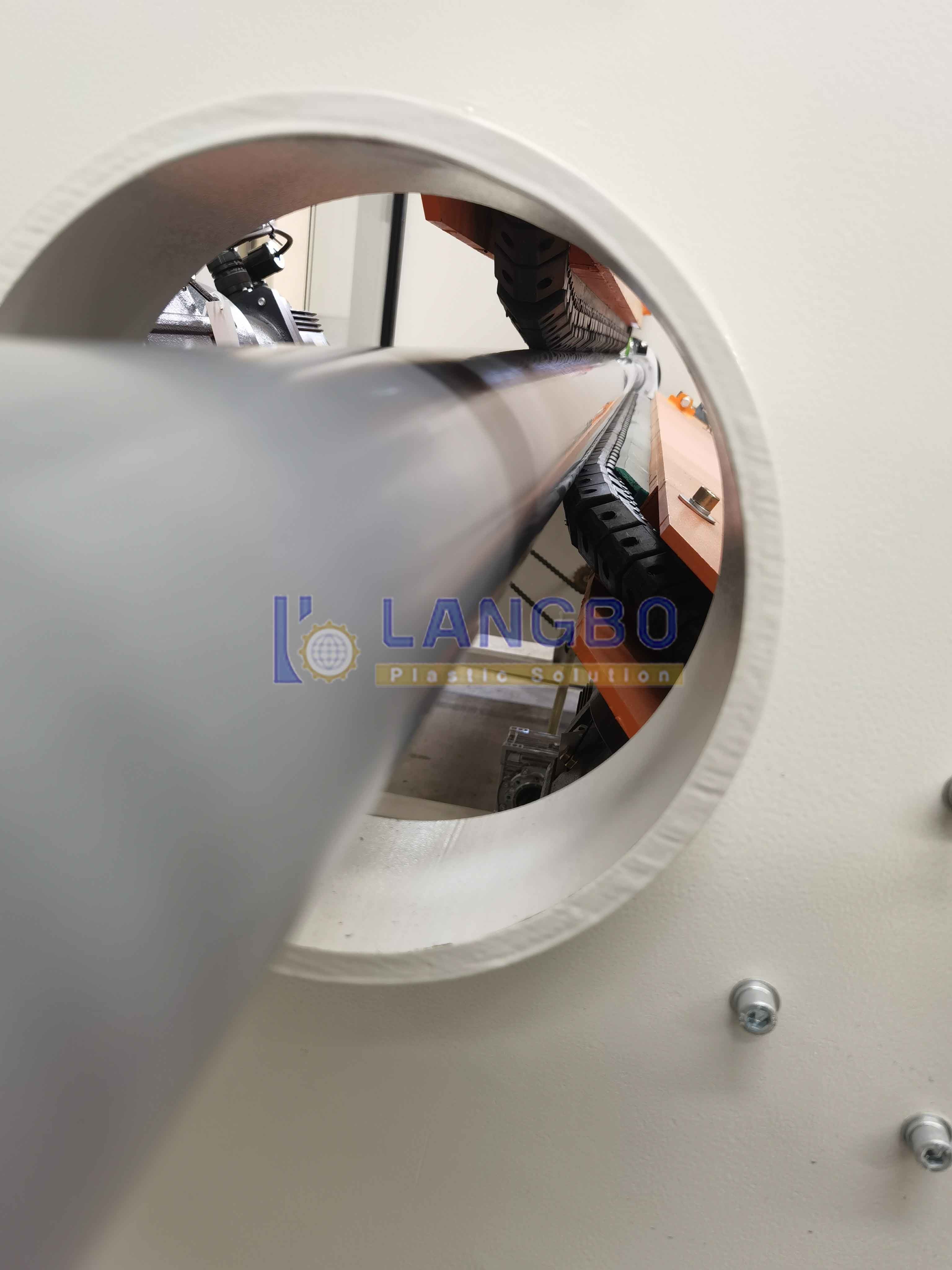

Haul-off Unit
Three-crawler track system maintains stable and steady pipe movement. Haul-off units feature customizable hauling modes adjustable through centralized control for specific production requirements.

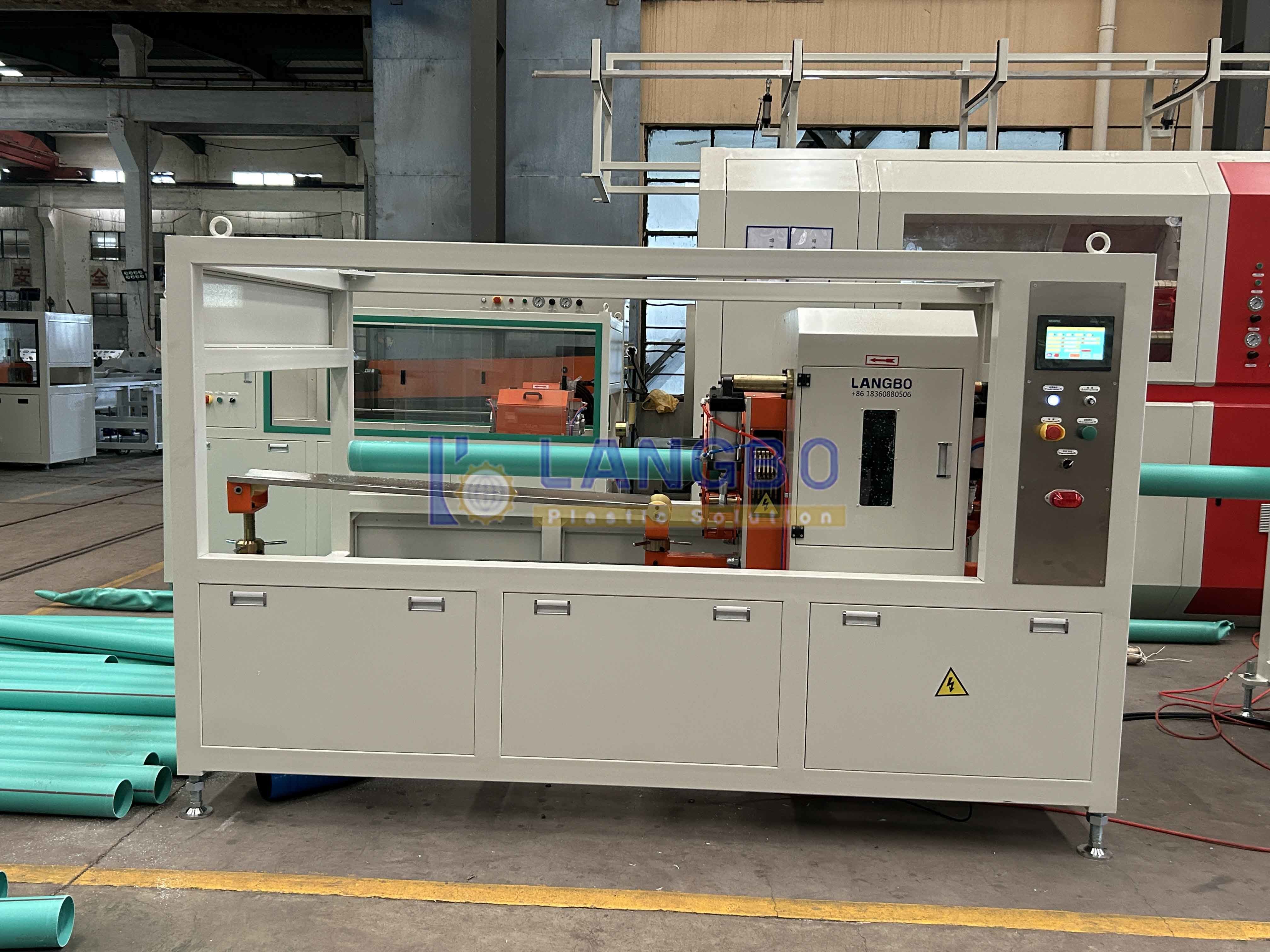

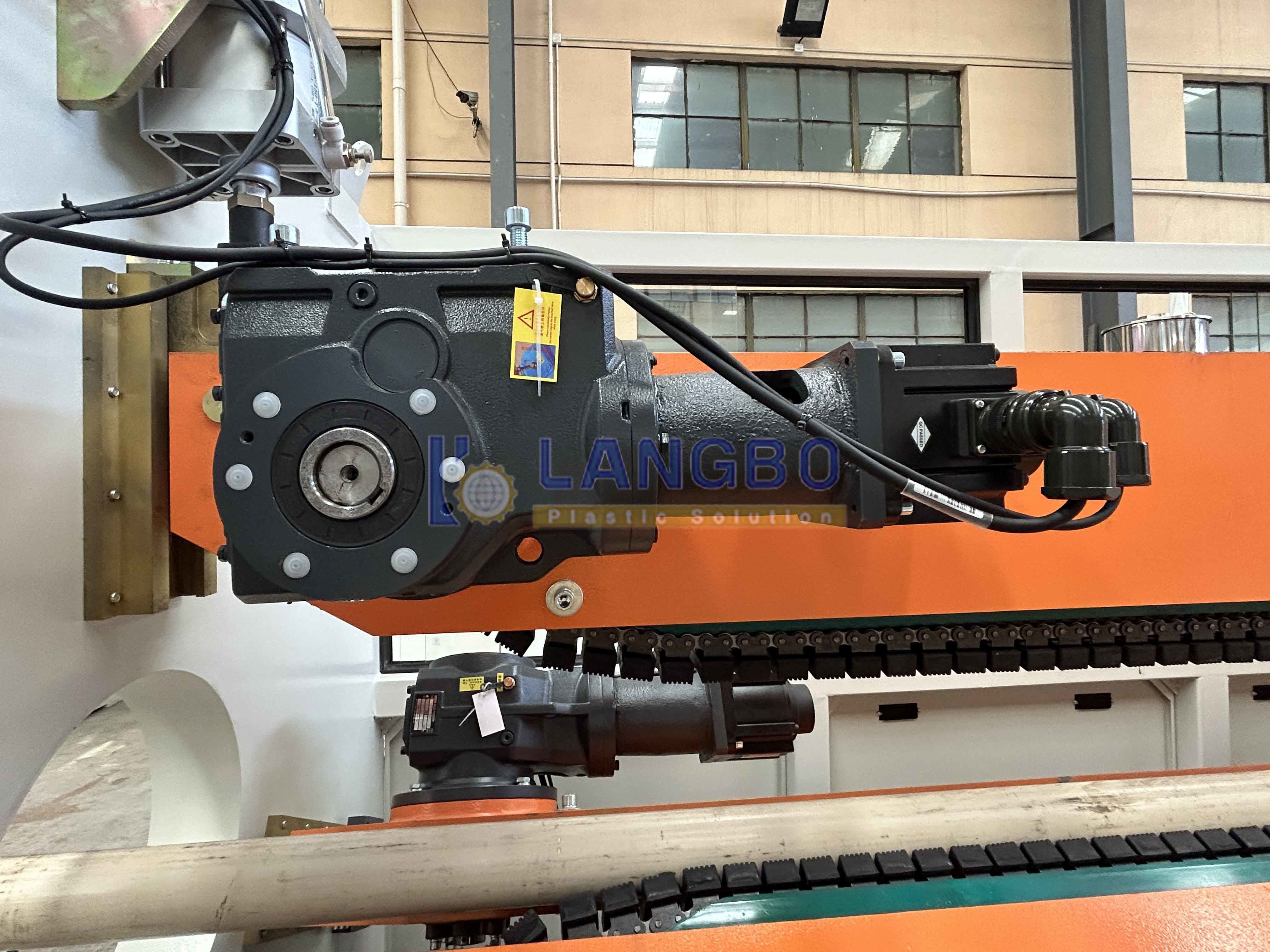

Cutting Unit
High-precision encoder guarantees accurate and consistent cutting lengths. PLC control system enables manual operation cutting based on specific application needs.
Technical Features
  • Plastic pulverizer efficiently grinds hard and soft PVC materials into powder
  • Integrated dust collector minimizes environmental pollution
  • Automated main fan discharge reduces operator labor intensity
  • Accessible host door cover facilitates maintenance and cutter replacement
  • Water and wind dual cooling system prevents component overheating
  • Adjustable powder mesh range (15-100 mesh)
  • Simplified installation and maintenance with easy-access cleaning
  • Premium brand components including motors for extended operational life
  • Comprehensive optional accessories for customized budget and processing solutions
Delivery & Payment Terms
Delivery: 30 days after order confirmation
Warranty: 12 months comprehensive coverage
Payment: T/T 30% advance, 70% balance before delivery
Packing: Standard export wooden cases
Customer Support Services
  • One-year comprehensive machine guarantee
  • 24/7 technical support availability
  • Overseas installation and commissioning by qualified engineers
  • Post-warranty maintenance guidance and competitively priced spare parts
  • Comprehensive operator training programs
Product Gallery

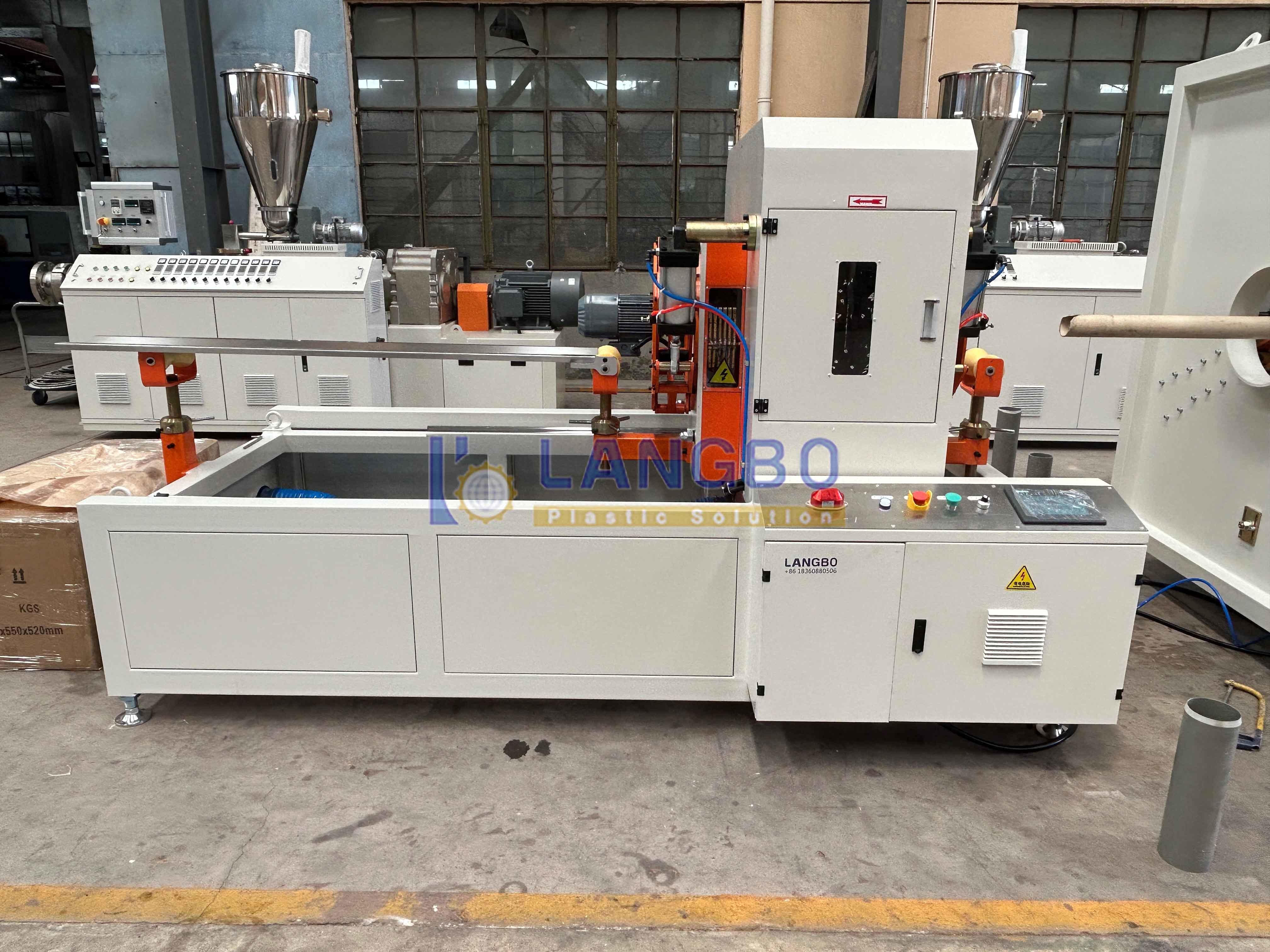

PVC pipe making machine production line overview Close-up of twin screw extruder mechanism Vacuum calibration and cooling system Haul-off unit with three-crawler track system Precision cutting unit with PLC control Mixer unit with vacuum suction loading Complete PVC pipe production line setup Finished PVC pipes produced by the machine
Manufacturing Facility
Modern manufacturing facility and production workshop
Industry Exhibitions
Company exhibition booth at international trade show Product demonstration at industry exhibition
Global Shipping
Standard export packaging and container loading International shipping and logistics operations

Product Highlights

75-250mm PVC Pipe Electrical Conduit Water Supply Making Machine This complete PVC pipe production line manufactures high-quality PVC/UPVC pipes ranging from 16mm to 800mm in diameter. The system is engineered for producing electrical conduit pipes, water supply pipes, and construction plumbing ...
