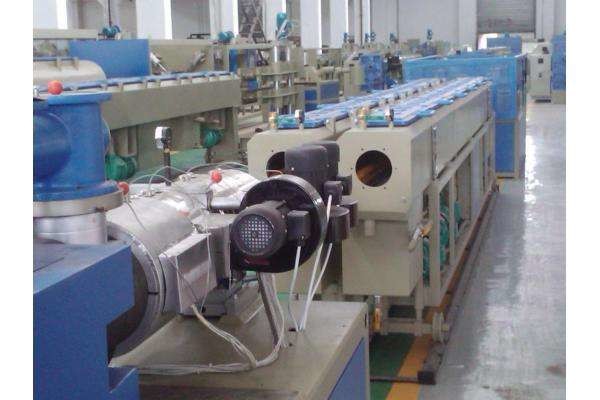

Full Automatic Conical Twin Screw Extruder , PVC Pipe Production Line​ With Siemens Motor

Full Automatic Conical Twin Screw Extruder , PVC Pipe Production Line​ With Siemens Motor

1. Process flow:

Virgin material+additive--mixing--granulating--conveying feeding--single screw extruder--extruding mould--

spray cooling water tank--belt haul-off--fibre braider--warm-up oven--single screw extruder--coating mould--

spray cooling water tank--belt haul-off--meter measurer--winder--finished product insepcting&packing

2. Brief description:

The PVC Fiber Enhancing Soft Pipe, also called garden pipe and snakeskin pipe which is mainly used to

convey the middle pressure or corrosive gas and liquid, it is widely used in such areas as mechanical

engineering, coal mine, petroleum, chemical industry, agriculture irrigation, civil application (solar energy water

heater, gas-jar), also it can be used in irrigating garden and lawn.

Specifications:

1. PVC Fiber Braided Hose Extrusion Production Line/Machine

PVC Fiber Braided Hose Extruder Machine/Machinery

PVC Fiber Braided Hose Extruding Line/Machine/Machinery

Plastic PVC Fiber Braided Hose Making/Producing Line/Machine

2. Equipment List:

1. Extruder:

2. Mould

3. Wire Winding machine

4. Water Cooling Tank

5. Oven

6. Haul-off Machine

7. Cutting Machine

8. Pipe Winding Machine

3. PVC fiber reinforced pipe production line /PVC fiber reinforced hose machine is the special product

developed by our company. PVC fiber reinforced hose production line is mainly used to manufacture fiber-

reinforced hose for fluid conveying. PVC fiber reinforced pipe can be used as pipelines to conveying air, water,

gas, oil and other kind of fluid and gas.

Applications:

PVC twisted reinforced pressure tube extrusion machine also called PVC pipe, plastic mesh snakeskin tube,

PVC draiding pipes etc, suitable for pressure, corrosive, sound insulation, adiabatic requirements for the gas,

liquid conveyor, widely used in machinery, mining, petroleum, chemical, agricultural irrigation, building and

civilian (solar water heater, gas cylinder), etc.

Main technical parameter
