PE/PP-R Pipe Automatic Production Line Single Extrusion Line with High Productivity
Product Details
| Condition: | New | Automatic Grade: | Automatic |
|---|---|---|---|
| Recoiling Machine: | Double Station Winding | Weight: | 4000kg |
| Dragger: | Crawling Traction | Power(W): | 150KW |
| Screw Design: | Single-screw | Voltage: | 380V 50HZ 3Phase(Customized) |
| Automatic Grade: | Full-automatic | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training |
| Warranty: | 1 Year | Color: | Customised |
| Control: | PLC+Touch Screen | ||
| Highlight |
hdpe pipe production line,plastic pipe extrusion machine |
||
Product Description

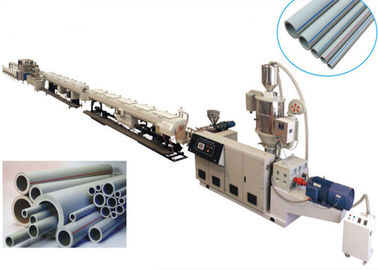

PE/PP-R Pipe Automatic Production Line Single Extrusion Line
The product application:
1. It can be used to reduce the loss of water in the field, and the irrigation water can be controlled and
regulated strictly, Integrate the field water transmission and field irrigation control system
2. Low energy consumption, low investment, low irrigation cost, high standard of water-saving and high efficiency,
3. The combination of pipeline water transfer and field water-saving technology
4. Applicable conditions: suitable for field irrigation in various types of tank areas
Features of PE pipe extrusion line
1. The extruder adopts frequency conversion control, simple adjustment, reliable operation, stable operation
and low energy consumption. Extruder, machine head, and traction adopt one-body vertical cabinet, which is
convenient for the centralized control and operation of the whole set of equipment.
2. The extruder screw and cylinder are made of 38CrMOAlA high-quality nitrided steel, which has been forged,
tempered and nitrogenated. The unique design has made the material plasticized with good effect and stable
production.
3. Central feed head is adopted for pipe forming, and spray cooling combined with water immersion type is
adopted for vacuum sizing with high precision, even thickness
4. Special v-type crawler tractor is adopted to ensure that the pipe is not easy to produce traction deformation.
5, the coiling machine adopts the three-phase asynchronous torque motor controller, effectively overcome the center
tension defects, and is controlled by a separate electric cabinet, to better facilitate the independent operation,
control of the production process.
6. When producing small pipe diameter pipe, vertical hard pipe coil pipe is adopted;In the production of large
diameter pipe, the use of a pipe stack frame, with appropriate pipe cutting device, can produce different
specifications of hard pipe.
Detailed Images
| 1 | Automatic feeding machine | Vacuum feeder |
| 2 | single screw extruder | High quality desalted steel |
| 3 | Sizing method | Vacuum sizing chamber |
| 4 | water tank | water-cooling |
| 5 | dragger | Two-station tractor |
| 6 | recoiling machine | Automatic winding |
