PE PP Single - Wall Corrugated Pipe Extrusion Line, Corrugated Pipe Extruder

PE PP Single - Wall Corrugated Pipe Extrusion Line, Corrugated Pipe Extruder
PE PP Single - Wall Corrugated Pipe Extrusion Line, Corrugated Pipe Extruder PE PP Single - Wall Corrugated Pipe Extrusion Line, Corrugated Pipe Extruder

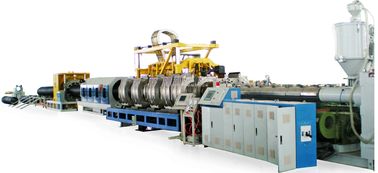

Large Image :  PE PP Single - Wall Corrugated Pipe Extrusion Line, Corrugated Pipe Extruder

Product Details:
Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE / ISO
Model Number: LB
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: negotiation
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T,
Supply Ability: 15 SETS PER MONTH

PE PP Single - Wall Corrugated Pipe Extrusion Line, Corrugated Pipe Extruder

Description
Condition: New Automatic Grade: Automatic
Screw Design: Single-screw Power: 30KW
Voltage: 220V/380V/415V Weight: 4000kg
Certification: CE,ISO Automatic Grade: Full-automatic
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training Warranty: 1 Year
Color: Customised Control: PLC+Touch Screen
High Light:

hdpe pipe production line

,

plastic pipe extrusion machine

PE PP Single - Wall Corrugated Pipe Extrusion Line, Corrugated Pipe Extruder



This line is designed to produce single wall conrrugated pipe which material is PP,PEand PA  etc,special designed screw,special structured screw and special structure mould an protect screw and barrel from easy-abrasion and give an easy forming process ,This kind of pipe,protect pipe of car and train ,supply and drainage pipe for washer, irrigation of farm and so on.



Main Technical Parameters:

MAIN MACHINE MODEL SJ-35 SJ-45 SJ-65
PIPE DIAMETER RANGE(MM) 6-12 9-25 25-50
MAIN MACHINE I/D 30:1 30:1 30:1
OUTPUT(KG/H) 15 30 60
MAIN MOTOR CAPACITY(KW) 5.5 11 18.5
FORMING MACHINE CAPACITY(KW) 1.5 2.2 3.0
PAIR OF MODULES 42 42 50
COOLING MODE WATER&AIR COOLING
PRODUCTION SPEED (M/MIN) 5-12 5-12 5-12
INSTALLED POWER(KW) 12 20 30



1. The extruder adopts frequency conversion control, simple adjustment, reliable operation, stable operation and low energy consumption.Extruder, machine head and traction adopt one-body vertical cabinet, which is convenient for the centralized control and operation of the whole set of equipment.


2. The extruder screw and cylinder are made of 38CrMOAlA high quality nitrided steel, which has been forged, tempered and nitrogenated. The unique design has made the material plasticized with good effect and stable production.

3. Central feed head is adopted for pipe forming, and spray cooling combined with water immersion type is adopted for vacuum sizingHigh precision, even thickness



4. Special v-type crawler tractor is adopted to ensure that the pipe is not easy to produce traction deformation.

5, coiling machine adopts three-phase asynchronous torque motor controller, effectively overcome the center  tension defects, and is controlled by a separate electric cabinet, to better facilitate the independent operation, control of production process.

6. When producing small pipe diameter pipe, vertical hard pipe coil pipe is adopted;In the production of large diameter pipe, the use of pipe stack frame, with appropriate pipe cutting device, can produce different specifications of hard pipe.
