0.5-2 Inch PVC Pipe Extrusion Line
Product Details
| Raw Material: | PVC SG-5 | Pipe Diameter Usage: | Electrical Protect In Home Use Construction |
|---|---|---|---|
| Production Capacity: | 135-350kg/h | Max. Capacity (KG): | 350kg/h |
| Highlight |
plastic tube making machine,pvc pipe production line |
||
Product Description
0.5-2 Inch PVC Conduit Pipe Making Machine / Plastic Pipe Production Line
Description of the PVC double pipe making machine:
1. 0.5-2inch PVC Conduit Pipe Making Machine is mainly used in the manufacture of the UPVC and PVC pipes with various pipe diameters and wall thickness such as the agricultural and constructional plumbing, water supply and drain etc.
2. This plastic pipe machine is composed of conical twin-screw extrude, vacuum calibration tank, haul-off machine, cutter, stacker etc.
3.The screw extruder and traction machine adopt imported AC frequency control device.
4. The pipe diameter range :16-63mm or customers' request.
5. The pvc pipe is mostly used in construction industry water supply, drain, electrical cable coating and underground sweage treatment and so on.
6. 0.5-2inch PVC Conduit Pipe Making Machine can produce two pipes at one time to achieve high production efficiency.
ADVANTAGES OF THIS LINE:
1. Two pipes extruded simultaneously and controlled respectively. One ceases and another goes on.
2. A combination of drawing and cutting machine with fine appearance and accurate synchronization.
3. Applicable pipe diameter ranges from 16-63mm.
4. PLC system and user-friendly human-machine interface can be designed to meet customer requirements
It's a collection of reasonable layout, stable performance, synchronization, practicability, especially high capacity, warmly welcomed by customers.
Main technical parameters:
| Pipe Diameter Scope (mm) | 16-50mm | 16-63mm |
| Conical Extruder Model | SJSZ51/105 | SJSZ65/132 |
| Extruder Power (KW) | 18.5kw | 37kw |
| Max. Capacity (KG) | 135 | 250 |
| Max.Production Speed (m/min) | 2x10m/min | 2x12m/min |
Main Parts Details:

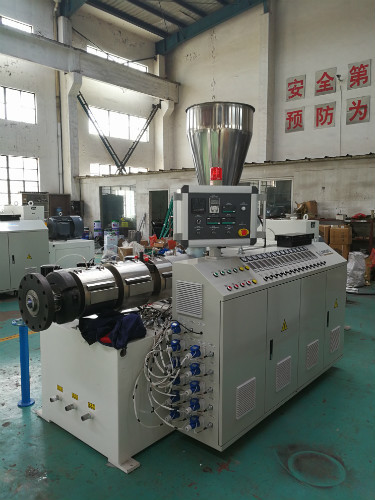

1) Extruder screw and barrel from Zhoushan,with vacuum degassing system, can get rid of the waste gas from the raw material which can ensure good quality of final granules.
2) Gearbox: From Jiangyin gearbox company,very famous brand in China,with nice outline, stable running, low noise and long service time.
3) Heating system: adopting cast aluminum heaters with stainless steel plate covers, wind fan cooling system, ensuring good features of cooling and heating, precision temperature controlling.
4) Driving system: adopting motor, using ABB inverter which provide stable torque output and
various speed.

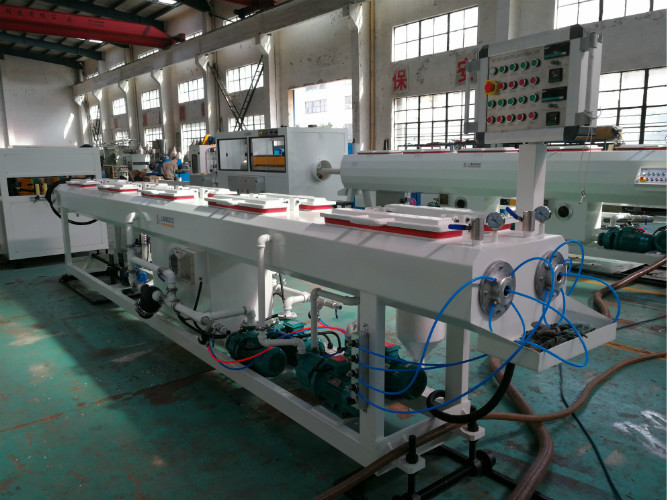

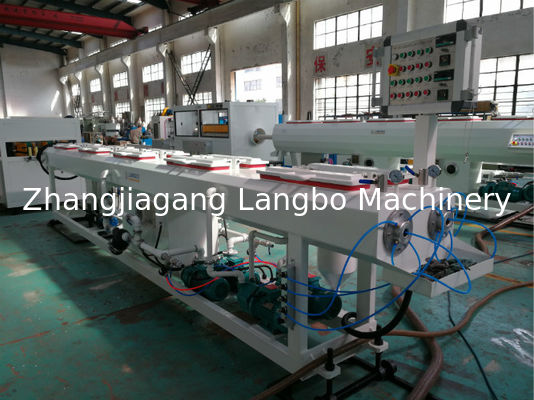

5) Vacuum calibrating and cooling case: the case body is made by #304 stainless steel, good strength and performance,long life time.

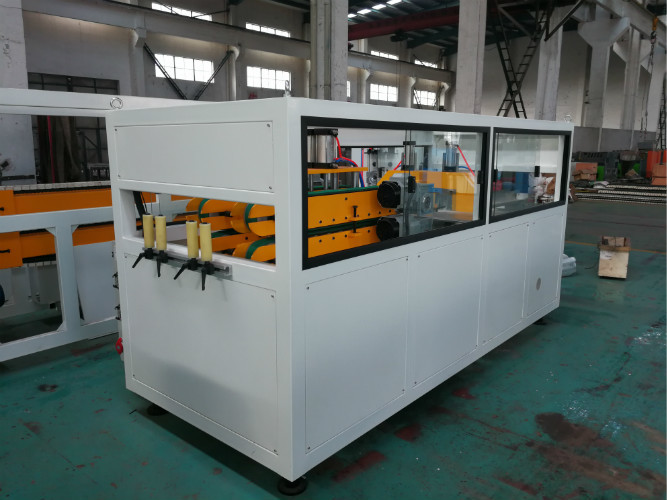

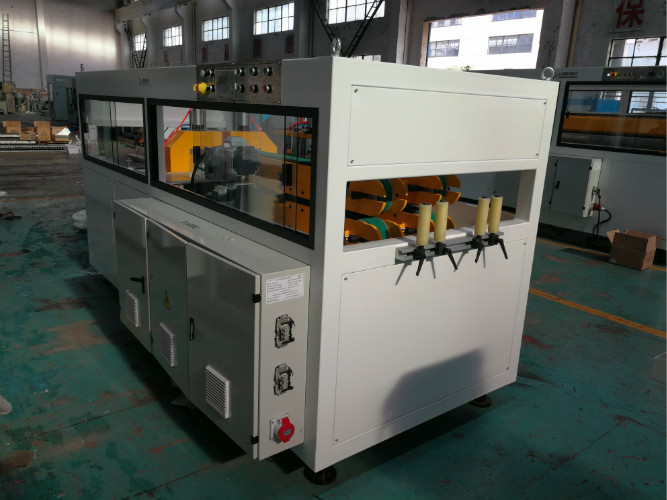

6) Traction machines:Rubber block traction belt,traction speed is adjustable by ABB frequency inverter.
7) Cutting machine: saw blade cutting,low noise,quick cutting performance,with dust collection device.
