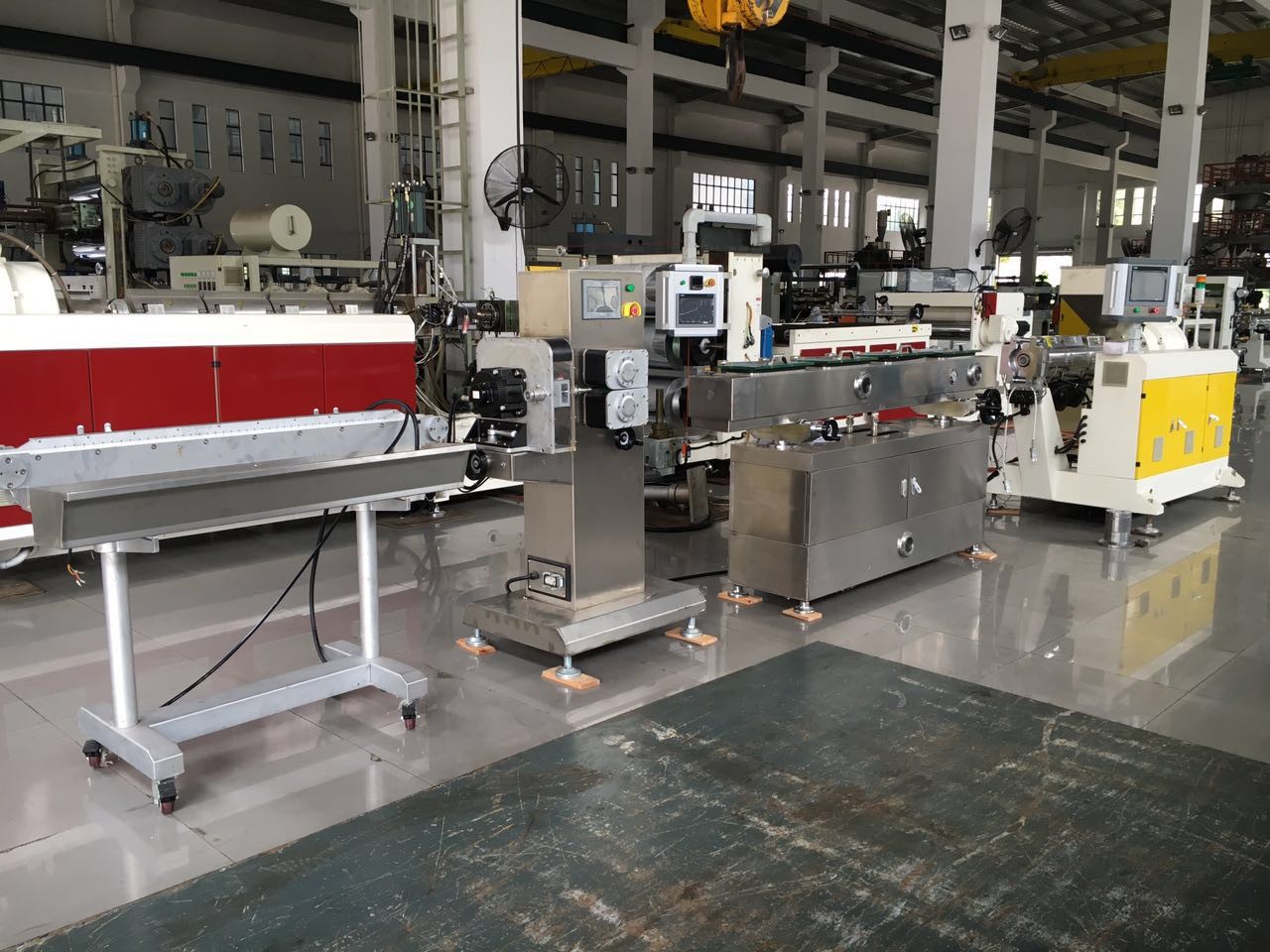

Flexible Electrical PVC Conduit Pipe Extrusion Line Siemens Inverter

Flexible Electrical PVC Conduit Pipe Extrusion Line Siemens Inverter
Flexible Electrical PVC Conduit Pipe Extrusion Line Siemens Inverter

Large Image :  Flexible Electrical PVC Conduit Pipe Extrusion Line Siemens Inverter

Product Details:
Place of Origin: ZHANGJIAGANG, JIANGSU, CHINA
Brand Name: LB
Certification: CE ISO
Model Number: LB-63W
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD EUR
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 15 SETS PER MONTH

Flexible Electrical PVC Conduit Pipe Extrusion Line Siemens Inverter

Description
Name: PVC Pipe Extrusion Line Packaging Details: Film Wraping
Plastic: PVC Application: Pipe Making
Raw Material: Pvc Powder Screw Design: Conical Twin Screw
Material Of Screw: 38CrMoALA Motor: Siemens
Inverter: ABB Temperature Sensor: Omron
High Light:

Electrical Conduit Extrusion Line

,

Flexible PVC Extrusion Line

Flexible Electrical PVC Conduit Pipe Extrusion Line

Features Specifications:
1. Model SJZ series conical twin screw extruder is a kind of special equipment for extruding PVC compound.With different kinds of molds and auxiliary machines, it can produce all sorts of PVC plastic pipe, profile, plate material, sheet material, bar material and granulation.

2. The conical twin screws have applied oil cooling system. Barrel is cooled by special wind cooling system.

3. The conical twin screw extruder system has applied special computer control. According to customers requirements, most reasonable structure of conical twin screw can be made so as to achieve best plasticity performance and material quality.

4. The conical twin screw is made by high precision special digital screw miller; extruding property can be highly harmonized. It has firstly introduced advanced technique of producing screw with variable pitch and depth, so that the material can be more softly sheared and cut.

5. The distribution box is specially designed, pull force bearing is fully imported, and the drive life span can be prolonged. It can bear larger extruding pressure.

6. The electrical system has mainly applied imported parts, it has multiple alarm system, and there are few problems which can be easily eliminated. The cooling system has applied special design, heat emission area is enlarged, the cooling is rapid, and temperature control tolerance can be ± 1 degree.

Flexible Electrical PVC Conduit Pipe Extrusion Line Siemens Inverter 0

Conical Twin Screw Extruders for PVC Extrusion

PVC compounds are sensitive to shearing and high temperatures. Therefore, we should gently process on either parallel or conical twin screw extruders, depending on the throughput requirements and pipe dimensions. As the professional equipment, the Conical twin screw extruder can process not only PVC compounds, the mixture of PVC and wood/composite but also compounds of PP/PE and wood powder.

Equipped with different die head, downstream equipment, it can be applied for manufacturing of pipe, profile, composite profile, panel, sheet and pelletizing, etc.. A logic combination of motor, gearbox, frequency inverter, barrel and screw plays a significant part of energy efficiency.

Flexible Electrical PVC Conduit Pipe Extrusion Line Siemens Inverter 1

Product Description:

It is called PVC pipe extruder with conical twin screw , plastic pipe extruder or double screw extrusion machine. Conical twin screw extruder is composed of barrel screw, gear transmission system,measurable feeding, vacuum deareating, heating, cooling and electric control components ect. It is mainly used in plasticizing, extruding and forming of PVC pipes, plates, sheets, film , profiles, and granules, ect. As a professional equipment, the Conical twin screw extruder can not only process the PVC compounds which is the mixture of PVC and wood composite but also mix the compounds of PP, PE and wood powder.

Equipped with different die head and downstream equipment, the equipment can be applied for manufacturing of pipe, profile, composite profile, panel, sheet and pelletizing, etc.. A logic combination of motor, gearbox, frequency inverter, barrel and screw plays an important point in improving the energy efficiency.



Flexible Electrical PVC Conduit Pipe Extrusion Line Siemens Inverter 2
