110mm PE Pipe Production Extrusion Line PLC Single Screw

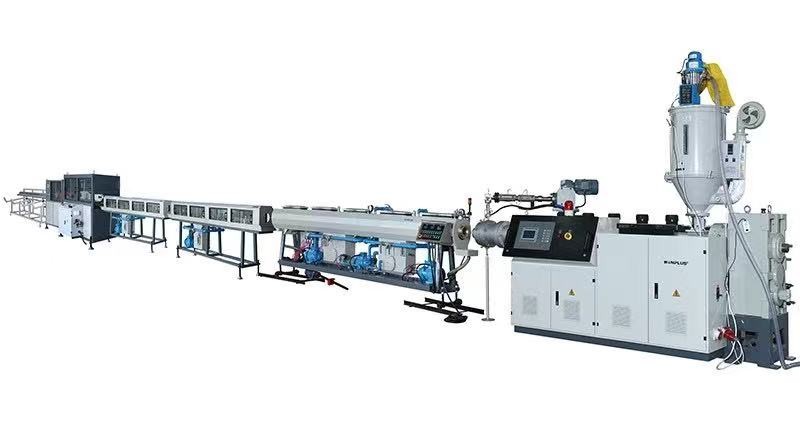

20mm-110mm PE Pipe Production Line

 COMPONENTS FOR 20mm-110mm PE PIPE PRODUCTION LINE

Single Screw Extruder

Material Loading: Vacuum Loader

Size: SJ75/33

Screw and barrel are in good quality.

Motor: Siemens

Heating method: Electric aluminum cast heating

Electric contactor: Siemens

Frequency inverter: ABB

Extrusion Die

Pipe Product Diameter:20mm-110mm

Sizing unit:20mm,25mm,32mm,40mm,50mm,63mm,75mm,90mm,110mm

Sizing unit material: Copper alloy steel

Vacuum Calibration and Cooling Tank

Effective Tank Length: 6 meters (based on pipe diameter and wall thickness)

Raw material of tank: SUS304 stainless steel

with Vacuum pump and water pump

Water Cooling Tank

Effective Tank length: 6 meters

Raw material of Tank: SUS304 stainless steel

With water pump

Haul-off Machine

Effective traction length:1.8meter

Motor power:4KW

Traction speed:2-6m/min

Speed control: by ABB inverter

Cutting Machine

Cutting method: Non-dust cutting

Cutting knife raw material: alloy steel

Cutting range:20mm-160mm

AFTER-SALE SERVICE&TECHNOLOGY SUPPORT:

· To install products and test products freely for customers.

· To provide the formulas and technologies of relevant products and the information of chemical

· materials manufacture

· To direct technology aspect of relevant use according to customers’ requirements

· To provide technical training for clients’ employees.

· To be responsible for maintenance service, door-to-door service under the necessary

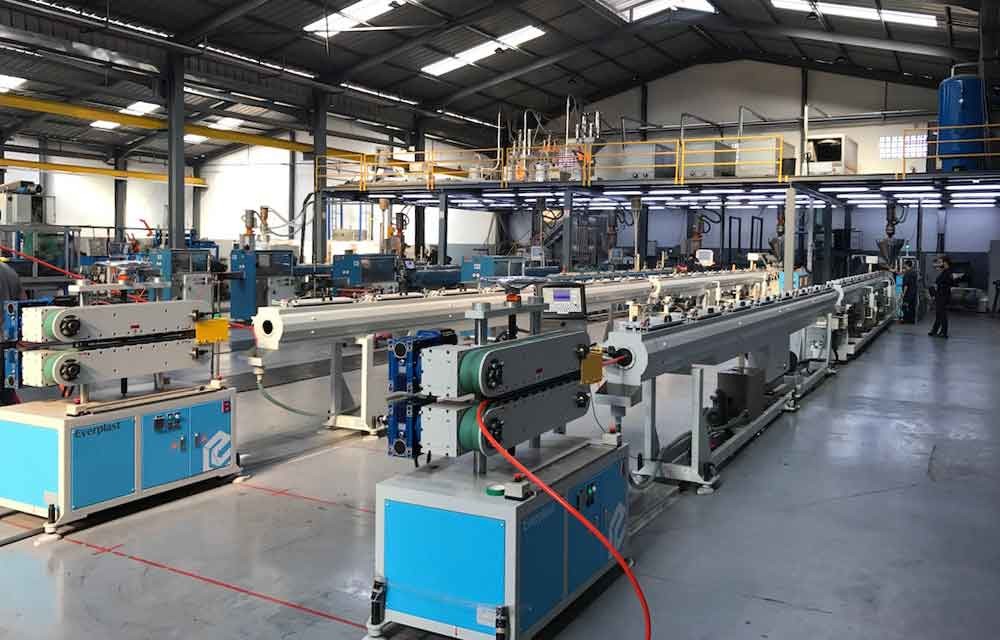

STRUCTURE OF THE PE PIPE LINE

· Distributed spiral composite extrusion die-head ensures the melting pressure and flux even and stable, the surface of pipe smooth and glossy.

· Vacuum calibration and spray water cooling tank made of stainless steel ensures precise calibration and fast cooling.

· Adopts Caterpillar haul-off, speed adjusted by frequency inverter.

· Equipped with planetary cutter. Be able to cut large diameter and thick wall pipe.

· In small diameter PE pipe Line the winding machine is widely used winding machine. In large diameter PE pipe line stacker is used after cutting.
