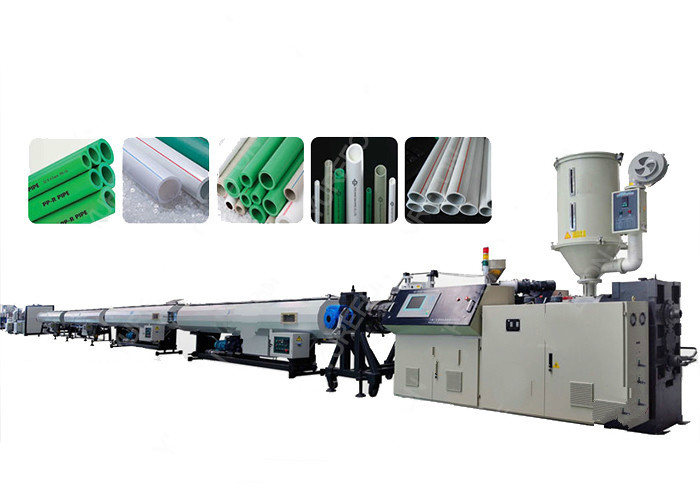

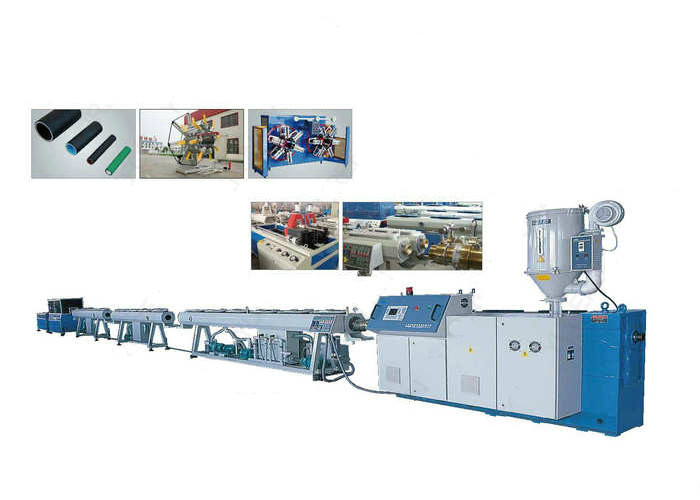

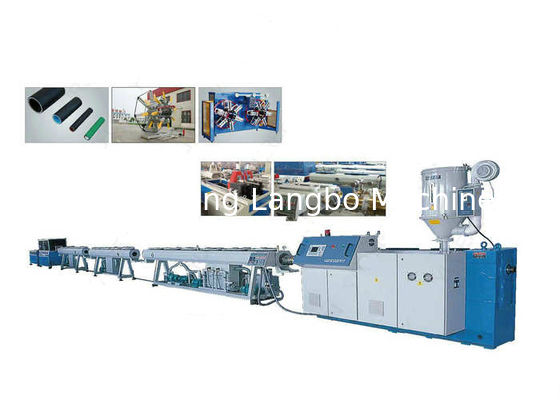

Plastic Ppr Pe Pipe Production Extrusion Line​ 180kgs / H Siemens PLC

Certification
China Zhangjiagang Langbo Machinery Co. Ltd. certification
China Zhangjiagang Langbo Machinery Co. Ltd. certification
I'm Online Chat Now

Plastic Ppr Pe Pipe Production Extrusion Line​ 180kgs / H Siemens PLC

Plastic Ppr Pe Pipe Production Extrusion Line​ 180kgs / H Siemens PLC
Plastic Ppr Pe Pipe Production Extrusion Line​ 180kgs / H Siemens PLC Plastic Ppr Pe Pipe Production Extrusion Line​ 180kgs / H Siemens PLC Plastic Ppr Pe Pipe Production Extrusion Line​ 180kgs / H Siemens PLC

Large Image :  Plastic Ppr Pe Pipe Production Extrusion Line​ 180kgs / H Siemens PLC

Product Details:
Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE / ISO
Model Number: LB
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T,
Supply Ability: 15 SETS PER MONTH

Plastic Ppr Pe Pipe Production Extrusion Line​ 180kgs / H Siemens PLC

Description
Production Name: PPR Glassfiber PPR Pipe Production Machine Pipe Size: 20-63mm; 3 Layer
Extruder Capacity: 350kgs/h For Inner &outer +180kgs/h Middle GF Die Head: 3 Layer Co-extrusion With Two Extruders
Production Speed: 12m/min; 20m/min; 28m/min Control System: SIEMENS PLC With Remote Control System
High Light:

Plastic Ppr Pipe Production Line​

,

180kgs/H Pipe Extrusion Line

,

Siemens Pe Pipe Production Line



PLASTIC PPR/PE PIPE PRODUCTION LINE

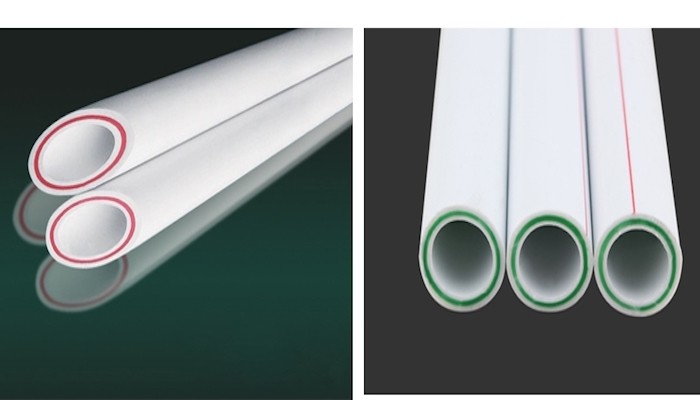

INTRODUCTION OF PPR PIPE

PP-R pipe is a straight and rigid cylindrical pipe, made from Polypropylene Random Copolymer plastic, produced through a continuous extrusion process. They are commonly offered in green or white color, and in outer diameter sizes ranging from 20mm to 110mm making the pipe walls far thicker than PVC. PPR pipe is accompanied by a series of connection fittings, parts, and accessories available for every pipe diameter.

                                          Plastic Ppr Pe Pipe Production Extrusion Line​ 180kgs / H Siemens PLC 0

CUSTOM PLASTIC PIPE EXTRUSION SOLUTIONS

With over 20 years of industry experience, LANGBO MACHINERY is an international company in providing plastic pipe extrusion solution and profile extrusion solution. From plastic extruder to turnkey plastic extrusion solution, we supply high quality machinery and downstream equipment comprised only of top brand components.

                                             Plastic Ppr Pe Pipe Production Extrusion Line​ 180kgs / H Siemens PLC 1

FEATURES OF MULTI-LAYER PP-R PIPE CO-EXTRUSION LINE

  • Independently developed high efficiency PPR Extruder and Glass-fiber Extruder are applied, especially in the Glass-fiber Extruder that is specially designed according to glass-fiber feature, with advantages of high wear resistance and corrosion resistance, effectively ensuring the stable extrusion.
  • The adjustable co-extrusion die head, our patent product, can composite multi-layer evenly and rapidly and get optimal thickness of each layer quickly without adjusting the extruder rotating speed. Thus, the design can reduce the dependence on operator’s skill during the production process.

                                         Plastic Ppr Pe Pipe Production Extrusion Line​ 180kgs / H Siemens PLC 2

SHORT DESCRIPTION FOR PRODUCTION LINEAS:

* SJ series high efficient single screw PE pipe extruder is developed by our company adopting German latest advanced technology. Screw is optimization that composing separate type screw with mixing parts. Barrel is optimization that composing groove barrel with lengthened feeding segment. There are advantages as following by combining separate type screw with groove barrel:

* It's optimized in the whole material melting process. By this way, we can get more extrusion throughput. It is achieved that the extruding material melt in a much lower temperature.

* Cutting function is produced through separate clearance and makes raw material equally. It is controlled in the melt plasticization process. Therefore, the granules that have a smaller separate clearance can enter the melting channel.

* It has a wide manufacturing range for different materials. It is suitable for all kinds of polyolefin materials and especial for materials as HDPE, PP and PPR pipes.

                                         Plastic Ppr Pe Pipe Production Extrusion Line​ 180kgs / H Siemens PLC 3

COMPONENTS:

For a Production of PPR Pipe, the specific pipe extrusion line and other necessary accessories. The Equipment list below shows the machines and devices, which are needed for PP-R Pipe Production.

SJ series single screw extruder

SJ co-extruder for mark line or function layer

Extrusion die

Vacuum forming tank

Haul-off

Dustless cutting unit

Stacker.
