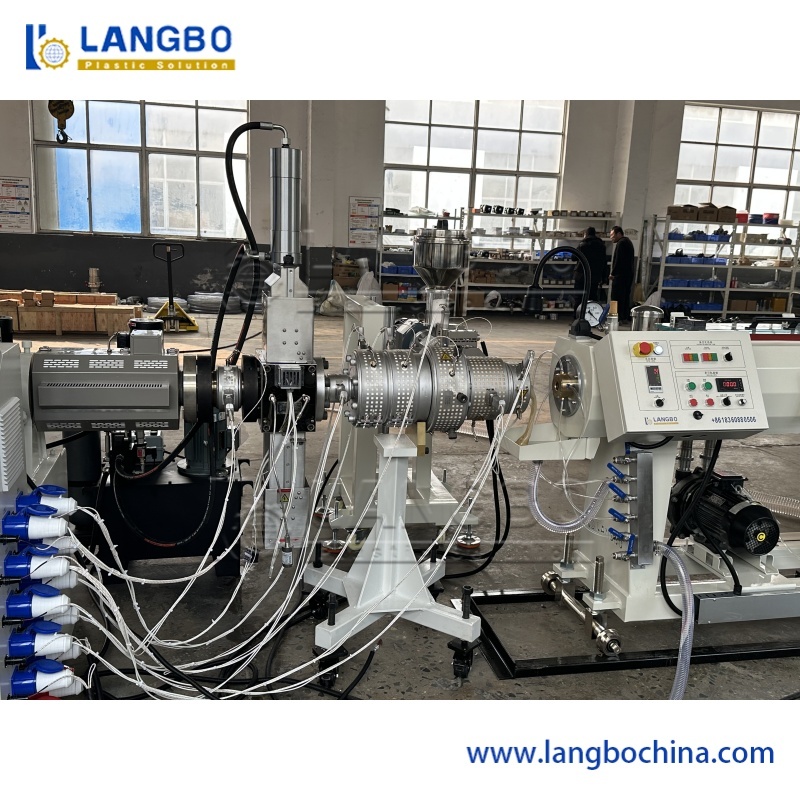

Plastic PPR PE Pipe Making Line 3 Layer PLC Remote Control

Brand Name: LB
Model Number: LB
Place of Origin: ZHANGJIAGANG
Certification: CE / ISO
Minimum Order Quantity: 1 SET
Supply Ability: 15 SETS PER MONTH
Tags

ppr pipe production line

cpvc pipe making machine

pp pipe extrusion line

Product Details

Production Name: PPR Glassfiber PPR Pipe Production Machine Pipe Size: 20-63mm; 3 Layer
Extruder Capacity: 350kgs/h For Inner &outer +180kgs/h Middle GF Die Head: 3 Layer Co-extrusion With Two Extruders
Production Speed: 12m/min; 20m/min; 28m/min Control System: PLC With Remote Control System
Highlight

Plastic PPR Pipe Making Line

,

PLC Remote Control Pipe Making Line

,

3 Layer PPR Pipe Making Line

Product Description

Plastic PPR PE Pipe Making Line 3 Layer PLC Remote Control
High Quality Plastic PPR/PE Pipe Making Line
Co-Extrusion Process Technology
In standard extrusion, solid plastic pellets are gravity fed into a forming mechanism where jacketed compression screws melt and feed materials into a die. Co-extrusion involves multi-layer extrusion forming layered or encapsulated parts, with up to five or more materials used in a single cycle. Each extruder delivers precise amounts of molten plastic required for the operation.
Unlike ordinary plastic mixing, each individual plastic retains its original properties while being combined into a compound-material part. When mixed prior to extrusion, material characteristics may be altered, resulting in a homogeneous product.
Not all plastics are suitable for co-extrusion. Some polymers won't adhere to others, though introducing a conductive middle layer can often solve adhesion problems. Plastics with drastically different melting temperatures are unsuitable due to potential degradation in lower-melting materials. PVC and acetals should never be coextruded together because of potentially violent reactions when joined.

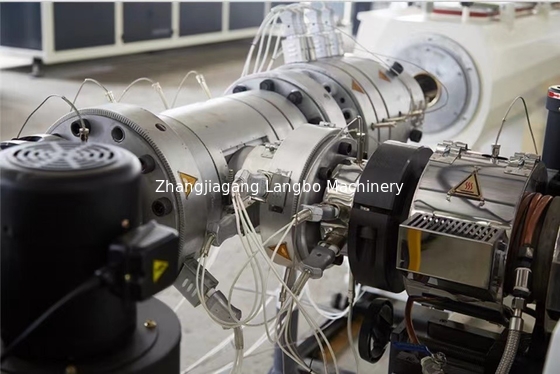

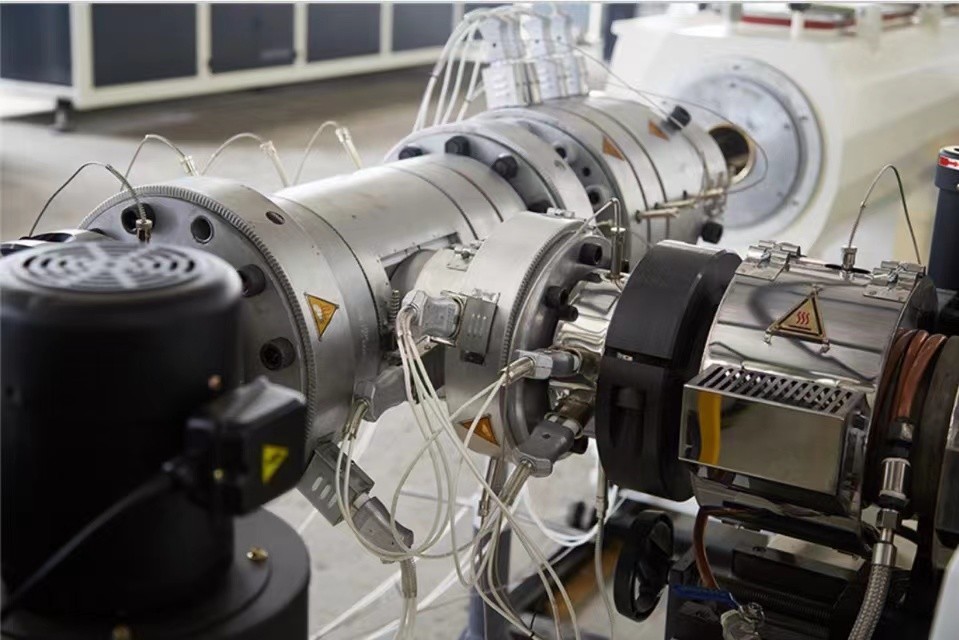

Plastic PPR PE pipe making line co-extrusion process
Complete Extrusion Line Components

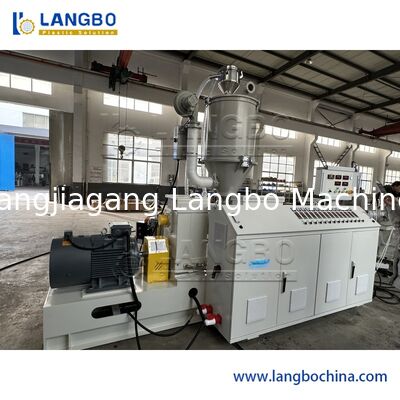

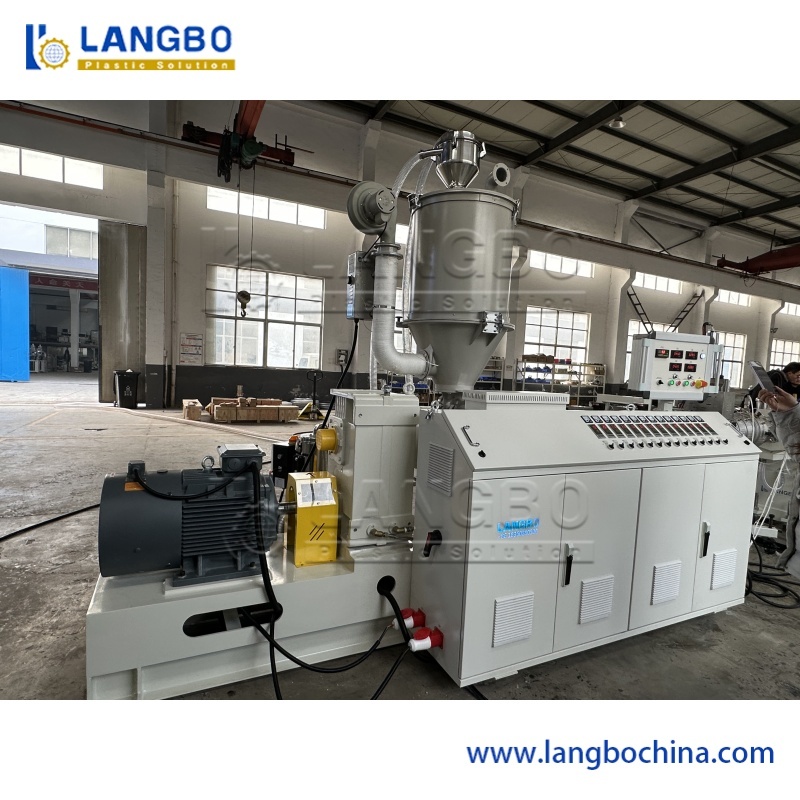

  • Single screw extruder
  • Co-extruder for manufacturing marking line on pipe or multilayer pipes

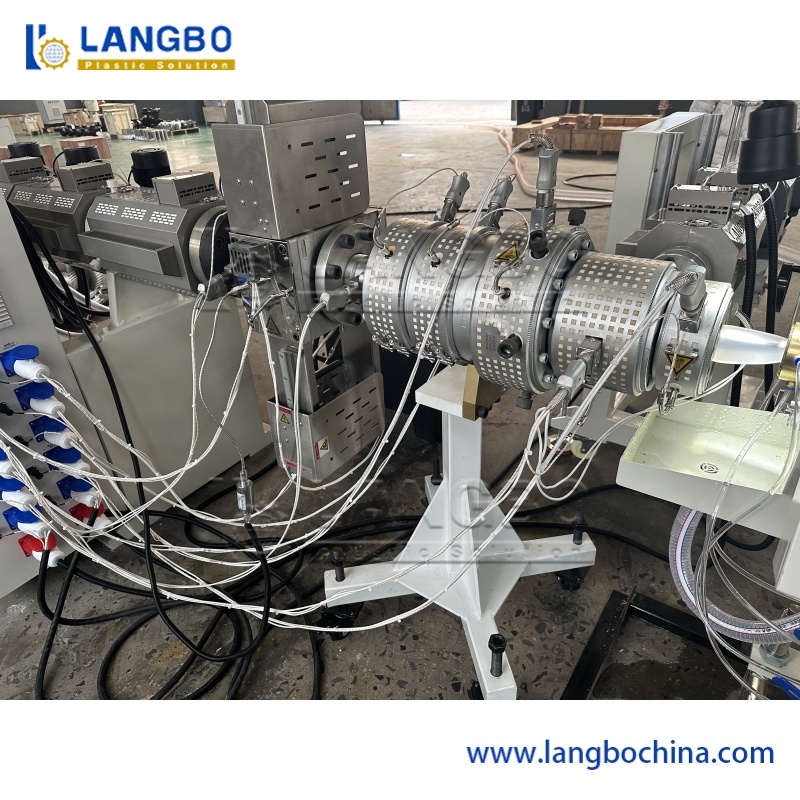

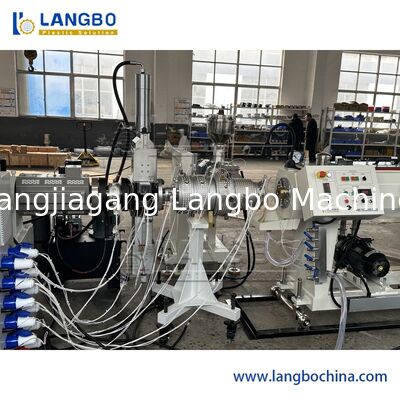

  • Die head

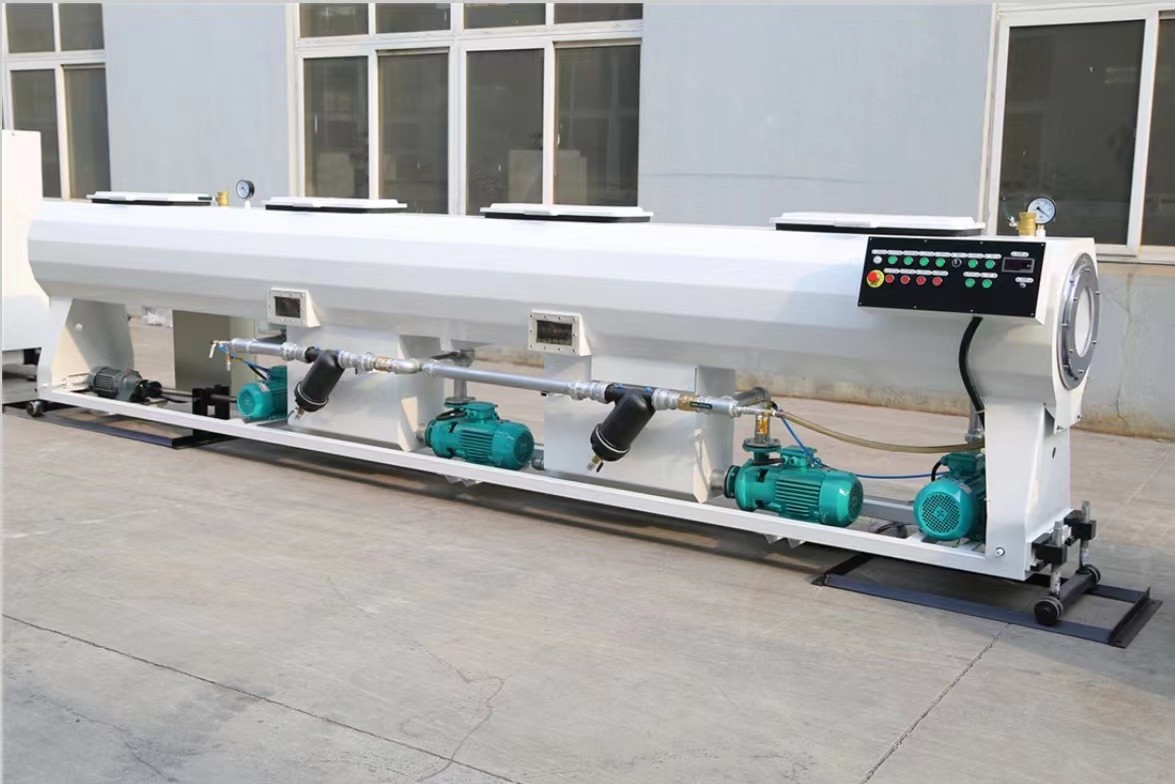

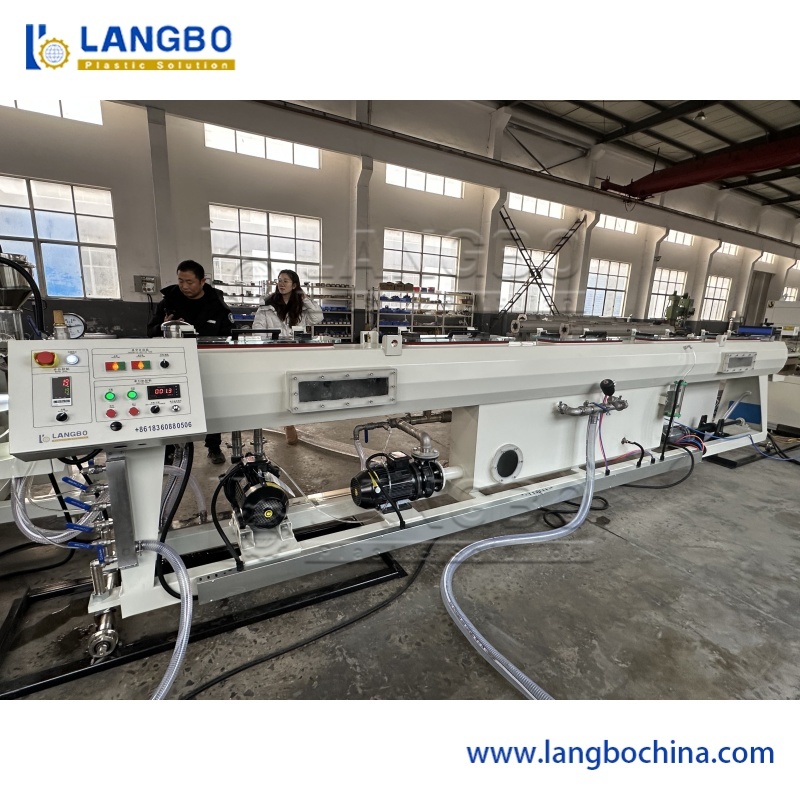

  • Vacuum tank (single or double vacuum chamber design based on diameter)
  • Cooling tank (one, two, or three tanks based on diameter requirements)

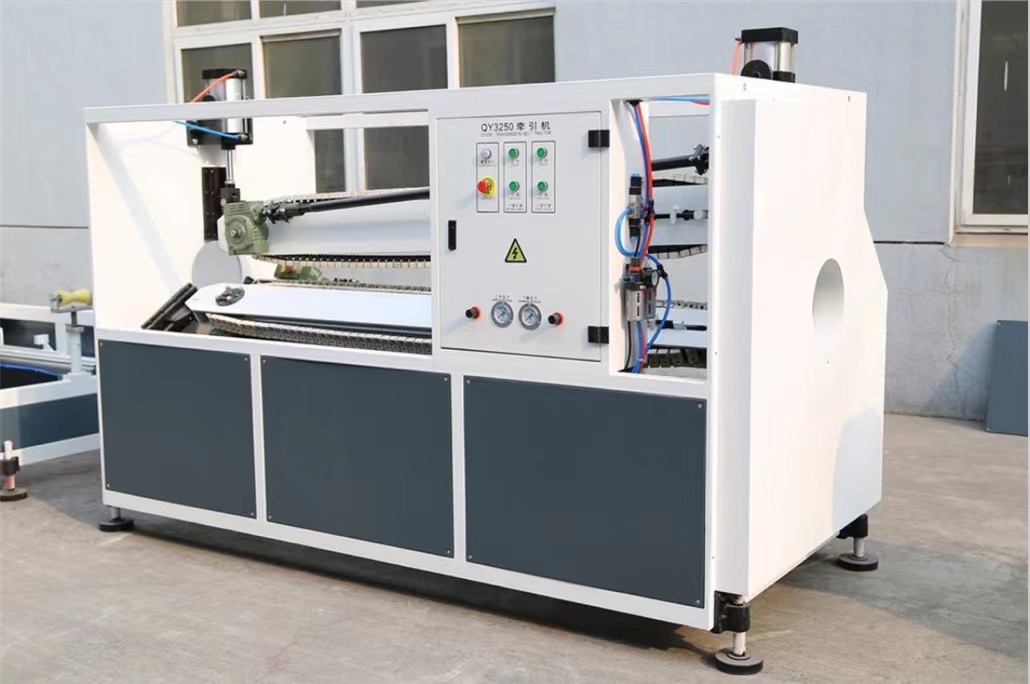

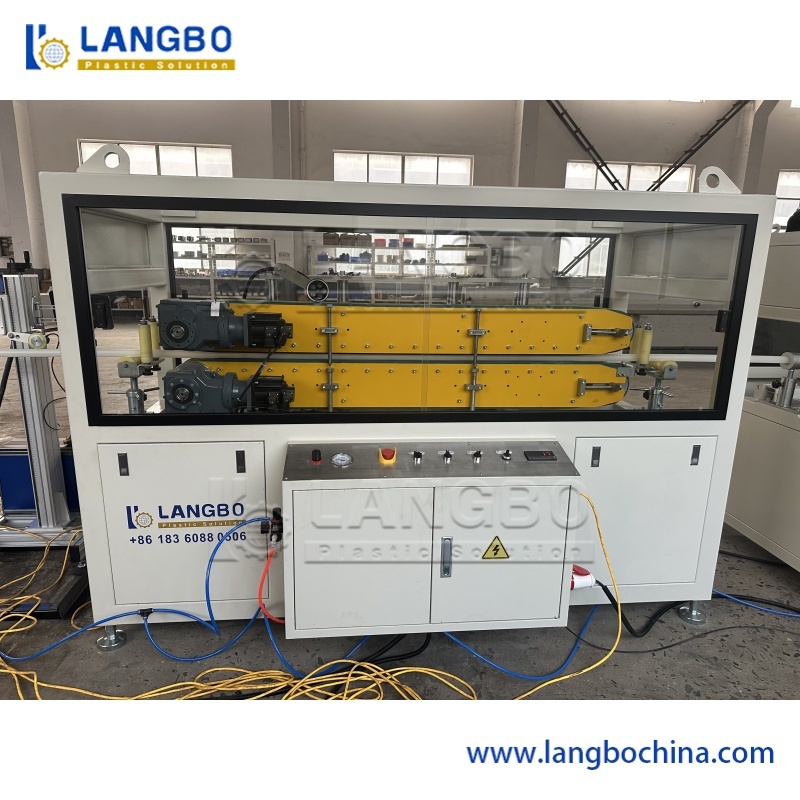

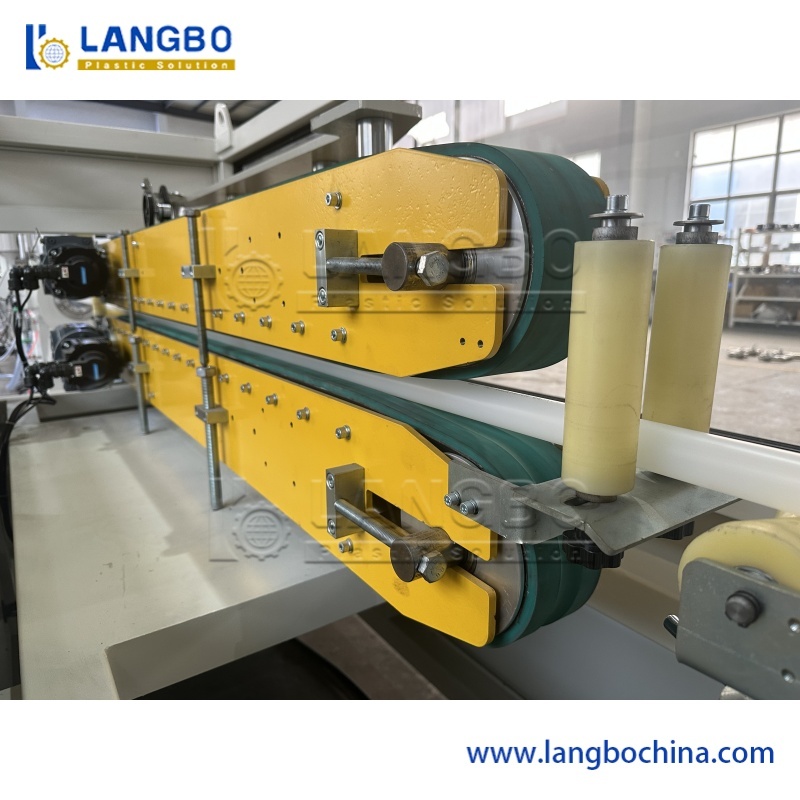

  • Haul-offs (double, three, four, six, eight, ten, or twelve s based on diameter)

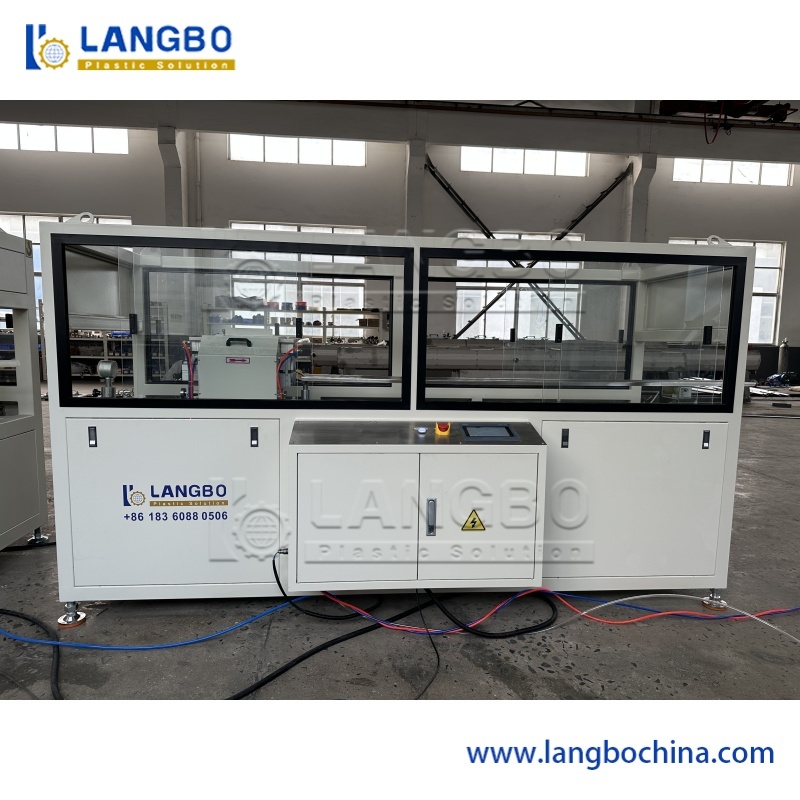

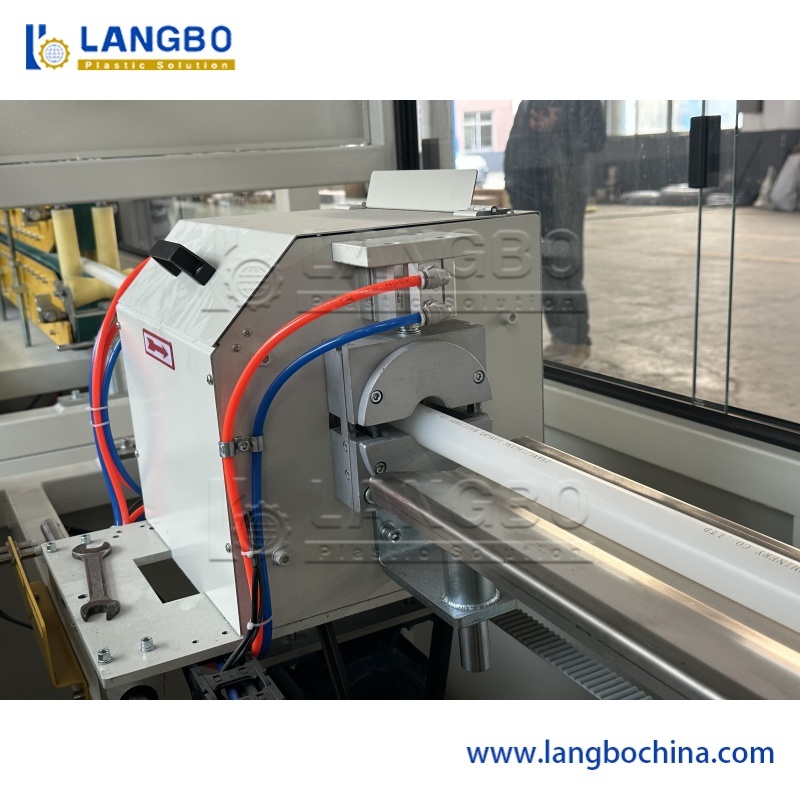

  • Cutter (no-scraps cutter or planetary cutter design based on diameter)
  • Coiler/Tipping chute

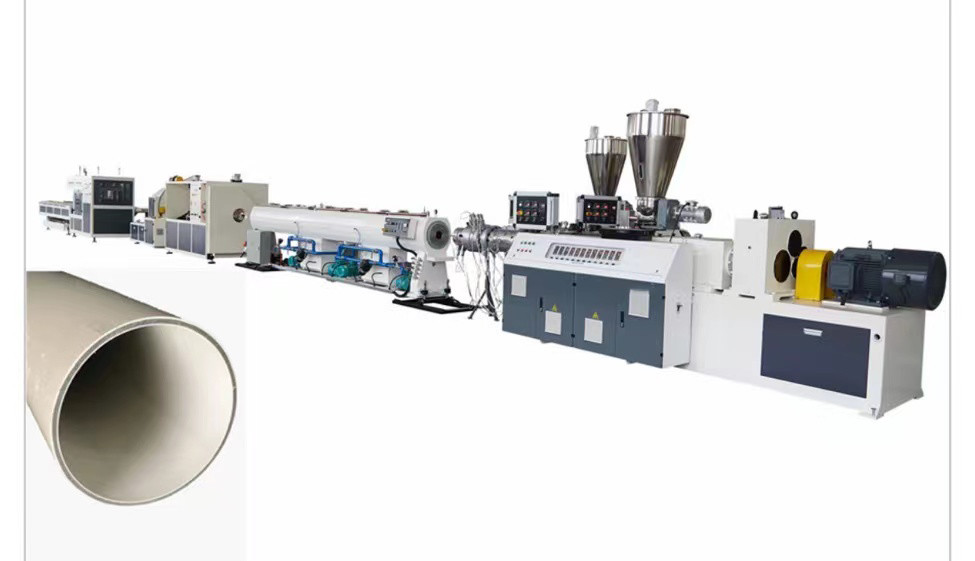

Complete plastic pipe extrusion line equipment
Key Features & Advantages
PLC control system for high automation
Specialized screw design for optimal plasticizing effect
Vacuum calibration with constant temperature control to eliminate pipe stress
Co-extrusion head for adding color lines
High extrusion capacity with low, equal melt temperature
Wide processing range for various raw materials

Product Highlights

Plastic PPR PE Pipe Making Line 3 Layer PLC Remote Control High Quality Plastic PPR/PE Pipe Making Line Co-Extrusion Process Technology In standard extrusion, solid plastic pellets are gravity fed into a forming mechanism where jacketed compression screws melt and feed materials into a die. Co...
