Plastic PVC Corner Beads Profile Extrusion Line Insulation Heat With Touch Screen
Product Details
| EXTRUDER MODEL: | CONICAL TWIN SCREW EXTRUDER | PROFILE'S SIZE: | 1240MM |
|---|---|---|---|
| MOTOR POWER: | 55KW | RAW MATERIAL: | PVC & ADDITIVES |
| HAUL-OFFS: | TWO INDEPENDENT TRACKS | CAPACITY: | 350KG/H |
| Highlight |
PVC Corner Beads Profile Extrusion Line,Touch Screen PVC Profile Extrusion Line,Insulation Heat PVC Profile Extrusion Line |
||
Product Description
Plastic PVC Corner Beads Profile Extrusion Line
PVC PROFILE EXTRUSION MACHINE LINE DESCRIPTION:
Our highly qualified team of engineers, operators and technician has always been searching for high technology so that we can meet customers various requirements.

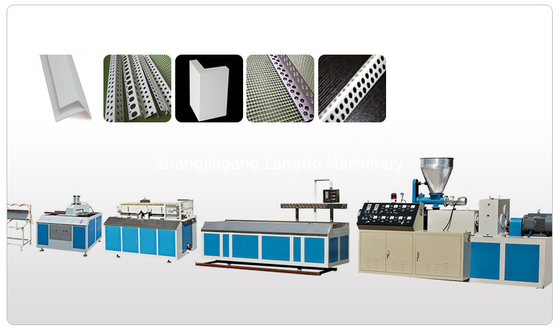

This kind of equipment can be used to produce profile for windows , gutter, shutters, wall panels, decorative profiles etc. One production line includes a main extruder, extrusion tool, calibrating system, calibrating table, profile crawler track Haul-off, Saw, stacking unit.
PVC PROFILE EXTRUSION MACHINE LINE APPLICATION:

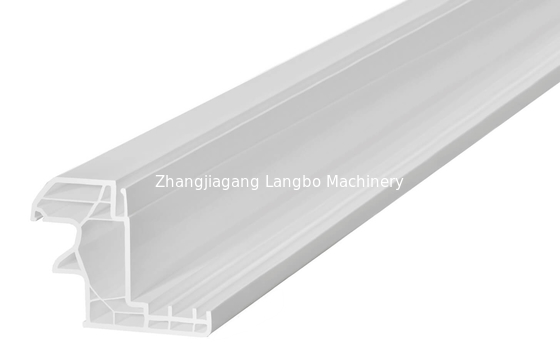

PVC is being extensively used to produce profile for windows, technical profiles and profile for doors due to excellent weathering resistance, impact strength and durability. PVC gives outstanding insulation for heat and noise, and has a very low maintenance cost.
LANGBO MACHINERY offers the lead-based and lead-free type of stabilizers that impart excellent heat and UV resistance to PVC profiles. LANGBO MACHINERY stabilizer system provides higher mechanical strength, excellent whiteness and color stability. The one pack system is specially designed with excellent quality additives to ensure smooth extrusion with good luster and finish consistently.
FEATURES:
High flexibility in raw material combinations
Gentle and homogeneous plastification
Barrel with air cooling system
AC motors for low energy consumption
Control panel with color touch screen
EQUIPMENT CONFIGURATION
| 1 | Screw feeder | 1set |
| 2 | SJSZ-65/132 extruder | 1set |
| 3 | Vacuum calibration table | 1set |
| 4 | Haul off machine | 1set |
| 5 | Cutter | 1set |
| 6 | Stacker | 1set |
| 7 | Mould | 1set |
SPECIFICATION
The Extruder is the "heart" of the Production Line, it depends not only the Output Capacity but also the most of the energy consumption. The Table below shows the Screw standard of the different Production level.
For customized complete production solution, please contact us.
| Model | SJZ45 | SJZ51 | SJZ65 | SJZ80 | SJZ92 |
| Screw diameter (mm) | 45/100 | 51/105 | 65/132 | 80/156 | 92/188 |
| Screw rotation speed (r/min) | 4-45.5 | 1-30 | 1-34.7 | 1-36.9 | 1-32.9 |
| The effective length of the screw (mm) | 1000 | 1050 | 1430 | 1800 | 2520 |
| Main motor power (kW) | 15 | 22 | 37 | 55 | 90 |
| Barrel heating power (kW) | 12 | 18 | 24 | 36 | 48 |
| Capacity (kg/h) | 95 | 110 | 250 | 380 | 520 |
| Central height (mm) | 1000 | ||||
| Net Weight(kg) | 3000 | 3200 | 5000 | 6500 | 7500 |
