Plastic PVC Profile Extrusion Line 1240MM High Performance
Product Details
| EXTRUDER MODEL: | CONICAL TWIN SCREW EXTRUDER | PROFILE'S SIZE: | 1240MM |
|---|---|---|---|
| MOTOR POWER: | 55KW | RAW MATERIAL: | PVC & ADDITIVES |
| HAUL-OFFS: | TWO INDEPENDENT TRACKS | CAPACITY: | 350KG/H |
| Highlight |
High Performance PVC Profile Extrusion Line,1240MM PVC Profile Extrusion Line,Plastic PVC Profile Extrusion Line |
||
Product Description
High Performance Plastic PVC Profile Production

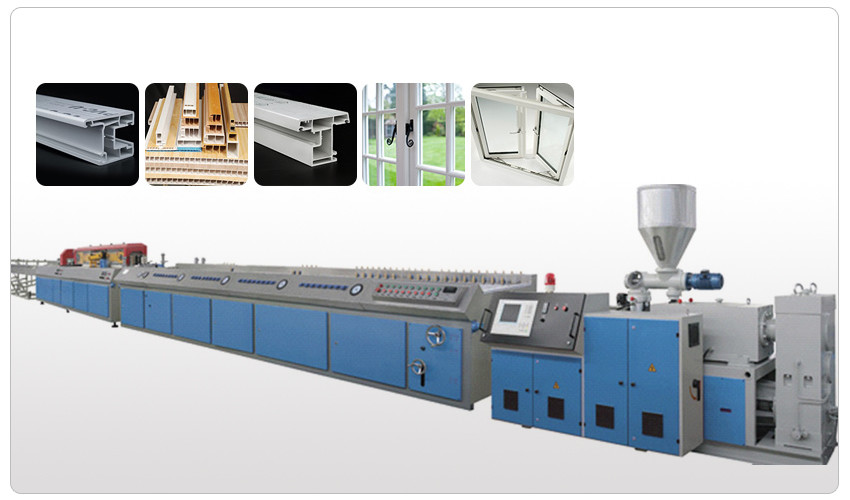

PLASTIC PVC PROFILE EXTRUSION LINE

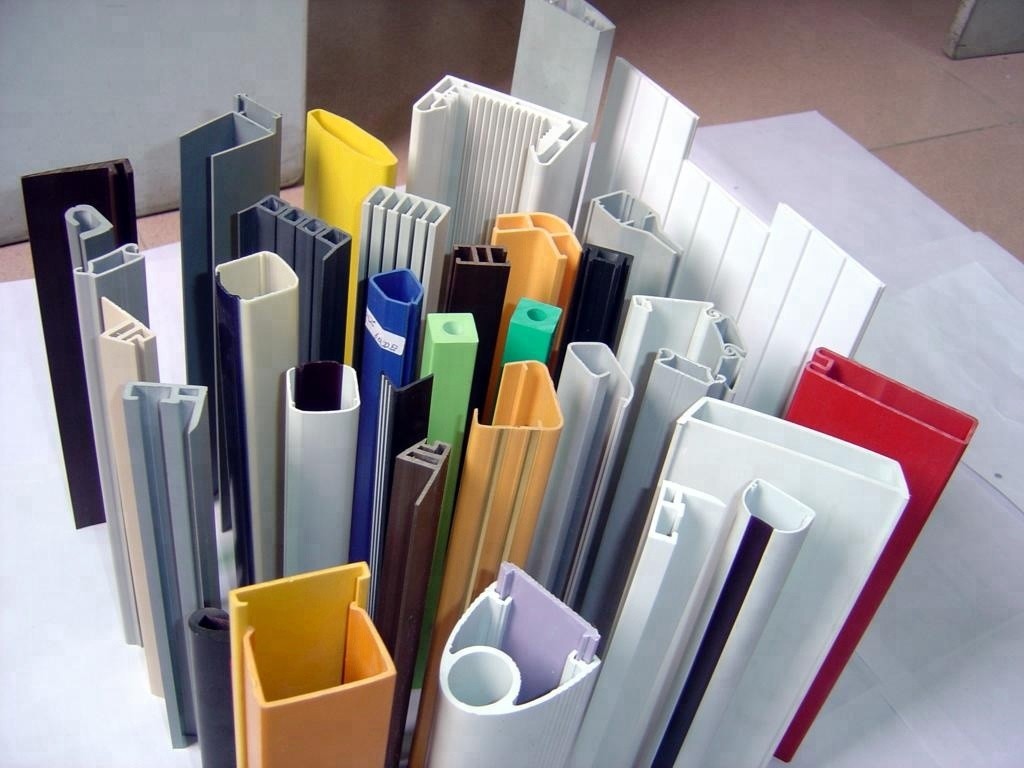

PVC is being extensively used to produce profile for windows, technical profiles and profile for doors due to excellent weathering resistance, impact strength and durability. PVC gives outstanding insulation for heat and noise, and has a very low maintenance cost.
LANGBO MACHINERY offers the lead-based and lead-free type of stabilizers that impart excellent heat and UV resistance to PVC profiles. LANGBO MACHINERY stabilizer system provides higher mechanical strength, excellent whiteness and color stability. The one pack system is specially designed with excellent quality additives to ensure smooth extrusion with good luster and finish consistently.
FEATURE
Conical twin-screw extruder, suitable for processing PVC powder raw materials.
Changing the moulds to produce several kinds of different PVC profiles.
Auxiliary machine: Mixer unit, Mould, Vacuum calibration table, Haul-off machine, Cutter and Stacker.
ADVANTAGES
Mainly used to produce the PVC profile for windows, plastic decorative plates and PVC foam profiles.
Use frequency conversion for speed regulation.
Has super-taper twin-screw extruder with temperature controlling instrument in the screw core.
Saves power by 30% - 40%.
The rigid gear surface of the reducer can be operated continuously for a long time without trouble.
Operation and mold changing are smooth and steady.
Long usage life.
Produce steel plastic profiles by changing the wood imitation foaming profile mold.

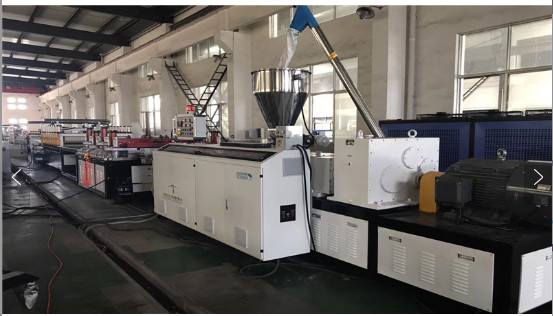

EQUIPMENT CONFIGURATION
| 1 | Screw feeder | 1set |
| 2 | SJSZ-65/132 extruder | 1set |

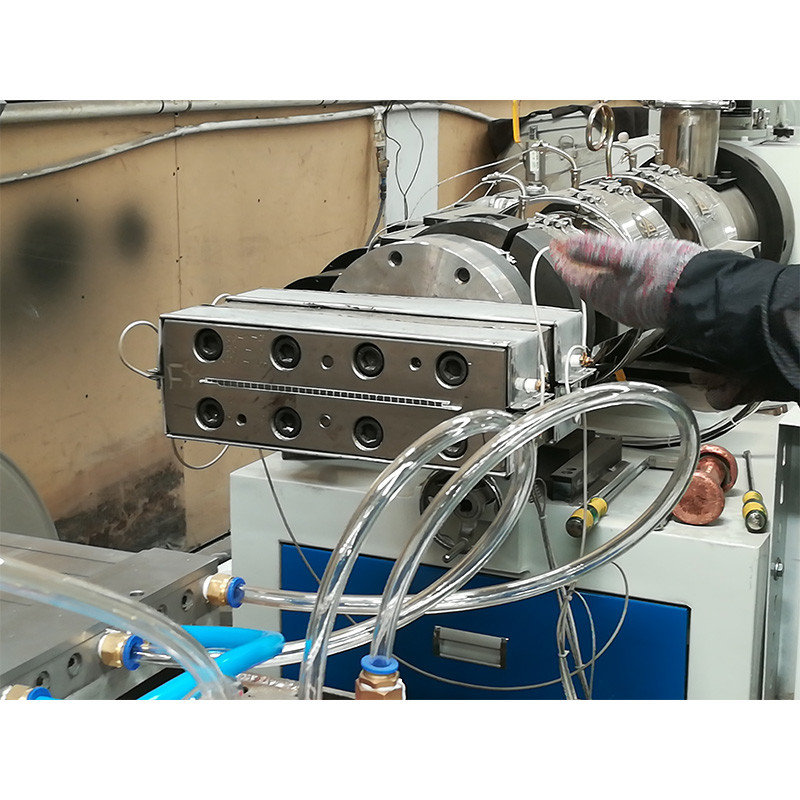

| 3 | Vacuum calibration table | 1set |
| 4 | Haul off machine | 1set |
| 5 | Cutter | 1set |
| 6 | Stacker | 1set |
| 7 | Mould | 1set |
SPECIFICATION
The Extruder is the "heart" of the Production Line, it depends not only the Output Capacity but also the most of the energy consumption. The Table below shows the Screw standard of the different Production level.
For customized complete production solution, please contact us.
| Model | SJZ45 | SJZ51 | SJZ65 | SJZ80 | SJZ92 |
| Screw diameter (mm) | 45/100 | 51/105 | 65/132 | 80/156 | 92/188 |
| Screw rotation speed (r/min) | 4-45.5 | 1-30 | 1-34.7 | 1-36.9 | 1-32.9 |
| The effective length of the screw (mm) | 1000 | 1050 | 1430 | 1800 | 2520 |
| Main motor power (kW) | 15 | 22 | 37 | 55 | 90 |
| Barrel heating power (kW) | 12 | 18 | 24 | 36 | 48 |
| Capacity (kg/h) | 95 | 110 | 250 | 380 | 520 |
| Central height (mm) | 1000 | ||||
| Net Weight(kg) | 3000 | 3200 | 5000 | 6500 | 7500 |
