Ecofriendly PVC Profile Extrusion Line 350KG / H Wall Panel Production Fireproof

Ecofriendly PVC Profile Extrusion Line 350KG / H Wall Panel Production Fireproof
Ecofriendly PVC Profile Extrusion Line 350KG / H Wall Panel Production Fireproof Ecofriendly PVC Profile Extrusion Line 350KG / H Wall Panel Production Fireproof Ecofriendly PVC Profile Extrusion Line 350KG / H Wall Panel Production Fireproof

Large Image :  Ecofriendly PVC Profile Extrusion Line 350KG / H Wall Panel Production Fireproof

Product Details:
Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE,ISO
Model Number: LB-1240
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD,EUR
Packaging Details: STANDARD PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 15 SETS PER MONTH

Ecofriendly PVC Profile Extrusion Line 350KG / H Wall Panel Production Fireproof

Description
EXTRUDER MODEL: CONICAL TWIN SCREW EXTRUDER PROFILE'S SIZE: 1240MM
MOTOR POWER: 55KW RAW MATERIAL: PVC & ADDITIVES
HAUL-OFFS: TWO INDEPENDENT TRACKS CAPACITY: 350KG/H
High Light:

Ecofriendly PVC Profile Extrusion Line

,

350KG/H Wall Panel Production Line

,

Fireproof PVC Profile Extrusion Line

Eco-friendly Wall Panel Machinery Production line

ADVANTAGES OF PVC PROFILE FOR WALL PANEL

1. Varies of colors and patterns. Showing authentic wood structure and artistic sense. Customized designs.

2. Wide using areas. For indoor wall decoration.

3. High intensity, resist erosion, anti aging. Fireproof, waterproof, environmental friendly.

4. Easy installing, cleaning and maintenance.

5. Long using life.

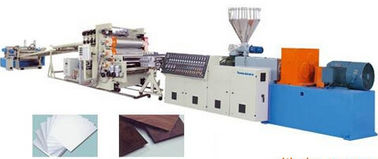

                                                  Ecofriendly PVC Profile Extrusion Line 350KG / H Wall Panel Production Fireproof 0

PERFORMANCE OF PVC WALL PANEL PRODUCTION LINE

PVC wall panel extrusion line mainly used for the production of PVC hollow panel like ceiling panel, wall panel, furniture panel, etc. The wall panel making machine consists of conical twin screw extruder, mold, vacuum calibration table, tractor, cutting machine, laminating machine, stamping machine and so on. PVC ceiling/wall panel production line has wide adjustment range, high temperature control precision and convenient and reliable operation.

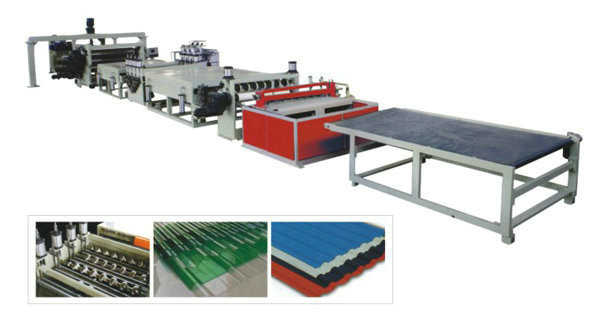

                                    Ecofriendly PVC Profile Extrusion Line 350KG / H Wall Panel Production Fireproof 1

THE COMPLET EXTRUSION CONSISTS OF FOLLOWING ITEMS:

  • Conical Twin Screw Extruder:
  • It is used for melting and stirring plastic material. LANGBO adapts special screw and barrel type that provide perfect mixing and homogenous. We use special gear box for the Extruder which has axial bearings. Transfer the motor to the screw. For minimizing electricity consumption, we use the famous brand of driving motor of “SIEMENS” on our Extruder. Automation system designed with PLC and touch panel controller can be selected.
  •
  • Mould:
  • Our mould designing gives ideal viscosity to melt material for profile producing. It gives profile or shape to plastic after processing. All faces the plastic in contact with is polish, so that frication losses minimized.
  •
  • Calibration Table:
  • The shaped profile that come from mould is subjected to calibration and cooling processing on the calibration table. The designing of calibration table varies according to the type and characteristic of the profile. The area that contacts with water is made of stainless steel in order to prevent corrosion.
  •
  • Caterpillar Haul-off:
  • The designing of caterpillar haul-off changes depending on the contact area that is related to the profile measurement. The inverter control is standard on all caterpillar haul-off. For this reason, as the speed can adjusted with respect to material output rate. The caterpillar haul-off is also capable of making measurement adjustment through speed control equipment.
  •
  • Saw cutter:
  • In the speedy working condition, profile saw works with high efficiency in term of cutting frequency. As the saw table and clamps move synchronously. The saw cuts the profile in required length.
  • During the cutting processing, swarf and dust appears, in order to prevent these in production area, there is a dust collection unit is integrated in saw cutter. This unit absorbs swarf, dust effectively and removes to storage.
  •
  • Tip-off unit:
  • It operates on pneumatic cylinder.

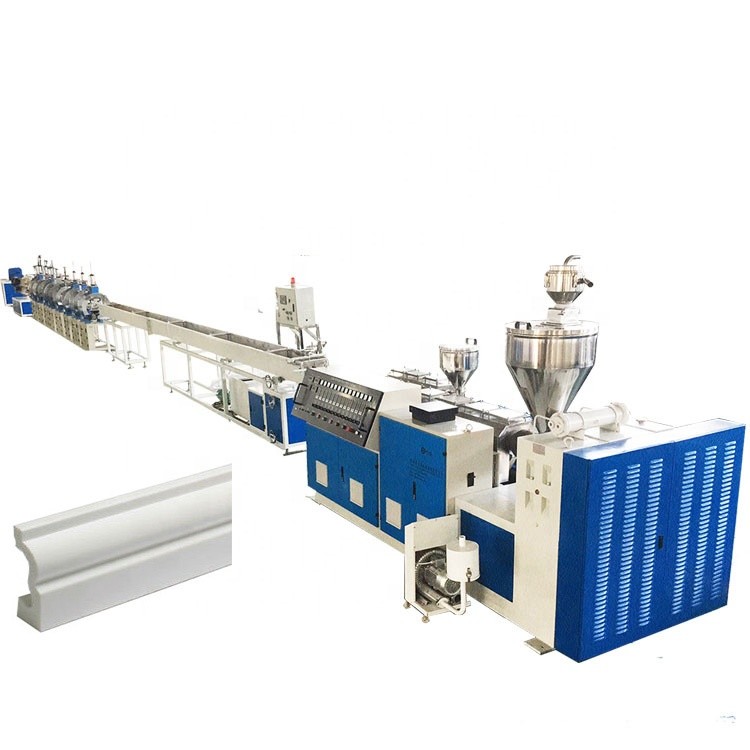

  •                                     Ecofriendly PVC Profile Extrusion Line 350KG / H Wall Panel Production Fireproof 2

EQUIPMENT CONFIGURATION

1 Screw feeder 1set
2 SJSZ-65/132 extruder 1set
3 Vacuum calibration table 1set
4 Haul off machine 1set
5 Cutter 1set
6 Stacker 1set
7 Mould 1set

SPECIFICATION

The Extruder is the "heart" of the Production Line, it depends not only the Output Capacity but also the most of the energy consumption. The Table below shows the Screw standard of the different Production level.

For customized complete production solution, please contact us.



Model SJZ45 SJZ51 SJZ65 SJZ80 SJZ92
Screw diameter (mm) 45/100 51/105 65/132 80/156 92/188
Screw rotation speed (r/min) 4-45.5 1-30 1-34.7 1-36.9 1-32.9
The effective length of the screw (mm) 1000 1050 1430 1800 2520
Main motor power (kW) 15 22 37 55 90
Barrel heating power (kW) 12 18 24 36 48
Capacity (kg/h) 95 110 250 380 520
Central height (mm) 1000
Net Weight(kg) 3000 3200 5000 6500 7500
