Fire Resistance PVC Profile Extrusion Line 55KW WPC Wall Panel Production Line

Fire Resistance PVC Profile Extrusion Line 55KW WPC Wall Panel Production Line
Fire Resistance PVC Profile Extrusion Line 55KW WPC Wall Panel Production Line Fire Resistance PVC Profile Extrusion Line 55KW WPC Wall Panel Production Line Fire Resistance PVC Profile Extrusion Line 55KW WPC Wall Panel Production Line Fire Resistance PVC Profile Extrusion Line 55KW WPC Wall Panel Production Line Fire Resistance PVC Profile Extrusion Line 55KW WPC Wall Panel Production Line Fire Resistance PVC Profile Extrusion Line 55KW WPC Wall Panel Production Line

Large Image :  Fire Resistance PVC Profile Extrusion Line 55KW WPC Wall Panel Production Line

Product Details:
Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE,ISO
Model Number: LB-1240
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD,EUR
Packaging Details: STANDARD PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 15 SETS PER MONTH

Fire Resistance PVC Profile Extrusion Line 55KW WPC Wall Panel Production Line

Description
EXTRUDER MODEL: CONICAL TWIN SCREW EXTRUDER PROFILE'S SIZE: 1240MM
MOTOR POWER: 55KW RAW MATERIAL: PVC & ADDITIVES
HAUL-OFFS: TWO INDEPENDENT TRACKS CAPACITY: 350KG/H
High Light:

WPC Wall Panel Production Line

,

55KW PVC Profile Extrusion Line

,

Fire Resistant PVC Profile Extrusion Line

Fire Resistance WPC Wall Panel Production Line

INTRODUCTION OF PVC WALL PANEL MAKING MACHINE:

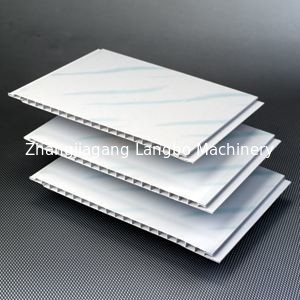

PVC ceiling machine is used to produce PVC Profile for wall panel, PVC wall panel with width normally from 150mm to 600mm with different section shape and height. the surface of PVC ceiling panel can be treated by double color roller printing & coated with UV lacquer, or by hot stamping printing, or by lamination, which can make marble, wooden design on surface of product.

Fire Resistance PVC Profile Extrusion Line 55KW WPC Wall Panel Production Line 0

FEATURES OF PVC WALL PANEL PRODUCTION LINE

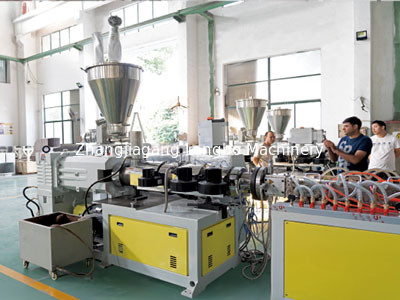

1. PVC wall panel extrusion line adopts exclusively designed conical twin screw extruder, with vacuum degassing system, can get rid of the waste gas from the raw material which can ensure good quality of final granules;

2. Gearbox: from Jiangyin Deling gearbox company, very famous brand in China, with nice outline, stable running, low noise and long service time;

3. Driving system: adopting Siemens motor, which provide stable torque output and various speed;

4. ABB frequency converter and Schneider electric control system which have wide adjustment range, high precision temperature control, simple operation and good reliability;

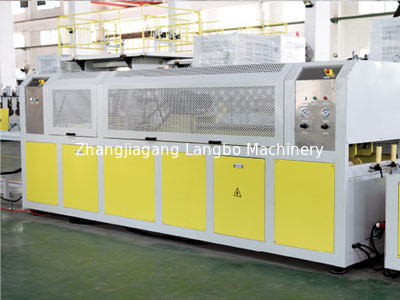

5. The production line is equipped with large forcing cooling device to ensure good effects of the PVC profile for wall panel;

6. Caterpillar-type haul-off unit utilizes branded reducing speed motor and ABB frequency inverter, and is featured in reasonable structure design, large and stable hauling power.

Fire Resistance PVC Profile Extrusion Line 55KW WPC Wall Panel Production Line 1

PRODUCT DESCRIPTION

1. We are expert manufacturer of PVC wall panel making machine and can supply you turnkey solution including supplying machines, installation, training staff, material purchasing help, help send Chinese production master etc.

2. We can show you running PVC wall panel production line in our factory and our customer's factory.

3. The most important thing is that we have manufacturing PVC Profile for wall panel for over 20 years, we are familiar with all production process and we know how to make machines perfect and how to reduce production cost.



  Fire Resistance PVC Profile Extrusion Line 55KW WPC Wall Panel Production Line 2



OUR ADVANTAGES IN PVC WALL PANEL MAKING MACHINE:

* with Infrared tracking device, benefit for product shape control, suitable benefit for seamless edge PVC ceiling panel

* extruder flange adopts hinged type, convenient for changing filtration net, reduce time for changing net.

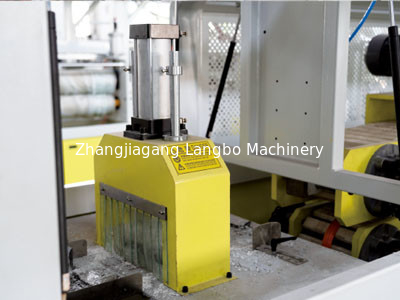

cutter adopts rolling blade, reduce dust collection and material waste.

* speed controlled by inverter, saving power and easy to adjust speed

* extruder temperature controlled by Omron intelligent controller, temperature fluctuation self adjusting

* easy and convenient for operation and maintain

* low power consumption: lowest total production line consumption 25kw/hour

* economical price, suitable for large scale investment.

Fire Resistance PVC Profile Extrusion Line 55KW WPC Wall Panel Production Line 3

EQUIPMENT CONFIGURATION

1 Screw feeder 1set
2 SJSZ-65/132 extruder 1set
3 Vacuum calibration table 1set
4 Haul off machine 1set
5 Cutter 1set
6 Stacker 1set
7 Mould 1set



SPECIFICATION

The Extruder is the "heart" of the Production Line, it depends not only the Output Capacity but also the most of the energy consumption. The Table below shows the Screw standard of the different Production level.

For customized complete production solution, please contact us.



Model SJZ45 SJZ51 SJZ65 SJZ80 SJZ92
Screw diameter (mm) 45/100 51/105 65/132 80/156 92/188
Screw rotation speed (r/min) 4-45.5 1-30 1-34.7 1-36.9 1-32.9
The effective length of the screw (mm) 1000 1050 1430 1800 2520
Main motor power (kW) 15 22 37 55 90
Barrel heating power (kW) 12 18 24 36 48
Capacity (kg/h) 95 110 250 380 520
Central height (mm) 1000
Net Weight(kg) 3000 3200 5000 6500 7500
