Four Strand PVC Pipe Making Machine High Compression Resistance
Product Details
| Name: | PVC Pipe Extrusion Line | Packaging Details: | Film Wraping |
|---|---|---|---|
| Plastic: | PVC | Application: | Pipe Making |
| Raw Material: | Pvc Powder | Screw Design: | Conical Twin Screw |
| Material Of Screw: | 38CrMoALA | Inverter: | ABB |
| Temperature Sensor: | Omron | ||
| Highlight |
Four Strand PVC Pipe Making Machine,2 strand PVC Pipe Making Machine,2 strand conical twin screw extruder |
||
Product Description
Four Strand PVC Pipe Making Machine
INTRODUCTION
Main extruder is conical twin screw extruder, there two options for choosing machinery: two cavity pipe extrusion line and four cavity pipe extrusion line; in this complete production line can equipe online pipe socket/belling machine.
The complete production line can equip pipe socket/ belling machine online. U type socket/ belling.
The full line can be PLC touch screen operation or by manual.
SPECIFICATIONS
Production Capacity has a close relationship with screw size and motor power. With the following table you can get a roughly overview to our pipe TWO Strand pipe solution.
| MODEL | PIPE DIAMETER (MM) | EXTRUDER MODEL | MOTOR POWER (KW) |
| LB-32F | 16-32 (FOUR PIPE) | SJSZ65/132 | 37 AC |
| LB-32E | 16-32 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-32W | 16-32 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-40E | 16-40 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-40W | 16-40 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-50E | 16-50 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-50W | 16-50 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-63W | 16-63 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
FEATURE&APPLICATION
Product Feature
1. The inner and outer walls of the pipe fittings are smooth and the friction coefficient is small.
Reduce the resistance of wires and cables in pipelines.
2. High compression resistance
Can withstand the pressure above 750N, so can be installed in the open or dark in the concrete, without compression damage (note: dark in the concrete please choose heavy pipe).
3. Good impact resistance and heat resistance
During concrete pouring, the casing will not break under normal tamping impact, and will not be soft under condensation heat during construction.
4. Moisture resistance, acid and alkali resistance
PVC casing has excellent moisture-proof, acid-base resistance and will not rust. All joints are bonded by PVC adhesive according to regulations, which can be waterproof and infiltrate into the pipe and achieve better moisture-proof effect.Therefore, it is more suitable for use in corrosive environment.
5. Flame retardant:
PVC plastic sleeve self-extinguishing from the fire (leaving the flame will be self-extinguishing within 30 seconds), the flame will not spread along the pipe.
6, insulation
Casing has excellent insulation performance, AC2000V, 50Hz will not break down under water condition.In terms of preventing accidental electric shock, the international trend is that insulation is better than grounding, and the PVC sleeve of our factory meets this requirement.
7, resistance insect
Due to the addition of special additives in PVC casing, it will not emit odor and attract insects and rats to bite and destroy.
8. Convenient construction
The catheter under OD32mm can be conveniently cut off with a pipe cutter, and the corresponding special spring is inserted into the catheter, which can be manually bent to the required Angle at normal temperature. PVC adhesive can be used to quickly and conveniently connect the casing into the pipe of the required shape for construction.
Product Application
Mainly used for building or structure indoor threading, wall threading, underground buried lines and other power, communication lines.

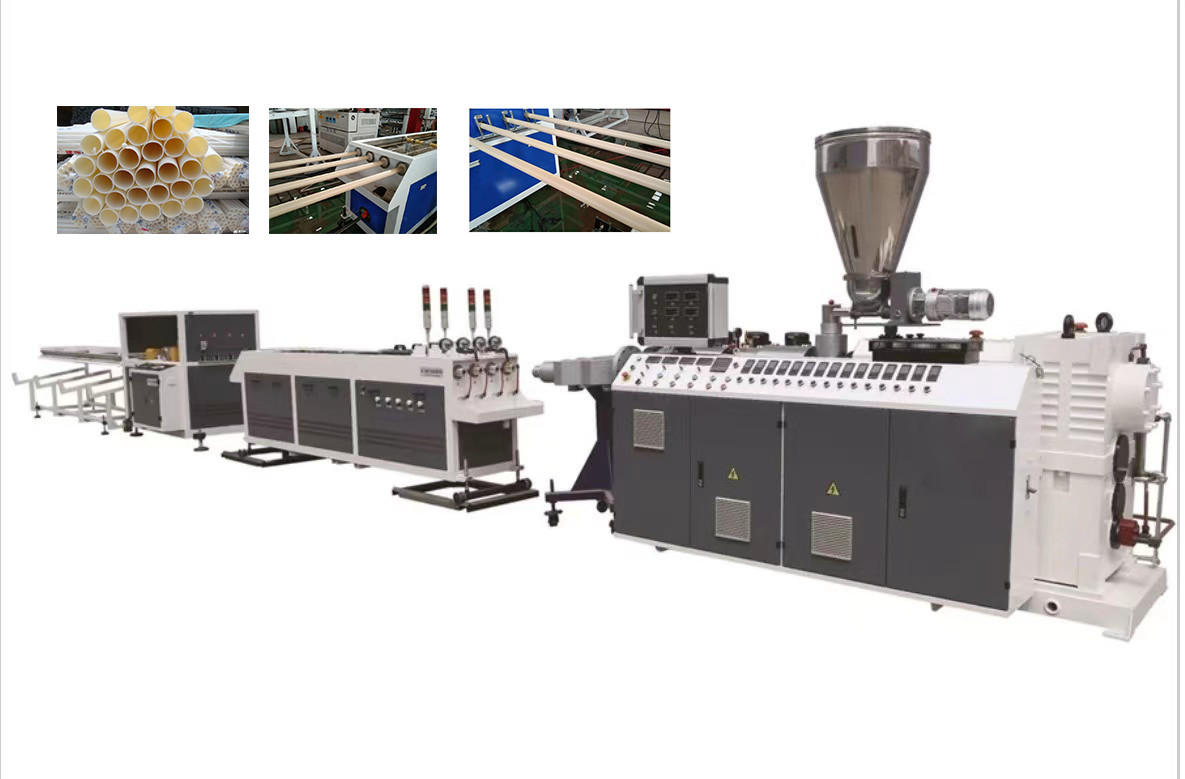

THE PRODUCTION LINE IS COMPOSED OF THE FOLLOWING PARTS:

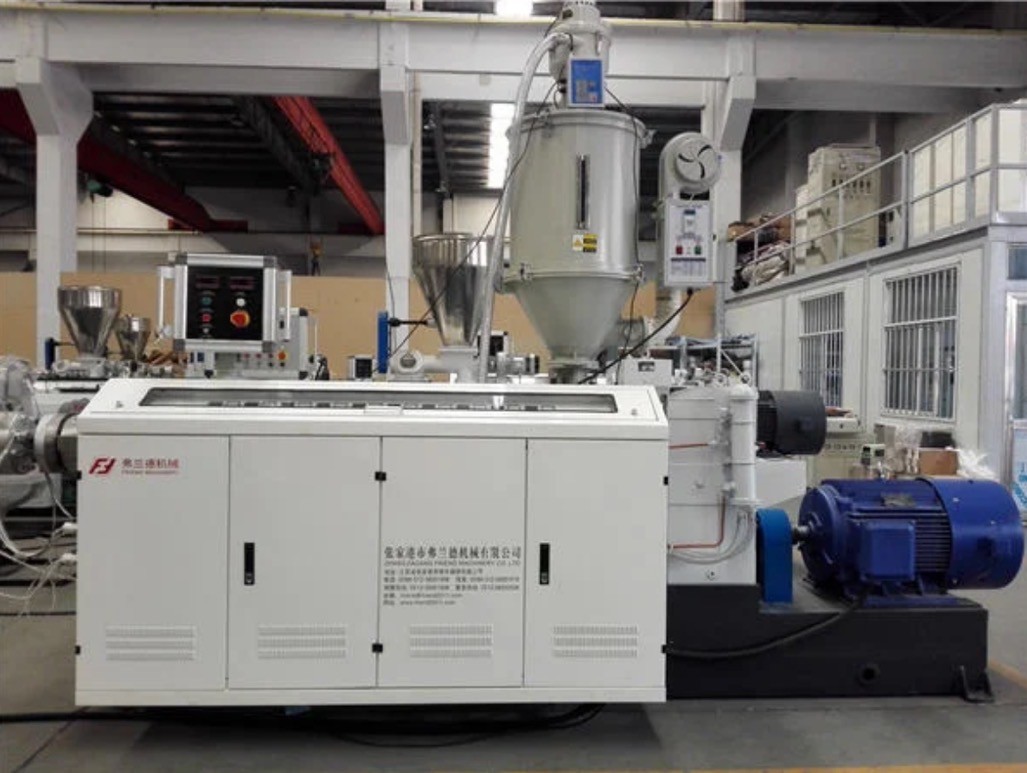

65 / 132 twin-screw extruder
four cavity die head

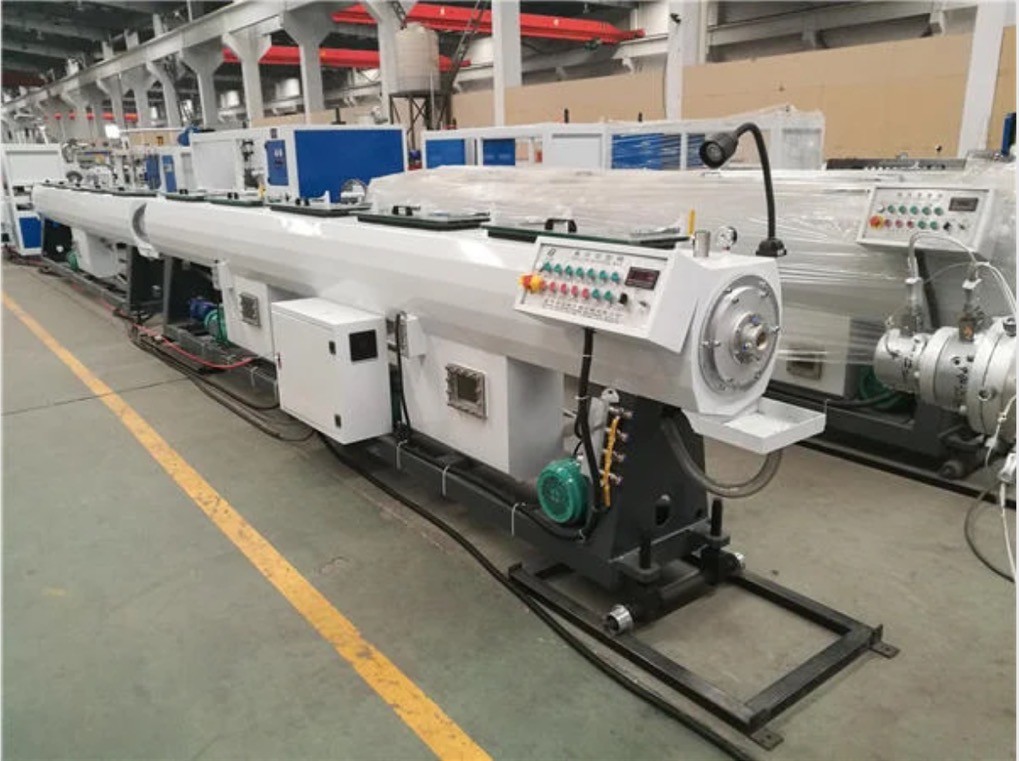

Stainless steel vacuum vacuum calibration tank
Automatic printer spraying moving frame;

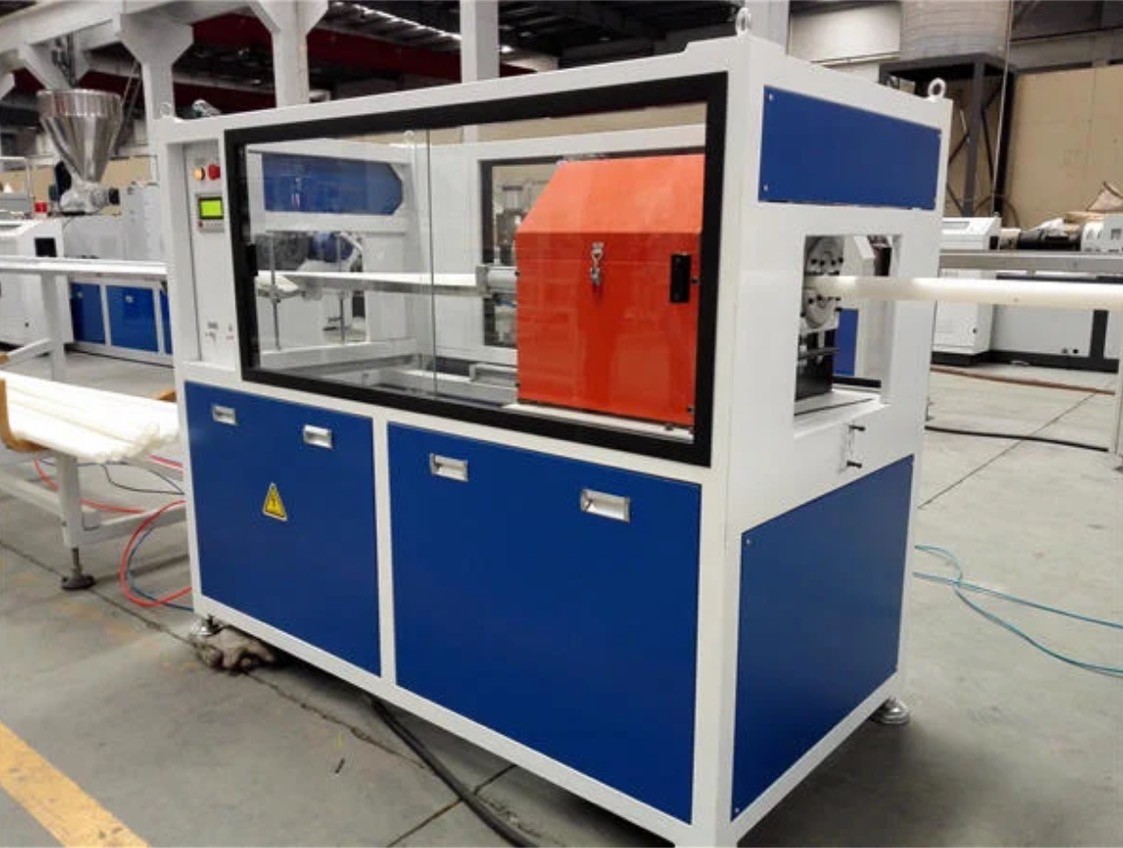

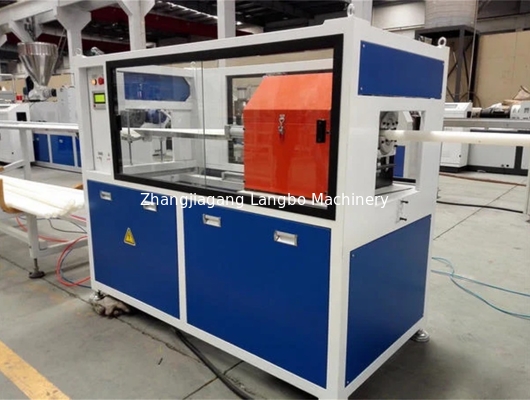

Four cavity puller & cutting machine
Stacker
