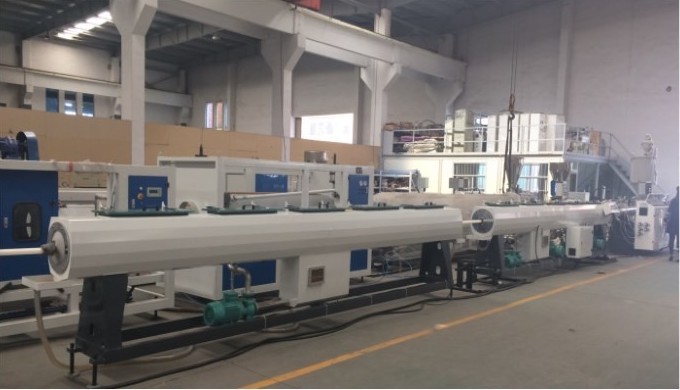

Twin Screw Stable Running 16-315mm Plastic PVC Tube Extrusion Line

Description
Name: PVC Pipe Extrusion Line Packaging Details: Film Wraping
Plastic: PVC Application: Pipe Making
Raw Material: Pvc Powder Screw Design: Conical Twin Screw
Material Of Screw: 38CrMoALA Motor: Siemens
Inverter: ABB Temperature Sensor: Omron
High Light:

stable running PVC tube extrusion line

,

twin screw PVC tube extrusion line

,

stable running plastic pipe extruder

16-315mm PVC tube extrusion line



PRODUCTION DESCRIPTION

PVC Pipe Production Line consists of high speed mixing group, conical twin screw extruder, moulds, Vacuum diameter calibrating cooling water tank, haul-off, ink printer, saw cutter, stacker, ect.

The line applies unique screw design, which features with short remaining time for materials in the barrel, and good compounding and plasticizing effect. It adopts reduction box of super quality, with nice outline, stable running and low noise. Finned ceramic heater for barrel heating and air cooling system bring precise temperature controlling. Vacuum degassing system can get rid of moisture and volatile gas from the materials and guarantee the super quality of products. Main motor applies silicon controlled DC speed regulator or variable frequency speed regulator, which provides stable torque output and step less speed regulation. It is suitable for the processing of PVC or UPVC powder.





PRODUCTION FLOW:

Raw material + additive → Mixing → material conveying → Forced feeding → Conical twin screw extruder → extruding mould → Diameter control unit → Spraying vacuum shaping box → spraying/immersion type cooling water tank → marking machine → caterpillar tractor → cutter → pipe expanding machine → Pipe stacker → pipe inspection & packing



1f5225754a2e1e133deebd2fb18d7ab

TECHNICAL PARAMETER:

Model Pipe diameter Extruder Extruder power Capacity
LB-32A 16-32(four) SJ65/132 37AC 250
LB-32B 16-32(four) SJ80/156 55AC 350
LB-50A 16-50 SJ45/90 15AC 100
LB-50B 16-50(double) SJ51/105 18.5AC 150
LB-50C 16-50(double) SJ65/132 37AC 250
LB-63A 16-63 SJ51/105 18.5AC 150
LB-63B 16-63(double) SJ65/132 37AC 250
LB-160 50-160 SJ65/132 37AC 250
LB-250 63-250 SJ65/132 37AC 250
LB-315 110-315 SJ80/156 55AC 350
LB-630 315-630 SJ92/188 110DC 800
LB-800 560-800 SJ105/216 160DC 1100







MAIN COMPONENTS OF PRODUCTION LINE



Conical twin-screw extruder: It equipped with forced fixed-quantity material feeding system, automatic temperature control system, vacuum exhaust system and automatic speed control system.

This structure assures accurate controlling for the material temperature, plasticization stability and greatly improving production speed. The main motor is direct convertor or frequency convertor.



PVC extruding molds: Material is high quality 40Cr. Molds surface is dealt with polishing and chrome plating. it adopts the structure of multiple head spiral. The melt has low pressure. Extruding at high quantity, the die head still maintain low temperature.



Vacuum calibrating water tank: The material of body is high hardness and good quality stainless steel board. It is high-pressure resistance, corrosion-resistance and two-stage for large diameter pipe.

Electricity controls water temperature.

The nozzle material is ABS engineering plastic. The frame of the machine can be adjusted three dimensions. The moving from front to back adopt cycloid reducer drive and up & down and left & right adopt screw adjustment.



Water spray cooling tank: The body is made of stainless steel and the shade is transparent soft PVC curtain. Stainless steel float adjusts water level and electricity controls water temperature. The nozzle material is ABS engineering plastic.



Haul-off machine: It adopts frequency conversion approach. Every traction frame transfers with chain which ensures every track moving simultaneously. It is pneumatic flexibility clamping.



Cutting machine: It is planetary cutting for large diameter. The blade takes rotation and cutting part and inserting blade part take revolution. It has angle cutting structure, pneumatic aluminum half clamping and cleaning device.



Control system: We can offer Siemens PLC controlling system which is intelligent controlling system. Also we can offer ordinary controlling system which use Siemens electrical parts, Omron temperature controller. Operation is simple.



Twin Screw Stable Running 16-315mm Plastic  PVC Tube Extrusion Line 1 4

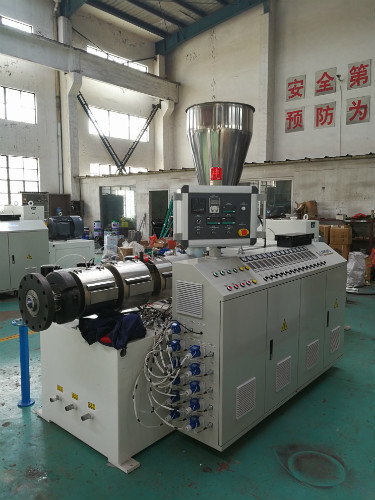

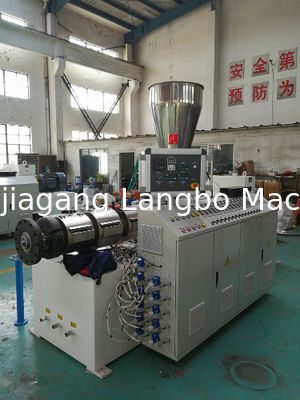

                                     Extruder                                                                                                        Vacuum tank

4.4_PipeExtrusionLine_Hauloff2 3

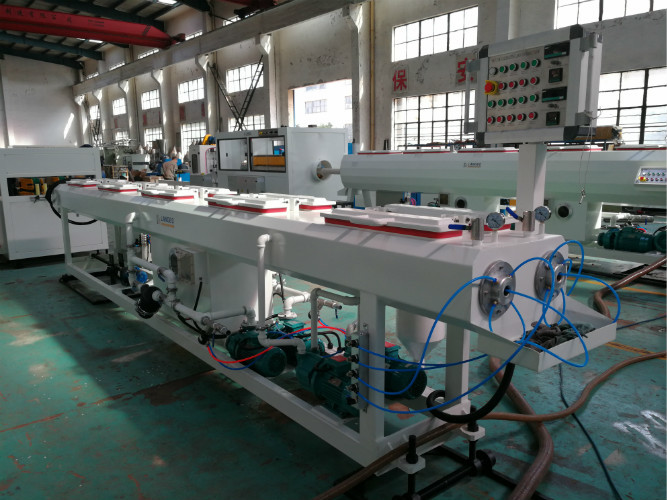

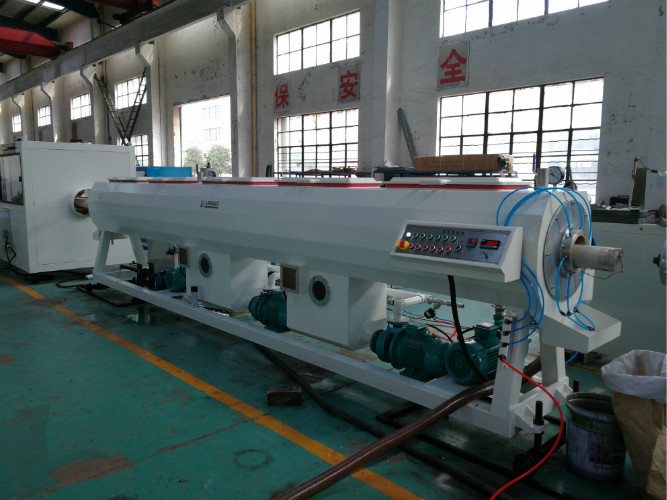

                                 Haul-off machine                                                                      Vacuum tank with cooling function

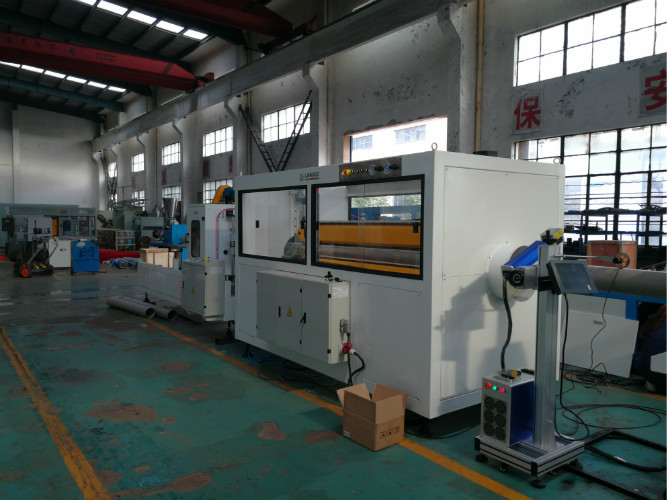

2 Caterpillar-Haul-off

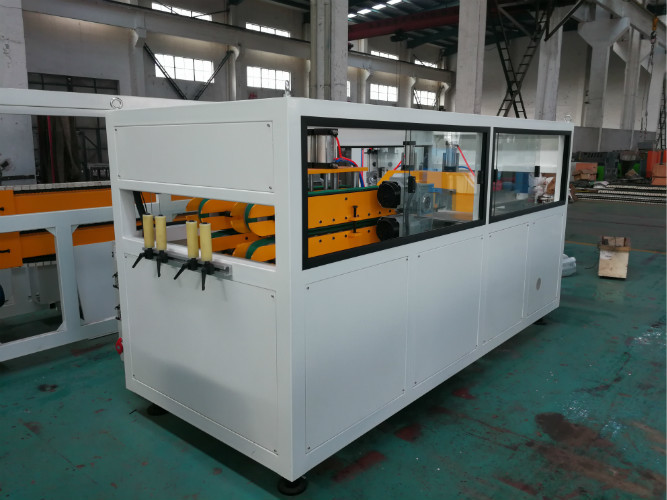

                            Cutting machine                                                                                            Haul-off machine
