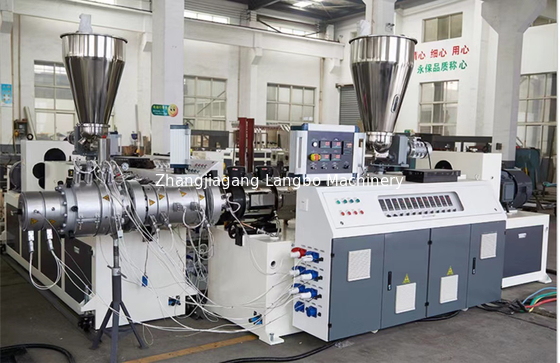

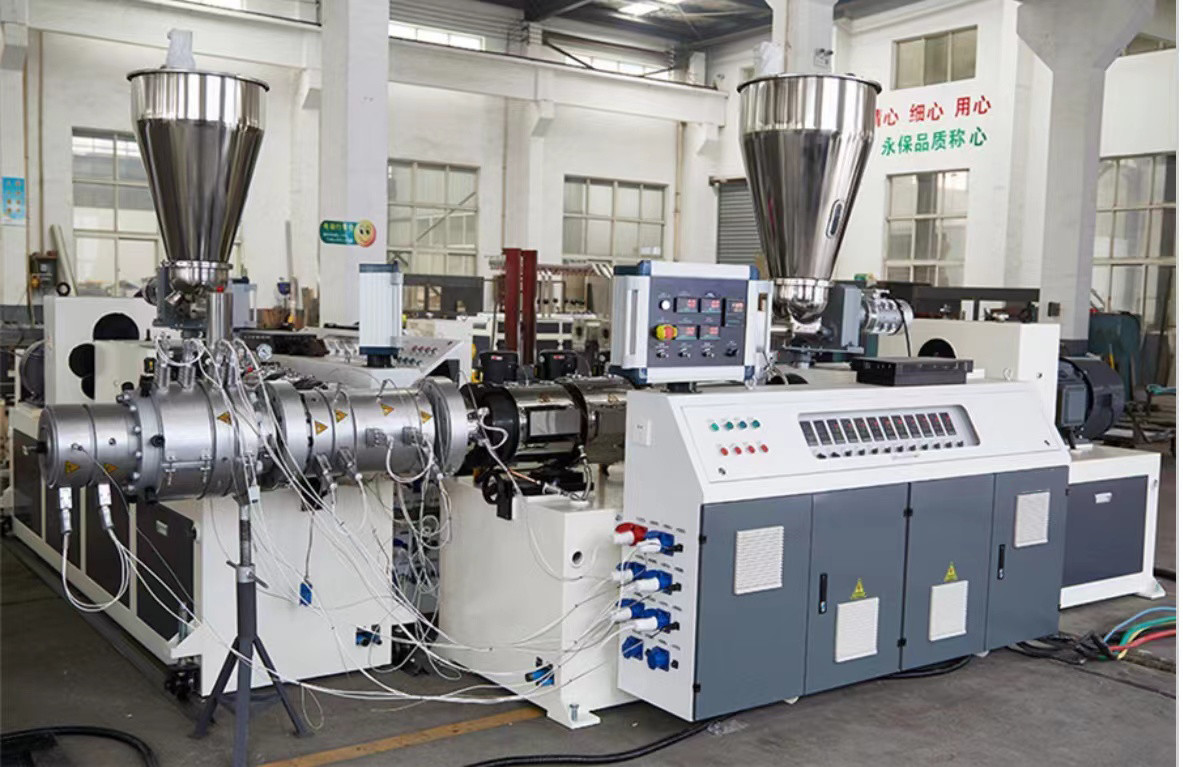

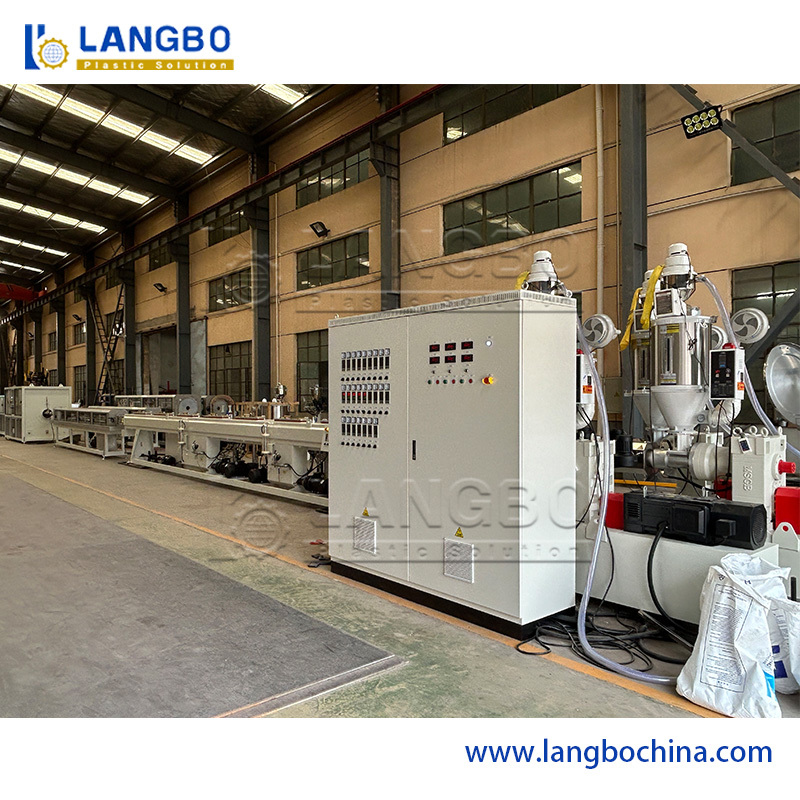

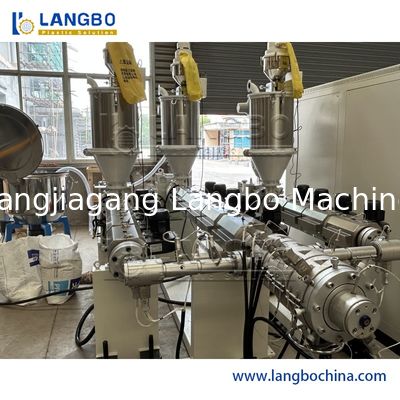

Multilayer Ppr Pipe​ Extrusion Line 16mm - 63mm 180kg / H Siemens PLC

Multi-layer Pipe 16mm-63mm Ppr Pipe​ Extrusion Line 180kg/h Siemens PLC​

APPLICATIONS OF MULTI-LAYER PIPE PRODUCTION LINE

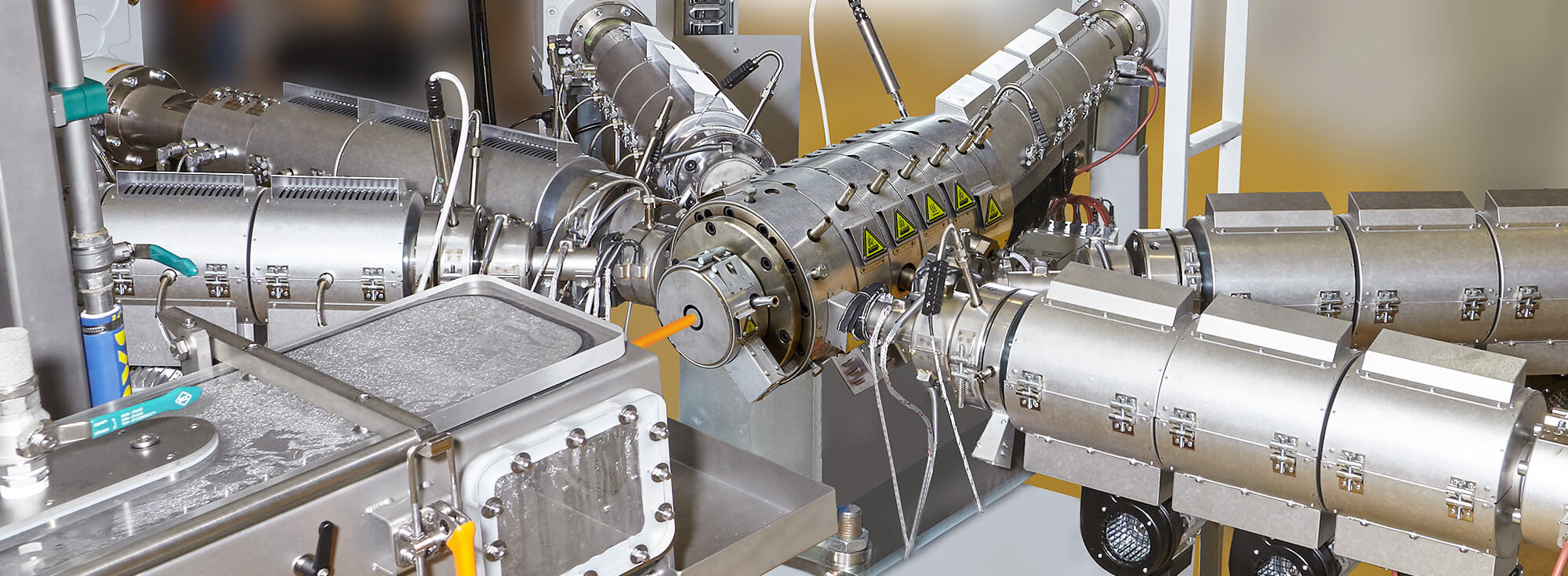

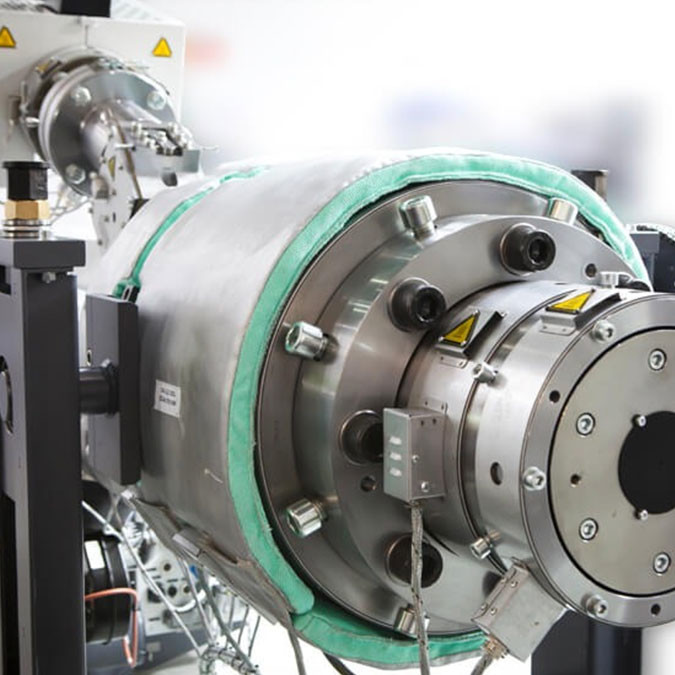

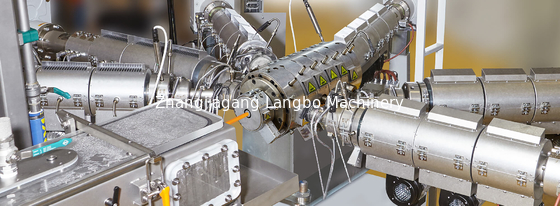

Multi-Layer pipes are produced by co-extrusion pipe line. The production line is a kind of special craft processes which can save the cost of raw material and make a series of pipes with functional features.

For Example, in order to save the cost of raw material, we can use the recycled material which is to be the middle layer to produce the PE thick wall pipes. For hot water supply pipes, the production line could not only have the PP-R Layer but also increase some other structure Layer including glass fiber, which attach the pipe to some excellent application features.

TECHNICAL PARAMETERS:

Pipe diameter(mm) 50,75,90,110,160 75,90,110,160,200,250

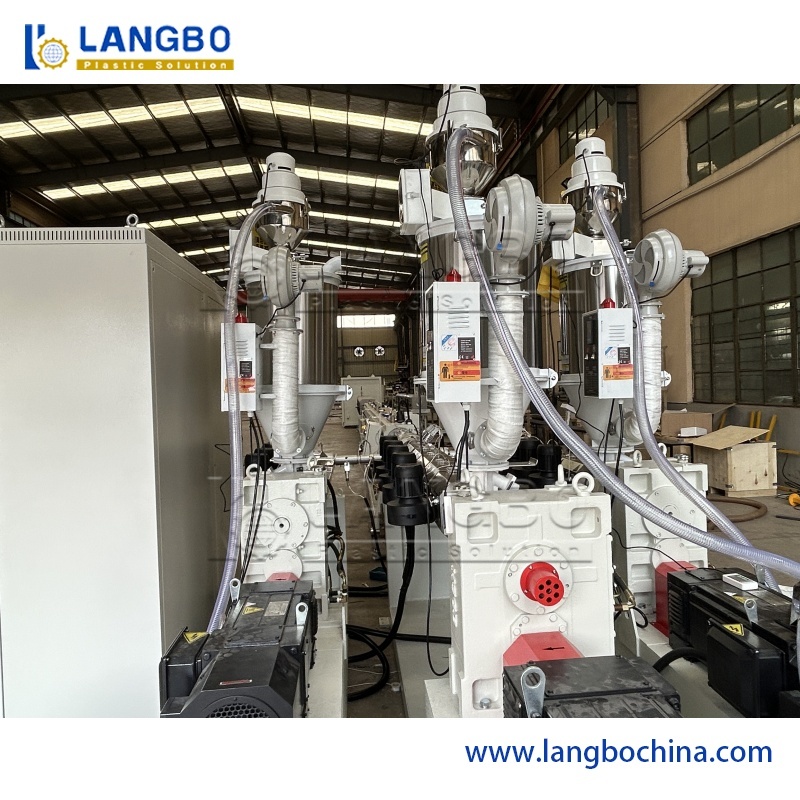

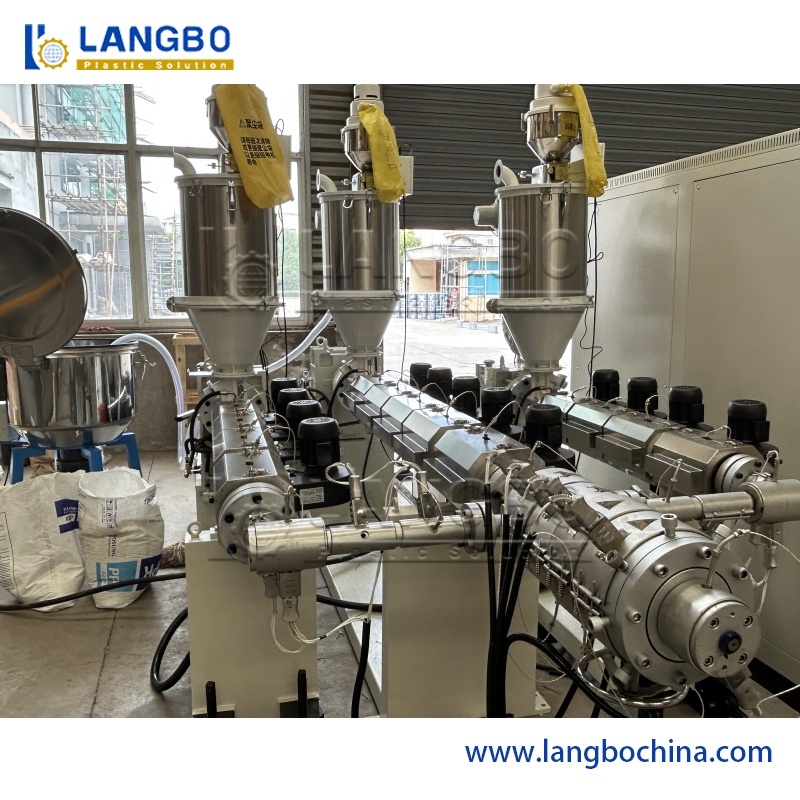

Extruder(for middle layer) 65/132 80/156

Extruder (for outer& inner layer) 65/132 or 55/120 65/132

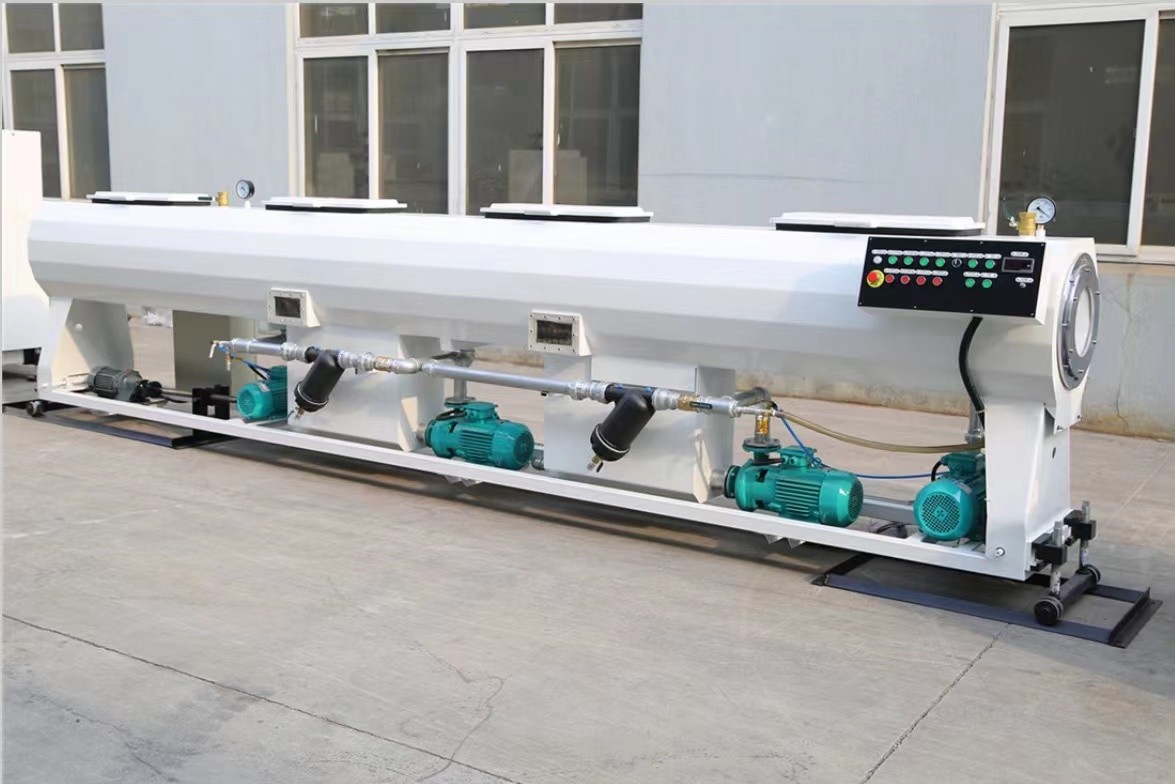

Length of vacuum tank(mm) 6000 6000

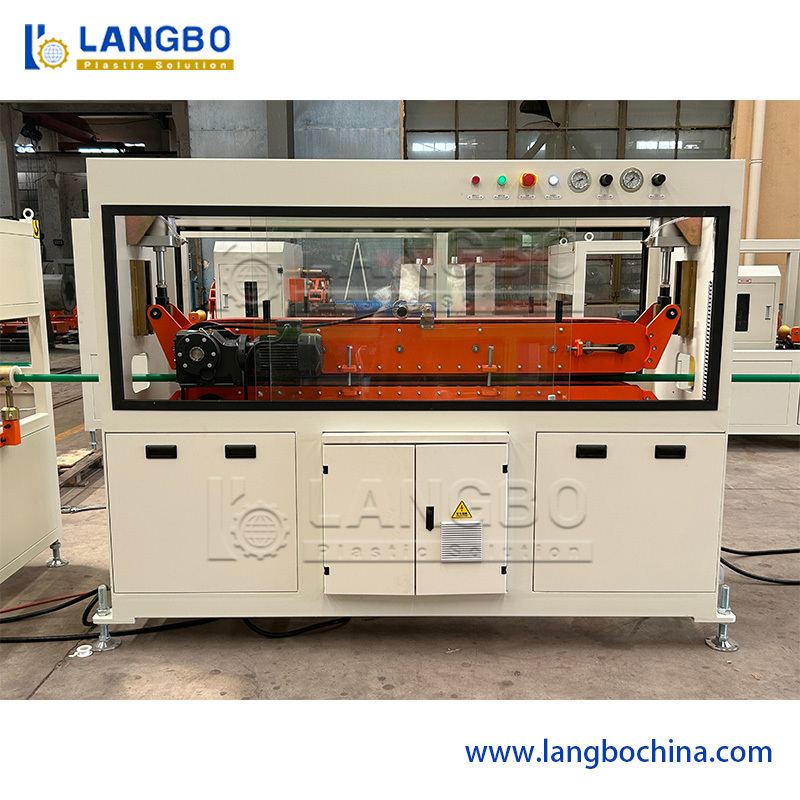

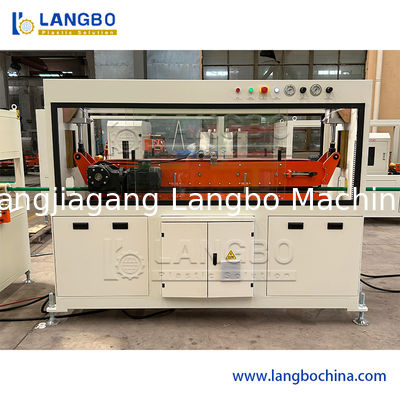

Haul-offs machine 3claw 3claw

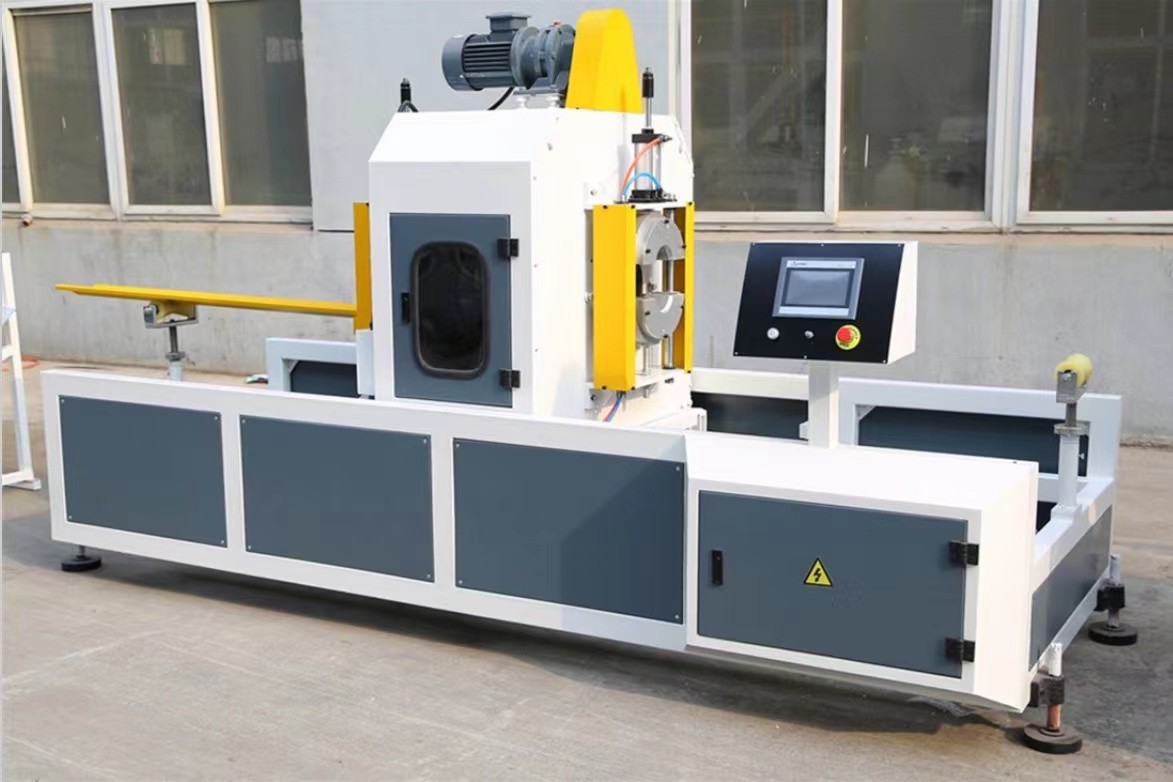

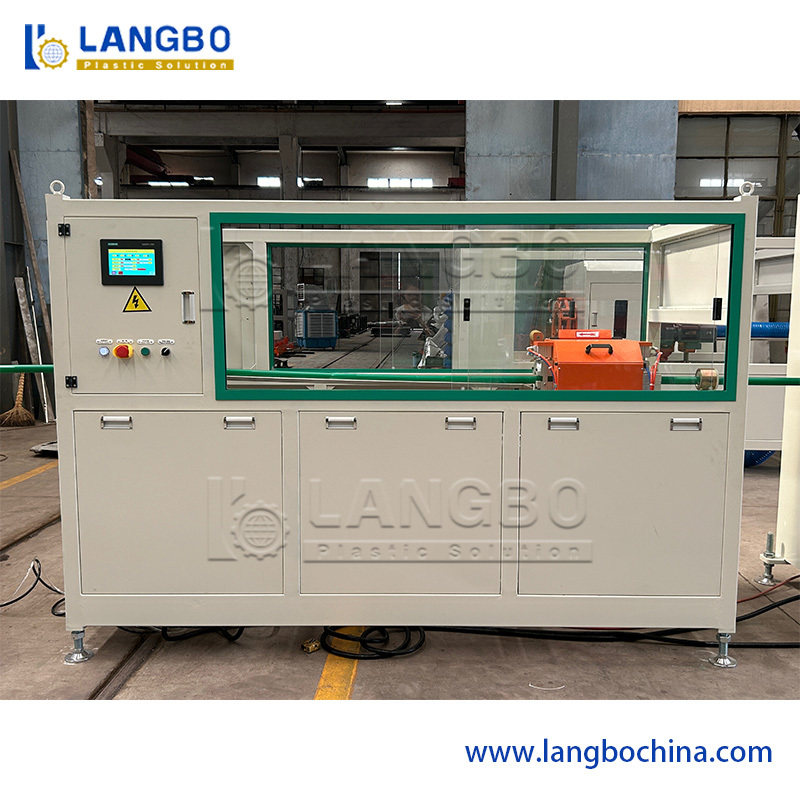

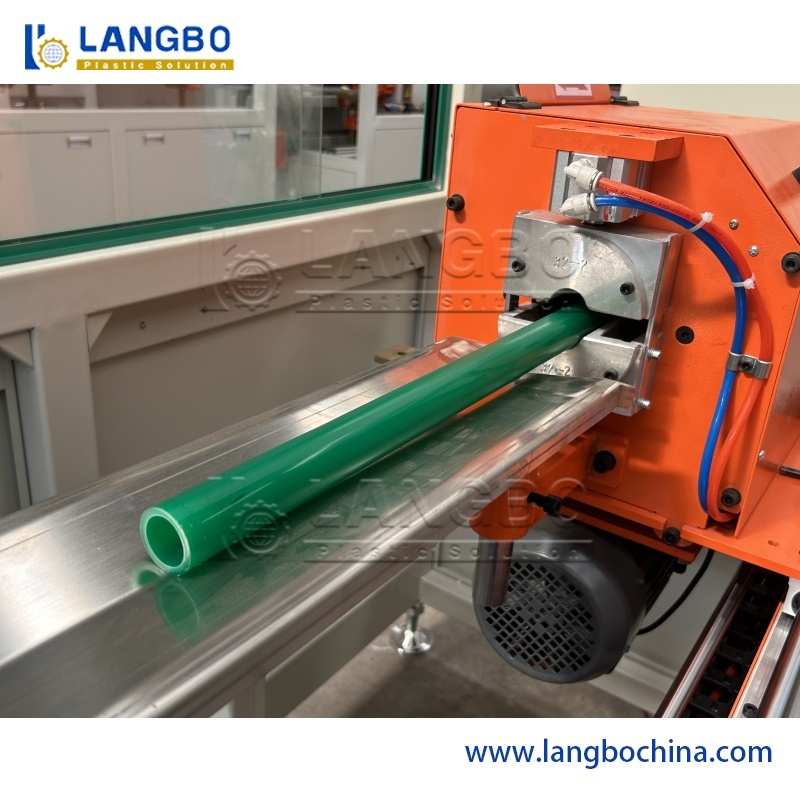

Cutting machine planetary cutting planetary cutting

SCOPE OF APPLICATION

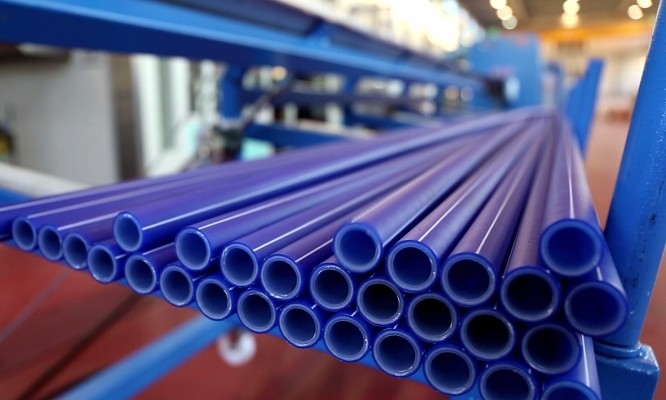

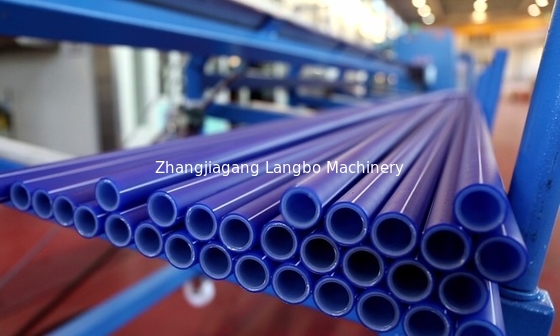

1,Cold and hot drinking water pipe system
2,Industrial fluid transportation system
3,Feeding piping system in seaside facilities
4,Air-conditioning system
5,Agricultural irrigation system
6,Transportation internal piping system
