CE ISO Pvc Pipe Extrusion Machine 80/156 Conical Twin Screw Extruder

80/156 Conical Twin Screw Extruder PVC Pipe Extrusion Line

INTRODUCTION

This line is mainly used for producing CPVC pipes with diameter from 75-250mm and different pipe wall thickness in all aspects such as the water supply pipe, electrical conduit pipe. Its demand is very large in the whole world. We hold the belief that just supply goog machine to our customers. We want to become friends with you and use good machine to make a win-win situation. If you need, just contact me.

TECHNICAL PARAMETER

THE PROCESS FLOW OF THIS LINE AS BELOW

PVC powder + additive --- mixing---material feeder---twin screw extruder---mould and calibrator---vacuum forming machine---spraying cooling machine---haul-off machine---cutting machine---discharge rack or pipe belling machine.

The screw of extruder has advanced design, which provide powerful safeguard for the PVC plasticization, and the Siemens PLC control system make more convinient operation. The degassing system will ensure the quality of final PVC pipes.

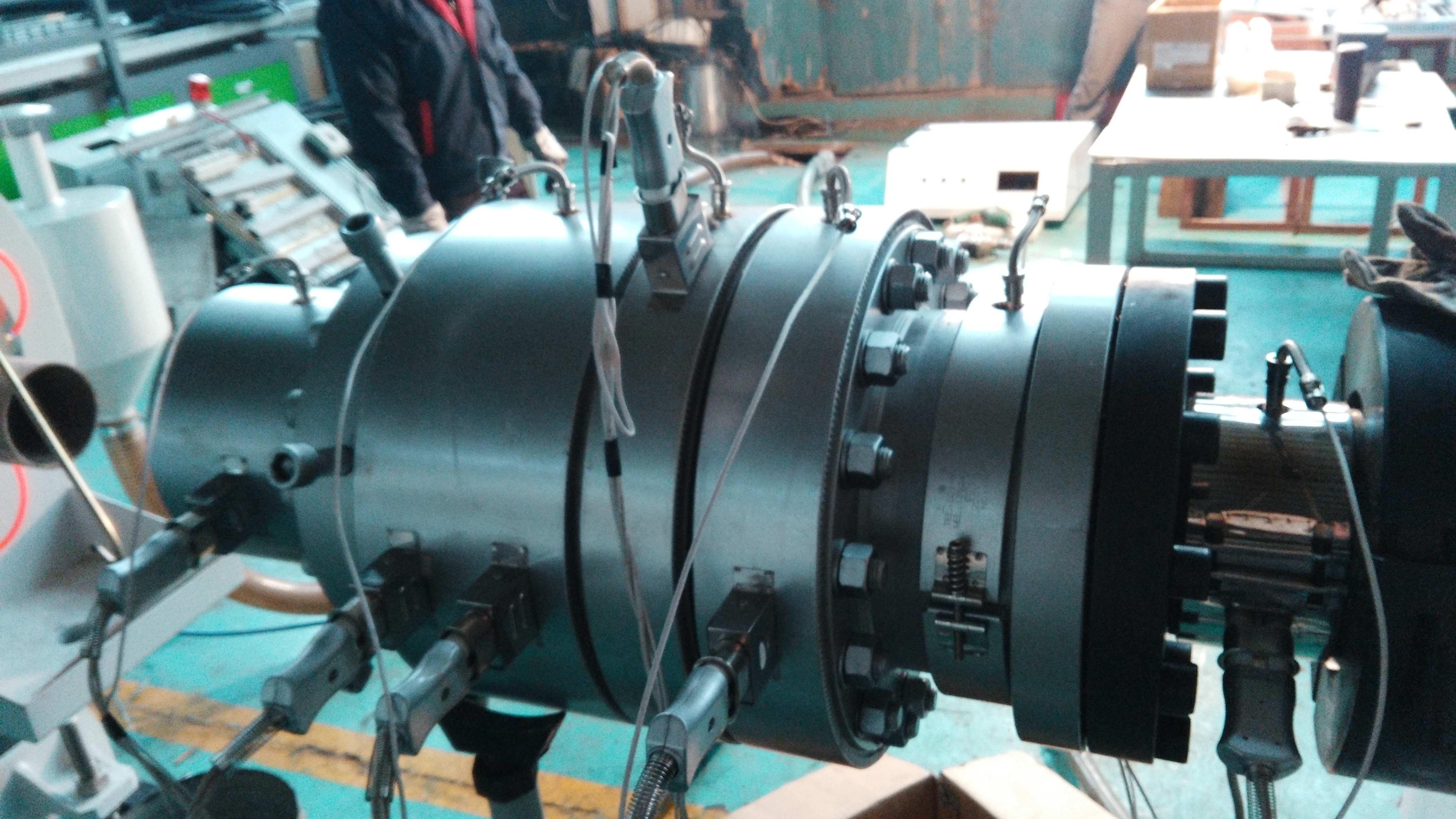

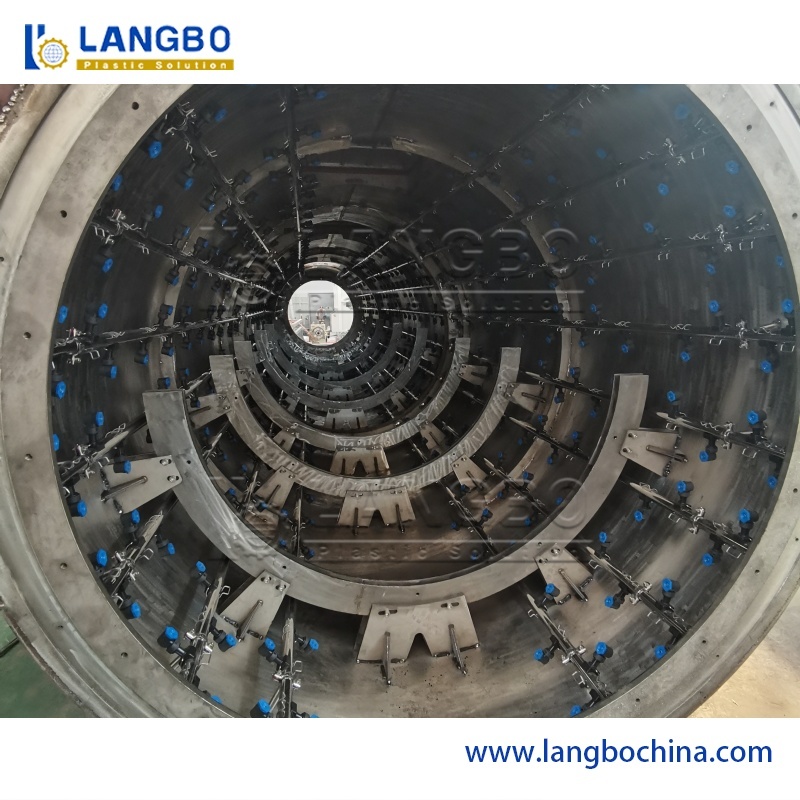

The tank body of vacuum calibration and cooling units adopt stainless 304# steel, multi-sections vacuum system ensures the stable sizing and cooling for pipes; Special cooling system improves the cooling efficiency; Auto water temperature control system make the machine more intelligent.

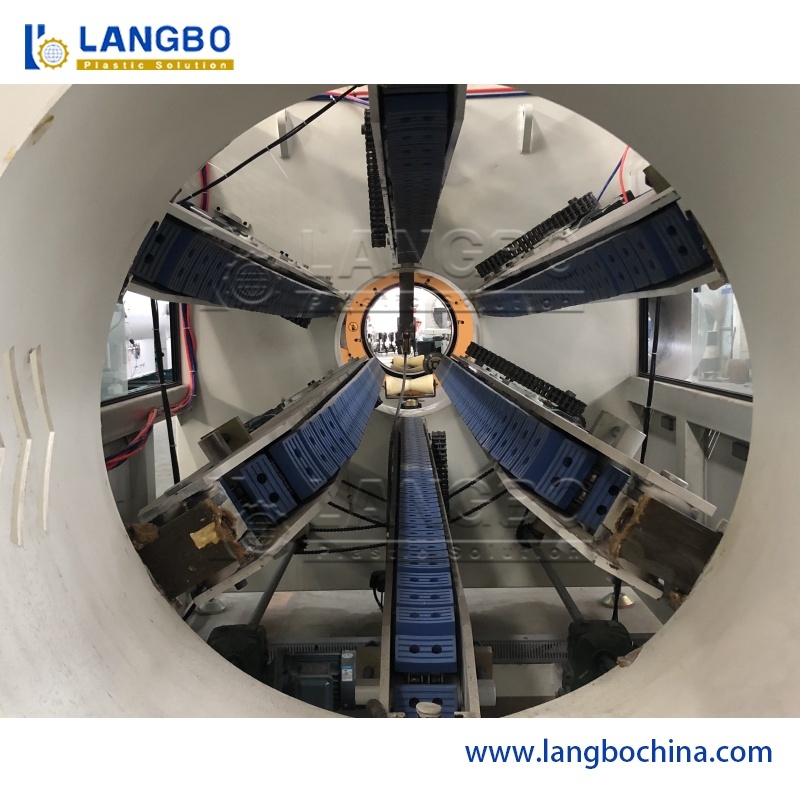

For different pipe size, the haul-off machine will adopt two caterpillars, three caterpillars, four caterpillars, six caterpillars are designed for different requirements. Pedrail clamping uses mechanical and pneumatic combining system, which is more reliable in performance

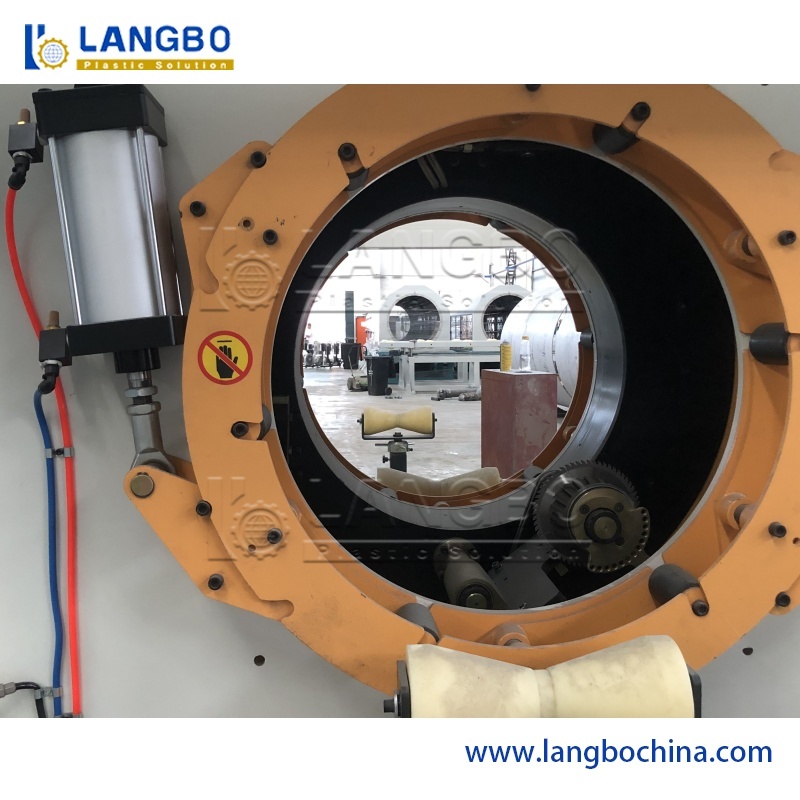

Cutting system adopts no-dust cutter or planetary cutting means; There is dust-collecting system ensures clean working environment.

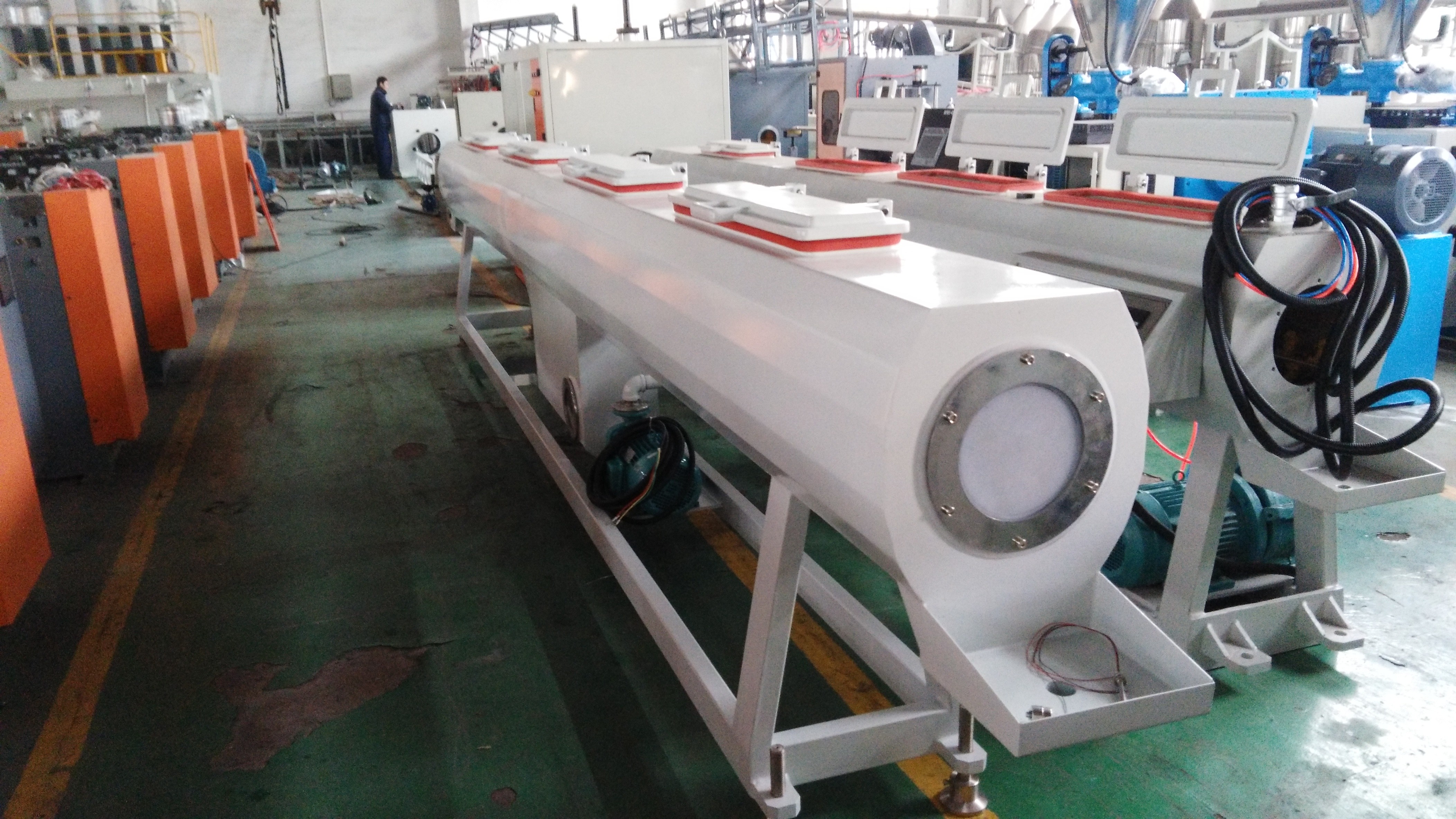

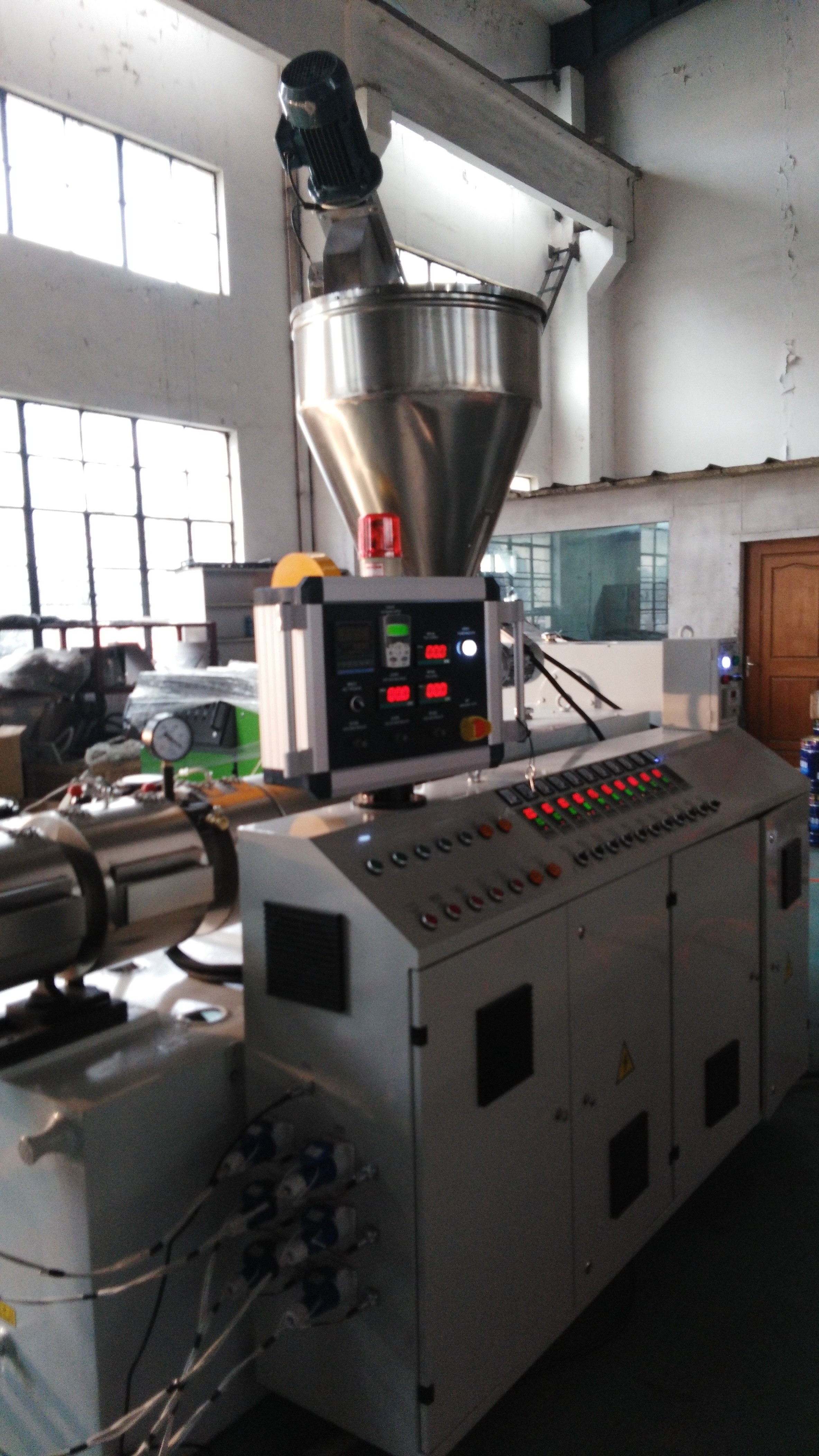

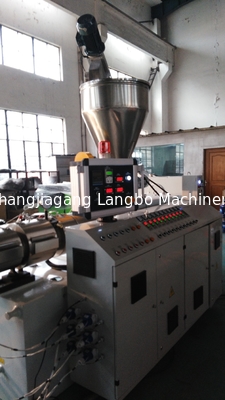

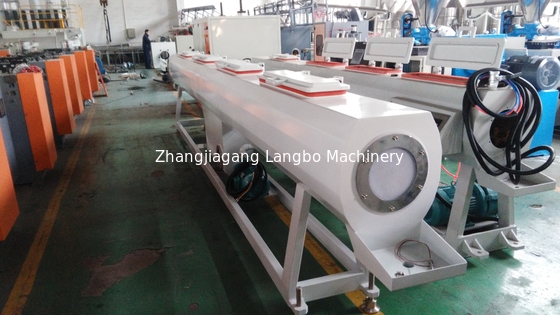

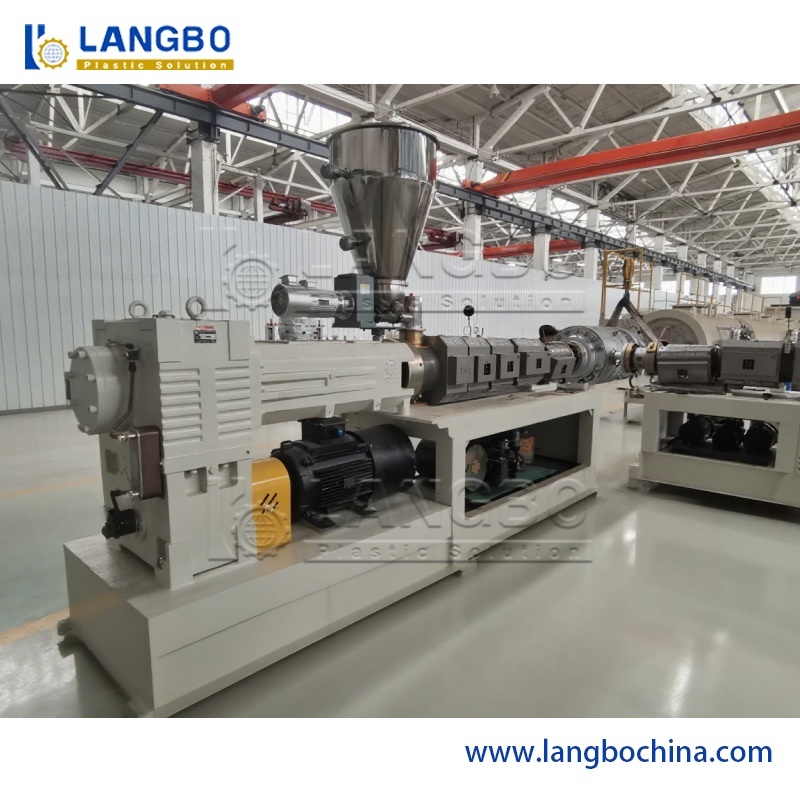

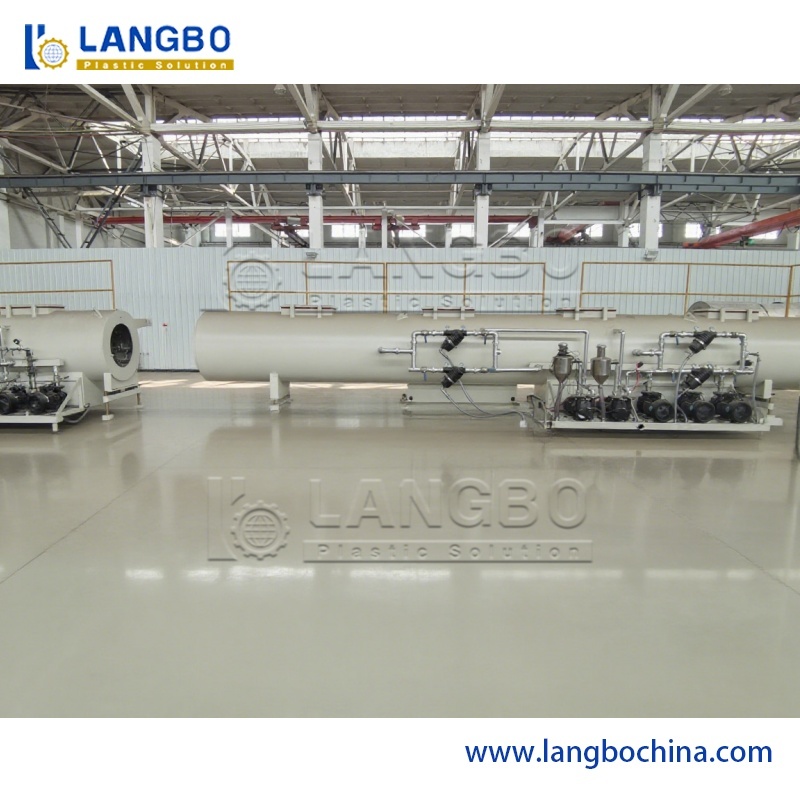

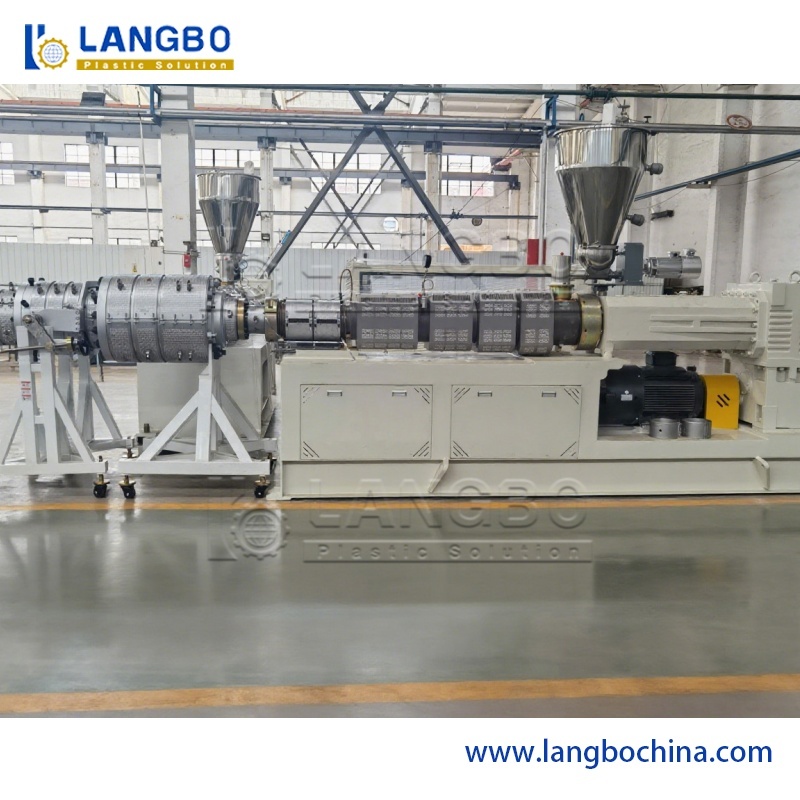

                                                Extruder                                                                               Vacuum tank

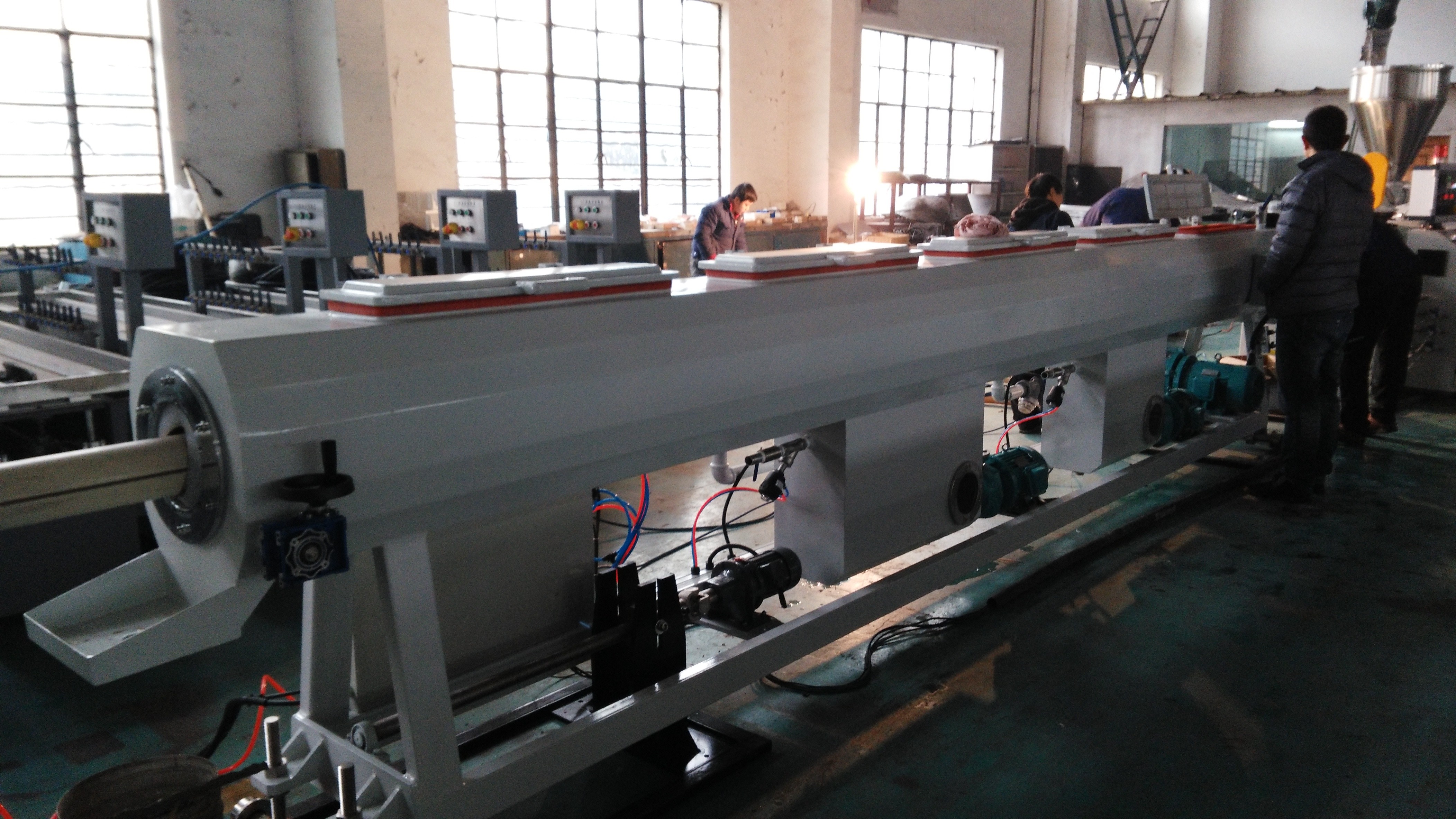

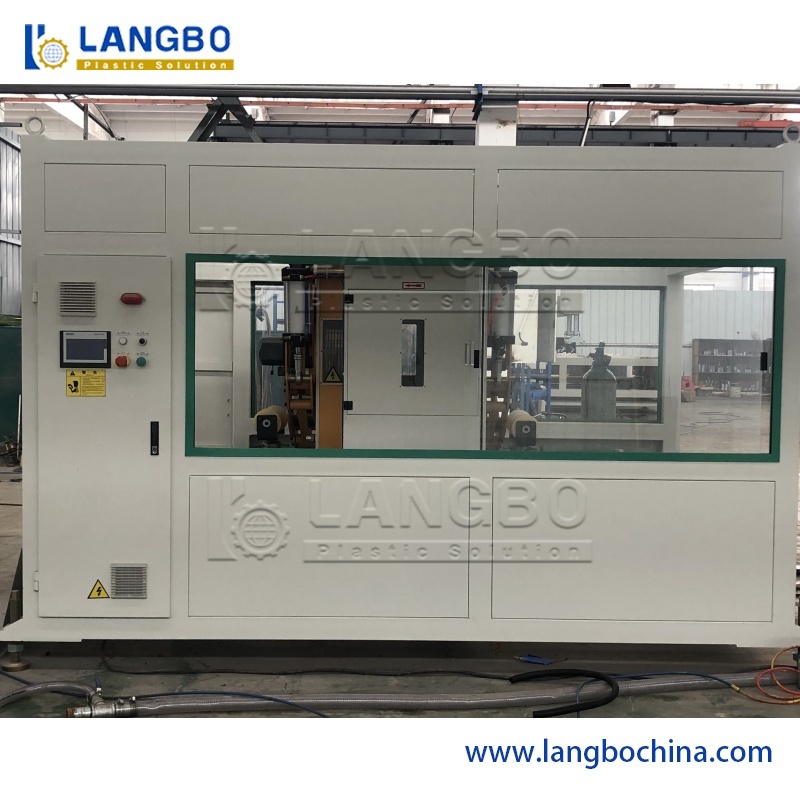

                             Haul-off machine                                                                      Vacuum tank with cooling function

                                     Cutting machine                                                                             Haul-off machine

TECHNICAL DATA
