Product Details:
|
| PIPE DIAMETER: | 20-110mm | EXTRUDER: | 65/132 |
|---|---|---|---|
| HAUL-OFF: | BELT HAUL-OFF MACHINE | APPLICATION: | ELECTRICAL CONDUIT |
| PACKING METHOD: | WOODEN BOX AND FILM PACKAGE | CONNECTION MATERIAL: | SUS304 |
| MOTOR: | SIEMENS BEIDE | OUTPUT CAPACITY: | 300KG/H |
| CUTTER: | SAW CUTTER | VACUUM TANK: | 3 METERS LENGTH |
| High Light: | 20mm pvc pipe extrusion line,110mm pvc pipe extrusion line,low noise plastic pipe extrusion line |
||
20-110mm PVC Pipe Making Line with 65/132 Conical Twin Screw Extruder
LINE DETAILS

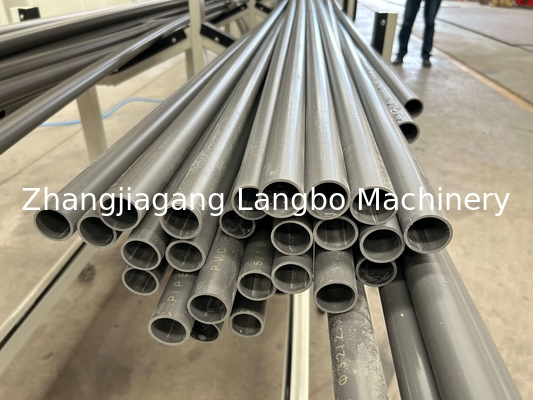

This line is applied to produce 20-110mm pvc pipe. Its output capacity can be up to 300kg/h. We adopt Siemens Beide motor and conical twin screw extruder with 45kw motor. Our screw and barrel is HUAYE. The gearbos is Chinese famous brand made from Jiangyin. It has very good performance. All the electrical parts are Schnider and connection part is SUS 304. We hold the mind that using good quality units to make good quality machine. We just want to supply good machine to customers in order to achieve win-win cooperation situation.
FEATURES OF PRODUCTION LINE
With high result, low power utilization, less rubbing, lower shearing rate and constrained expelling, the gear has the capacity to create the lines with an excellent and improved productivity. We get the programmed temperature control, degassing unit, and direct current speed guideline which is reasonable for handling PVC dry mix powder into lines, profiles, and sheets. In the interim, our hardware parts are brand with a superior presentation. Our machine idea depends on conservative superior execution expulsion. Furthermore, the affirmations demonstrate our obligation to ideal cycles and obligation regarding our current circumstance. We have refined process innovation and chivalrous administrations which will cause clients to feel insightful and consoling.
TECHNICAL PARAMETER
Creation Capacity has a cozy relationship with screw size and engine power. With the accompanying table you can get a generally outline to our line TWO Strand pipe arrangement.
| MODEL | PIPE DIAMETER (MM) | EXTRUDER MODEL | MOTOR POWER (KW) |
| LB-32F | 16-32 (FOUR PIPE) | SJSZ65/132 | 37 AC |
| LB-32E | 16-32 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-32W | 16-32 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-40E | 16-40 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-40W | 16-40 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-50E | 16-50 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-50W | 16-50 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-63W | 16-63 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
THE PRODUCTION LINE IS COMPOSED OF THE FOLLOWING PARTS:

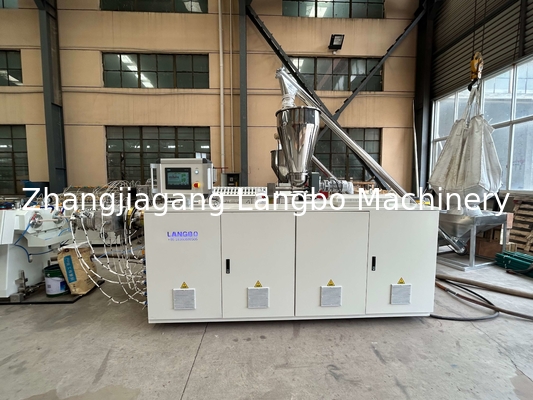

65 / 132 twin-screw extruder
four cavity die head

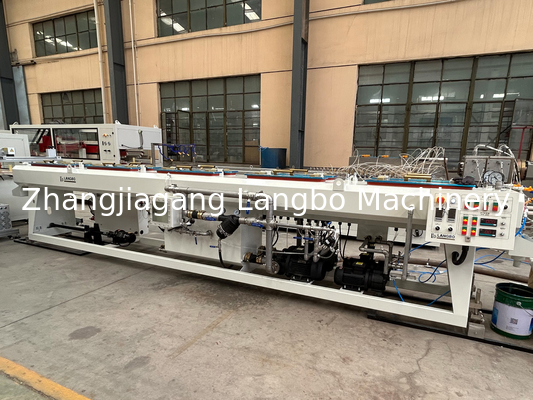

Stainless steel vacuum vacuum calibration tank
Automatic printer spraying moving frame;

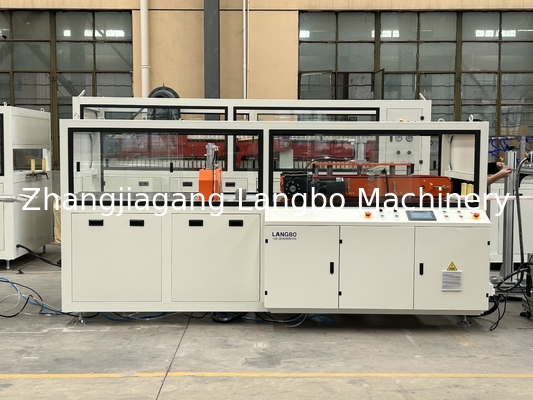

Four cavity puller & cutting machine

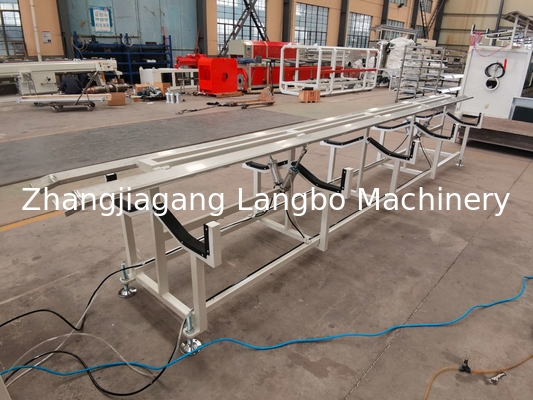

Stacker
