Product Details:
|
| Main EXTRUDER TYPE: | CONICAL TWIN SCREW EXTRUDER | Main Extruder Model: | 65/132 |
|---|---|---|---|
| MOTOR DRIVE: | 37KW | Production Type: | Co-extrusion |
| Side Extruder Model: | 65/28 Single Screw Extruder | RAW MATERIAL: | PP/PE And Wood Compound |
| OUTPUT CAPACITY: | 250KG/H | PROCESSING METHOD: | EMBOSSING |
| WARRANTY: | 1 YEAR | HAUL-OFF: | TWO CATERPILLAR HAUL-OFF |
| CUTTER: | SAW CUTTER | MOTOR: | SIRMENS BEIDE |
| GEARBOX: | FAMOUS CHINESE BRAND | ||
| Highlight: | reliable wpc profile extrusion line,precise control wpc profile extrusion line,energy saving motors wpc profile machine |
||
Reliable WPC Profile Extrusion Line with Energy-saving Motors and Precise Temperature Control System

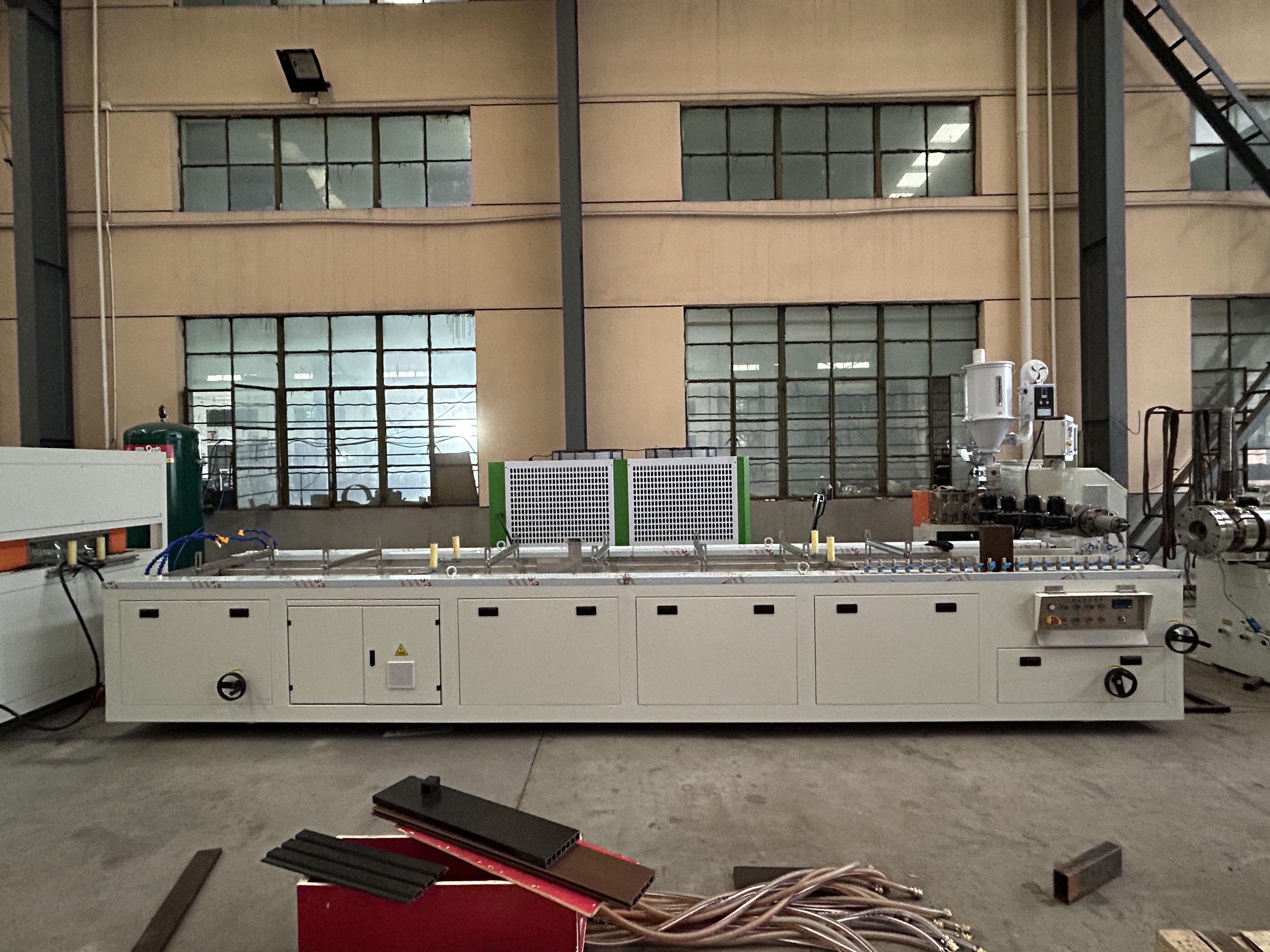

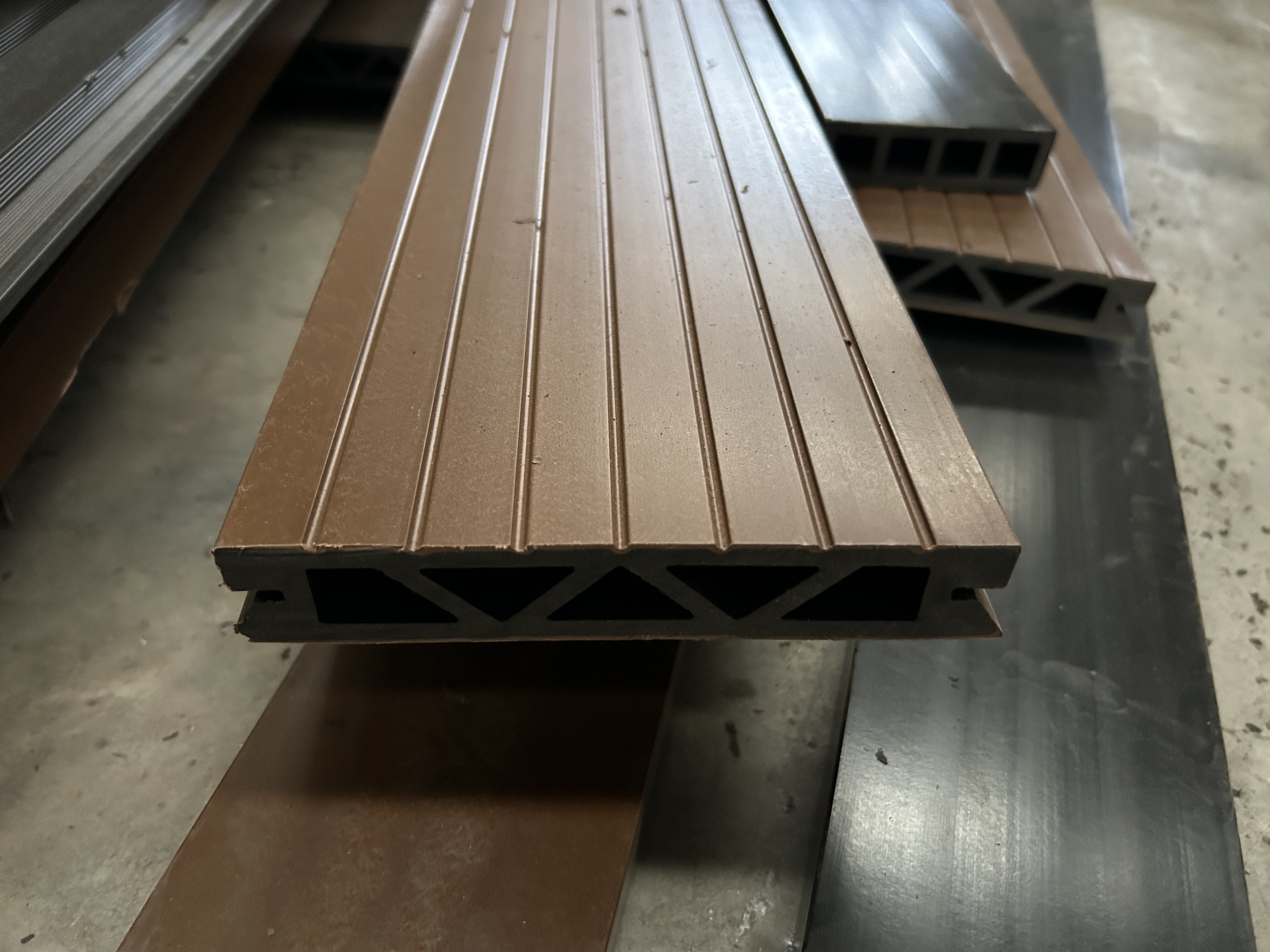

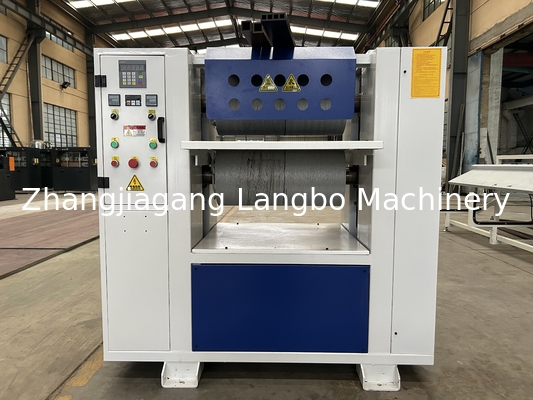

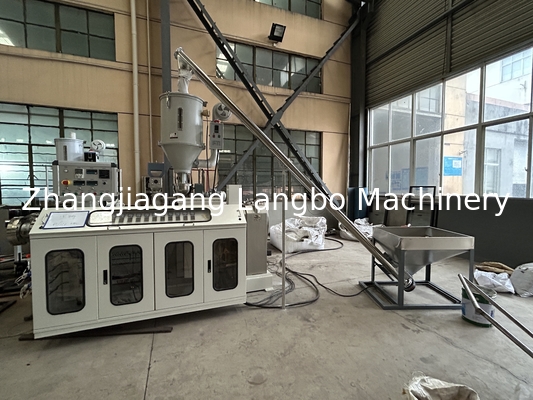

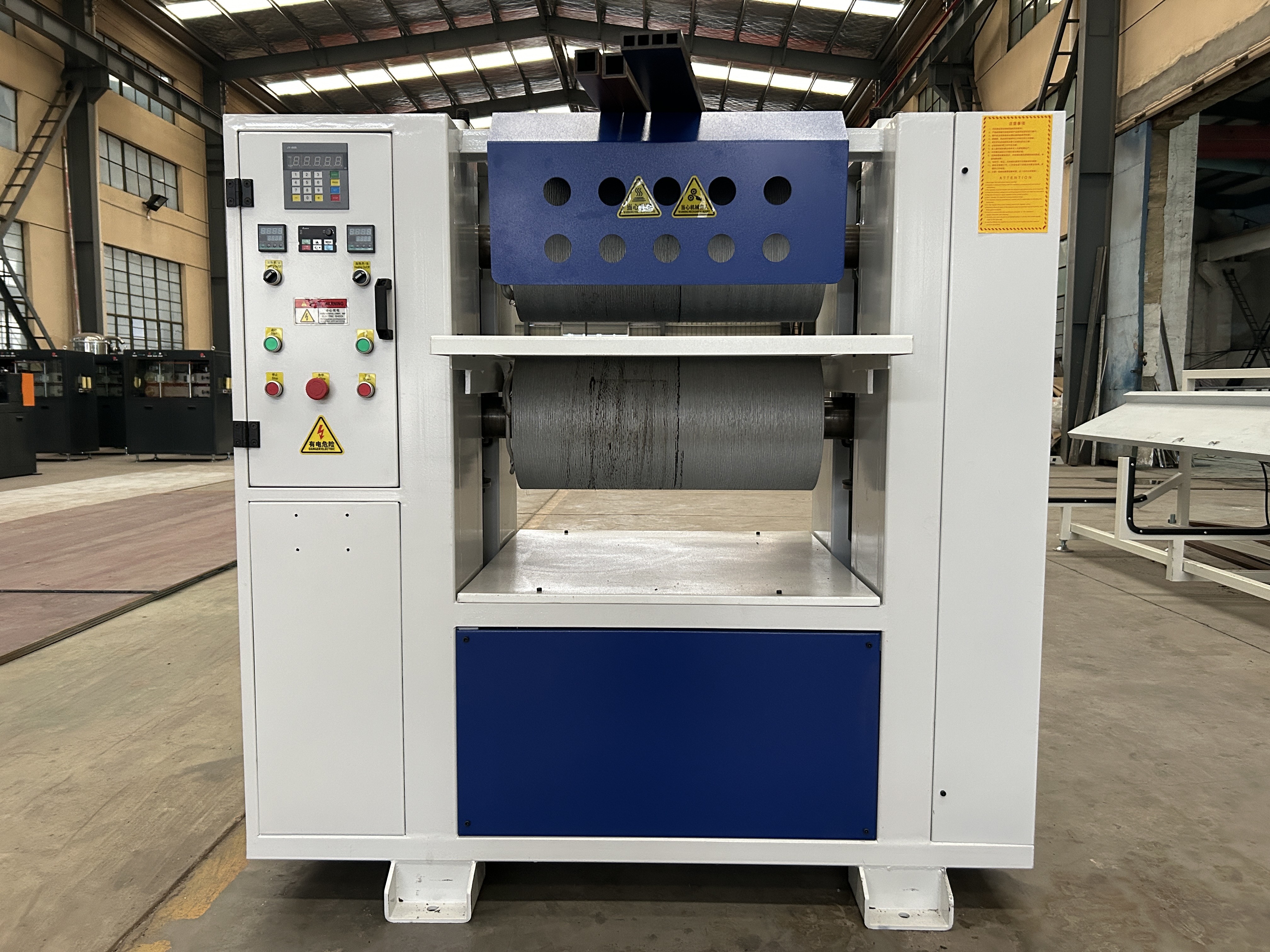

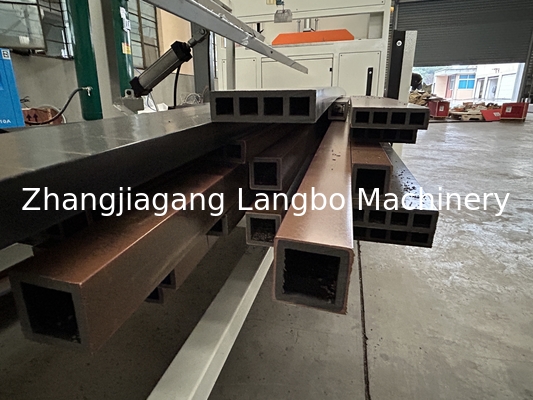

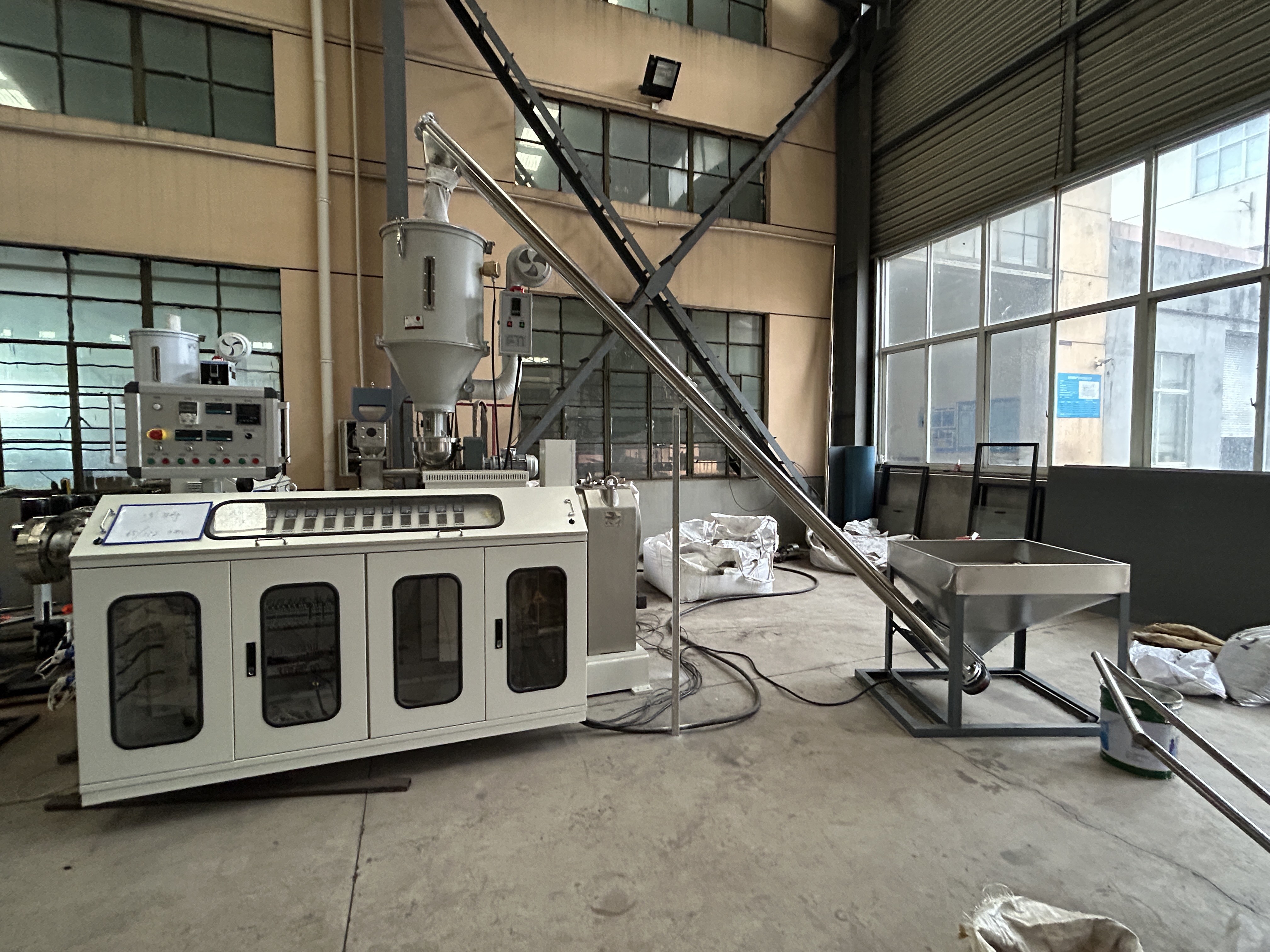

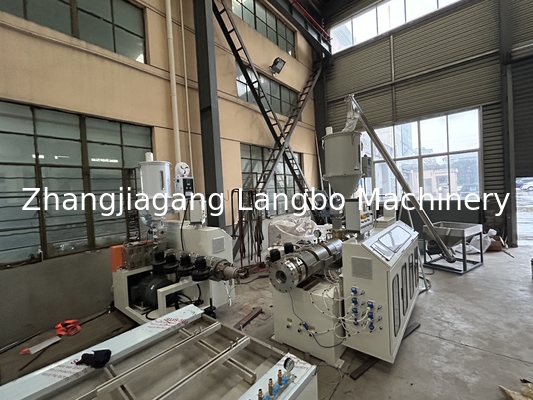

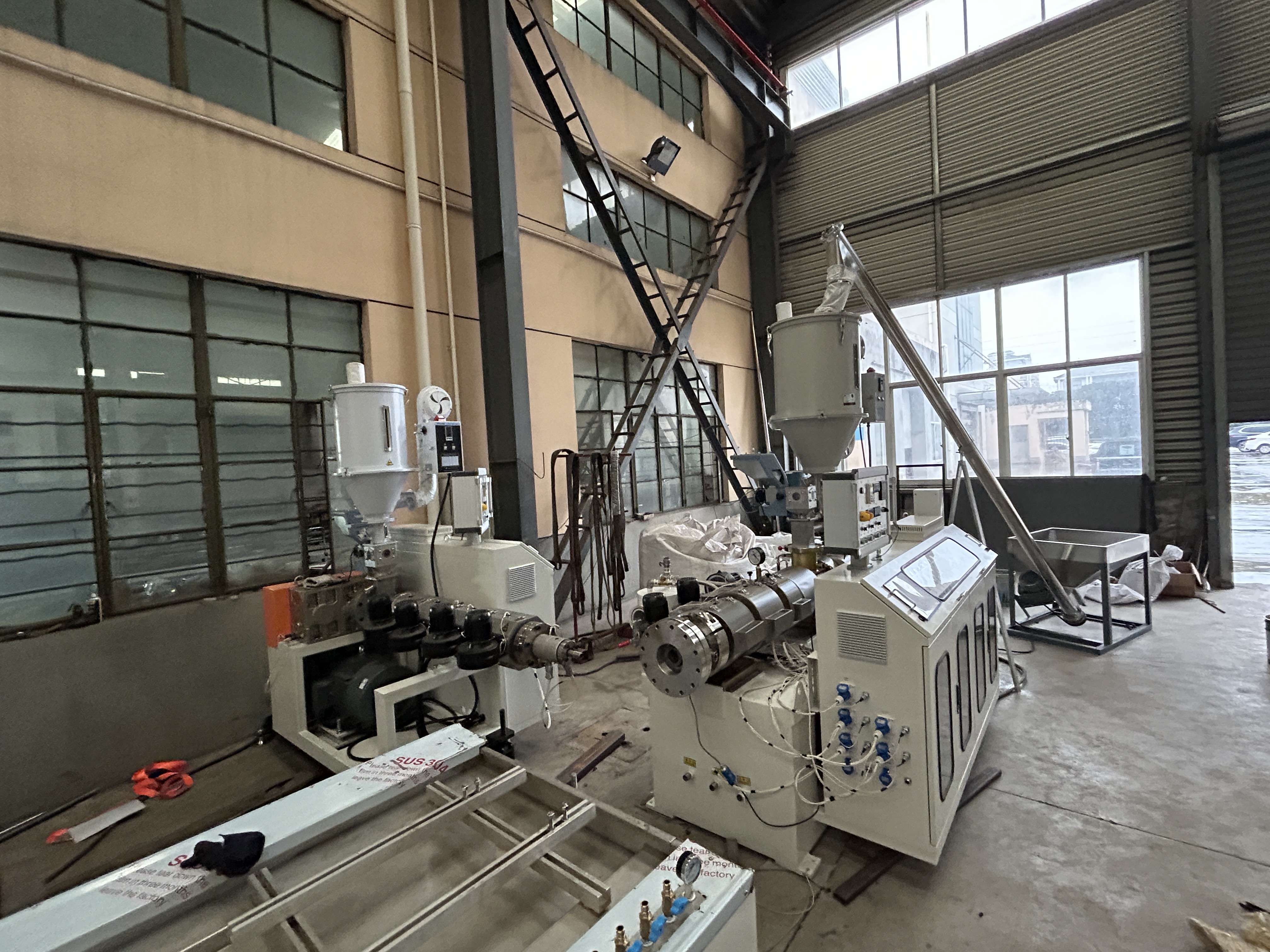

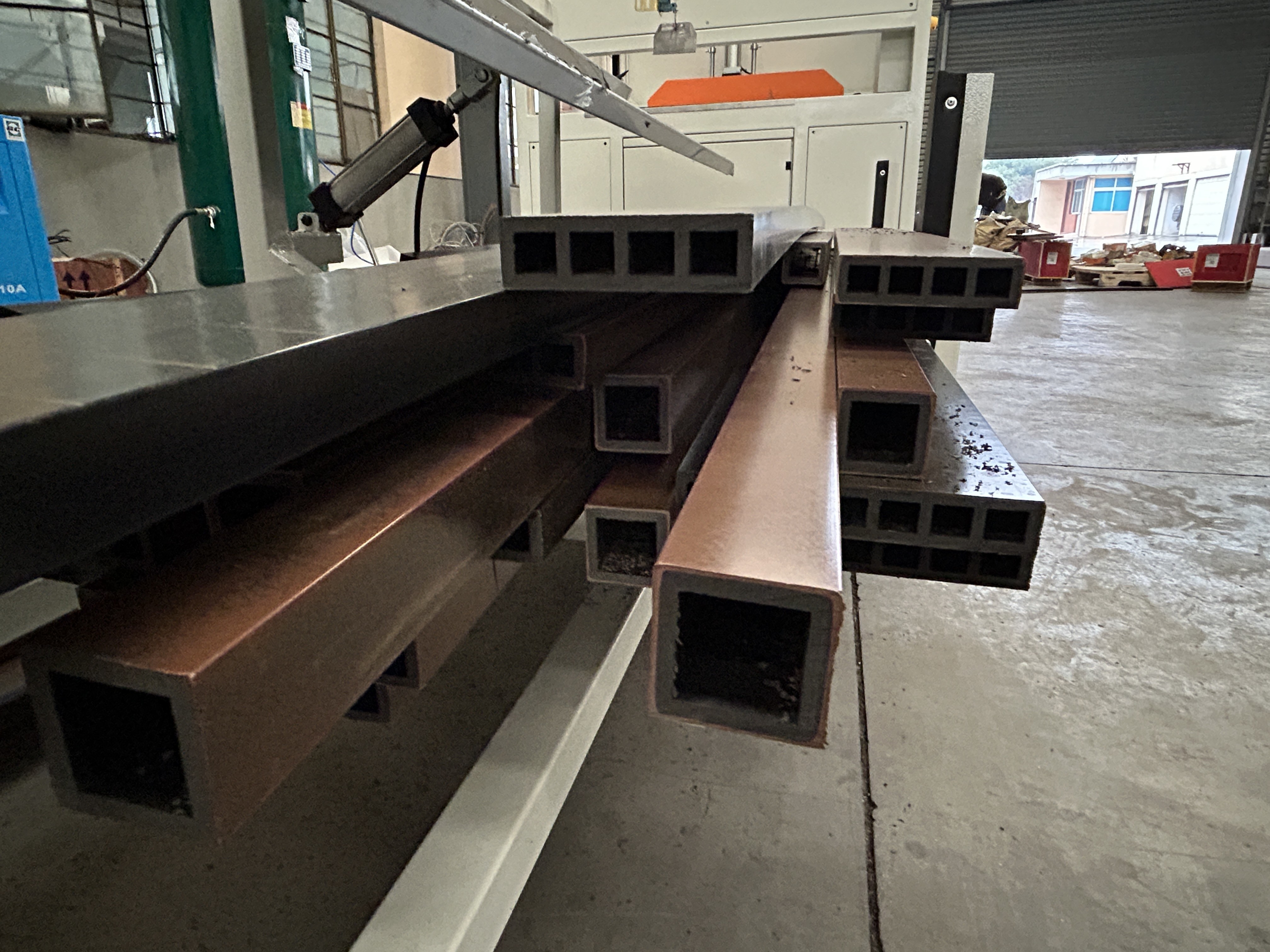

WPC profile is widely used and has good market in the whole world. For the WPC(PP/PE+ wood powder) profile, the weight is heavy so that the haul-off part is unnecessary. For the two layer WPC profile, a 65/132 conical twin screw extruder and another 65/28 single screw extruder is best design. The 65/132 (37kw) extruder is main extruder and responsible to the inner layer. The single screw focuses on the cover. Our extrusion line motor adopts Siemens-beide. The inverter is ABB inverter. It is famous in the whole world and has good after-sale service. All the connection is true SUS304. It ensures the life-long time working time and good performance. We have 6 meters long calibration table and the cutte has left and right pressing device. The line adopts saw cutter. This way is simple and durable performance. After the wpc profile produced, we have offline sanding machine. After processing by this machine, the wpc profile surface will be tough. It will be used as floor and avoid slipping.
Specifications:
| Model | SJZ45 | SJZ51 | SJZ65 | SJZ80 | SJZ92 |
| Screw diameter (mm) | 45/100 | 51/105 | 65/132 | 80/156 | 92/188 |
| Screw rotation speed (r/min) | 4-45.5 | 1-30 | 1-34.7 | 1-36.9 | 1-32.9 |
| The effective length of the screw (mm) | 1000 | 1050 | 1430 | 1800 | 2520 |
| Main motor power (kW) | 15 | 22 | 37 | 55 | 110 |
| Barrel heating power (kW) | 12 | 18 | 24 | 36 | 48 |
| Capacity (kg/h) | 92 | 110 | 250 | 380 | 520 |
| Central height (mm) | 1000 | 1000 | 1000 | 1000 | 1000 |
| Net Weight(kg) | 3000 | 3200 | 5000 | 6500 | 7500 |
Essential details:
Place of Origin:Jiangsu, China (Mainland) Brand Name: Langbo
Plastic Type: PVC/PP/PE Production Capacity (kg/h): 200-400
Machine Type: Extrusion Line Max.Production Capacity (kg/h): 600-800
Voltage: 380V,3Phase,50HZ(customerized) Power (kW):15-110kw
Warranty:1 years Key Selling Points:High quality
With LANGBO MACHINERY polywood technology, it is possible to obtain WPC profiles composed of natural fiber up to 80%, with features that make them better than wood in terms of reliability, performance and production costs. LANGBO MACHINERY also produces systems for the manufacture of WPC granules, which in turn can be transformed in finished product through molding or extrusion.
LANGBO MACHINERY builds profile extrusion machine lines suitable for the production of WPC granules with high-quality mechanical features, starting from renewable raw materials selected for environmental protection. These lines are fully customisable and highly efficient at any production output, thanks to the innovative extruders and the wide range of modular accessories. Ease of use and time saving for maintenance and cleaning are always our goals during the study and design of our granulation lines.
