Low Noise Upvc Pipe Extruder 90- 315mm Plastic Pipe Production Line
Product Details
| Extruder Type: | Conical Twin Screw Extruder | Screw And Barrel Model: | 80/156 |
|---|---|---|---|
| Motor: | 55kw | Capacity: | 400kg/h |
| Raw Material: | PVC Resin And Caco3 | Inverter: | ABB Frequency |
| Gearbox: | Chinese Famous Brand | Motor Brand: | -beide |
| Application: | Water Supply Pipe, Electrical Conduit | Haul-off: | Three S |
| Cutter: | Planetary Cutter | Loader: | Spiral Feeder For Extruder |
| Vacuum Tank: | 6 Meter Long | All Connection: | SUS304 |
| Calibrator: | Copper | Mould Material: | 40Cr Or 3Cr13 |
| Highlight |
low noise upvc pipe extruder,90mm upvc pipe extruder,low noise plastic pipe production line |
||
Product Description
UPVC Pipe Extruder 90- 315mm Plastic Pipe Production Line
INTRODUCTION
This line is mainly used for producing UPVC pipes with diameter from 90-315mm and different pipe wall thickness in all aspects such as the water supply pipe, electrical conduit pipe. Its demand is very large in the whole world. We hold the belief that just supply goog machine to our customers. We want to become friends with you and use good machine to make a win-win situation. If you need, just contact me. We have focused on the PVC pipe making machine field over 20 years. We just supply good machine to customers. Give us a chance, you will be surprised.
TECHNICAL PARAMETER
| model | LB63 | LB110 | LB250 | LB315 | LB630 | LB800 |
| pipe diameter | 20-63mm | 20-110mm | 75-250mm | 110-315mm | 315-630mm | 500-800mm |
| extruder model | SJ65 | SJ75 | SJ90 | SJ90 | SJ120 | SJ120+SJ90 |
| motor power | 37kw | 55kw | 90kw | 160kw | 280kw | 280KW+160KW |
| extrusion capacity | 100kg/h | 150kg | 220kg | 400kg | 700kg | 1000kg |
THE PROCESS FLOW OF THIS LINE AS BELOW
PVC powder + additive --- mixing---material feeder---twin screw extruder---mould and calibrator---vacuum forming machine---spraying cooling machine---haul-off machine---cutting machine---discharge rack or pipe belling machine.
The screw of extruder has advanced design, which provide powerful safeguard for the PVC plasticization, and the PLC control system make more convinient operation. The degassing system will ensure the quality of final PVC pipes.
The tank body of vacuum calibration and cooling units adopt stainless 304# steel, multi-sections vacuum system ensures the stable sizing and cooling for pipes; Special cooling system improves the cooling efficiency; Auto water temperature control system make the machine more intelligent.
For different pipe size, the haul-off machine will adopt two s, three s, four s, six s are designed for different requirements. Pedrail clamping uses mechanical and pneumatic combining system, which is more reliable in performance
Cutting system adopts no-dust cutter or planetary cutting means; There is dust-collecting system ensures clean working environment.

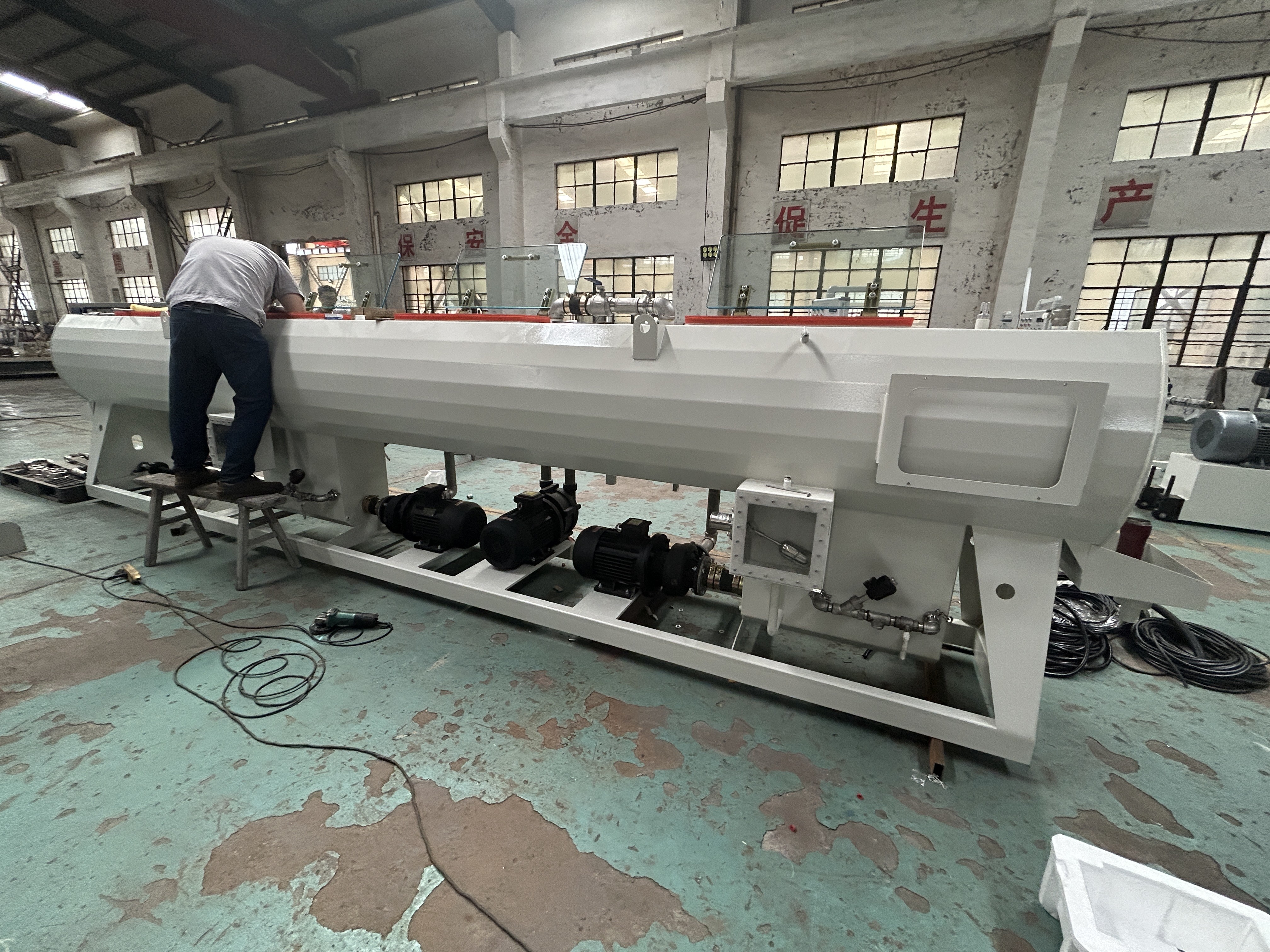

Extruder Vacuum tank
Haul-off machine Cutting machine
TECHNICAL DATA
| model | LB160 | LB250 | LB315 | LB630 | LB800 |
| pipe size | 50~160mm | 75~250mm | 110~315mm | 315~630mm | 500~800mm |
| extruder | SJZ65/132 | SJZ80/156 | SJZ92/188 | SJZ92/188 | SJZ92/188 |
| motor power | 37kw | 55kw | 90kw | 110kw | 132kw |
| output | 250kg | 350kg | 550kg | 600kg | 700kg |
