Product Details:
|
| Extruder Power (kw): | 350KW | PIPE DIAMETER: | 630-1200MM |
|---|---|---|---|
| COLOUR: | CUSTOMIZED | APPLICATION: | WATER SUPPLY CONDUIT |
| MARK LINE: | YES | SCREW DIAMETER: | 120/38 |
| Screw Design: | Single Screw | Certification: | CE,ISO |
| Voltage: | 380V 50HZ 3Phase(Customized) | Automatic Grade: | Full-automatic |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training | Warranty: | 12 Months |
| Color: | Customised | Control: | PLC+Touch Screen |
| Motor Power: | 355KW | Haul-off: | Four Caterpillar Haul-offs |
| Cutter: | Plenetary Cutter | ||
| Highlight: | China factory HDPE Pipe Production Line,1200mm HDPE Pipe Production Line,1200mm Diameter hdpe pipe extrusion machine |
||
China factory 630-1200mm Pipe Diameter HDPE Pipe Production Line in hot sale
Machine Characteristics
1. The optimum spiral structure feeding throat highly improves the output of extruder
2. Accurate temperature control system ensures materials melting performance
3. Unique screw design achieves better plasticizing and high quality products
4. Precisely designed gearbox with a high torsion guarantees stable running
5. "H" shape frame to decrease vibrating of extruder
6. Advanced PLC operation system realizes synchronization and automation
7. Adopt automatic water temperature & level control and special independent filters on both vacuum and cooling tanks
8. Offer stable haul-off unit with 2-12 caterpillars
9. Provide saw & chip-free cutting options
10. Low energy consumption, excellent performance, and easy maintenance
Processing Process:
PE granules—material feeder—single screw extruder—mould and calibrator—vacuum forming machine—two-staged spraying cooling machine—haul-off machine—knife cutter—stacker.
Specifications
| Model | LB110 | LB250 | LB315 | LB400 |
| Pipe Range | 20-110mm | 75-250mm | 110-315mm | 180-400mm |
| Screw Model | SJ65 | SJ75 | SJ75 | SJ75 |
| Motor power | 55KW | 90KW | 132KW | 160KW |
| Output | 150kg | 220kg | 400kg | 600kg |

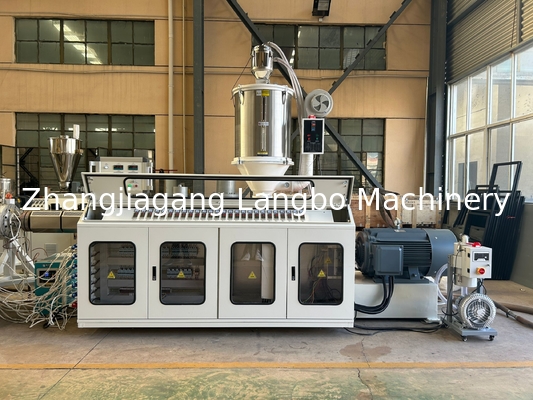

Product detail:
The extruder are crafted with top brand components to ensure production stability, efficiency and machine durability. Our extruder allocate international standard single screw and barrel. The screw has strong rigidity ensuring long service life and distinguished plasticizing effect.

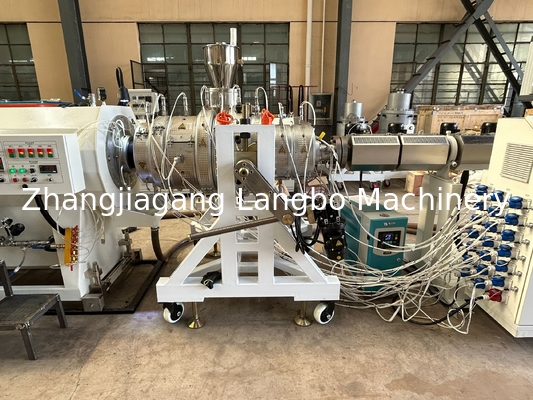

Mould
The mould has spacious flow channel design to guarantee high extrusion capacity and good melting effect.
It is made and inspected by the experienced manufacturer. The optimized temperature control and flow channel design ensures precise melt temperature control.
Vacuum and cooling tank
The vacuum calibration tank adopts stainless 304 steel. The excellent vacuum system ensures precise sizing for pipes. The holder in first step of the vacuum calibration tank guarantees the pipe shaped and provides extra power for the pipes moving on.
Haul-off Unit
The ten caterpillar on the haul-off machine ensures produced pipe running stably and steady. utilize a unique mechanism to prevent pipe ovality while our unique belt design assures proper pulling without slippage.

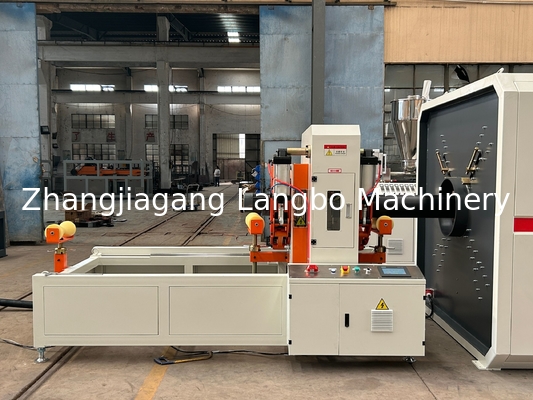

Cutting Unit
We offers two cutting methods including rapid cutter and planetary cutter. In accordance to the
produced pipe material, the cutting way can be switched randomly.
Tipping table
Our Tipping table is made by 304 quality stainless material of iron structure, sturdy structure and heavy load bearing. Our rubber wheel steady hold the pipe product without scratch risk.
