Product Details:
|
| PIPE DIAMETER: | 50-200 | EXTRUDER'S POWER: | 55KW |
|---|---|---|---|
| COLOUR: | CUSTOMIZED | PIPE NUMBERS: | ONE PIPE PRODUCED BY ONE TIME |
| RAW MATERIAL: | VIRGIN OR RECYCLED PVC POWDER & ADDITIVES | APPLICATION: | UPVC DRAINAGE PIPE |
| Voltage: | 380V 50Hz Or Customized | Automatic Grade: | Full-automatically |
| Screw Design: | Conical Twin Screw And Barrel | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Video Technical Support |
| Warranty: | 18 Months Since The Machine Shipped | Inverter: | ABB Frequency |
| Color: | White, Blue Or Customizable | Motor: | SIEMENS Made In China |
| Contactor: | SIEMENS OR SCHNIDER | Screw And Barrel: | Conical Twin Screw Extruder |
| Gearbox: | Integrated Gearbox | Output: | 400KG/H |
| Highlight: | 50-200mm pvc pipe extrusion line,Siemens Motor pvc pipe extrusion line,55kw pvc pipe production line |
||
50-200mm PVC-U pipe extrusion line with 80/156 55kw integrated gearbox and Siemens motor
Short desciption
LB Machinery offers complete production line for PVC/UPVC pipe ranging from 16mm to 800mm. This production line can be used for making pipes with different diameters and wall thickness in the aspects such as the electrical conduit, agricultural and constructional plumbing.
Application
The final produced UPVC pipe is used for the electrical conduit pipe, water supply pipe, sewage pipe, house decoration, chemical transportation, gas distribution line and so on. It has widely used in the industrial and daily life. The pvc pipe has the features of high strength and rigidity, structural integrity, excceleent chemical resistance,durability,thermal stability,non-toxic and safe,low maintenance and cost-effective.
Producting process
PVC powder + additive — mixing—material feeder—twin screw extruder—mould and calibrator—vacuum and cooling tank—spraying cooling machine—haul-off machine—cutting machine—discharge rack or pipe belling machine.
Specifications:
| MODEL | PIPE DIAMETER (MM) | EXTRUDER MODEL | MOTOR POWER (KW) |
| LB-32F | 16-32 (FOUR PIPE) | SJSZ65/132 | 37 AC |
| LB-32E | 16-32 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-32W | 16-32 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-40E | 16-40 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-40W | 16-40 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-50E | 16-50 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-50W | 16-50 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-63W | 16-63 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
Product detail
Mixer
With specific design of mixer, the self-friction of raw materials is reduced. It is conducive to the efficiency of energy utilization. The Vacuum suction load with low noise and no-dust working situation.

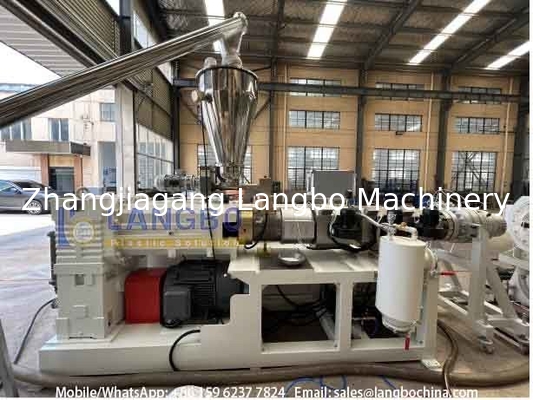

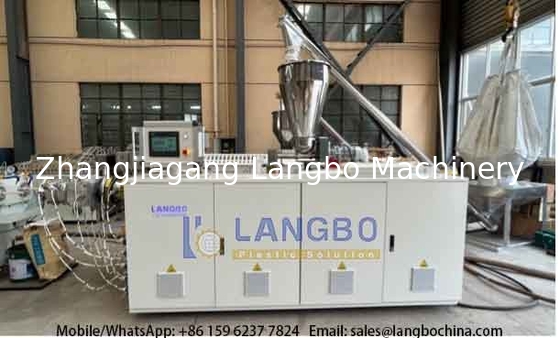

Twin screw extruder machine
The extruder are crafted with top brand components to ensure production stability, efficiency and machine durability. Our conical twin screw extruder design cater to the raw materials feature ensuring homogeneous mixture, better plastification and conveying efficiency.

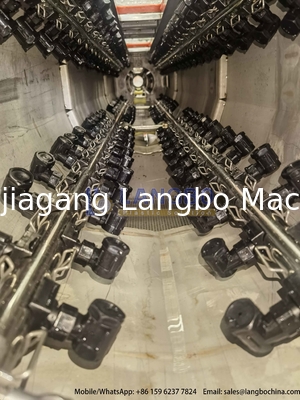

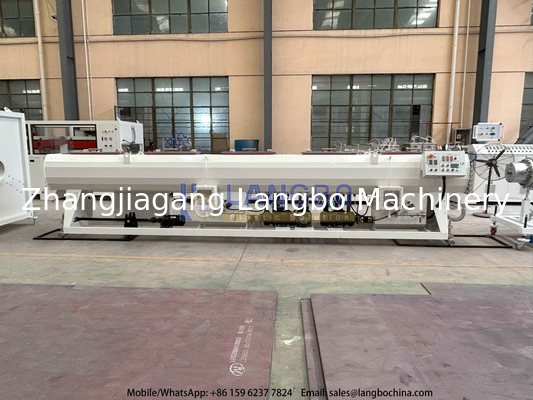

Vacuum Calibration & Cooling
The vacuum calibration tank adopt two chamber structure: the vacuum calibration and cooling parts. Both of vacuum tank and spraying cooling tank adopt stainless 304 steel. The excellent vacuum system ensures precise sizing for pipes.

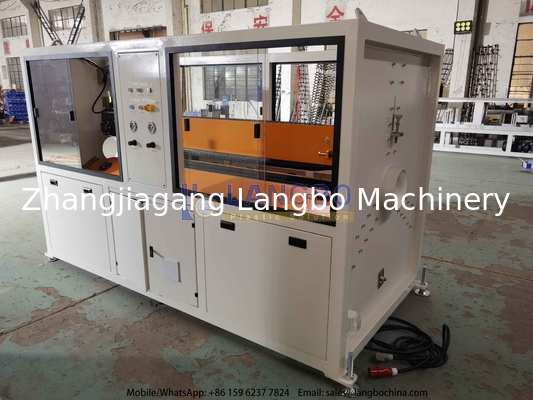

Haul-off Unit
The three caterpillar on the haul-off machine ensures produced pipe running stably and steady. The haul-off units can make tailored hauling model based on certain production requirement by adjusting the general control.
Cutting Unit
The high accuracy encoder ensures a precise and stable cutting length. With PLC control system, it can be cut by manual operation according to the specific application.
Company profile
Service and support
Our factory
Certificate
F & Q:
Are you a trading company or factory? Can I have a factory visiting?
We are a factory that produces machines for customers directly. Yes, our production plant can be visited at any time. We are in Zhangjiagang, Jiangsu Province close to Shanghai and Wuxi. If you are near to us, the pick-up service is available.
We can send working videos showing the machine running perfectly in several countries for online communication. We will provide customer-focused and tailored technical suggestions.
For offline contact, you can visit our factory and talk about the machine face to face, you can find our competence in the field of plastic extrusion and tell our ability in machine building.
Usually, our quotation contains FOB Shanghai as a shipment condition. This means the shipping cost between the delivery and destination ports will not be included in the quotation. The shipping cost fluctuates according to the delivery company and shipping date. Langbo can help customers to get the latest shipping price. Customers decide if we add the shipping cost to the quotation or choose a shipping agent by themselves.
confirmation of Configuration
Sign of Proforma invoice
30% of total price pre-payment for production starting
Test running in the house, customers on-site or video connecting
Confirmation of machine condition
70% of the total price for delivery preparation
Confirmation of Delivery date
Shipping to customer
On-site commissioning
Training in machine operation and maintenance
Confirmation of handover
One year guarantee
Whole lifecycle service and technical support
T/T, D/P, Letter of credit, Cash transaction
We provide one year guarantee and whole-lifecycle technical support for our product. During in-house test running, customers can check the machine on-site. Any point for optimization will be done immediately.
Factory visiting before order
Product sample posting to Langbo for a better understanding of customer’s expectations and configuration communication
On-site checking during test running
Yes. Both our extrusion machine and plastic recycling machine have CE Certification.
Usually 45 days. Depended on the certain project, the exact delivery time will be wrote on contract.
One-year quality guarantee.
Quick response for technical support
Problem analysis for production problems
After the handover of the machine, Langbo provides free new parts for every non-man-made damage.
How to get the required area of the machine?
For a new plant, you can contact me. (sales@langbochina.com/ whatsapp:8615962377824) After knowing your demand, I can make the detailed solution and layout of the machine line. Meanwhile, I will provide technical guidance of your installation and specification.
