500L Capacity PVC Mixer Machine with Stainless Steel Construction and Automatic Control for Plastic Granules
Product Details
| CONTROL: | AUTOMATIC | MIXER: | VERTICAL/HORIZONTAL COMBINATION |
|---|---|---|---|
| NOTOR POWER: | 83/110/22KW | FEEDING: | AUTO-PNEUMATIC |
| Model Number: | SRL-Z | Power(W): | 18.5-75kw |
| Highlight |
500L Plastic Granules Mixer Machines,500L PVC Pellets Mixer Machines,500L Heat Mixer PVC Pellets |
||
Product Description

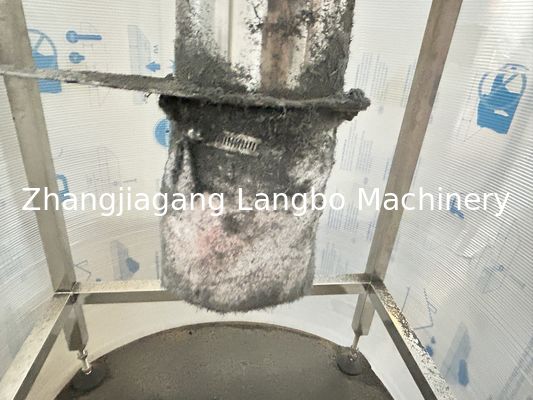

- The Blade is made of stainless steel, formed by dynamic and static balance refining
- Cap is double sealing, start by pneumatic, easy operation
- Cylinder is made of stainless steel, wall thickness up to 8 mm
- Discharge is in temperature auto control or time control
- Motor start and speed regulation is governed by the ABB inverter
- Direct & stable control type and analog display screen display
- Automated manufacturing procedure reduces labor intensity and production costs
| Model | SRL-Z100/200 | SRL-Z200/500 | SRL-Z300/600 | SRL-Z500/1000 |
|---|---|---|---|---|
| Total capacity (L) | 100/200 | 200/500 | 300/600 | 500/1000 |
| Mixing capacity (kg/h) | 165 | 325 | 500 | 750 |
| Motor power (kw) | 14/22/7.5 | 30/42/11 | 40/50/15 | 47/67/15 |
| Paddle speed (r/min) | 650/130/180 | 475/950/130 | 475/950/130 | 430/860/60 |
| Model | SRL-Z800/1600 | SRL-Z800/2500 | SRL-Z1000/3000 | SRL-Z1300/4500 |
|---|---|---|---|---|
| Total capacity (L) | 800/1600 | 800/2500 | 1000/3000 | 1300/4500 |
| Mixing capacity (kg/h) | 1400 | 1400 | 1900 | 2500 |
| Motor power (kw) | 60/90/18.5 | 80/110/30 | 110/160/37 | 132/200/45 |
| Paddle speed (r/min) | 370/740/50 | 370/740/50 | 325/650/50 | 250/500/50 |
- Delivery: 30 days after order
- Warranty: 12 months
- Payment: T/T 30% in advance, T/T 70% before delivery
- Packing: Standard export wooden case
- One year guarantee for whole machine
- 24 hours technical support
- Engineers can provide installation & commission service overseas
- After a year, we instruct maintenance and provide spare parts at best price
- Training service to help operators handle the machine well
