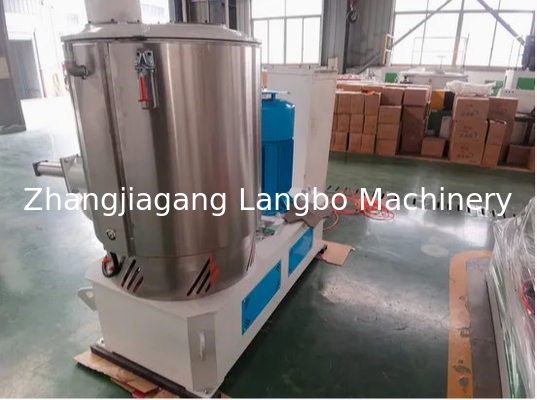

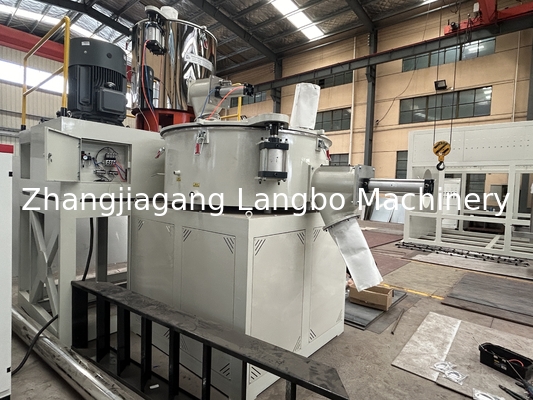

Automatic Control PVC Mixer Machine with Stainless Steel Blade and Heating Cooling System for High Speed Mixing
Product Details
| CONTROL: | AUTOMATIC | MIXER: | VERTICAL/HORIZONTAL COMBINATION |
|---|---|---|---|
| NOTOR POWER: | 55/110/22KW | FEEDING: | AUTO-PNEUMATIC |
| Model Number: | SRL-Z | Power(W): | 18.5-75kw |
| Warranty: | 2 YEARS | Shipping: | BY SEA |
| Highlight |
Automatic PVC Mixer Machine,High Speed PVC Mixer Machine,High Capacity PVC Mixer Machine |
||
Product Description
Langbo Machinery offers heating mixer, cooler mixer and mixers combination systems designed for mixing, coloring and drying in the plastics industry. These systems are essential for processing dry powder raw materials before extrusion.

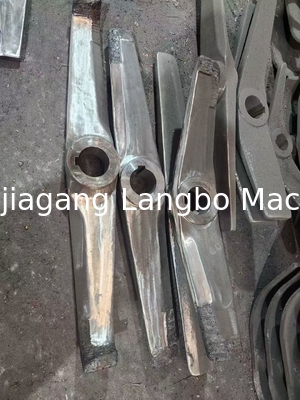

- Stainless steel blades formed by dynamic and static balance refining
- Double sealing cap with pneumatic start for easy operation
- Stainless steel cylinder with 8mm wall thickness
- Temperature auto control or time control discharge system
- ABB inverter-controlled motor start and speed regulation
- Direct & stable control type with analog display screen
- Full automation reduces labor intensity and production costs
| Model | Total Capacity (L) | Mixing Capacity (kg/h) | Motor Power (kw) | Paddle Speed (r/min) |
|---|---|---|---|---|
| SRL-Z100/200 | 100/200 | 165 | 14/22/7.5 | 650/130/180 |
| SRL-Z200/500 | 200/500 | 325 | 30/42/11 | 475/950/130 |
| SRL-Z300/600 | 300/600 | 500 | 40/50/15 | 475/950/130 |
| SRL-Z500/1000 | 500/1000 | 750 | 47/67/15 | 430/860/60 |
| SRL-Z800/1600 | 800/1600 | 1400 | 60/90/18.5 | 370/740/50 |
| SRL-Z800/2500 | 800/2500 | 1400 | 80/110/30 | 370/740/50 |
| SRL-Z1000/3000 | 1000/3000 | 1900 | 110/160/37 | 325/650/50 |
| SRL-Z1300/4500 | 1300/4500 | 2500 | 132/200/45 | 250/500/50 |
Delivery: 30 days after order
Warranty: 12 months
Payment: T/T 30% in advance, T/T 70% before delivery

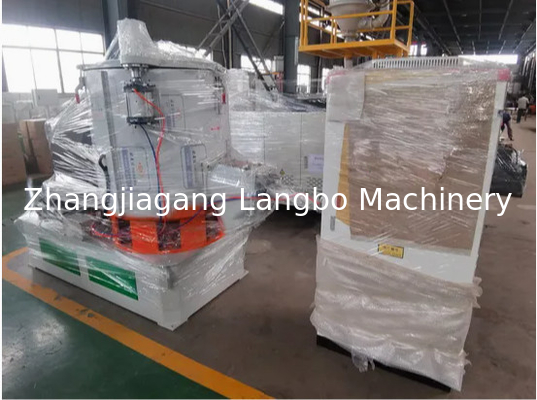

Packing: Standard export wooden case
- One year guarantee for whole machine
- 24 hours technical support
- Overseas installation & commissioning by our engineers
- Maintenance guidance and competitively priced spare parts after warranty
- Comprehensive operator training services
