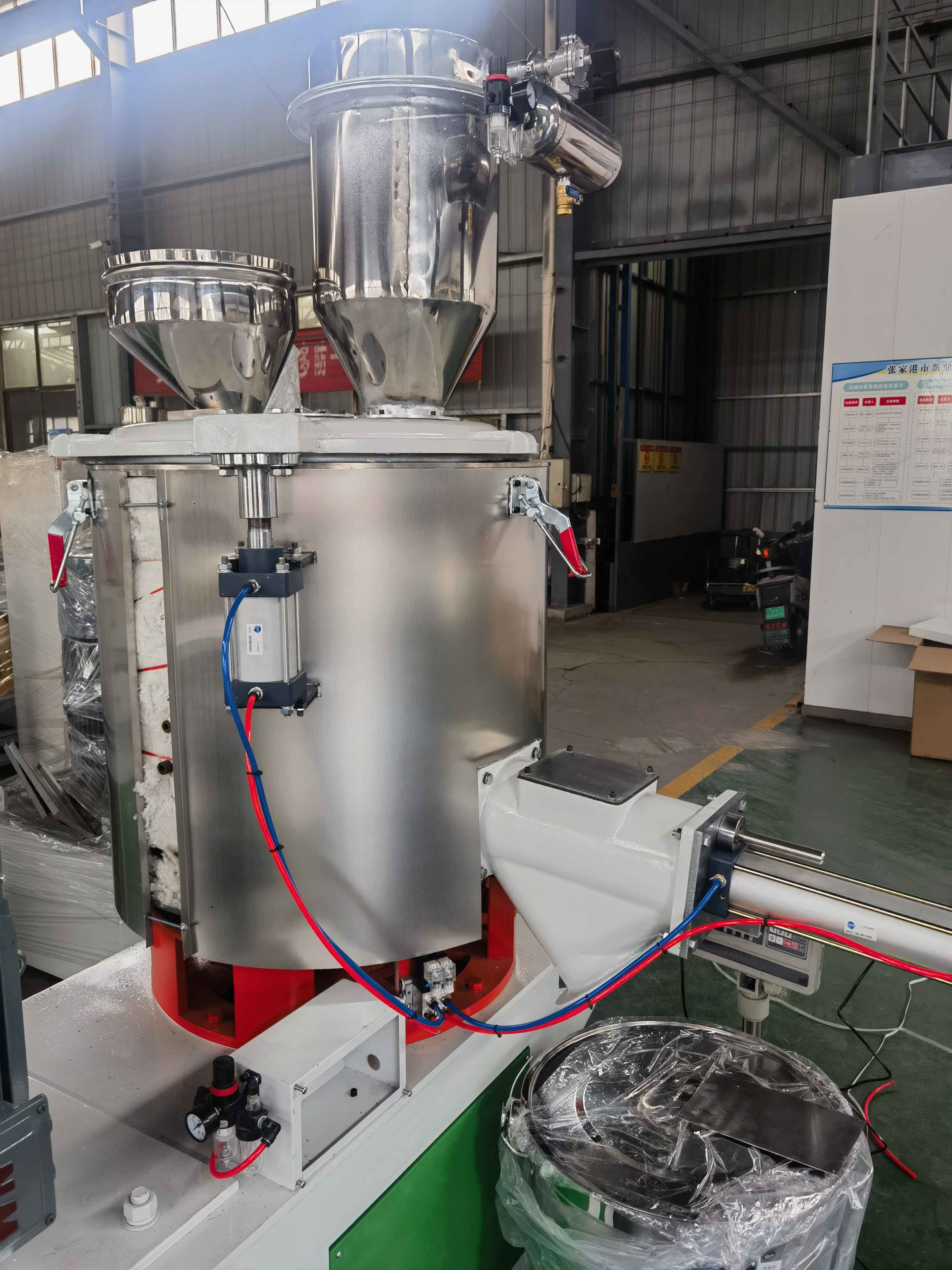

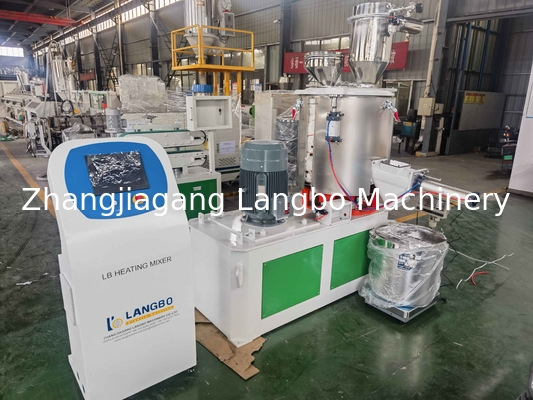

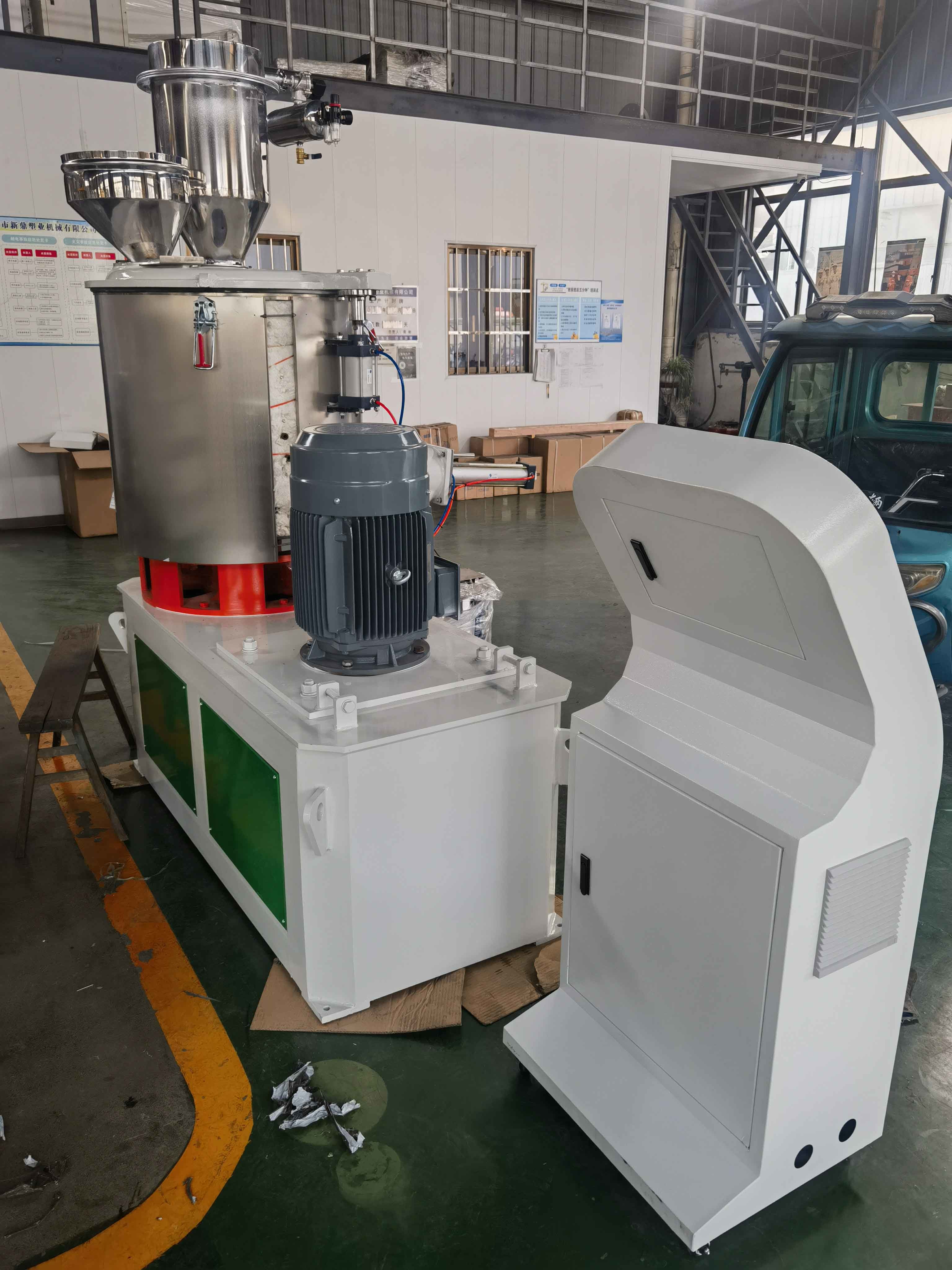

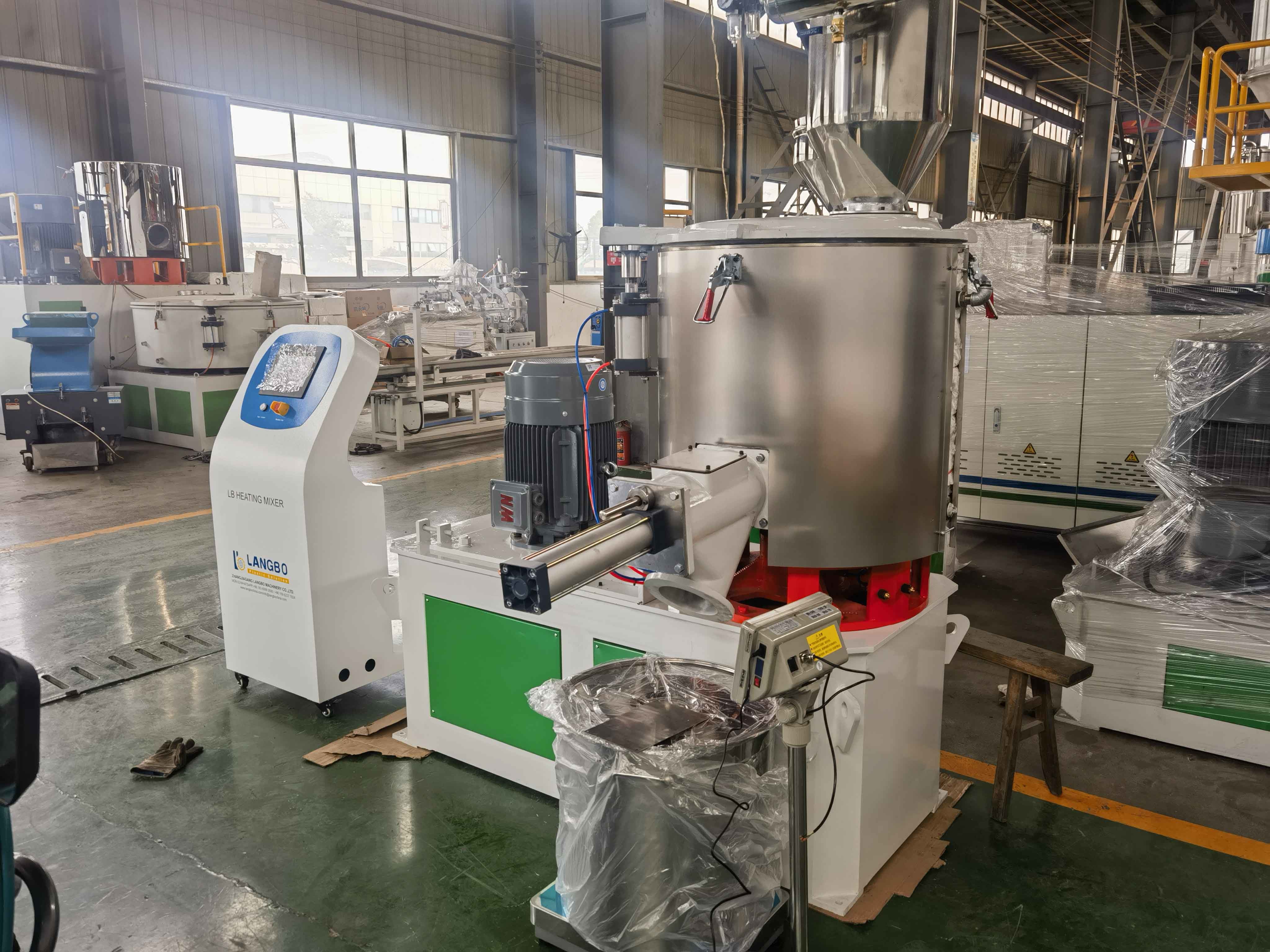

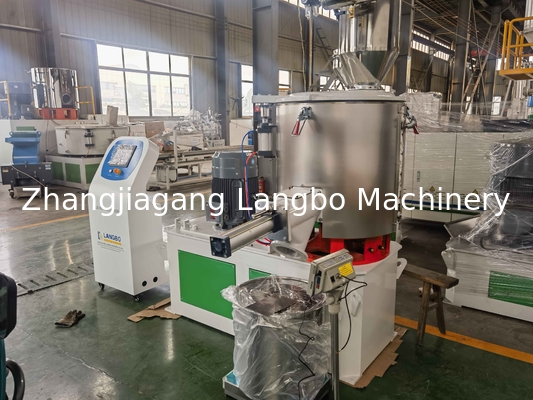

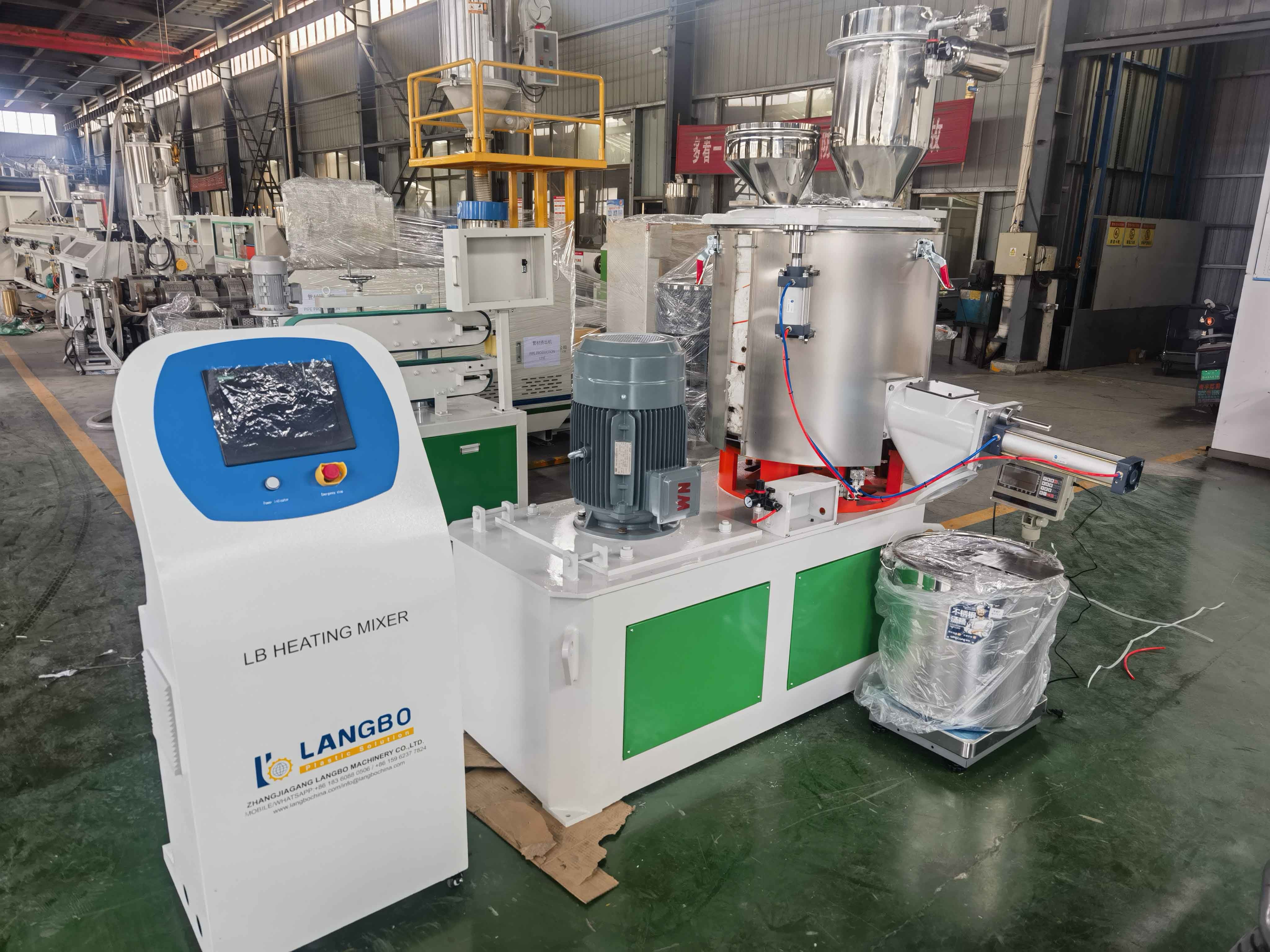

Automatic Control PVC Mixer Machine with Stainless Steel Blade and Heating Cooling System
Product Details
| CONTROL: | AUTOMATIC | MIXER: | VERTICAL/HORIZONTAL COMBINATION |
|---|---|---|---|
| NOTOR POWER: | 83/110/22KW | FEEDING: | AUTO-PNEUMATIC |
| Model Number: | SRL-Z | Power(W): | 18.5-75kw |
| Warranty: | 2 YEARS | Shipping: | By Sea |
| Highlight |
Plastic High Speed Mixer,PVC High Speed Mixer |
||
Product Description

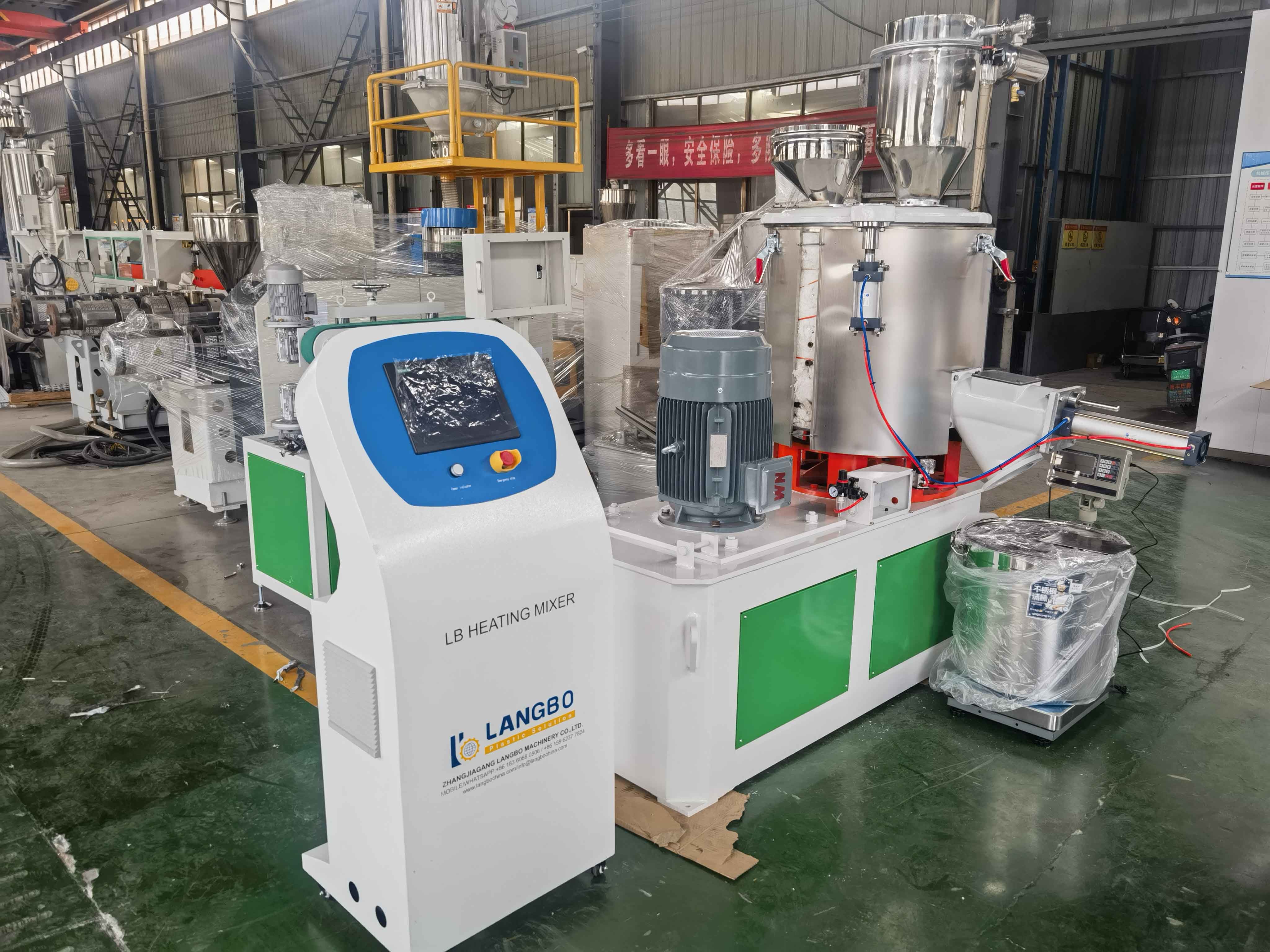

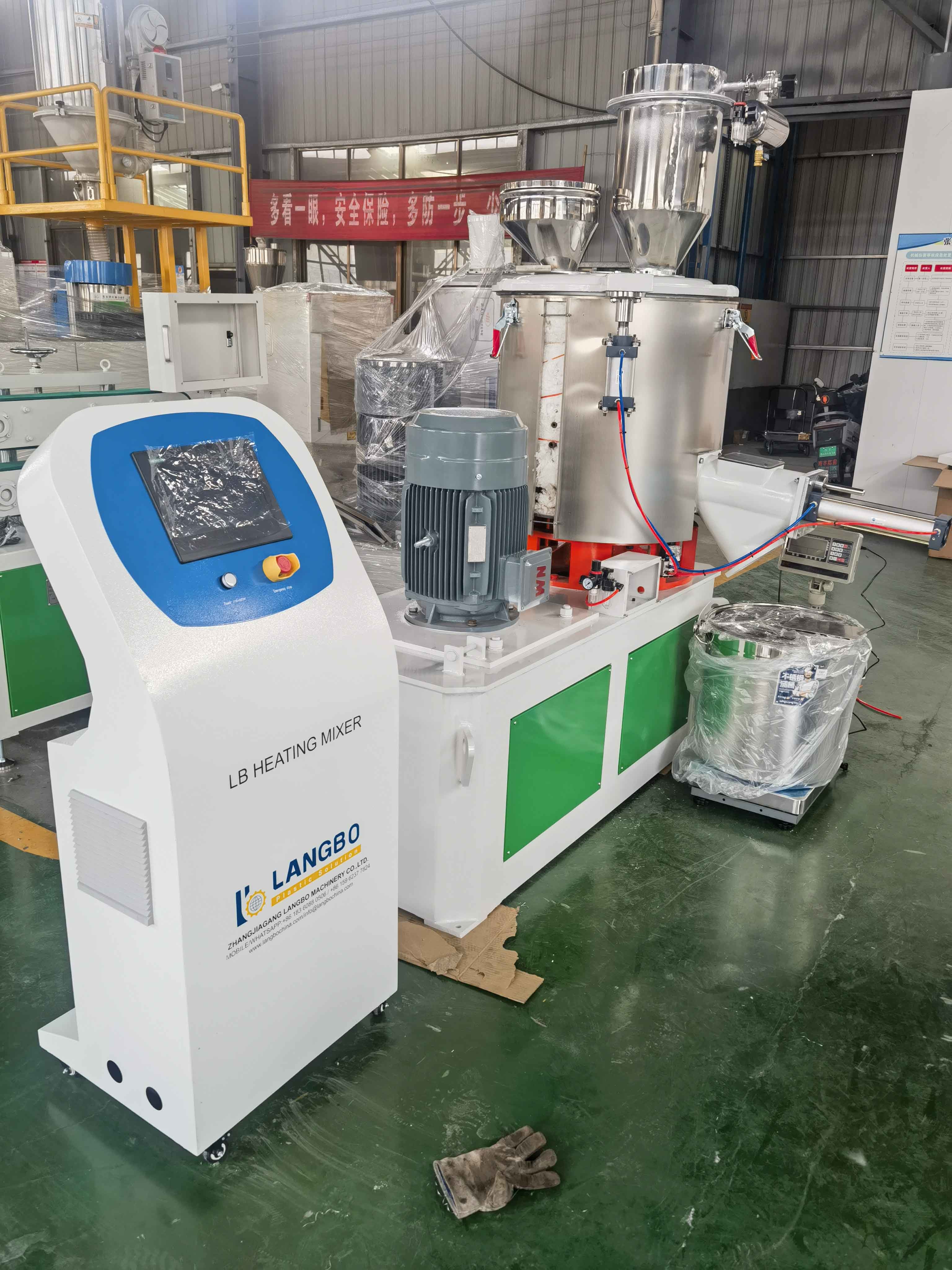

Langbo Machinery offers heating mixer, cooler mixer and mixers combination. The heating mixers are applied for mixing, coloring and drying in the industry of plastics. The structure design of cooler mixer can be type of vertical or horizontal.
Mostly dry powder raw material needs mixing before entering the extruder. The mixing unit is mainly used for:
- Mixing and coloring of polyvinyl chloride resin (PVC)
- Coloring and drying of polyethylene particles
- Drying before the molding and processing of hygroscopic resins such as polycarbonate
- Mixing of phenolic resins
Then, it is cooled by cooling and stirring to prevent clumping and degradation of the hot mixed material, allowing the additives in the hot mixed material to continue to penetrate into the plastic resin, eliminate residual gases in the hot mixed material, and store the hot mixed material.
| Model | Total Capacity (L) | Mixing Capacity (kg/h) | Motor Power (kw) | Paddle Speed (r/min) |
|---|---|---|---|---|
| SRL-Z100/200 | 100/200 | 165 | 14/22/7.5 | 650/130/180 |
| SRL-Z200/500 | 200/500 | 325 | 30/42/11 | 475/950/130 |
| SRL-Z300/600 | 300/600 | 500 | 40/50/15 | 475/950/130 |
| SRL-Z500/1000 | 500/1000 | 750 | 47/67/15 | 430/860/60 |
| SRL-Z800/1600 | 800/1600 | 1400 | 60/90/18.5 | 370/740/50 |
| SRL-Z800/2500 | 800/2500 | 1400 | 80/110/30 | 370/740/50 |
| SRL-Z1000/3000 | 1000/3000 | 1900 | 110/160/37 | 325/650/50 |
| SRL-Z1300/4500 | 1300/4500 | 2500 | 132/200/45 | 250/500/50 |
- Delivery: 30 days after your order
- Warranty: 12 months
- Payment: T/T 30% in advance, T/T 70% before delivery
- Packing: Standard export wooden case
- One year guarantee for whole machine
- 24 hours technical support
- Engineers can provide installation & commission service overseas
- After a year, we instruct you how to maintain the machine, and spare parts are provided with the best price
- We provide training service to help operators handle the machine well
