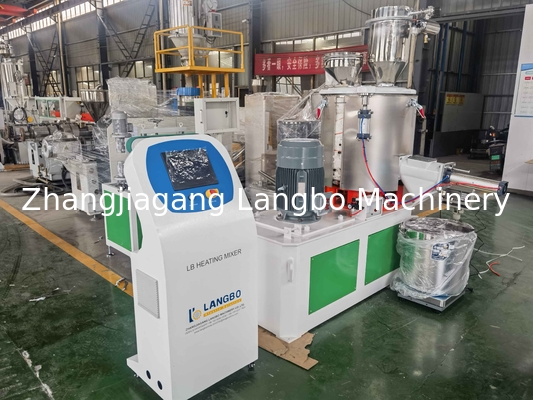

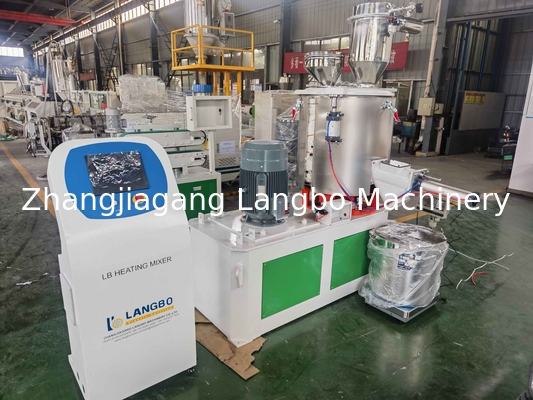

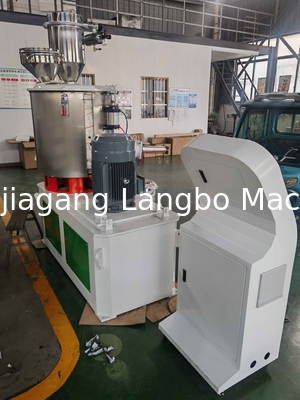

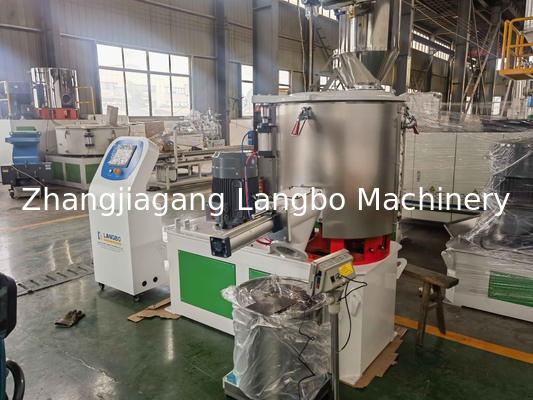

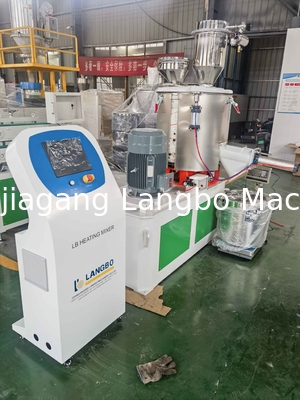

SRL-Z PVC Mixer Machine with ABB Frequency Inverter Stainless Steel Blade and Automatic Control for Plastic Powder Mixing
Product Details
| CONTROL: | AUTOMATIC | MIXER: | VERTICAL/HORIZONTAL COMBINATION |
|---|---|---|---|
| NOTOR POWER: | 83/110/22KW | FEEDING: | AUTO-PNEUMATIC |
| Model Number: | SRL-Z | Power(W): | 18.5-75kw |
| Warranty: | 2 YEARS | Shipping: | By Sea |
| Highlight |
PVC WPC Plastic Powder Mixing Machine,PVC WPC Plastic Powder Mixer Unit |
||
Product Description
Langbo Machinery offers comprehensive mixing solutions including heating mixers, cooler mixers, and combined mixer units. These industrial mixers are specifically designed for mixing, coloring, and drying applications within the plastics industry, featuring both vertical and horizontal structural designs.
Primary Applications: Mixing and coloring of polyvinyl chloride resin (PVC), coloring and drying of polyethylene particles, pre-processing drying of hygroscopic resins (such as polycarbonate), and mixing of phenolic resins.
- Stainless steel blades dynamically balanced for optimal performance

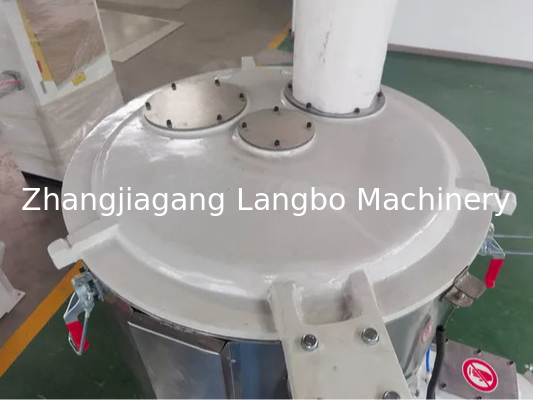

- Double-sealed pneumatic cap for easy operation

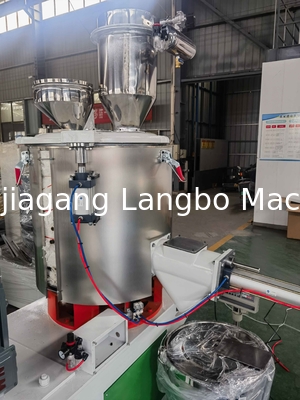

- 8mm thick stainless steel cylinder construction
- Temperature or time-controlled automatic discharge
- ABB frequency inverter for smooth motor start and speed regulation

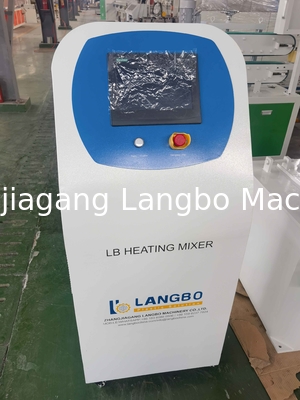

- Direct & stable control system with analog display
- Full automation reduces labor intensity and production costs
- Prevents material clumping and degradation through controlled cooling
| Model | Total Capacity (L) | Mixing Capacity (kg/h) | Motor Power (kW) | Paddle Speed (r/min) |
|---|---|---|---|---|
| SRL-Z100/200 | 100/200 | 165 | 14/22/7.5 | 650/130/180 |
| SRL-Z200/500 | 200/500 | 325 | 30/42/11 | 475/950/130 |
| SRL-Z300/600 | 300/600 | 500 | 40/50/15 | 475/950/130 |
| SRL-Z500/1000 | 500/1000 | 750 | 47/67/15 | 430/860/60 |
| SRL-Z800/1600 | 800/1600 | 1400 | 60/90/18.5 | 370/740/50 |
| SRL-Z800/2500 | 800/2500 | 1400 | 80/110/30 | 370/740/50 |
| SRL-Z1000/3000 | 1000/3000 | 1900 | 110/160/37 | 325/650/50 |
| SRL-Z1300/4500 | 1300/4500 | 2500 | 132/200/45 | 250/500/50 |
- Delivery: 30 days after order confirmation
- Warranty: 12 months comprehensive coverage
- Payment Terms: T/T 30% in advance, 70% before delivery
- Packing: Standard export wooden cases
- One-year guarantee for complete machine
- 24-hour technical support
- Overseas installation and commissioning services
- Comprehensive maintenance guidance and spare parts support
- Operator training services
