PVC Pipe Machine Plastic Extrusion Line
High automatic PVC pipe making machine, UPVC pipe production line, UPVC electrical conduit pipe making machine, UPVC water supply pipe making machine, PVC pipe extruder, and PVC conduit making machine offering complete production line for PVC/UPVC pipe ranging from 16mm to 800mm.
Applications
The final produced UPVC pipe is used for electrical conduit pipe, water supply pipe, sewage pipe, house decoration, chemical transportation, gas distribution line and more. Widely used in industrial and daily life applications with features of high strength and rigidity, structural integrity, excellent chemical resistance, durability, thermal stability, non-toxic and safe, low maintenance and cost-effective.
Production Process

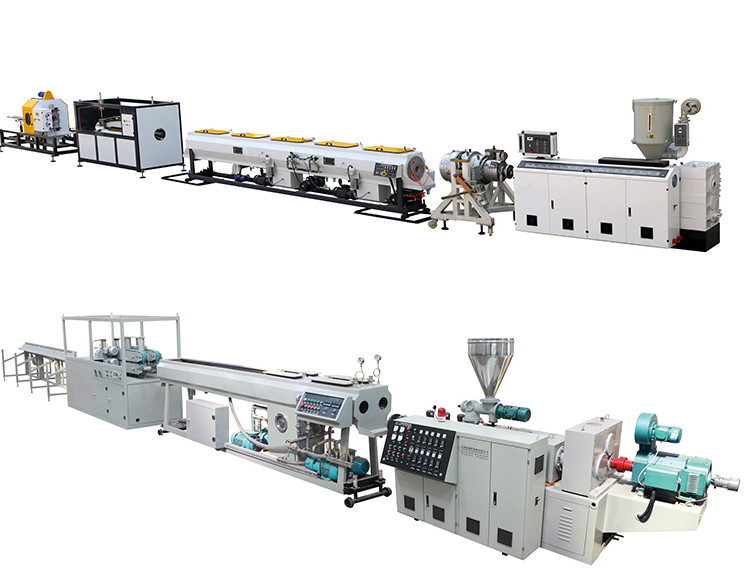

PVC powder + additive → mixing → material feeder → twin screw extruder → mould and calibrator → vacuum and cooling tank → spraying cooling machine → haul-off machine → cutting machine → discharge rack or pipe belling machine.
Specifications
| MODEL |
PIPE DIAMETER (MM) |
EXTRUDER MODEL |
MOTOR POWER (KW) |
| LB-32F | 16-32 (FOUR PIPE) | SJSZ65/132 | 37 AC |
| LB-32E | 16-32 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-32W | 16-32 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-40E | 16-40 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-40W | 16-40 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-50E | 16-50 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-50W | 16-50 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-63W | 16-63 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
Product Details
Mixer
With specific design to reduce self-friction of raw materials, conducive to energy utilization efficiency. Features vacuum suction load with low noise and dust-free working conditions.
Twin Screw Extruder Machine
Crafted with top brand components to ensure production stability, efficiency and machine durability. Conical twin screw extruder design caters to raw materials feature ensuring homogeneous mixture, better plastification and conveying efficiency.

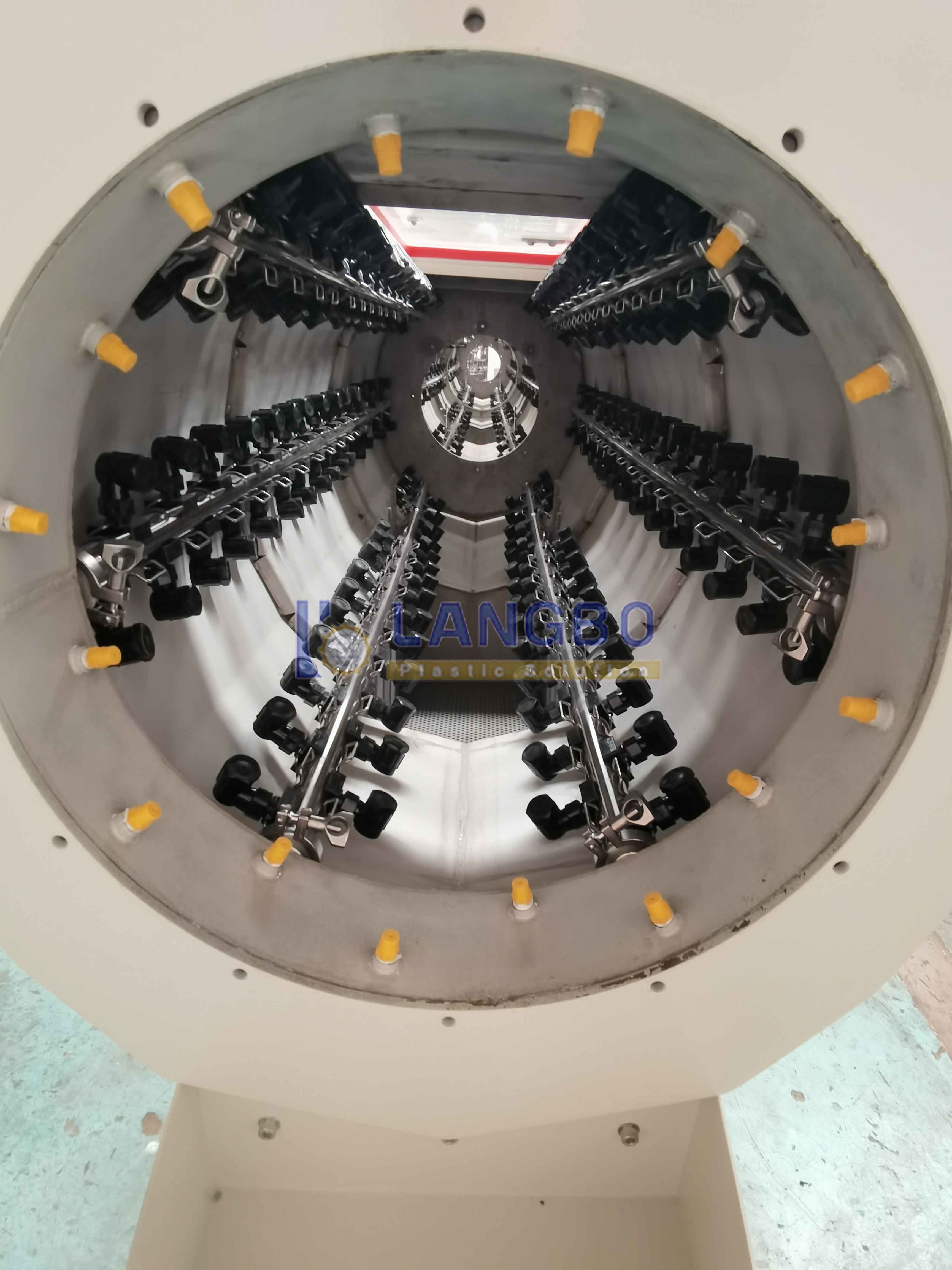

Vacuum Calibration & Cooling
Two-chamber structure with vacuum calibration and cooling parts. Both vacuum tank and spraying cooling tank use stainless 304 steel. Excellent vacuum system ensures precise sizing for pipes.

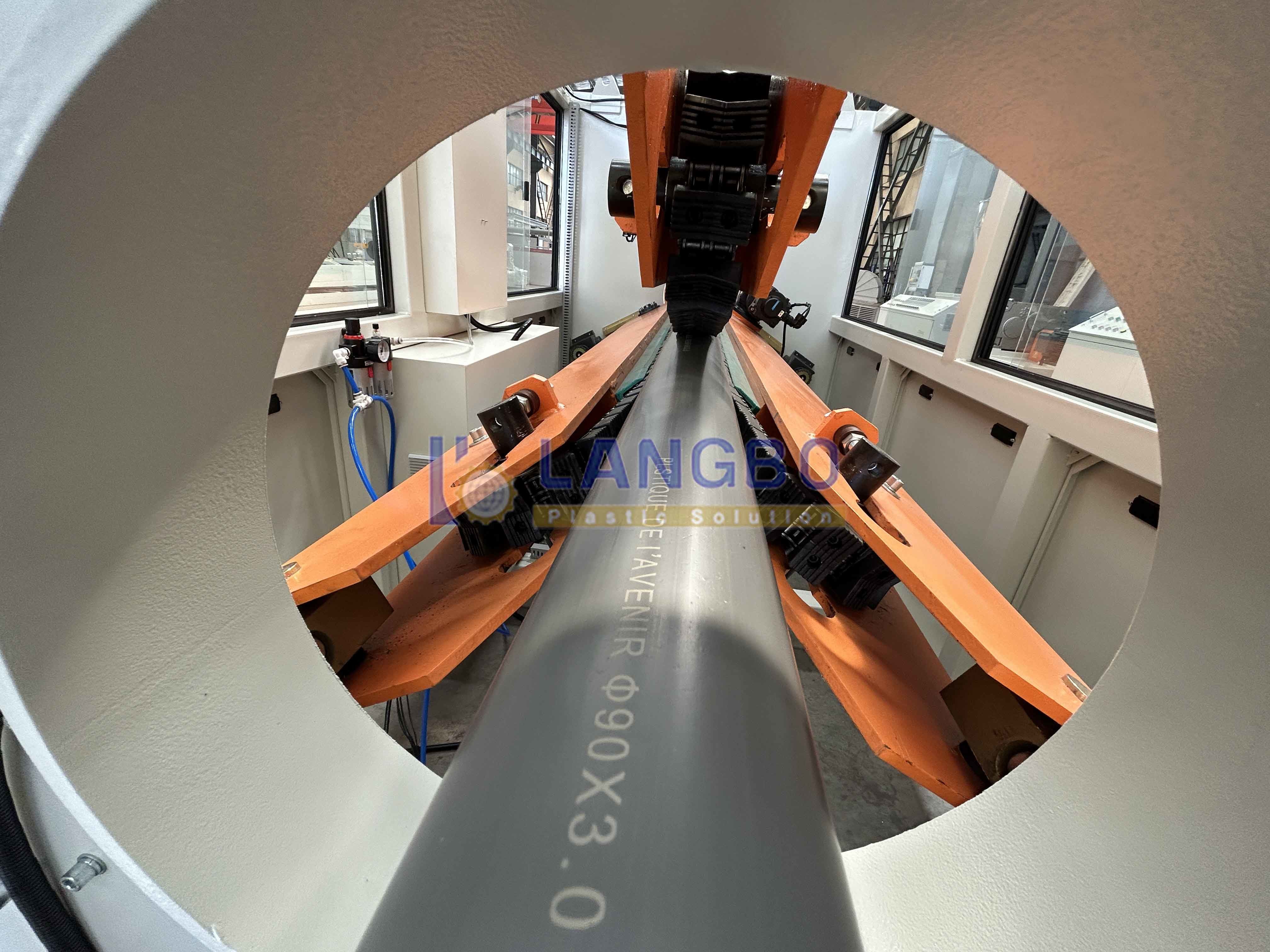

Haul-off Unit
Three crawler tracks ensure stable and steady pipe running. Haul-off units can make tailored hauling model based on production requirements by adjusting general control.

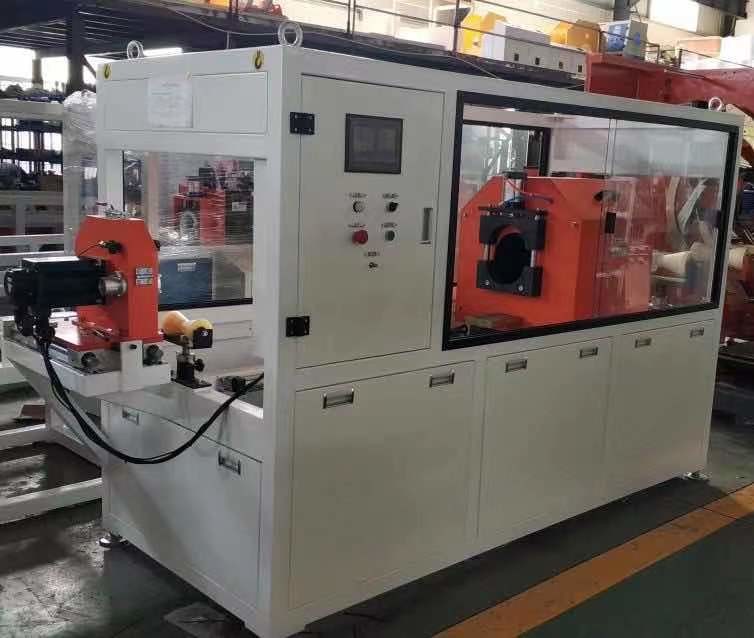

Cutting Unit
High accuracy encoder ensures precise and stable cutting length. With PLC control system, can be cut manually according to specific application requirements.
Technical Features
- Plastic pulverizer can easily grind all kinds of Hard & Soft PVC into powder
- Dust collector effectively reduces dust pollution
- Discharging of main fan reduces labor intensity of operating workers
- Door cover of host can be opened for maintenance and replacement of cutters
- Mill uses water and wind double cooling system to prevent bearing and other parts from overheating
- Powder mesh is adjustable (15-100mesh)
- Easy installation and maintenance - just open the door to clean up
- Using well-known brand accessories, such as Siemens motors, for long-term operation
- Wide range of optional accessories for professional solutions based on customer budget and requirements
Delivery Information
- Delivery: 30 days after order
- Warranty: 12 months
- Payment: T/T 30% in advance, T/T 70% before delivery
- Packing: Standard export wooden case
Our Service
- One year guarantee for whole machine
- 24 hours technical support
- Engineers provide installation & commission service overseas
- After one year, maintenance guidance and spare parts at best price
- Training service to help operators handle the machine effectively
Product Images
Frequently Asked Questions
Are you a trading company or factory? Can I visit your factory?
We are a factory that produces machines directly for customers. Yes, our production plant in Zhangjiagang, Jiangsu Province (close to Shanghai and Wuxi) can be visited at any time. Pick-up service is available for nearby visitors.
How to build trust with Langbo
We provide working videos showing machines running perfectly in various countries for online communication. We offer customer-focused and tailored technical suggestions. For offline contact, visit our factory to discuss machines face-to-face and see our competence in plastic extrusion and machine building.
Is shipping cost included in the quotation?
Our quotation typically contains FOB Shanghai as shipment condition. Shipping costs between delivery and destination ports are not included and fluctuate based on delivery company and shipping date. We can help customers get latest shipping prices.
What happens after order confirmation?
Configuration confirmation → Proforma invoice signing → 30% pre-payment for production → Test running with customer on-site or video connection → Machine condition confirmation → 70% payment for delivery preparation → Delivery date confirmation → Shipping → On-site commissioning → Training in operation and maintenance → Handover confirmation → One year guarantee → Whole lifecycle service and technical support.
Payment Methods
T/T, D/P, Letter of Credit, Cash transaction
Machine Quality Guarantee
We provide one year guarantee and whole-lifecycle technical support. During in-house test running, customers can check machines on-site. Any optimization points are addressed immediately.
How can customers get the exact machine they want?
Factory visiting before order, product sample posting for better understanding of expectations and configuration communication, on-site checking during test running.
Do you have CE Certification?
Yes. Both our extrusion machine and plastic recycling machine have CE Certification.
Delivery Time
Usually 45 days. Exact delivery time depends on specific project and will be specified in contract.
After-Sales Services
One-year quality guarantee, quick response for technical support, problem analysis for production issues.
One-Year Quality Guarantee Details
After machine handover, we provide free new parts for every non-man-made damage.
How to get required machine area information?
For new plants, contact us at sales@langbochina.com or WhatsApp: +86 15962377824. After understanding your demand, we provide detailed solutions and machine line layout with technical guidance for installation and specifications.
