PVC Plastic Auto Condition Pipe Extrusion Making Machine
Complete production line for PVC/UPVC pipe manufacturing ranging from 16mm to 800mm diameter. Features SIEMENS or SCHNIDER contactor with 65/132 screw diameter configuration.
Product Overview
This advanced PVC pipe making machine offers a complete production solution for UPVC pipe manufacturing, including electrical conduit pipes, water supply pipes, and various plumbing applications. The production line accommodates pipes with different diameters and wall thicknesses for construction, agricultural, and industrial uses.
Applications
The produced UPVC pipes are widely used in electrical conduit systems, water supply networks, sewage systems, house decoration, chemical transportation, and gas distribution lines. These pipes feature high strength, structural integrity, excellent chemical resistance, durability, thermal stability, non-toxic safety properties, and cost-effectiveness.
Production Process
PVC powder + additives → Mixing → Material feeder → Twin screw extruder → Mould and calibrator → Vacuum and cooling tank → Spraying cooling machine → Haul-off machine → Cutting machine → Discharge rack or pipe belling machine.
Technical Specifications
| MODEL |
PIPE DIAMETER (MM) |
EXTRUDER MODEL |
MOTOR POWER (KW) |
| LB-32F | 16-32 (FOUR PIPE) | SJSZ65/132 | 37 AC |
| LB-32E | 16-32 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-32W | 16-32 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-40E | 16-40 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-40W | 16-40 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-50E | 16-50 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-50W | 16-50 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-63W | 16-63 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
Key Components
Mixer
Specially designed mixer reduces raw material self-friction, improving energy utilization efficiency. Features vacuum suction load with low noise and dust-free operation.

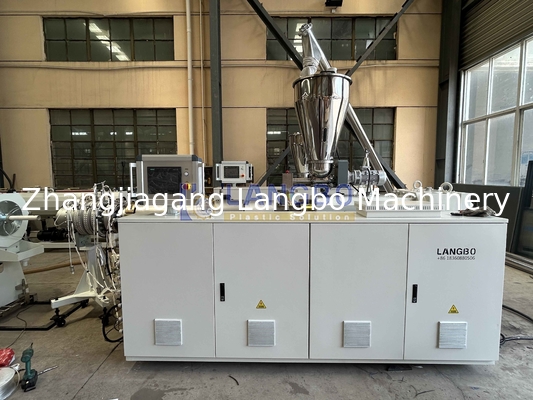

Twin Screw Extruder Machine
Crafted with top brand components for production stability, efficiency, and durability. Conical twin screw design ensures homogeneous mixture, better plastification, and superior conveying efficiency.

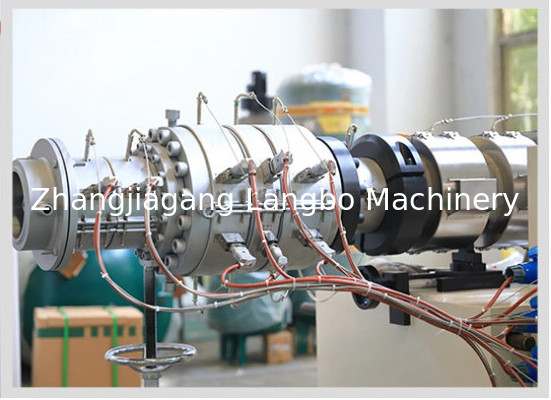

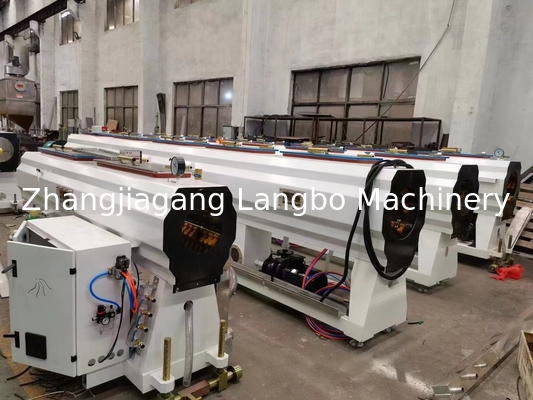

Vacuum Calibration & Cooling
Two-chamber structure with vacuum calibration and cooling sections. Constructed with stainless 304 steel for both vacuum tank and spraying cooling tank. Excellent vacuum system ensures precise pipe sizing.

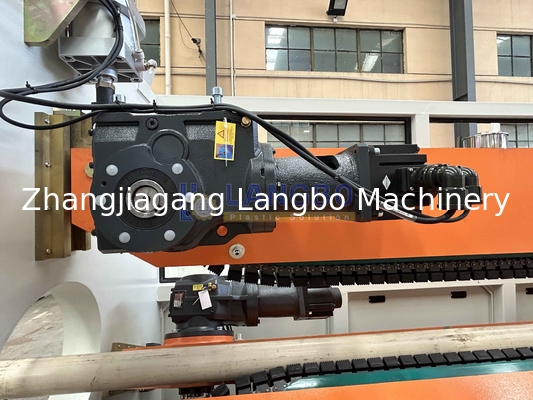

Haul-off Unit
Three crawler tracks ensure stable and steady pipe operation. Tailored hauling models can be adjusted through general control based on specific production requirements.

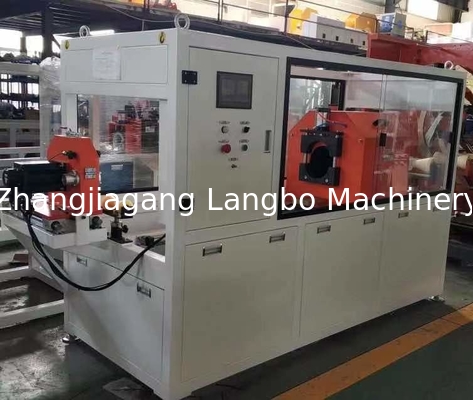

Cutting Unit
High-accuracy encoder ensures precise and stable cutting length. PLC control system allows manual operation cutting according to specific application needs.
Technical Features
- Easy grinding of all Hard & Soft PVC materials into powder
- Integrated dust collector effectively reduces pollution
- Main fan discharge reduces operator labor intensity
- Accessible host door cover for easy maintenance and cutter replacement
- Water and wind double cooling system prevents overheating
- Adjustable powder mesh (15-100 mesh)
- Easy installation and maintenance with accessible cleaning
- Well-known brand accessories including Siemens motors for long-term operation
- Comprehensive optional accessories for customized solutions
Delivery & Payment Information
Delivery: 30 days after order confirmation
Warranty: 12 months comprehensive coverage
Payment: T/T 30% in advance, T/T 70% before delivery
Packing: Standard export wooden case
Our Service Commitment
- One-year guarantee for entire machine
- 24-hour technical support
- Overseas installation & commissioning services
- Post-warranty maintenance guidance and affordable spare parts
- Comprehensive operator training programs
Product Gallery
Frequently Asked Questions
Are you a trading company or factory? Can I visit your facility?
We are a direct manufacturer located in Zhangjiagang, Jiangsu Province, close to Shanghai and Wuxi. Factory visits are welcome at any time, with pick-up service available for nearby visitors.
How to build trust with Langbo?
We provide working videos demonstrating machine performance in various countries and offer customer-focused technical suggestions. For offline contact, factory visits allow face-to-face discussions about our plastic extrusion expertise.
Is shipping cost included in the quotation?
Quotations typically include FOB Shanghai conditions. Shipping costs to destination ports fluctuate based on carrier and timing. We assist customers in obtaining current shipping prices and can include them in quotations upon request.
What is the order process after confirmation?
Configuration confirmation → Proforma invoice signing → 30% prepayment → Production start → Test running (on-site or video) → Machine condition confirmation → 70% payment → Delivery preparation → Shipping → On-site commissioning → Operator training → Handover confirmation → One-year guarantee → Lifetime technical support.
What payment methods do you accept?
T/T, D/P, Letter of Credit, and cash transactions.
How do you guarantee machine quality?
We provide one-year guarantee and lifetime technical support. Customers can inspect machines during in-house test running, with immediate optimization of any identified issues.
Do you have CE Certification?
Yes, both our extrusion machines and plastic recycling machines are CE Certified.
What is the typical delivery time?
Standard delivery is 45 days from order confirmation, with exact timelines specified in the contract based on project requirements.
