20-200mm PE Pipe Cable Porous Pipe Production Line Plastic Carbon Spiral Pipe Making Machine
Product Details
| Packaging Details: | WOODEN BOX | Material: | PE |
|---|---|---|---|
| Screw Diameter: | 65mm | LD Ratio: | 33:1 |
| Warranty: | 1 Year | Screw Design: | Single-screw |
| Certification: | CE,ISO | Voltage: | Customer Demand |
| Automatic Grade: | Full-automatic | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training |
| Color: | Customised | Control: | PLC+Touch Screen |
| Processing Type: | Extrusion Machine | ||
| Highlight |
Cable Porous Pipe Production Line,200mm PE Pipe Production Line,Carbon Spiral Pipe extrusion Line |
||
Product Description
20-200mm PE Pipe Cable Porous Pipe Production Line Plastic Carbon Spiral Pipe Making Machine
APPLICATION:
Our PE Pipe Making Machine is engineered to deliver top-performance polyethylene pipe extrusion, catering to a wide range of applications, including municipal water systems, agricultural drainage, and underground gas pipelines. With robust construction and cutting-edge automation, this machine guarantees high precision, smooth operation, and minimal downtime, ensuring optimal production efficiency.
PE PIPE PRODUCTION SPECIFICATIONS:
| Model | Pipe diameter | Extruder | Extruder power | Capacity |
| LB-63 | 20-63 | SJ65/33 | 55AC | 150 |
| LB-110 | 20-110 | SJ65/33 | 55AC | 150 |
| LB-160 | 75-160 | SJ75/33 | 90AC | 280 |
| LB-250 | 90-250 | SJ75/33 | 110DC | 350 |
| LB-315 | 110-315 | SJ90/33 | 160DC | 450 |
| LB-450 | 160-450 | SJ90/33 | 160DC | 450 |
| LB-630 | 315-630 | SJ120/33 | 280DC | 850 |
| LB-800 | 500-800 | SJ150/33 | 315DC | 1100 |
| LB-1200 | 710-1200 | SJ150/34 | 400DC | 1350 |

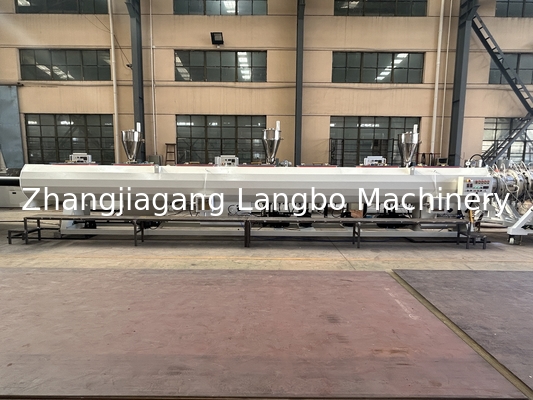

PE Pipe Extrusion Line Process Flow
Material Preparation
Resin Handling: PE (Polyethylene) resin pellets are dried (if necessary) and conveyed to the extruder hopper.
Extrusion
Melting & Plasticizing: Resin is fed into the extruder barrel, where a rotating screw melts and homogenizes the material
Pipe Sizing & Calibration

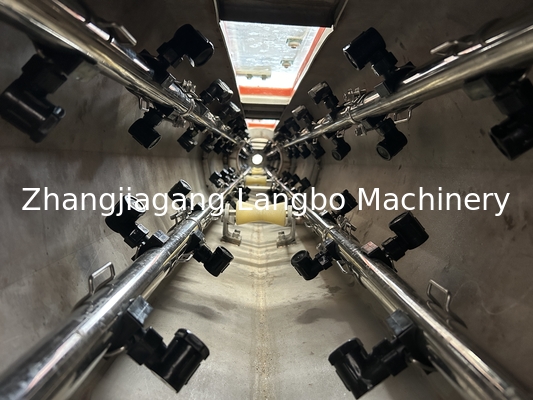

Vacuum Sizing Tank: The hot pipe enters a vacuum tank to solidify its outer diameter (OD) and ensure dimensional accuracy.
Pulling & Haul-Off

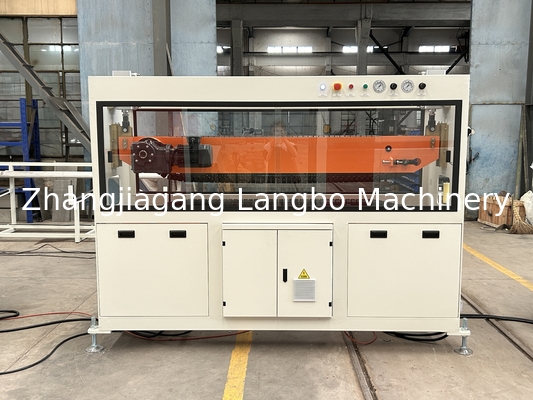

Haul-Off Unit: Motorized crawler track tracks pull the pipe at a controlled speed, synchronizing with extrusion output.
Cutting & Stacking

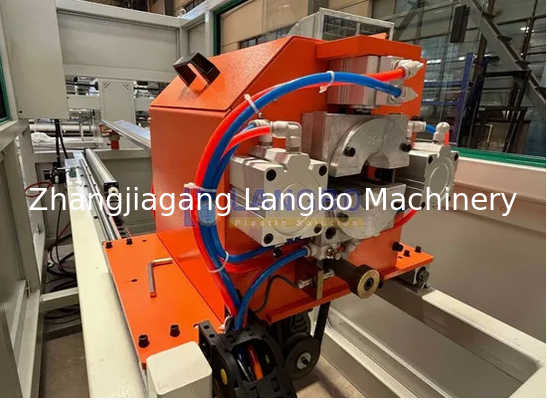

Cutting Saw: An automatic cutter slices the pipe to specified lengths (e.g., 6m, 12m).
Quality Control
Wall Thickness Monitoring: Ultrasonic/laser sensors verify uniformity.
Key Advantages of PE Pipe Extrusion Line
1.Automated systems minimize downtime and maximize productivity.
2.Real-time monitoring systems (e.g., laser micrometers) ensure compliance with ISO/EN standards.
3.Optimized heating/cooling systems reduce energy consumption.
PRE- AND AFTER-SALE SERVICES
• A great wealth of experience,
• A consistent focus on the highest quality
• A complete twin pipe vacuum sizing system;
• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;
• Optional length set and accurate adaption stacker.
• A highly motivated team
• Sophisticated process technology
• Customized solutions
