PE Double Wall Pipe Making Machine Plastic Bellows Machinery

APPLICATION:

Customized PE Corrugated Hose Making Machines Flexible Spiral Single Wall Corrugated Pipe Extrusion Machines Manufacturer

New HDPE Double Wall DWC Corrugated Pipe Making Machine from Manufacturer with Single-Screw and Gearbox Design

PE PIPE PRODUCTION SPECIFICATIONS:

Features:

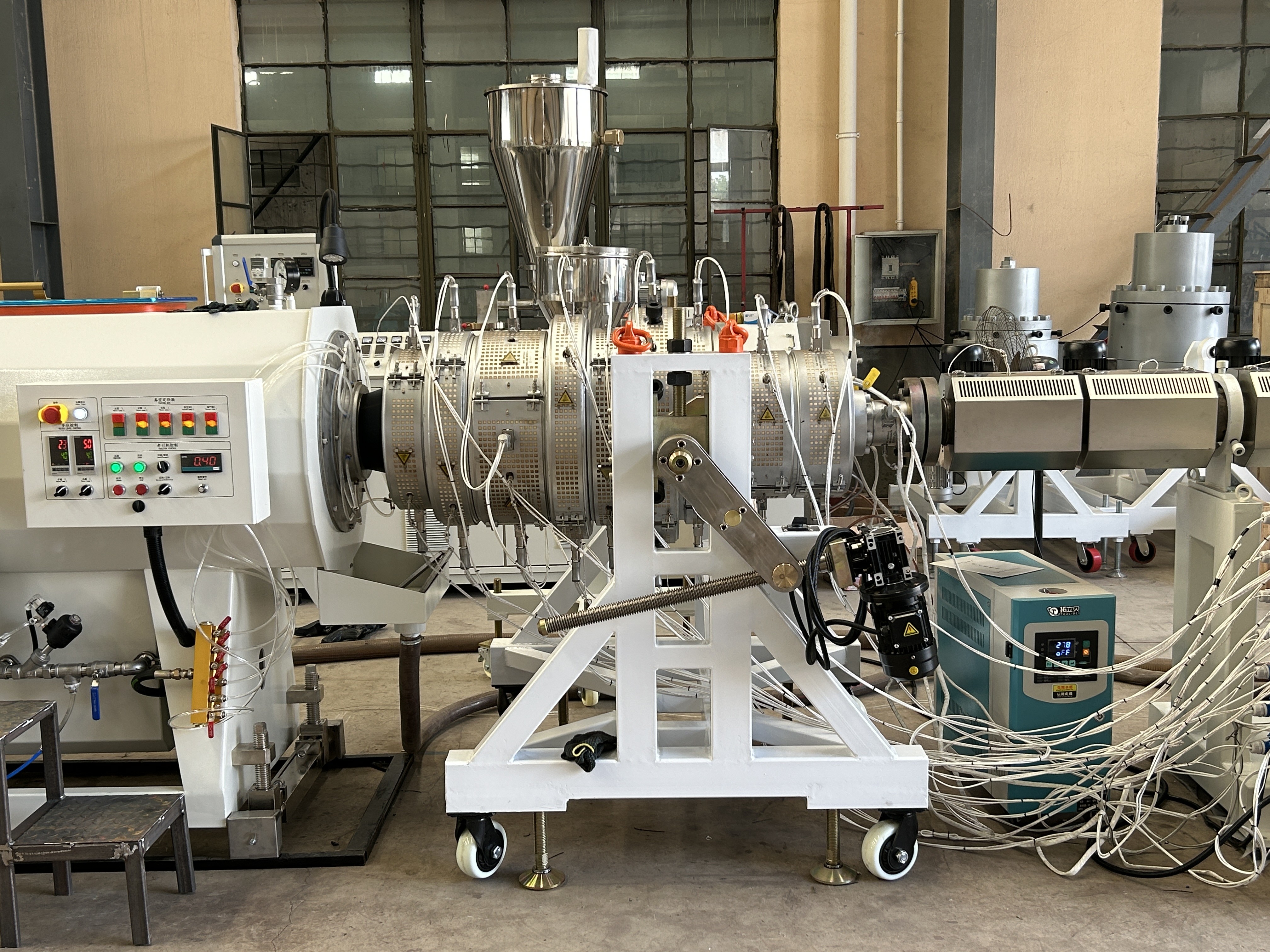

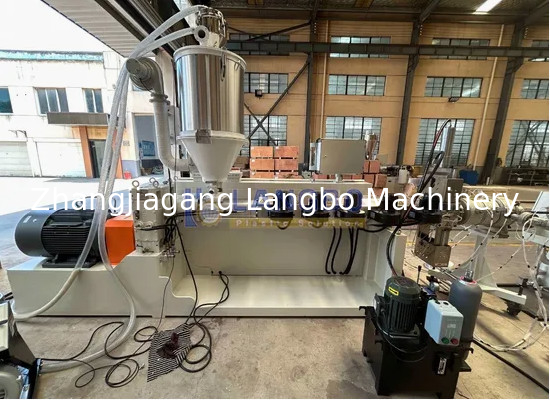

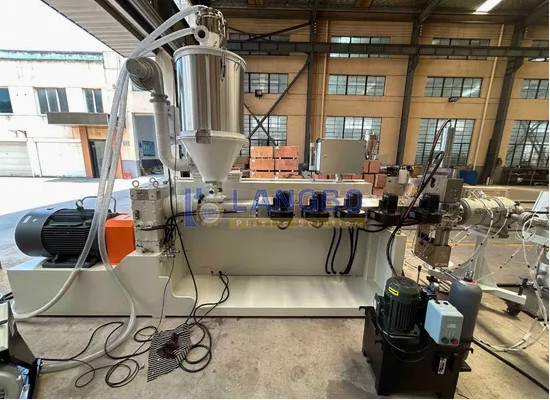

1.Extruder: high efficient screw, hard gear surface gearbox, uniformed raw material heating, good plasticization, high extrusion speed.

2.Corrugation forming machine: closed structure, module link in the overall closure base does round-trip running in the running tunnels.

3.Forming mould: it is made of hard steel, dealed with a rigorous use of CNC finishing materials produced to ensure the hardness and precision of the molding modules. These modules are easy and convenient to change

4.Coiler :Single position or double position with torque motor.

5.Electrical parts: ABB inverter, Siemens contactor, Omron thermo controllers etc.

WHAT’S INCLUDED IN A PE PIPE PRODUCTION LINE?

high-speed single-wall corrugated pipe production line has good stability, fast forming speed, long service life, convenient operation and convenient module replacement.

plastic single-wall corrugated pipe production line developed by our company adopts gears to run moulds and templates so as to realize water circulating cooling air of the products,which ensures high-speed moulding,even corrugation,smooth inner and outer pipe wall.these corrugated pipes are especially used as wires of up-market cars,Production speed 20-30m/min.

Raw materials→ loader→ extruder→ extrusion mould→ vacuum sizing → on-line hot stamping machine → haulling off→ cutter→ stackor

Mixing unit (Vertical , or Horizontal);

Ribbon mixer;

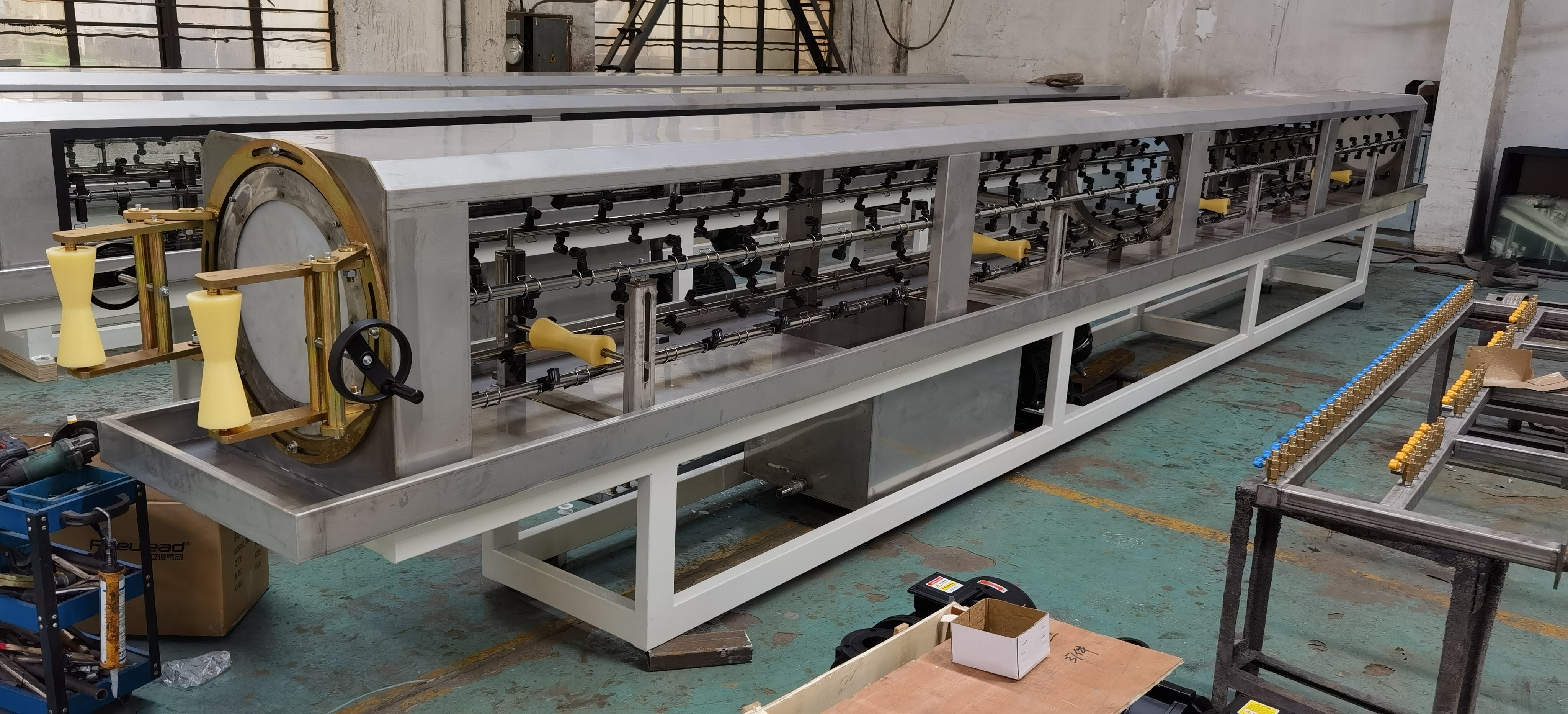

Vacuum & Cooling Tank

The vacuum and cooling tank cool and dry extruded pipe to help maintain ovality and pipe uniformity.

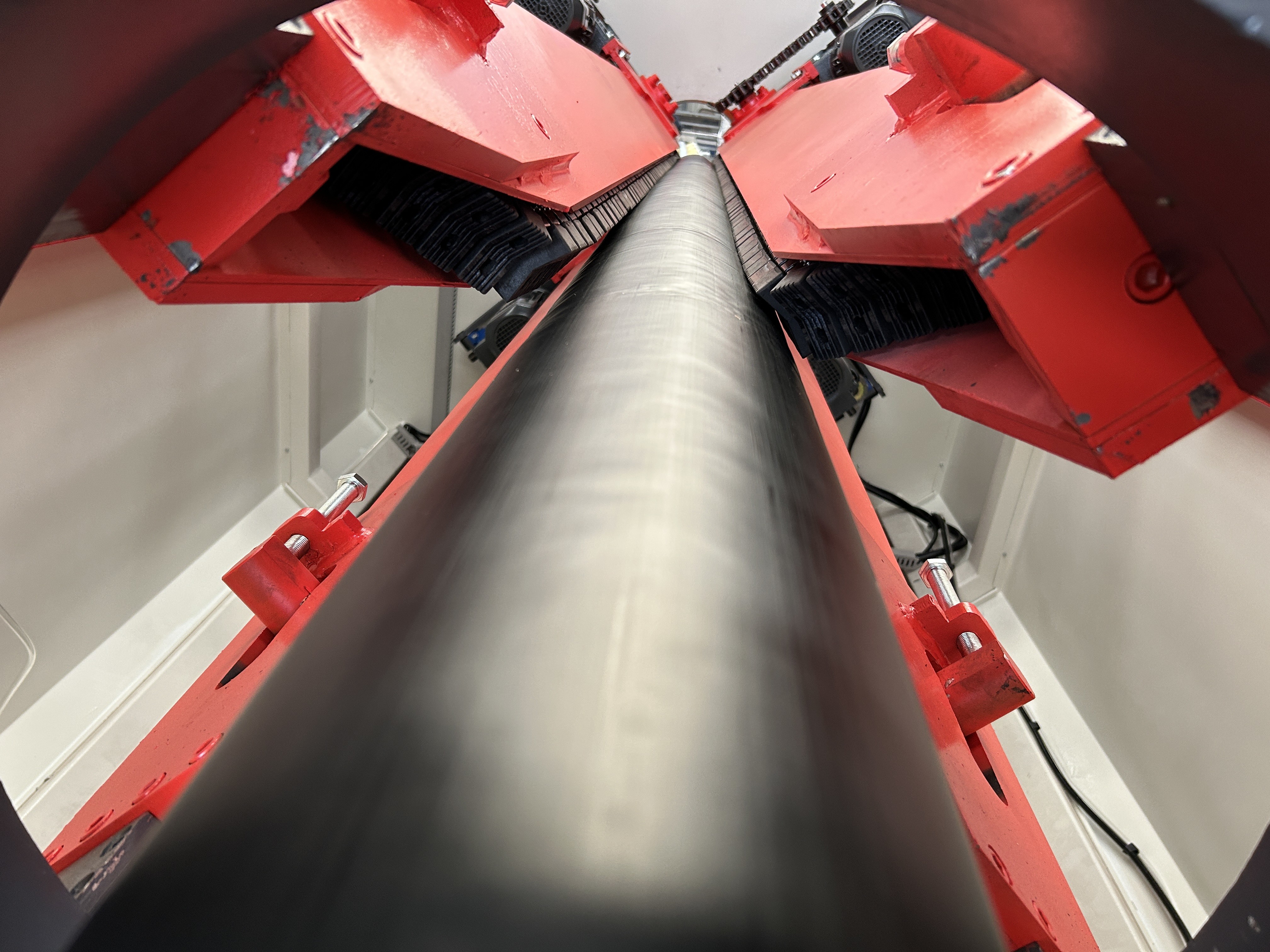

Haul Off (Puller) Machine

A pipe haul off machine pulls fresh pipe from the extruder through the vacuum and cooling tank.

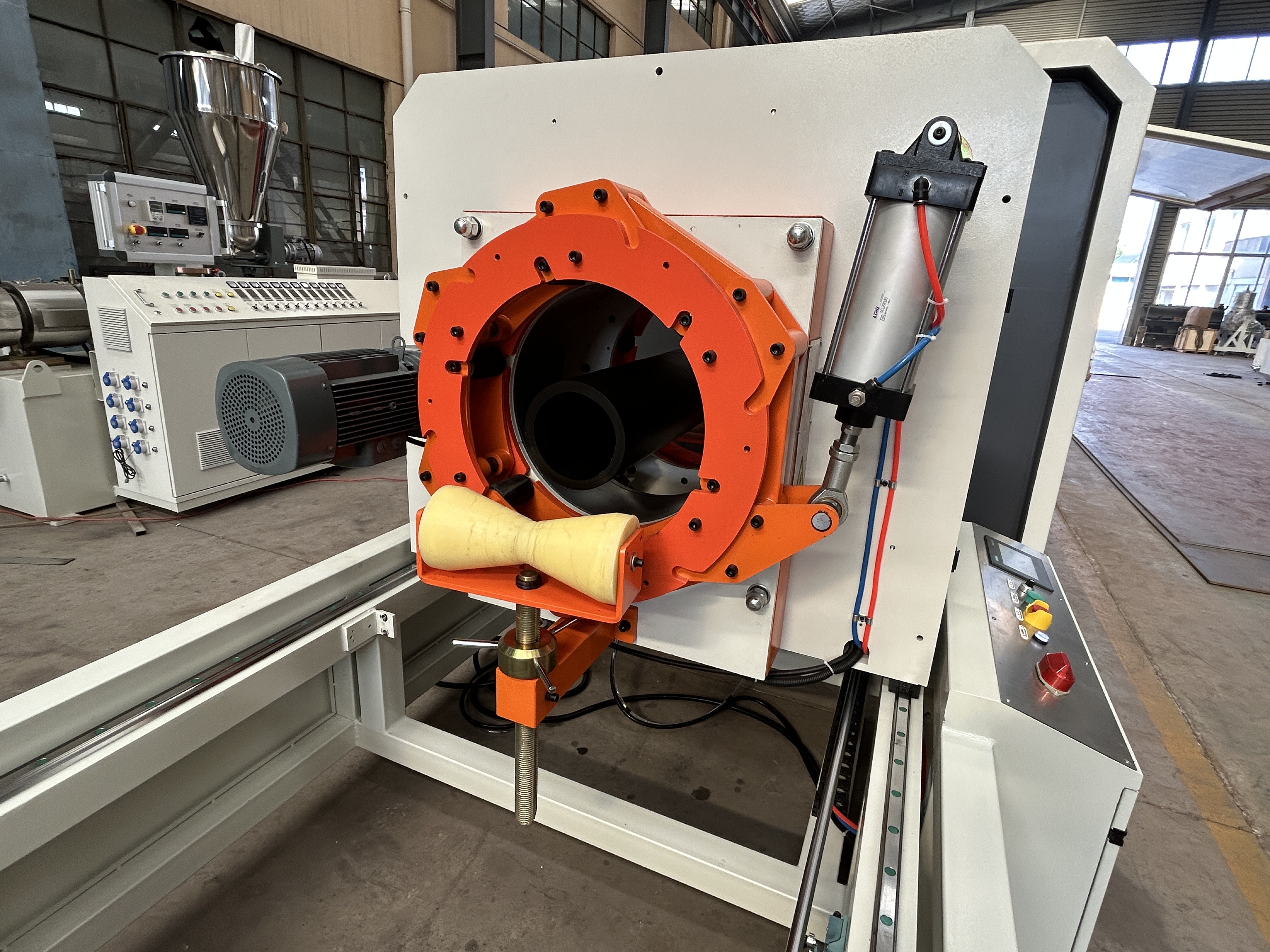

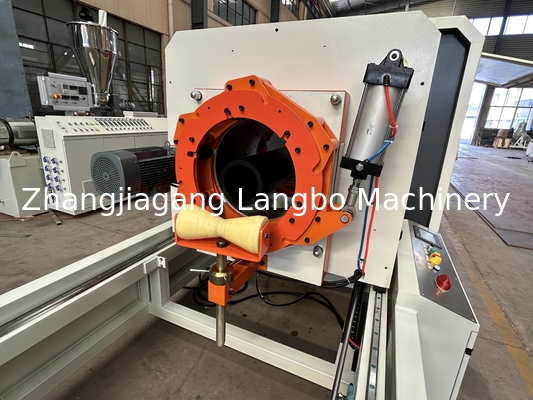

Cutter Machine

The pipe cutter machine cuts PE pipe to the desired length programed into the HMI.

Accumulator Machine

An pipe accumulator machine serves the purpose of maintaining a buffer between the change over of coils.

Coiler Machine

The pipe coiler machine allows you to coil pipe for sale and distribution (See also automatic coiler machine).

PRE- AND AFTER-SALE SERVICES

• A great wealth of experience,

• A consistent focus on the highest quality

• A complete twin pipe vacuum sizing system;

• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;

• Optional length set and accurate adaption stacker.

• A highly motivated team

• Sophisticated process technology

• Customized solutions

we will offer customers spare parts at cost prices all life long of the machines.
