315mm Water Pipe Extrusion Making Machine Plastic PE Pipe Production Line

1 SET
MOQ
negotiation
Price
315mm Water Pipe Extrusion Making Machine Plastic PE Pipe Production Line
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Packaging Details: WOODEN BOX
Material: PE
Screw Diameter: 65mm
LD Ratio: 33:1
Warranty: 1 Year
Motor: Siemens
Screw Design: Single-screw
Certification: CE,ISO
Voltage: Customer Demand
Automatic Grade: Full-automatic
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training
Color: Customised
Control: PLC+Touch Screen
Processing Type: Extrusion Machine
Highlight:

315mm Pipe Extrusion Making Machine

,

Plastic PE Pipe Production Line

,

315mm PE Pipe Extrusion Line
Basic Infomation
Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE / ISO
Model Number: LB
Payment & Shipping Terms
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C,T/T,
Supply Ability: 15 SETS PER MONTH
Product Description
This advanced polyethylene pipe production line processes PE pellets into high-quality water pipes with precision engineering and automated systems for optimal performance.

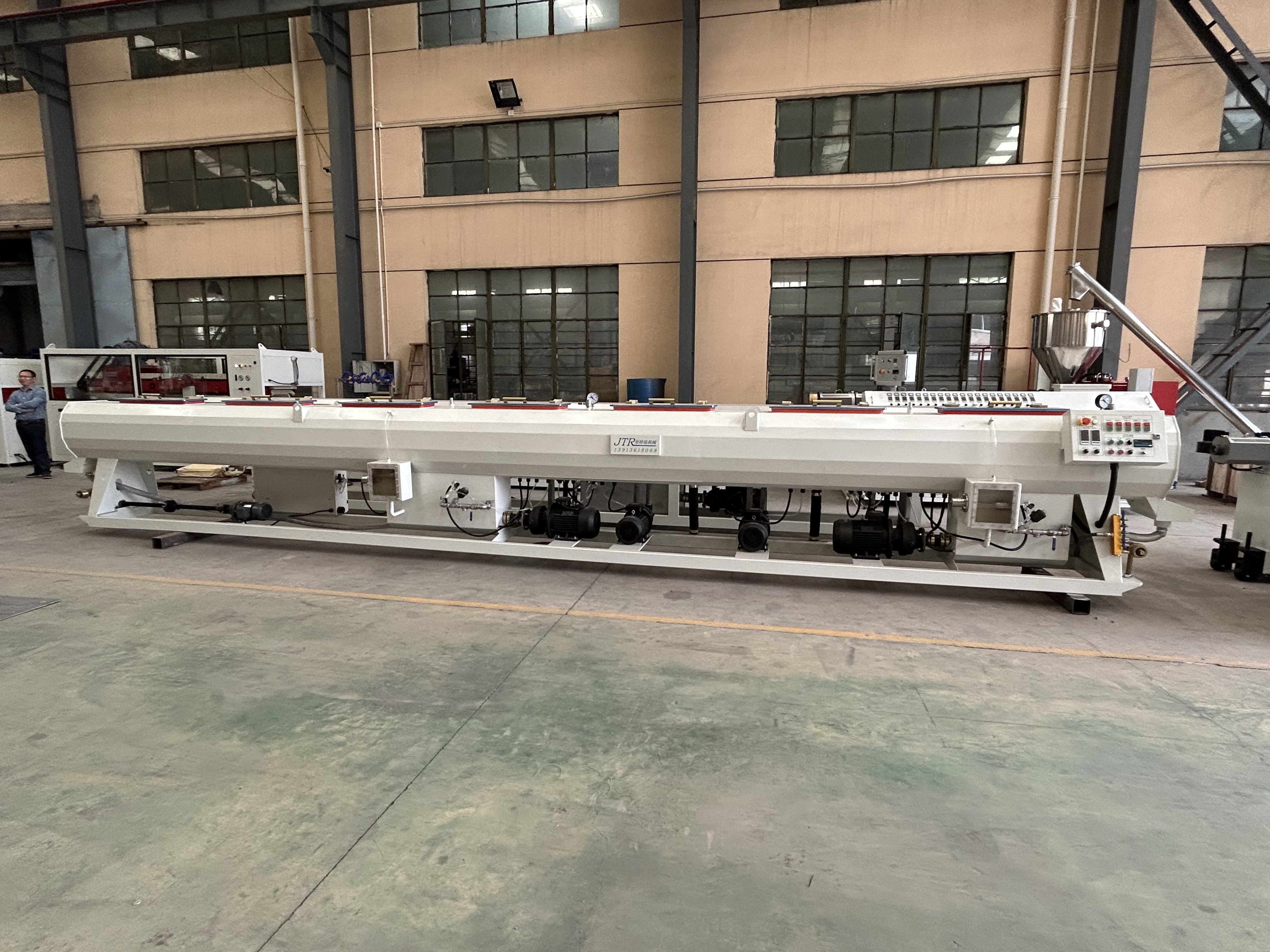

315mm Water Pipe Extrusion Making Machine Plastic PE Pipe Production Line 0
Application & Process

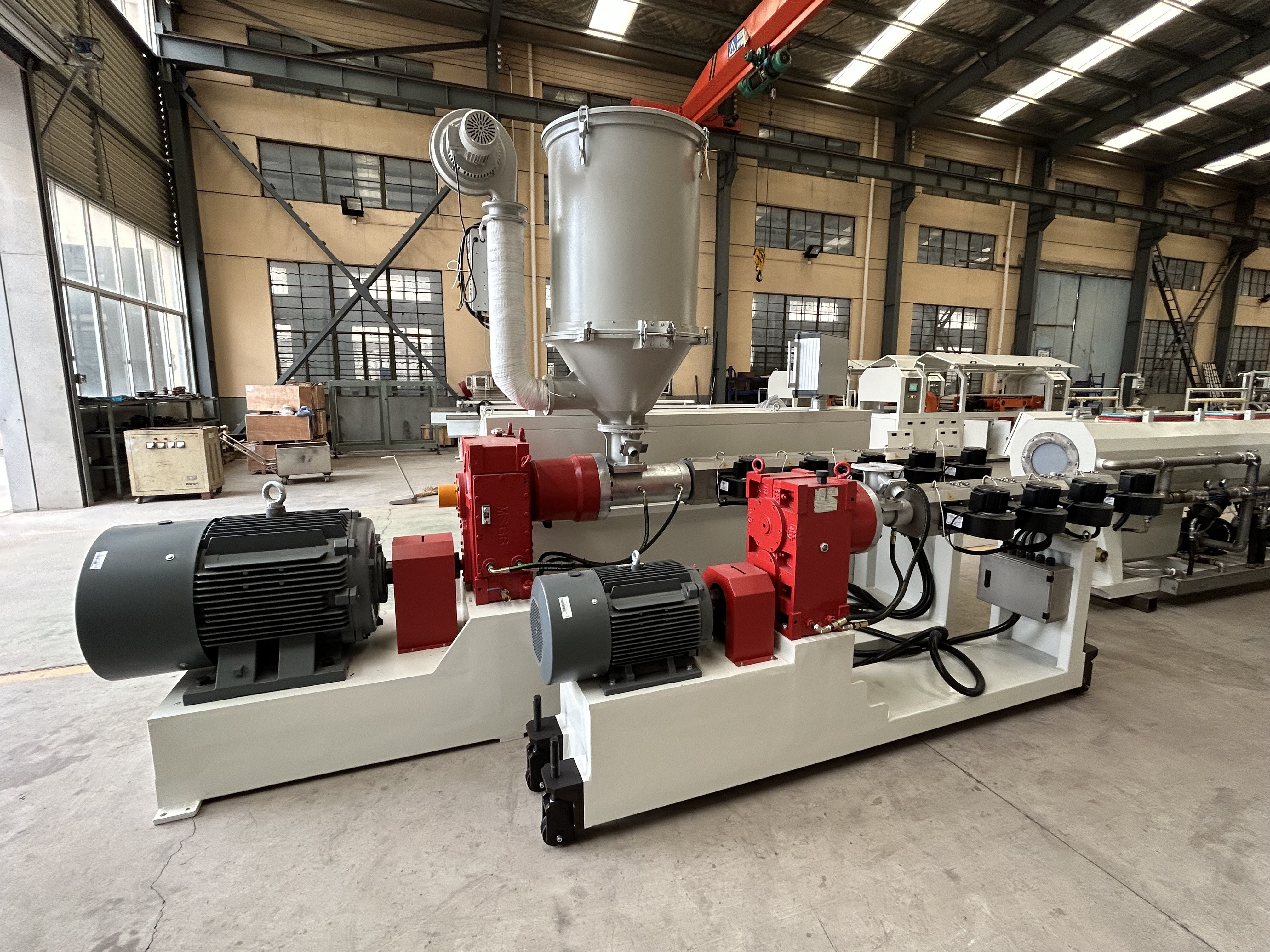

The production line features vacuum suction loading and hopper drying to ensure optimal material performance and humidity control. The system utilizes a 65/33 55kw extruder delivering 250-300kg/h output capacity with 40Cr molds and copper calibrators.
PE Pipe Production Specifications
Model Pipe Diameter Extruder Extruder Power Capacity
LB-63 20-63 SJ65/33 55AC 150
LB-110 20-110 SJ65/33 55AC 150
LB-160 75-160 SJ75/33 90AC 280
LB-250 90-250 SJ75/33 110DC 350
LB-315 110-315 SJ90/33 160DC 450
LB-450 160-450 SJ90/33 160DC 450
LB-630 315-630 SJ120/33 280DC 850
LB-800 500-800 SJ150/33 315DC 1100
LB-1200 710-1200 SJ150/34 400DC 1350
PE Pipe Extrusion Process Flow
PE granules → Material feeder → Single screw extruder → Mould and calibrator → Vacuum forming machine → Two-staged spraying cooling machine → Haul-off machine → Knife cutter → Stacker
Production Stages
  • Material Preparation: PE resin pellets are dried and conveyed to the extruder hopper

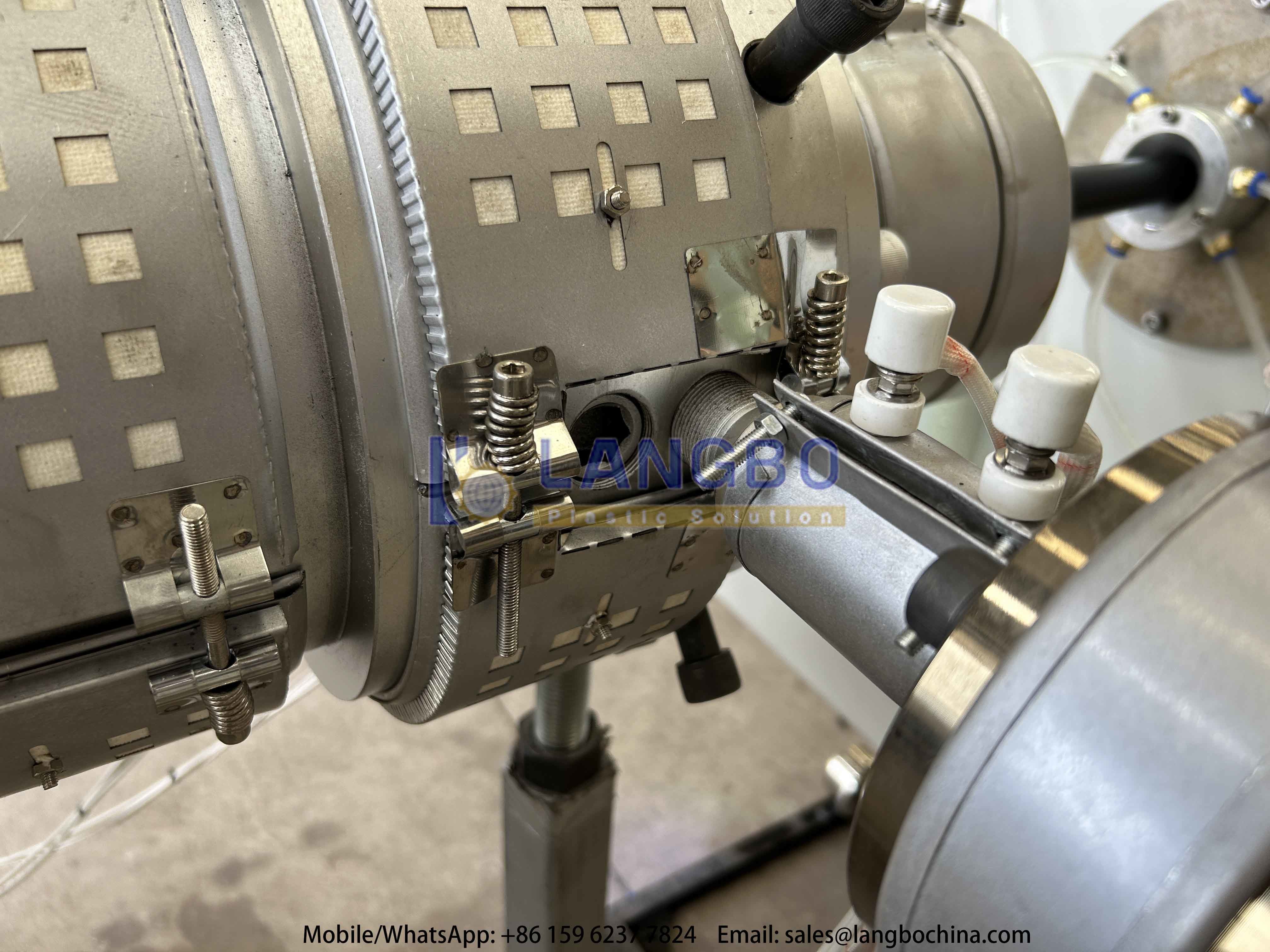

  • Extrusion: Resin is fed into the extruder barrel where a rotating screw melts and homogenizes the material

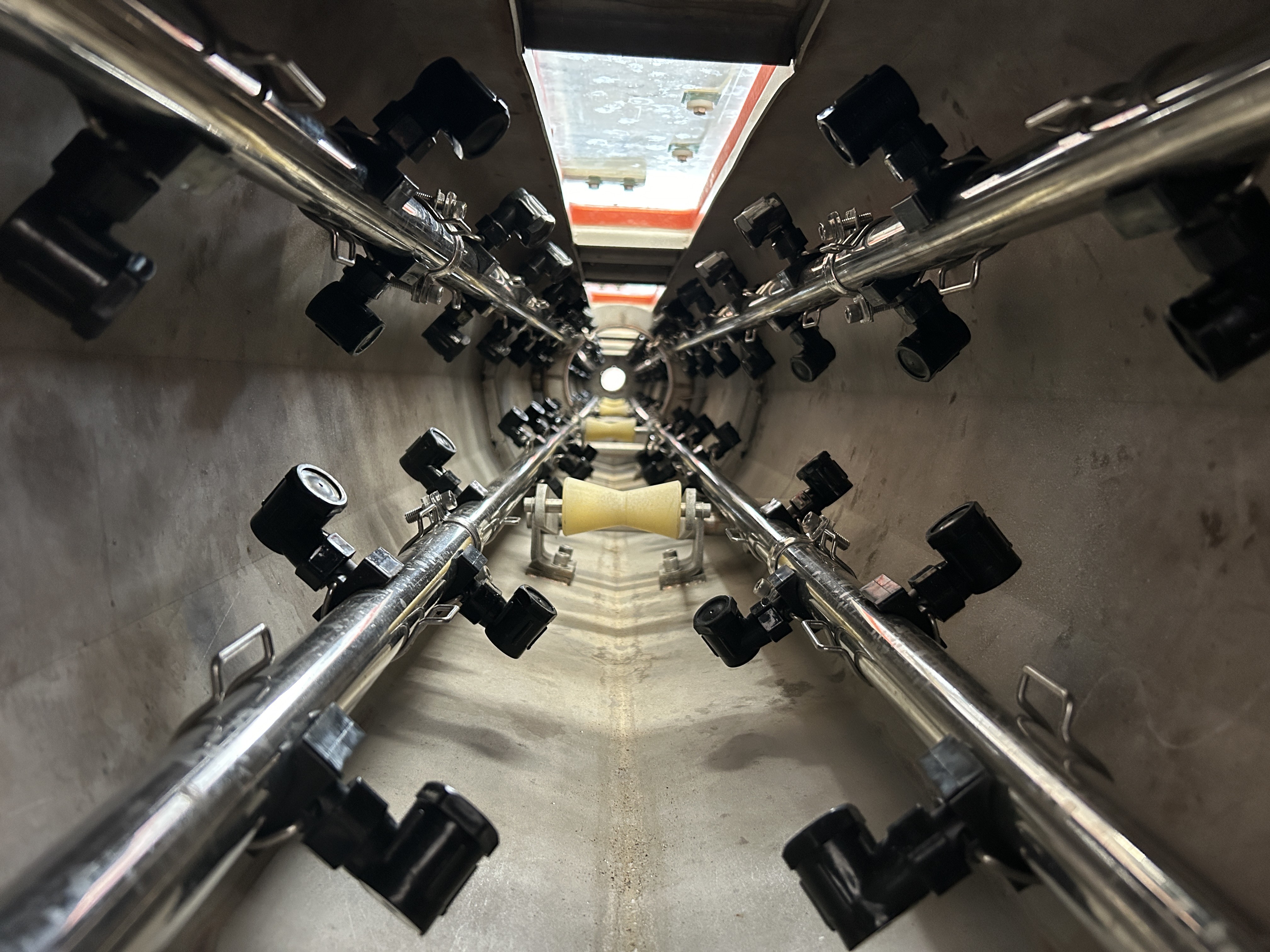

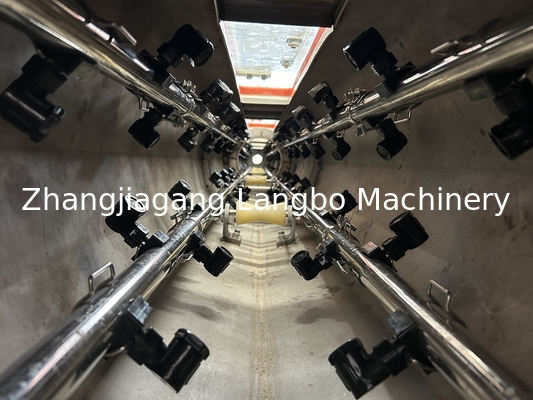

  • Pipe Sizing & Calibration: Hot pipe enters vacuum tank to solidify outer diameter and ensure dimensional accuracy

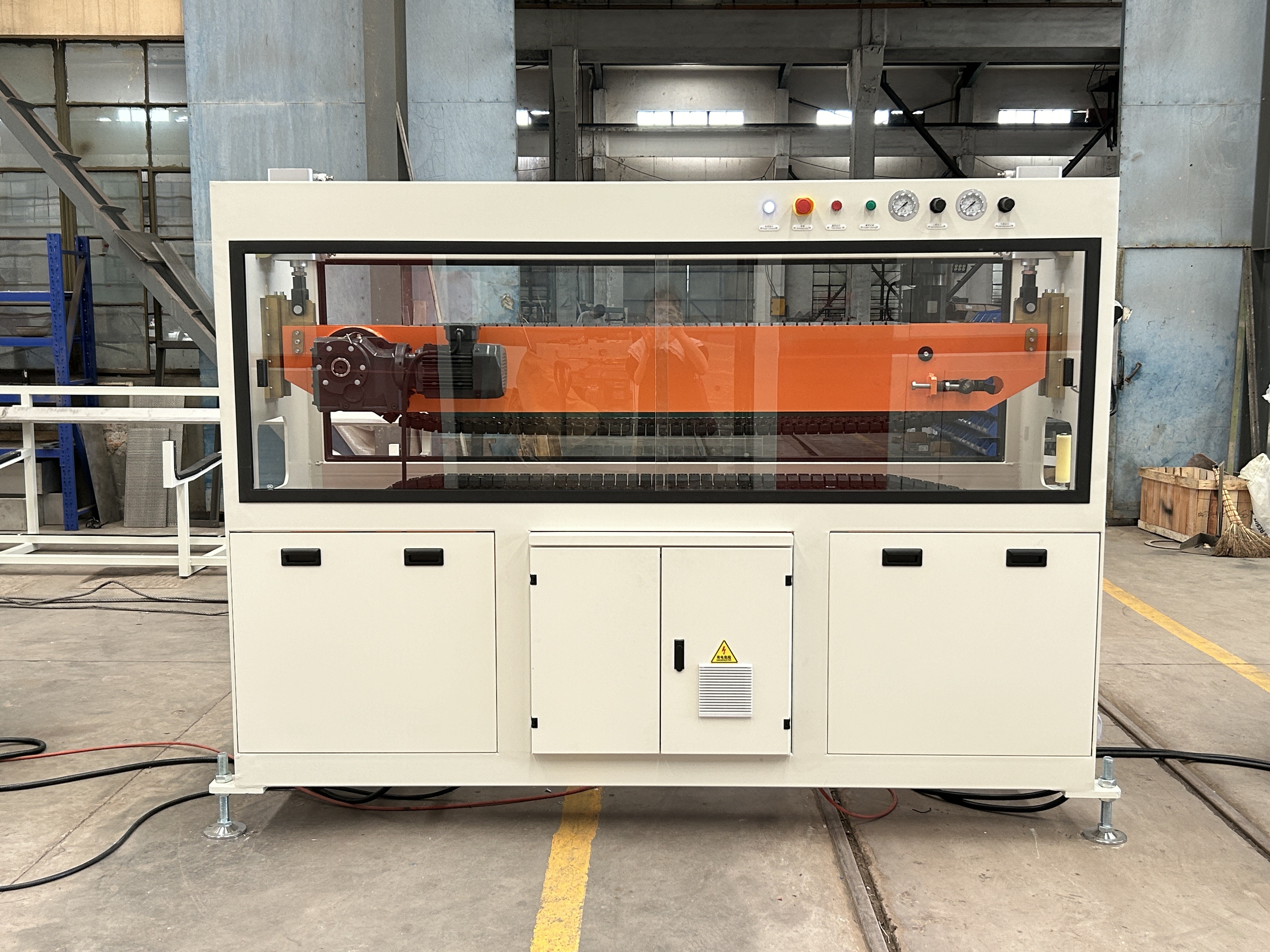

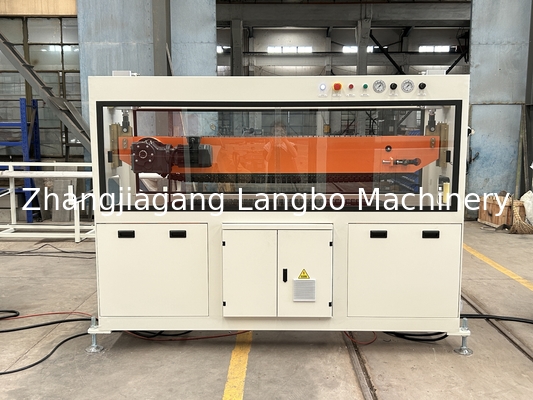

  • Pulling & Haul-Off: Motorized crawler tracks pull pipe at controlled speed synchronized with extrusion output

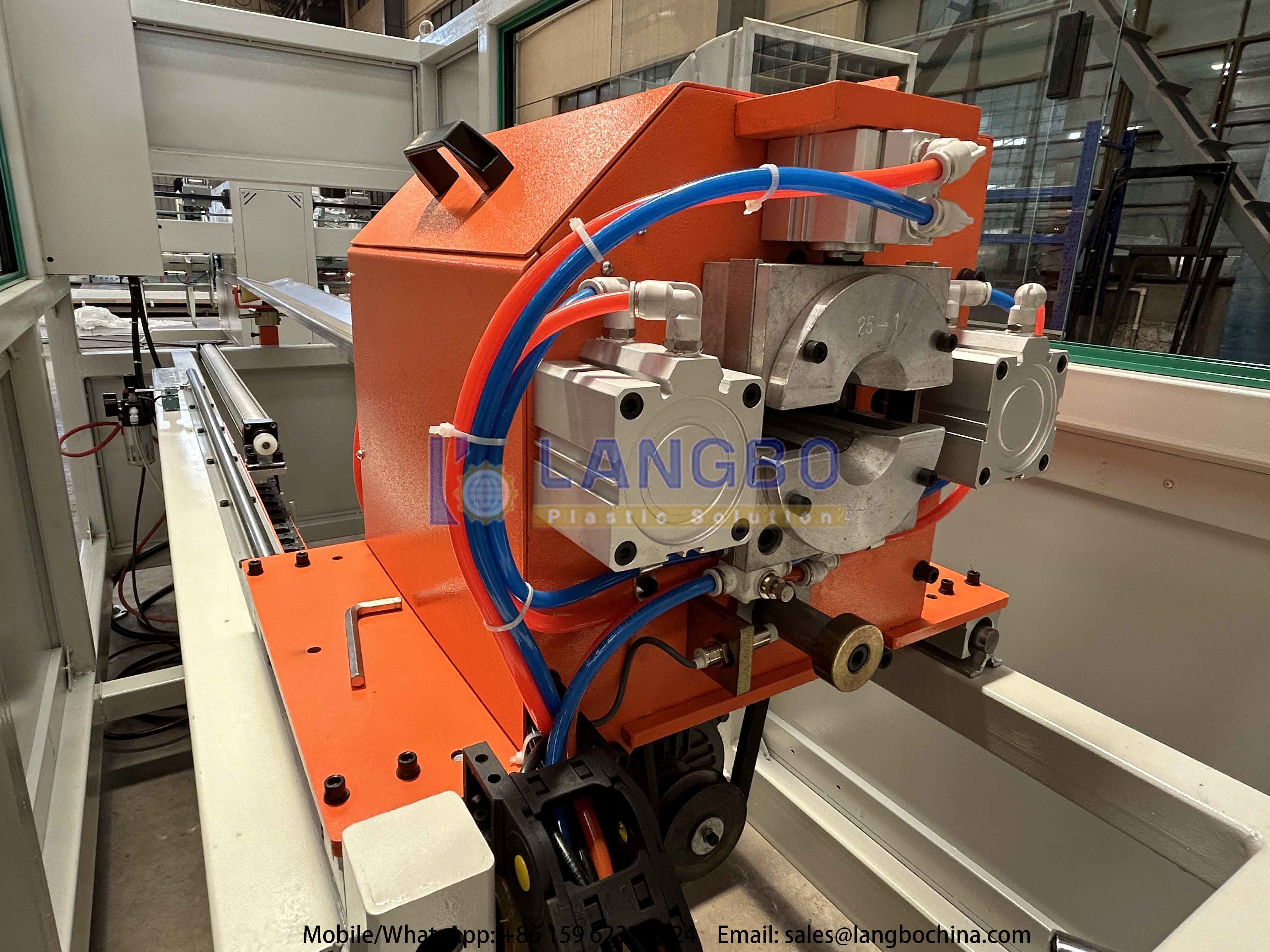

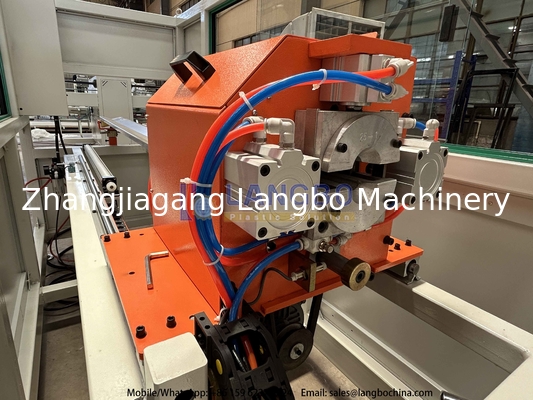

  • Cutting & Stacking: Automatic cutter slices pipe to specified lengths (6m, 12m)
  • Quality Control: Ultrasonic/laser sensors verify wall thickness uniformity
Key Advantages
  • Automated systems minimize downtime and maximize productivity
  • Real-time monitoring systems ensure compliance with ISO/EN standards
  • Optimized heating/cooling systems reduce energy consumption
315mm Water Pipe Extrusion Making Machine Plastic PE Pipe Production Line 1 315mm Water Pipe Extrusion Making Machine Plastic PE Pipe Production Line 2 315mm Water Pipe Extrusion Making Machine Plastic PE Pipe Production Line 3 315mm Water Pipe Extrusion Making Machine Plastic PE Pipe Production Line 4 315mm Water Pipe Extrusion Making Machine Plastic PE Pipe Production Line 5 315mm Water Pipe Extrusion Making Machine Plastic PE Pipe Production Line 6
Pre- and After-Sale Services
  • Extensive industry experience and consistent focus on highest quality
  • Complete twin pipe vacuum sizing system
  • Independently controlled unitary structure twin pipe hauling mechanism
  • Synchronous cutting device with optional length settings
  • Accurate adaptation stacker
  • Highly motivated team with sophisticated process technology
  • Customized solutions for specific requirements
Our Factory
315mm Water Pipe Extrusion Making Machine Plastic PE Pipe Production Line 7
Our Exhibition
315mm Water Pipe Extrusion Making Machine Plastic PE Pipe Production Line 8
Our Goods Shipping
315mm Water Pipe Extrusion Making Machine Plastic PE Pipe Production Line 9
