Agricultural Irrigation PE Tape Inlaid Round Drip Pipe Making Machine Production Line
Product Details
| Packaging Details: | WOODEN BOX | Material: | PE |
|---|---|---|---|
| Screw Diameter: | 65mm | LD Ratio: | 33:1 |
| Warranty: | 1 Year | Screw Design: | Single-screw |
| Certification: | CE,ISO | Voltage: | Customer Demand |
| Automatic Grade: | Full-automatic | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training |
| Color: | Customised | Control: | PLC+Touch Screen |
| Processing Type: | Extrusion Machine | ||
| Highlight |
Agricultural Irrigation PE Tape Machine,Round Drip Pipe Making Machine,Inlaid Round Drip Pipe Machine |
||
Product Description
Agricultural Irrigation PE Tape Inlaid Round Drip Pipe Making Machine Production Line
APPLICATION:
This Plastic PE Pipe Extruding Making Machine is mainly used to produce agricultural water supply pipes, gas supply pipes, architectural water supply drainage pipes, cable laying pipes etc. This pipe making machine adopts advanced design concept to ensure the efficient extrusion of PE material combined with the unique concept of plasticization screw design to ensure uniformity of plastic extrusion, high capacity production.
Drip irrigation tape is a flat, thin-walled hose containing pre-spaced dripper emitters, that expands when filled with water. The flat drip emitters are welded into to the tape at certain space as per growing plans needs.
PE PIPE PRODUCTION SPECIFICATIONS:
| Model | Pipe diameter | Extruder | Extruder power | Capacity |
| LB-63 | 20-63 | SJ65/33 | 55AC | 150 |
| LB-110 | 20-110 | SJ65/33 | 55AC | 150 |
| LB-160 | 75-160 | SJ75/33 | 90AC | 280 |
| LB-250 | 90-250 | SJ75/33 | 110DC | 350 |
| LB-315 | 110-315 | SJ90/33 | 160DC | 450 |
| LB-450 | 160-450 | SJ90/33 | 160DC | 450 |
| LB-630 | 315-630 | SJ120/33 | 280DC | 850 |
| LB-800 | 500-800 | SJ150/33 | 315DC | 1100 |
| LB-1200 | 710-1200 | SJ150/34 | 400DC | 1350 |
WHAT’S INCLUDED IN A PE PIPE PRODUCTION LINE?
Every DRTS turnkey PE pipe production line comes with all the necessary machinery you need to start manufacturing high quality PE pipe. From the single screw extruders comprised of quality components to a high speed servo powered puller machines we offer you everything you need to become a successful pipe manufacturer.
Dripper sorting & inserting machine
Dripper identifying speed is more than 1100pcs/min, to ensure dripper supply
Dripper inserting is driven by servo motor, and sync controlled with PLC system
dripper space is direct set on PLC, with min. space 100mm
Auto feeder with dripper lack alarm

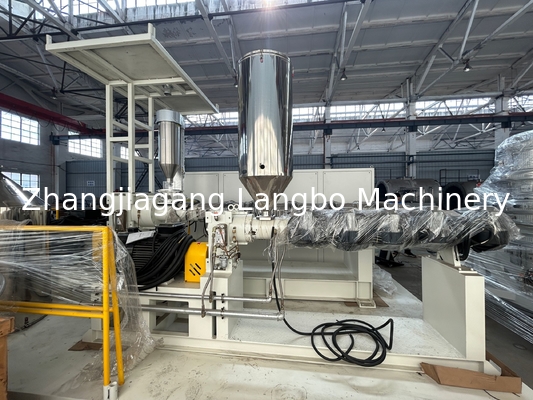

Extruder & Cross Die Head
Extruder driven by AC motor; with ABB converter,
PLC control system, to sync control with dripper inserting speed and haul-off speed

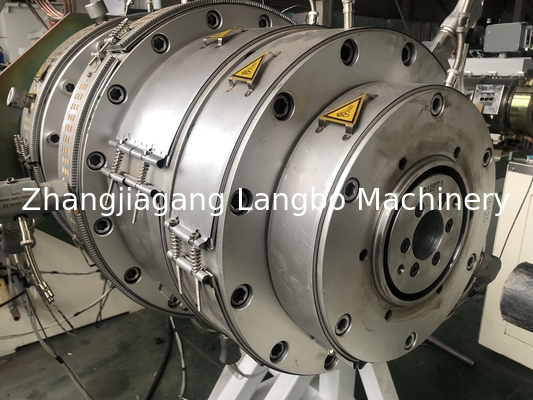

Special designed cross type die head; high quality mould steel 40Cr, which is processed by imported CNC machinery.

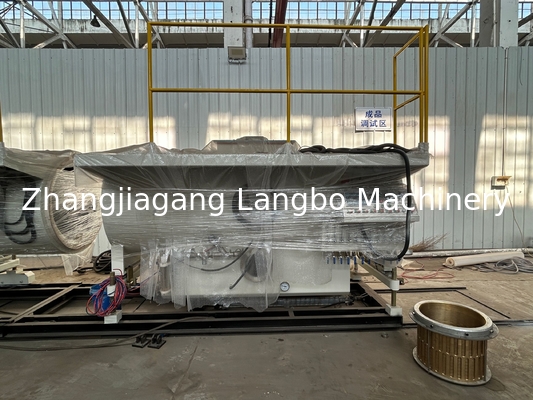

Vacuum tank & Cooling tank
made by high quality SS304; high quality vacuum pump & water pump
special design calibrator for drip tape making
air bubble detecting and alarm system; tape break down stop function; tape anti-rotation system etc

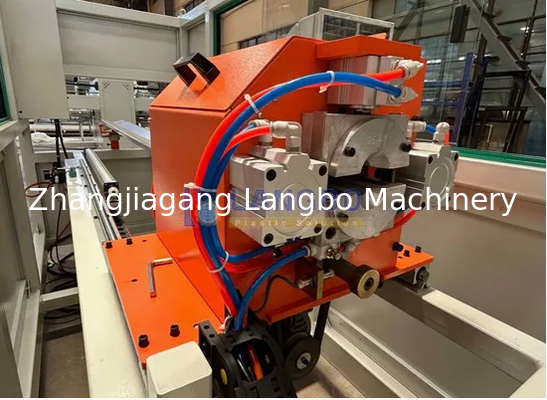

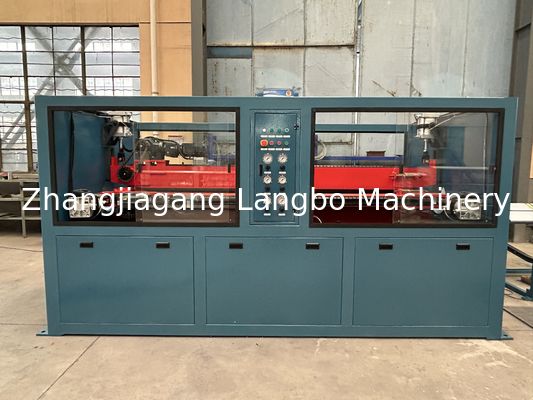

Perforating Machine & Tractor
driven by servo motor and servo controller, with high precision punching degree
Laser sentor to auto tracking dripper positon, and with image system to check punching hole condition
Intelligent control system with remote control system
Drip Tape Winding Machine
servo type traversing device, driven by servo motor
with tension control device to auto adjust winding speed
Auto tape cutting, and auto new coil changing , with protection
separate PLC control system
Advantages of PE Pipe Extrusion Line
1.CE-certified machinery meets international safety and performance standards.
2.Optional IoT integration for remote monitoring and data analysis.
3.User-friendly interface simplifies operation and maintenance.
4.Low noise and minimal material waste during production.
PRE- AND AFTER-SALE SERVICES
• A great wealth of experience,
• A consistent focus on the highest quality
• A complete twin pipe vacuum sizing system;
• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;
• Optional length set and accurate adaption stacker.
• A highly motivated team
• Sophisticated process technology
• Customized solutions
Our factory
Our exhibition
Our goods shipping
