PE Heat Insulation Thermal Covered Plastic Pipe Extrusion Line Tube Making Machine
Product Details
| Packaging Details: | WOODEN BOX | Material: | PE |
|---|---|---|---|
| Screw Diameter: | 65mm | LD Ratio: | 33:1 |
| Warranty: | 1 Year | Screw Design: | Single-screw |
| Certification: | CE,ISO | Voltage: | Customer Demand |
| Automatic Grade: | Full-automatic | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training |
| Color: | Customised | Control: | PLC+Touch Screen |
| Processing Type: | Extrusion Machine | ||
| Highlight |
Tube Making Pipe Extrusion Line,Thermal Covered Pipe Extrusion Line,PE Heat Insulation Pipe Line |
||
Product Description
PE Heat Insulation Thermal Covered Plastic Pipe Extrusion Line Tube Making Machine
APPLICATION:

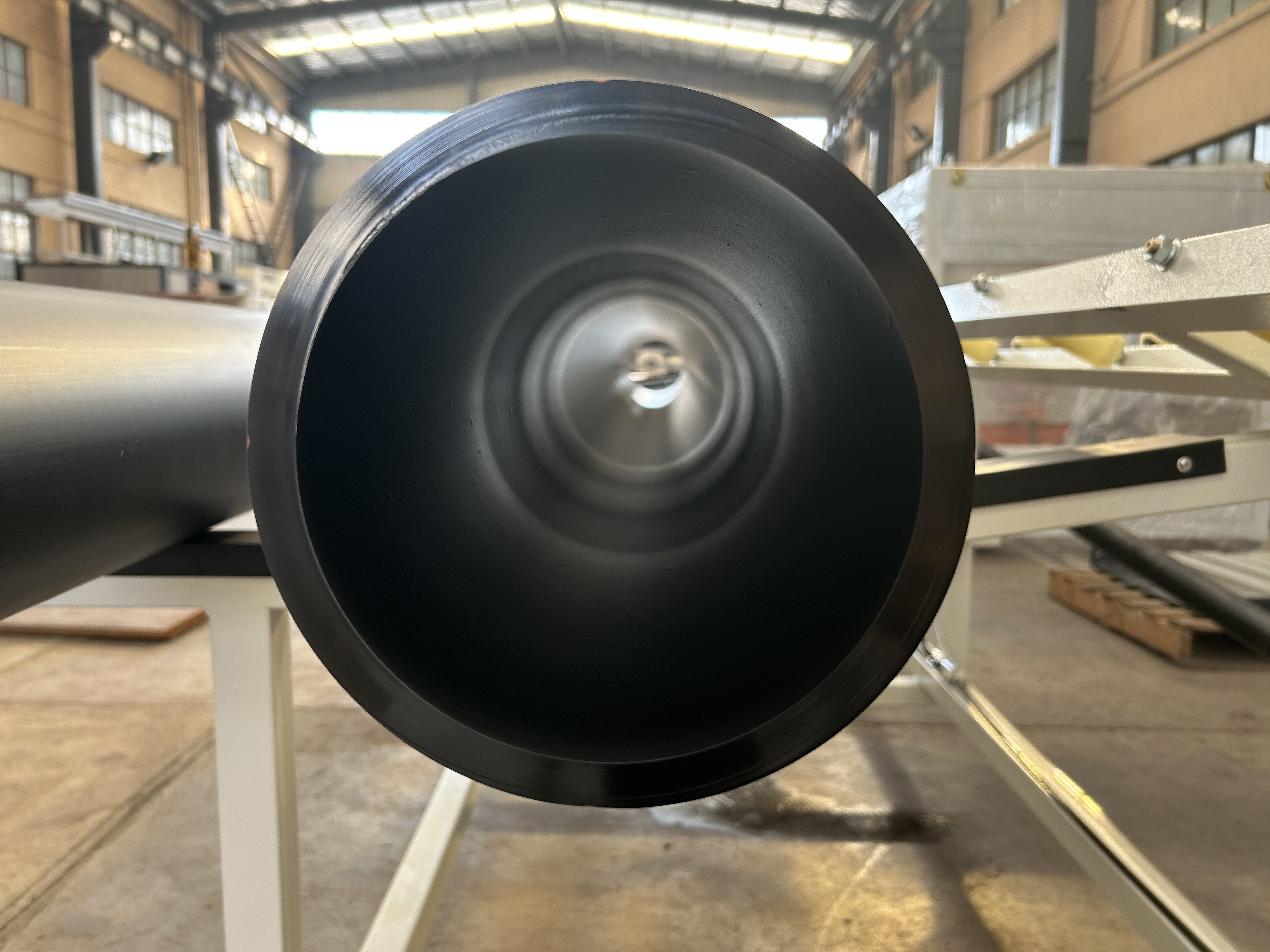

PE insulation pipe is also called PE outer protection pipe, jacket pipe, sleeve pipe. The direct buried polyurethane insulation pipe is made of HDPE insulation pipe as the outer protective layer, the middle filled polyurethane rigid foam is used as the insulation material layer, and the inner layer is steel pipe. Polyurethane direct buried insulation pipe has good mechanical properties and thermal insulation performance. Under normal circumstances, it can withstand high temperature of 120-180 °C, and is suitable for various cold and hot water high and low temperature pipeline insulation projects. The insulation pipe production line is designed with a special PE insulation pipe mold, the extrusion pressure is stable, and the thickness of the thin-walled pipe is uniform. The extrusion speed is fast, the output of the blown type is greatly improved, the surface is brighter, and the operation automation is high.
PE PIPE PRODUCTION SPECIFICATIONS:
| Model | Pipe diameter | Extruder | Extruder power | Capacity |
| LB-63 | 20-63 | SJ65/33 | 55AC | 150 |
| LB-110 | 20-110 | SJ65/33 | 55AC | 150 |
| LB-160 | 75-160 | SJ75/33 | 90AC | 280 |
| LB-250 | 90-250 | SJ75/33 | 110DC | 350 |
| LB-315 | 110-315 | SJ90/33 | 160DC | 450 |
| LB-450 | 160-450 | SJ90/33 | 160DC | 450 |
| LB-630 | 315-630 | SJ120/33 | 280DC | 850 |
| LB-800 | 500-800 | SJ150/33 | 315DC | 1100 |
| LB-1200 | 710-1200 | SJ150/34 | 400DC | 1350 |
WHAT’S INCLUDED IN A PE PIPE PRODUCTION LINE?
Every DRTS turnkey PE pipe production line comes with all the necessary machinery you need to start manufacturing high quality PE pipe. From the single screw extruders comprised of quality components to a high speed servo powered puller machines we offer you everything you need to become a successful pipe manufacturer.
Dripper sorting & inserting machine
Dripper identifying speed is more than 1100pcs/min, to ensure dripper supply
Dripper inserting is driven by servo motor, and sync controlled with PLC system
dripper space is direct set on PLC, with min. space 100mm
Auto feeder with dripper lack alarm

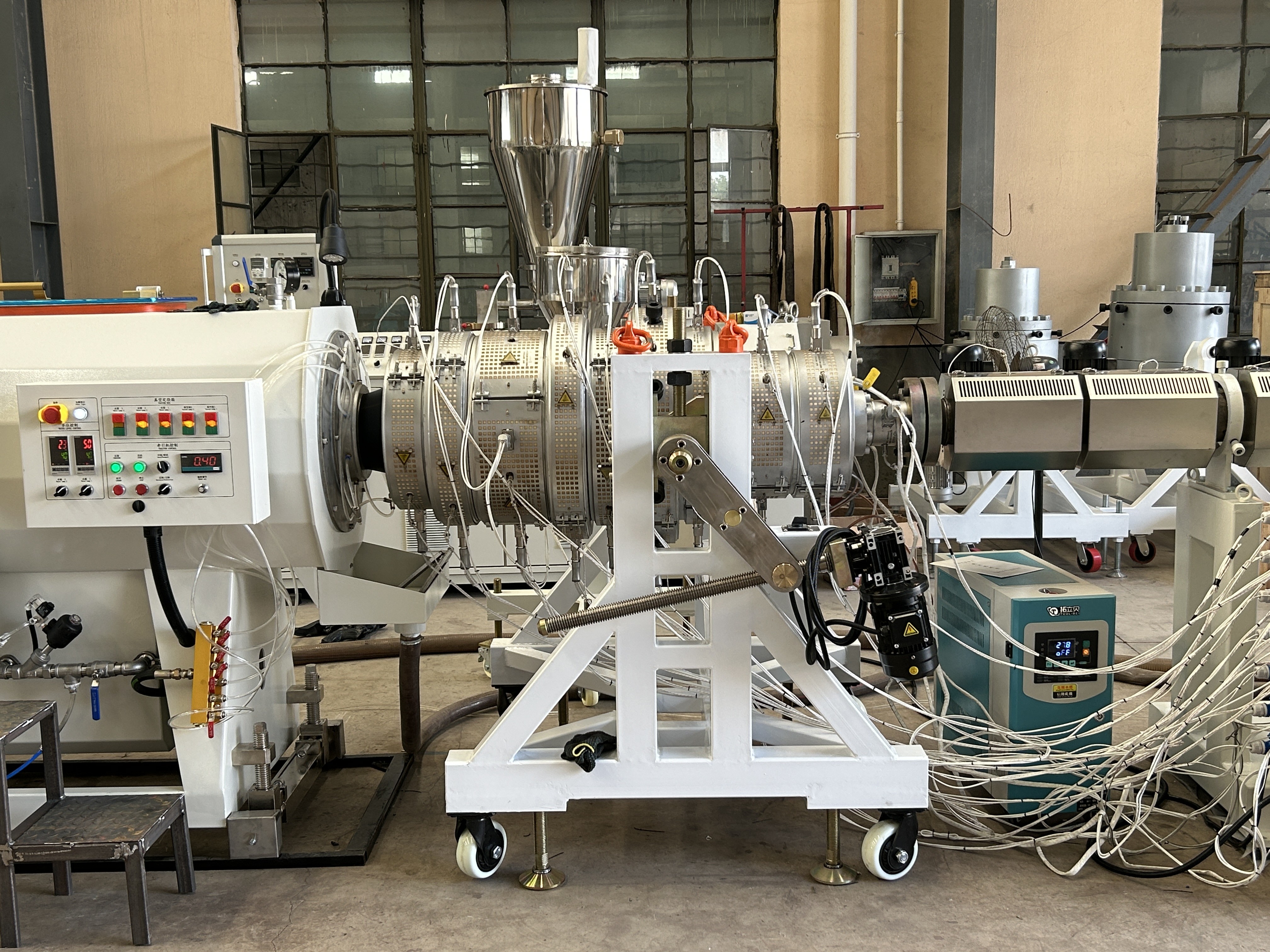

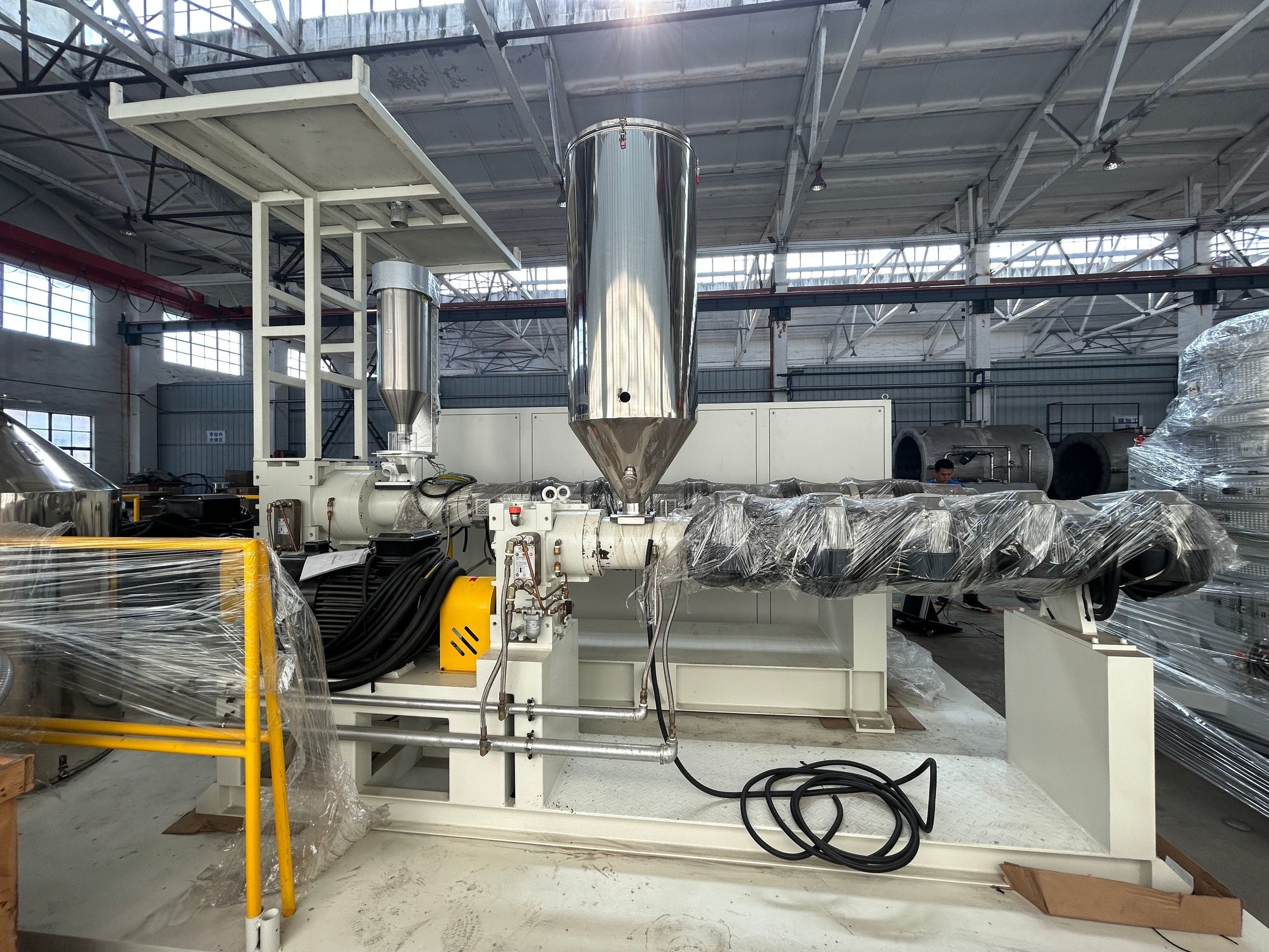

Extruder & Cross Die Head
Extruder driven by AC motor; with ABB converter,
PLC control system, to sync control with dripper inserting speed and haul-off speed
Special designed cross type die head; high quality mould steel 40Cr, which is processed by imported CNC machinery.

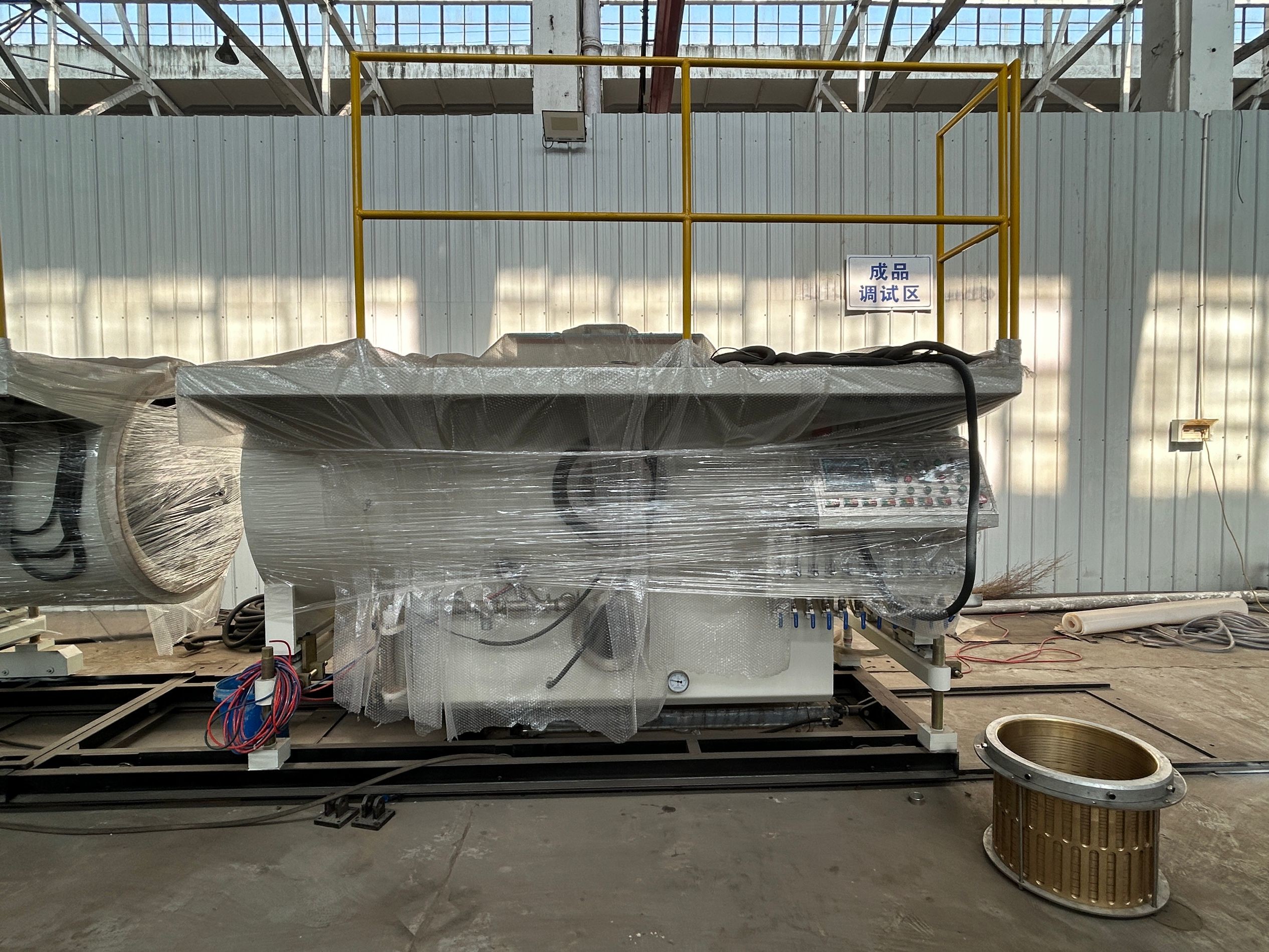

Vacuum tank & Cooling tank
made by high quality SS304; high quality vacuum pump & water pump
special design calibrator for drip tape making
air bubble detecting and alarm system; tape break down stop function; tape anti-rotation system etc

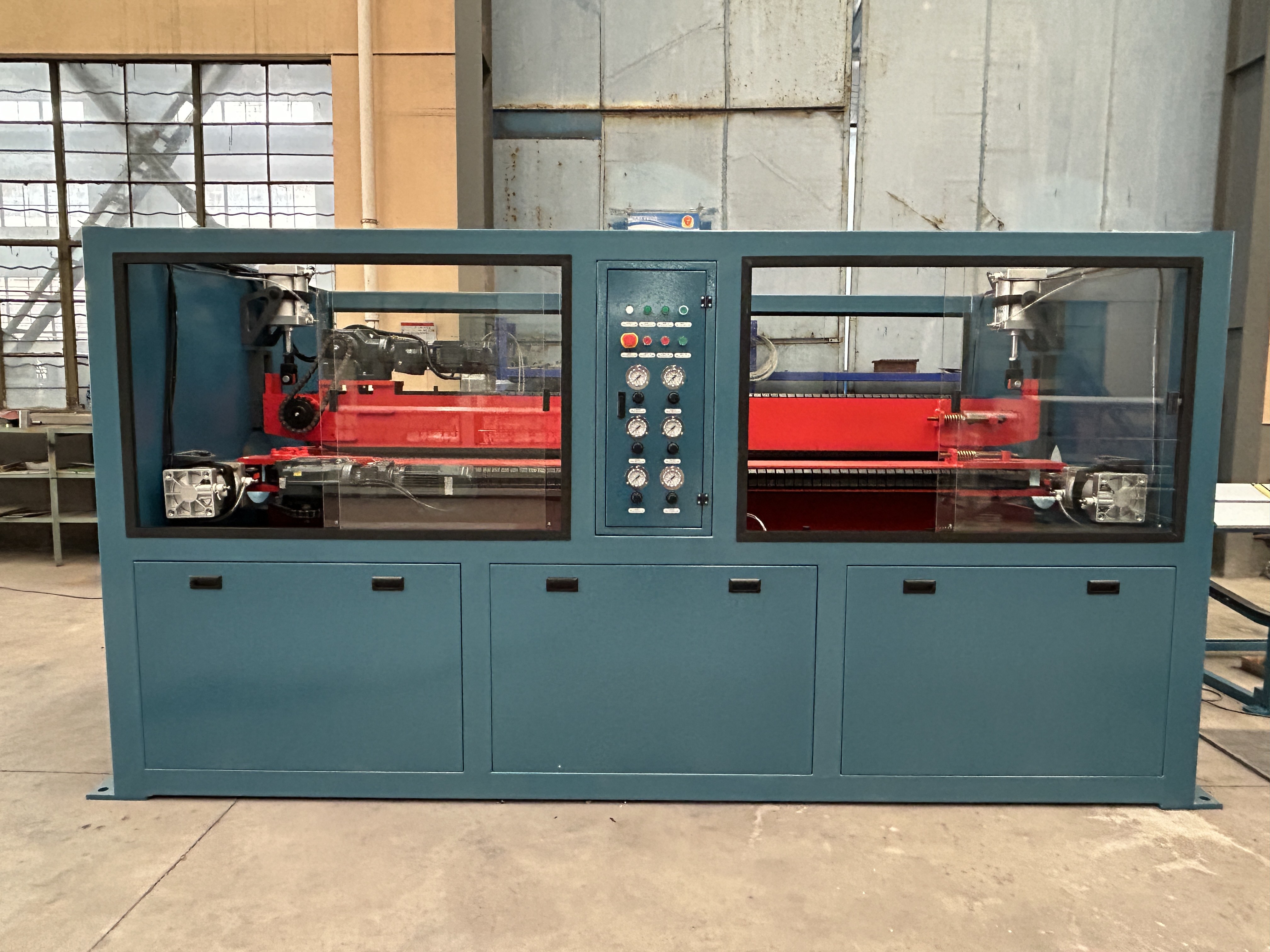

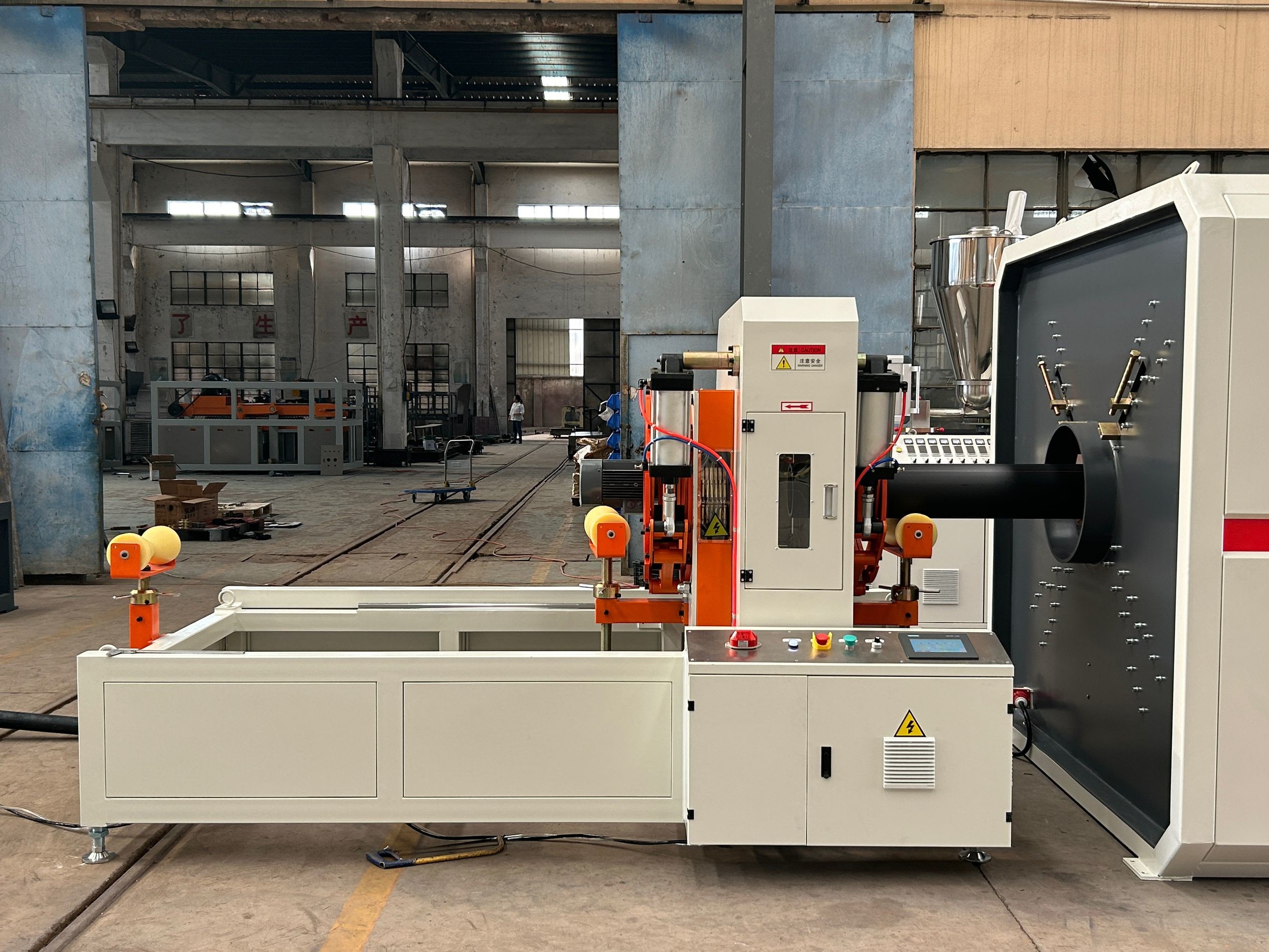

Perforating Machine & Tractor
driven by servo motor and servo controller, with high precision punching degree
Laser sentor to auto tracking dripper positon, and with image system to check punching hole condition
Intelligent control system with remote control system
Drip Tape Winding Machine
servo type traversing device, driven by servo motor
with tension control device to auto adjust winding speed
Auto tape cutting, and auto new coil changing , with protection
separate PLC control system
Advantages of PE Pipe Extrusion Line
1. Advanced production technology: adopts advanced technology and process to produce interlayer film to ensure the stability and reliability of product quality.
2. Customised production capacity: is able to customise production according to customers' specific needs and specifications, providing products and services that meet customers' requirements.
3. Strict quality control: From precise measurement and mixing of raw materials, to extrusion moulding under high temperature and pressure, to cutting, each step is carefully designed and strictly monitored to ensure that every detail of the product meets high standards.
4. Professional technical support: has a professional technical team, which can provide customers with comprehensive technical support and solutions.
5. Perfect after-sales service: provides perfect after-sales service guarantee system to ensure that customers can get timely solution when they encounter problems in the process of using.
PRE- AND AFTER-SALE SERVICES
• A great wealth of experience,
• A consistent focus on the highest quality
• A complete twin pipe vacuum sizing system;
• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;
• Optional length set and accurate adaption stacker.
• A highly motivated team
• Sophisticated process technology
• Customized solutions
Our factory
Our exhibition
Our goods shipping
