APPLICATION:

The Horizontal PVC/PPR/PE Pipe Fitting Plastic Injection Moulding Machine is a high-performance industrial machine designed for manufacturing various types of plastic pipe fittings, including elbows, tees, reducers, couplings, and valves. It is suitable for processing thermoplastic materials such as PVC (Polyvinyl Chloride), PPR (Polypropylene Random), and PE (Polyethylene).

This machine features a horizontal clamping system for stable and precise mold operation, ensuring high-quality pipe fittings with excellent dimensional accuracy and surface finish. Equipped with advanced hydraulic and electrical systems, it offers high efficiency, low energy consumption, and long service life, making it ideal for large-scale production in plumbing, irrigation, and industrial piping systems.

PE PIPE PRODUCTION SPECIFICATIONS:

Specifications

1.plastic products making machine

2.European technology and world-famous spare parts

3.Easy to operate and maintain

WHAT’S INCLUDED IN A PE PIPE PRODUCTION LINE?

Raw material → mixing→vacuum feeding → material dryness → single screw extruder → Forming mould → winding machine→finished product inspecting &packing

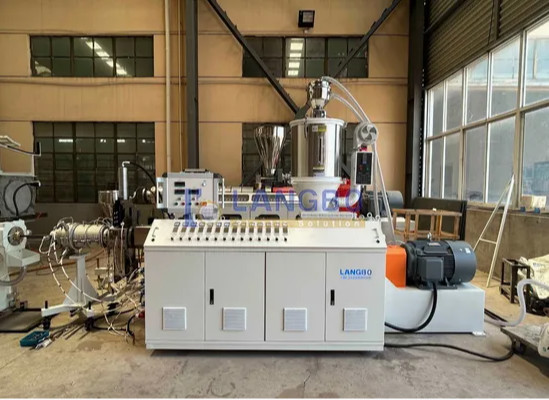

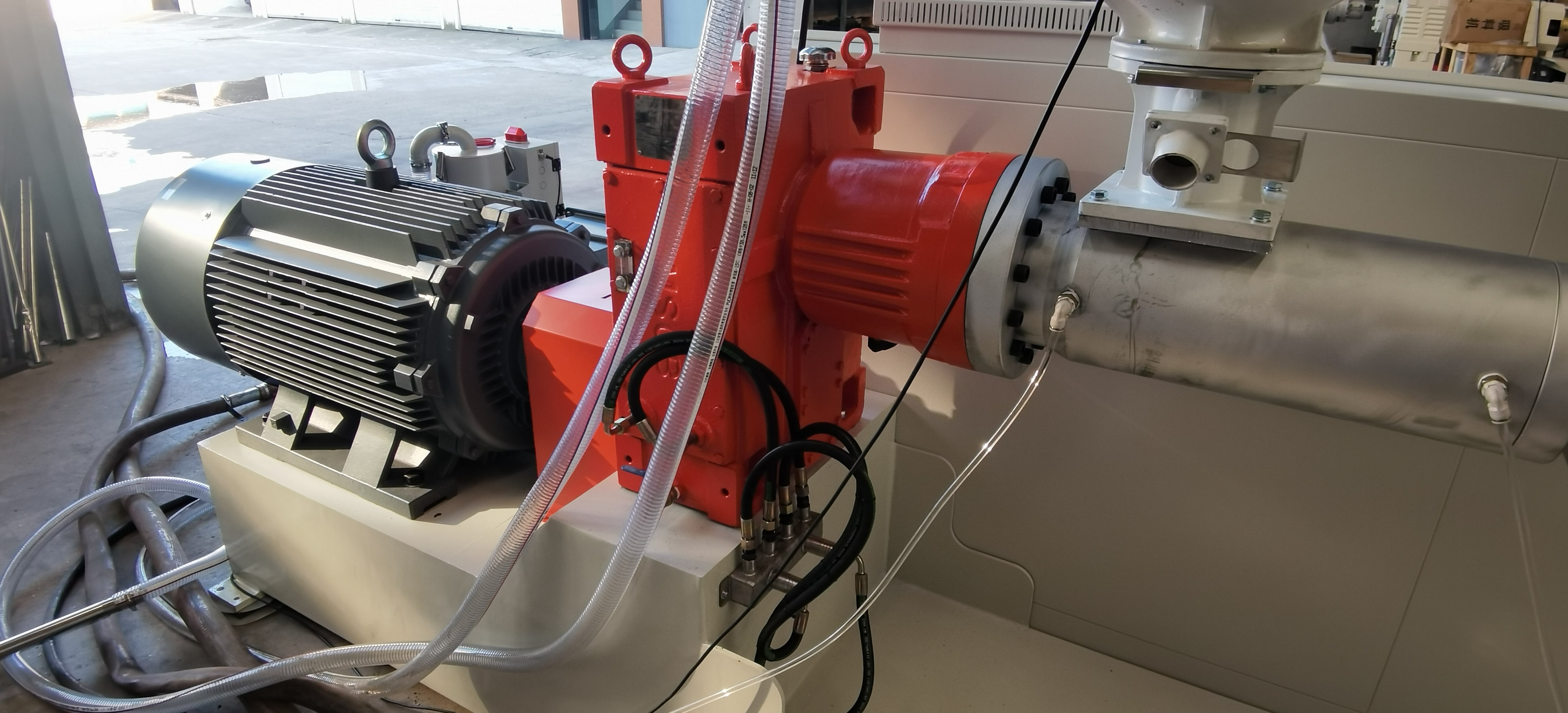

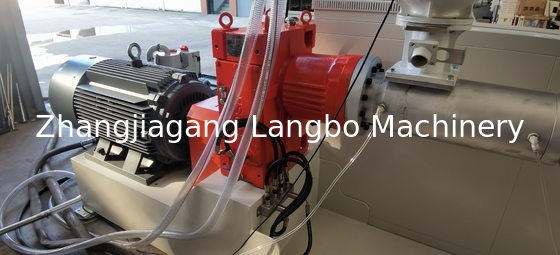

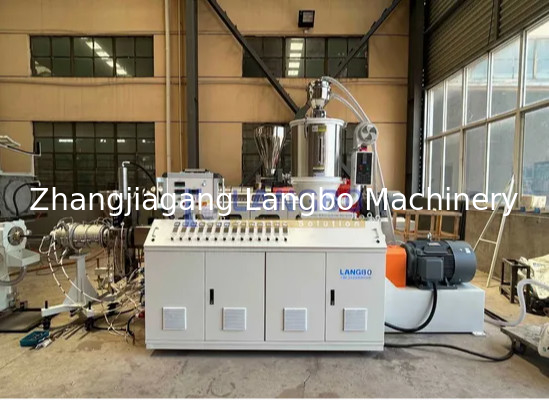

Single Screw Extruder Machine

Using the high efficient single screws, specially designed for PP,PE granule material to ensure uniformed plasticization, high extrusion. Stable temperature controlling system can guarantee high quality pipe extrusion.

pipe extrusion Mould:
Spiral type die head will ensure high speed extrusion and avoid the thermal decomposition of amorphous plastics and get high quality pipes. There is heating control system inside of the mould, high efficient, easy to extrude. Bronze calibrators can make the pipes fast calibrated and cooled.

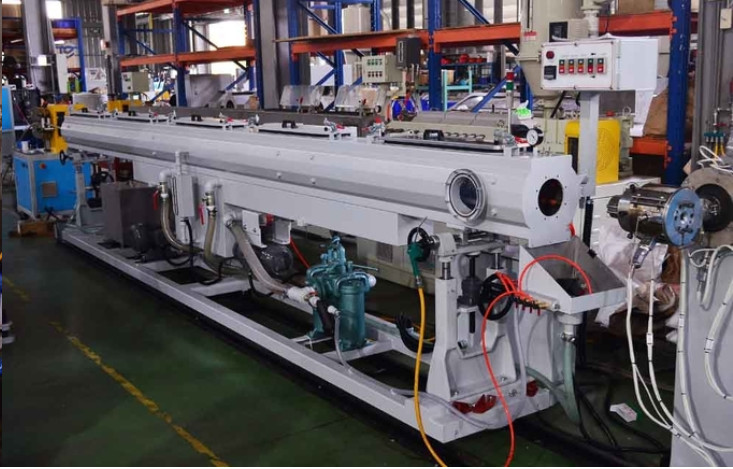

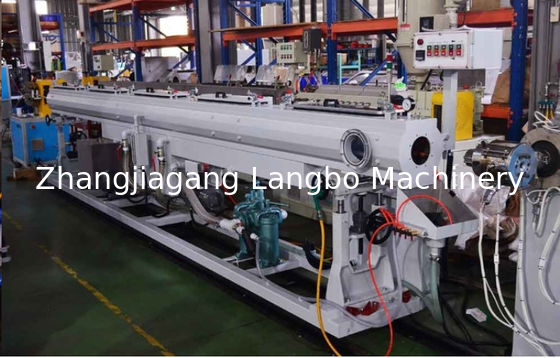

Vacuum cooling tank and spraying cooling tanks:
Rapid vacuum calibrating system allows the hot extruded pipes to be cooled in a very short time and obtain the final pipe diameter. Automatic temperature control system, pressure regulator, and vacuum control valve greatly enhance the pipe sizing and cooling performance as well as the production speed.

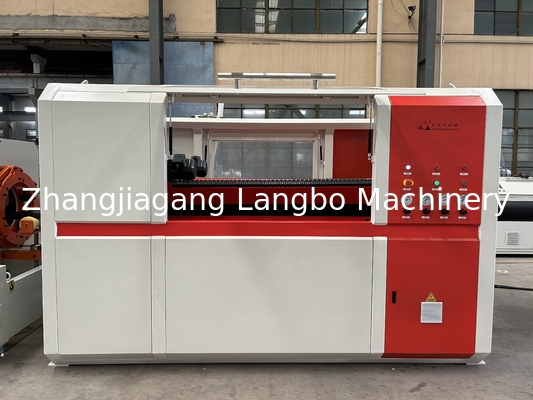

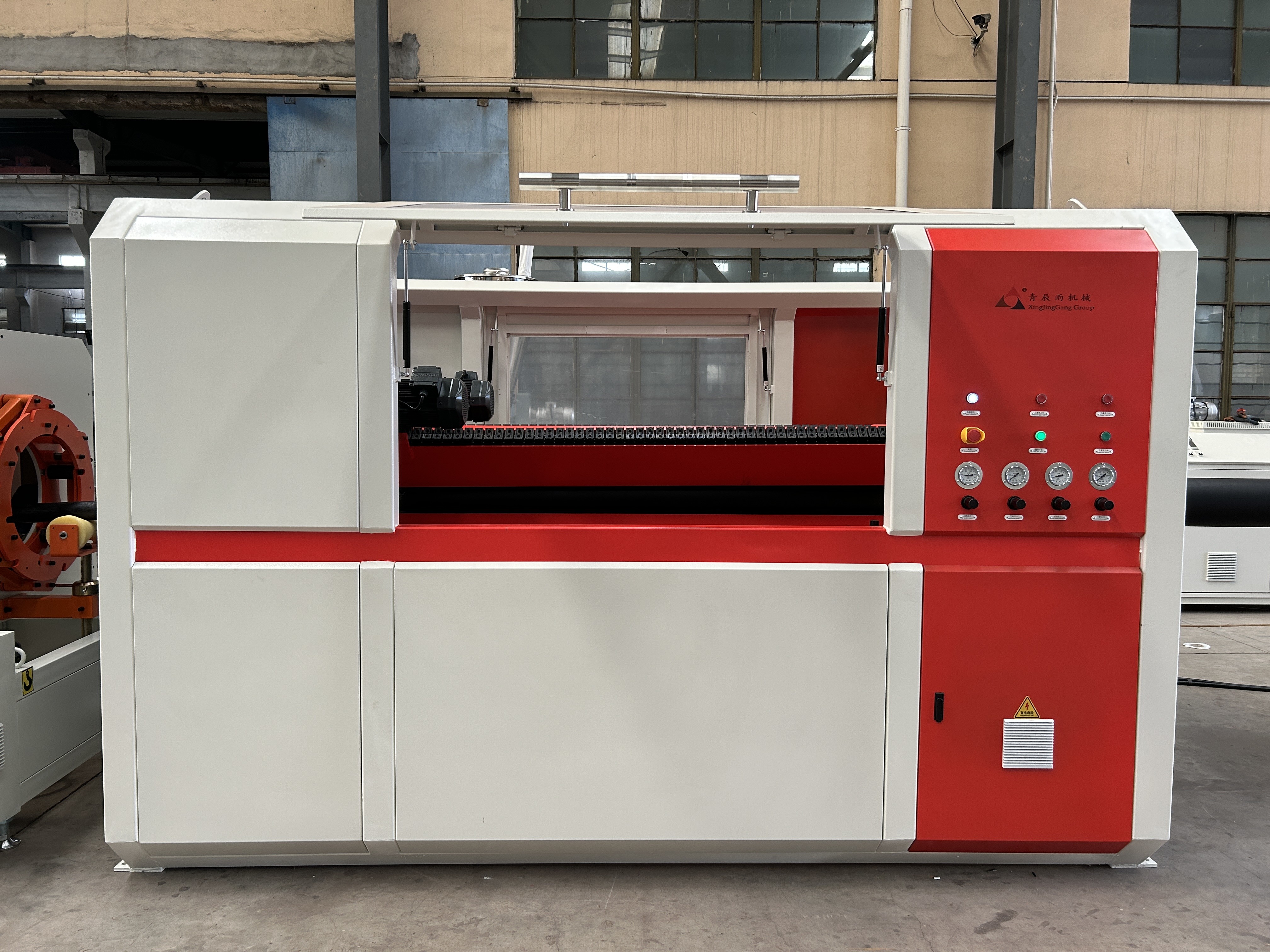

Haul off machine:
Adopts crawler track type, which includes two-claw types, three-claw types, four-claw types, six-claw types, eight -claw types, ten-claw types, twelve-claw types etc, suitable for different sizes of pipes. Haul off crawler track blocks are made of abrasion resistant rubber material, which can make a high and stable hauling speed.

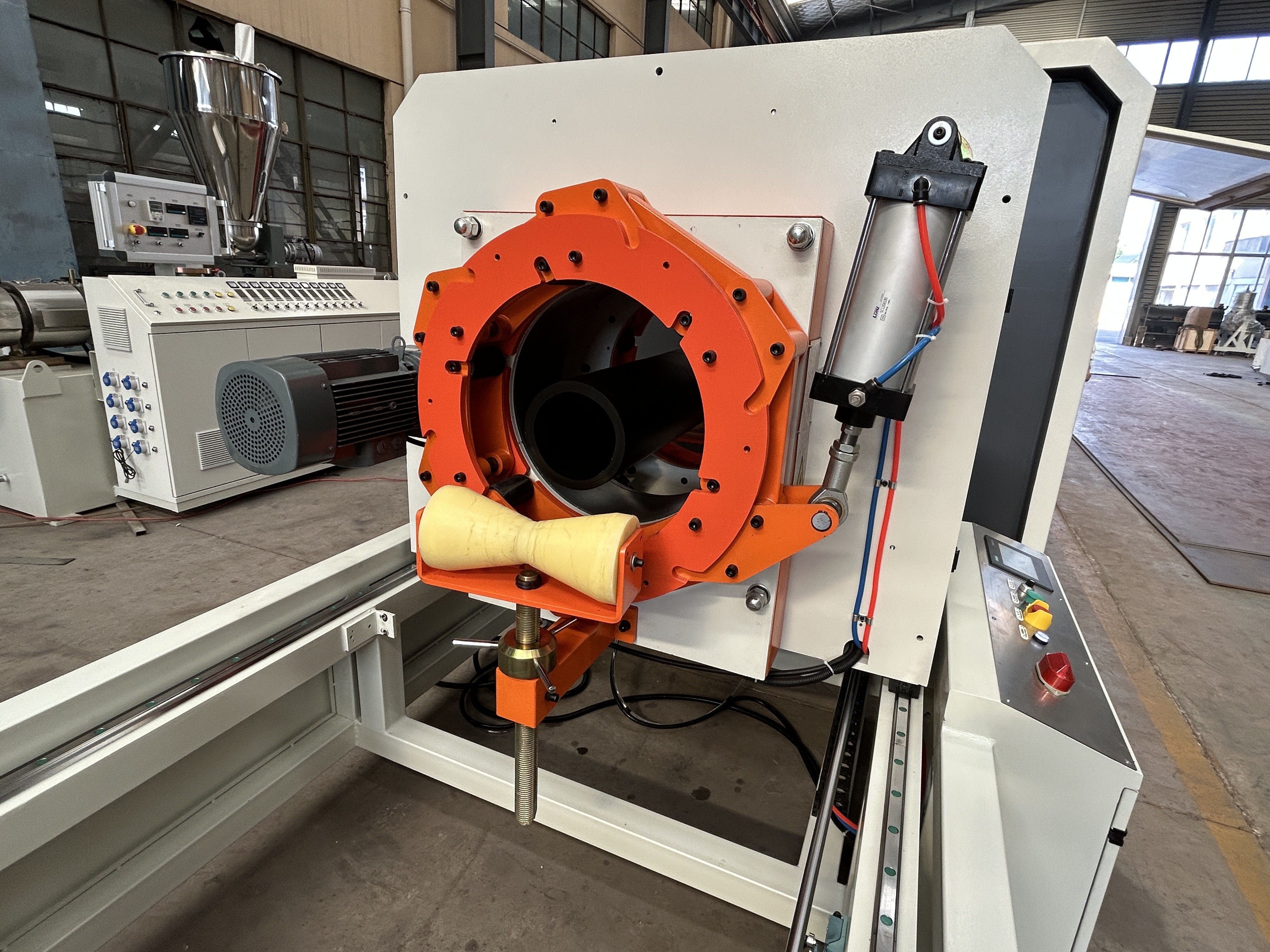

Cutting machine:
Precision machine cutter is able to make flat, straight cuts into pipes at high speed. A powerful suction device gathers up waste scraps after cutting, thereby making it easier for users to clean the cutter.

Pipe stacker or pipe coiler
Automatic pipe stacker for packing the pipes, pipe coiler for small PE pipes like 16-40, 16-75mm, 50-110mm.

Key Advantages of PE Pipe Extrusion Line

High-precision injection molding for consistent quality

Robust horizontal clamping system for stability

Energy-efficient hydraulic & electrical systems

Compatible with PVC, PPR, PE, and other thermoplastics

Automated operation for high productivity

PRE- AND AFTER-SALE SERVICES

• A great wealth of experience,

• A consistent focus on the highest quality

• A complete twin pipe vacuum sizing system;

• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;

• Optional length set and accurate adaption stacker.

• A highly motivated team

• Sophisticated process technology

• Customized solutions
