PE Plastic Water Gas Oil Supply Pipe Tube Extrusion Production Line Single Screw Extruder Pipe Making Machine

PE Plastic Water Gas Oil Supply Pipe Tube Extrusion Production Line Single Screw Extruder Pipe Making Machine

APPLICATION:

PE Plastic Water Gas Oil Supply Pipe Tube Extrusion Production Line Single Screw Extruder Pipe Making Machine Water Flow Pipe Making Machine is widely used in producing PE water supply pipes, gas supply pipes. It can make PE pipes with diameter from 16mm to 1600mm. With many years of plastic machinery development and design experience, this PE pipe extrusion line has the unique structure,the design is novel, the equipment entire line layout is reasonable, the control performance is reliable. By different requirement, this PE pipe line could be designed as multiply-layer pipe extrusion line.

PE PIPE PRODUCTION SPECIFICATIONS:

PE Production Flow:

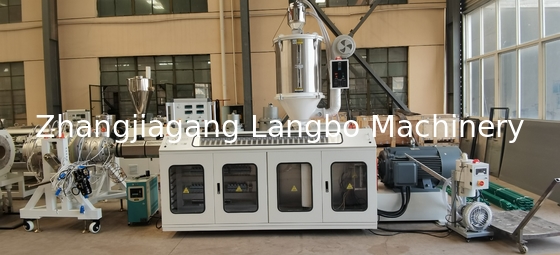

Material →Color Mixer →Material Feeding →Single Screw Extruder →Extrusion Mould & calibrator → vacuum Calibration Cooling Tank → Spray Cooling Tank →Printer → Haul-off Unit →cutter →stacker or Coiler

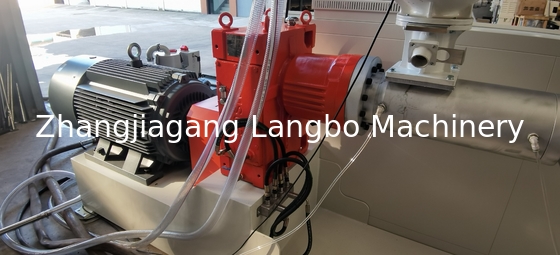

Single Screw Extruder:

Different models for options:SJ65/30,SJ90/30,SJ90/33 High quality electrical components, like Siemens, Omron, Fuji, Delta, etc. Alloy screw & barrel, which guarantee high quality and stable output. Equipped with high qualty gearbox and distributor. Extruder control by PLC screen touch is available as well; PLC screen touch is from Siemens (customized).

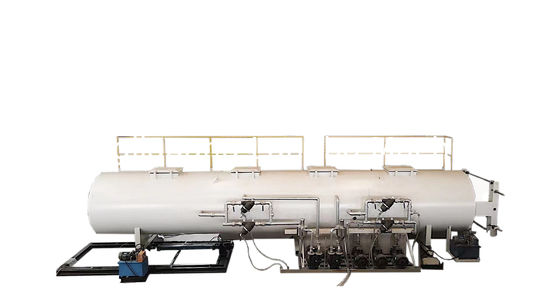

Vacuum & Cooling Tank

The vacuum and cooling tank cool and dry extruded pipe to help maintain ovality and pipe uniformity.

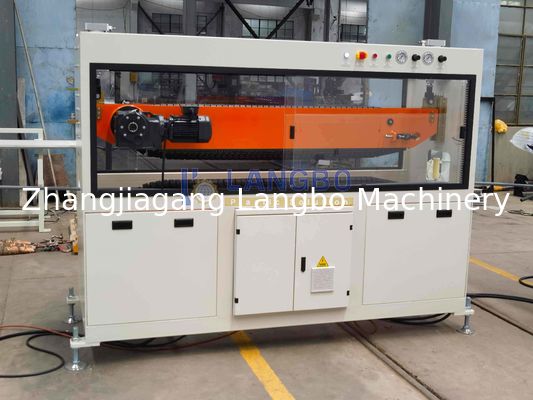

Haul Off (Puller) Machine

A pipe haul off machine pulls fresh pipe from the extruder through the vacuum and cooling tank.

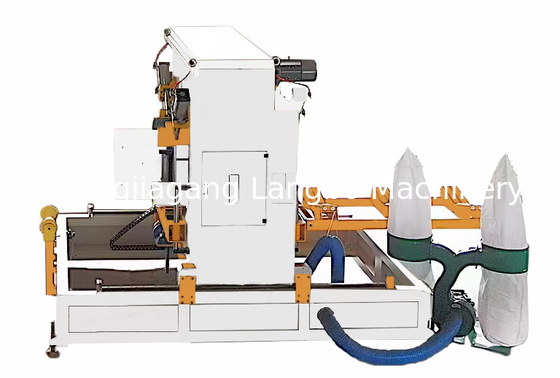

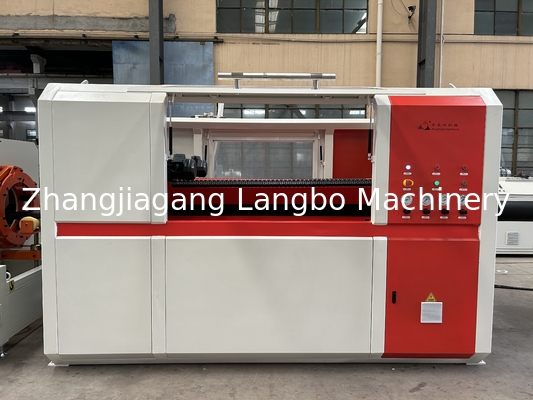

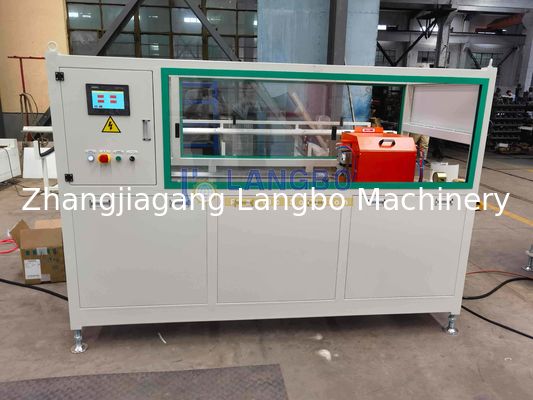

Cutter Machine

The pipe cutter machine cuts PE pipe to the desired length programed into the HMI.

Accumulator Machine

An pipe accumulator machine serves the purpose of maintaining a buffer between the change over of coils.

Coiler Machine

The pipe coiler machine allows you to coil pipe for sale and distribution (See also automatic coiler machine).

PE Pipe Extrusion Machine Features:

 Precisely designed gearbox with a high torsion guarantees stable running

 H sharp frame to decrease vibrating of an extruder

 Advanced PLC operation system realizes synchronization and high-quality products

 Adopt automatic water temperature &level control and special independent filters on both vacuum and cooling tanks

 Offer a stable haul-off unit with 2-12 caterpillars

 Provide saw &chip free cutting options

 Low energy consumption, excellent performance, and easy maintenance

PRE- AND AFTER-SALE SERVICES

• A great wealth of experience,

• A consistent focus on the highest quality

• A complete twin pipe vacuum sizing system;

• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;

• Optional length set and accurate adaption stacker.

• A highly motivated team

• Sophisticated process technology

• Customized solutions

we will offer customers spare parts at cost prices all life long of the machines.
