16-1600mm PE Pipe Making Machine Pipe Extrusion Line For Water Pipe

16-1600mm PE Pipe Making Machine Pipe Extrusion LineWater Pipe

APPLICATION:

1.The production line is suitable for producing small diameter single wall bellows with PP and PE raw materials. It can continuously produce polyethylene, polypropylene, polyvinyl chloride, Eva and other bellows and PA bellows.
2.It is used as wire and cable to wear pipe, washing machine drainage pipe, vacuum cleaner pipe and ventilator
3.It is widely used in automobile wire, electric wire pipe, machine tool circuit, lamp wire protection tube, air conditioner, washing machine and so on.

PE PIPE PRODUCTION SPECIFICATIONS:

Process line:

Raw material + master batches→mixing→vacuum feeding →material dryness →single screw extruder→extrusion mould→corrugation forming machine→meter measurer→double winder→finished product inspecting &packing

Dripper sorting & inserting machine

Dripper identifying speed is more than 1100pcs/min, to ensure dripper supply

Dripper inserting is driven by servo motor, and sync controlled with PLC system

dripper space is direct set on PLC, with min. space 100mm

Auto feeder with dripper lack alarm

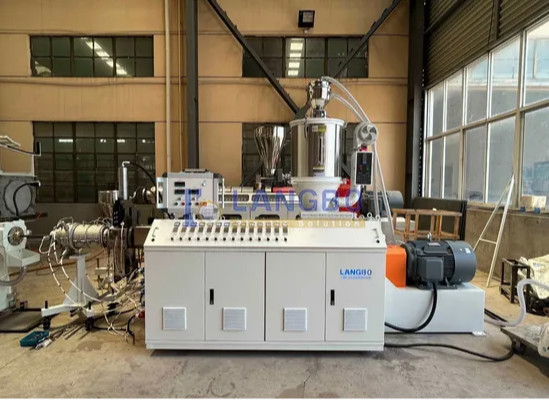

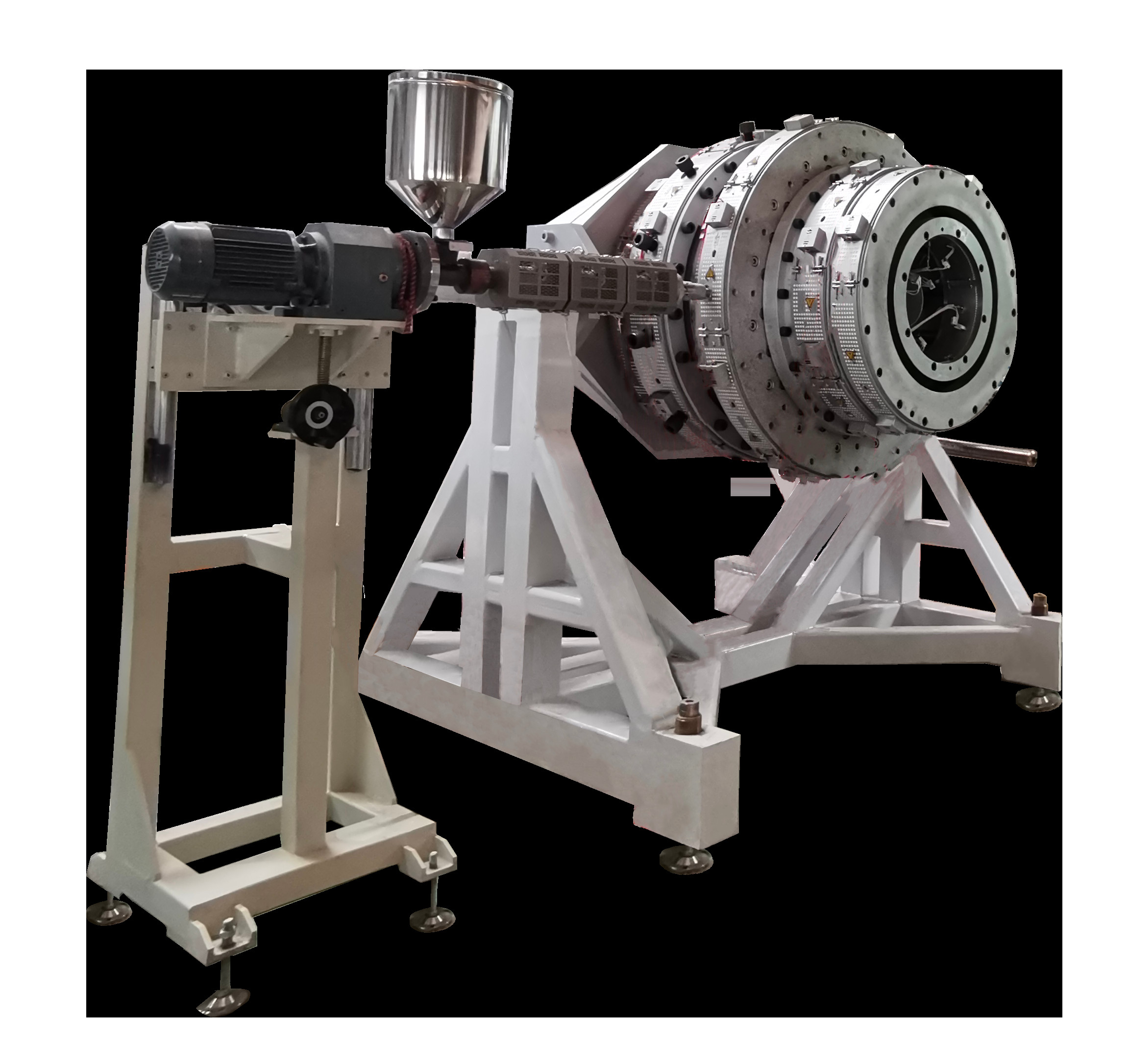

Extruder & Cross Die Head

Extruder driven by AC motor; with ABB converter,

SIEMENS PLC control system, to sync control with dripper inserting speed and haul-off speed

Special designed cross type die head; high quality mould steel 40Cr, which is processed by imported CNC machinery.

Vacuum tank & Cooling tank

made by high quality SS304; high quality vacuum pump & water pump

special design calibrator for drip tape making

air bubble detecting and alarm system; tape break down stop function; tape anti-rotation system etc

Perforating Machine & Tractor

driven by servo motor and servo controller, with high precision punching degree

Laser sentor to auto tracking dripper positon, and with image system to check punching hole condition

Intelligent control system with remote control system

Drip Tape Winding Machine

servo type traversing device, driven by SIEMENS servo motor

with tension control device to auto adjust winding speed

Auto tape cutting, and auto new coil changing , with protection

separate SIEMENS PLC control system

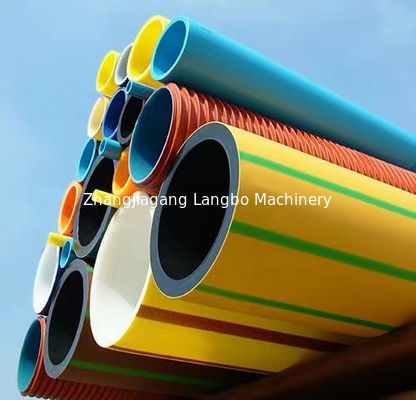

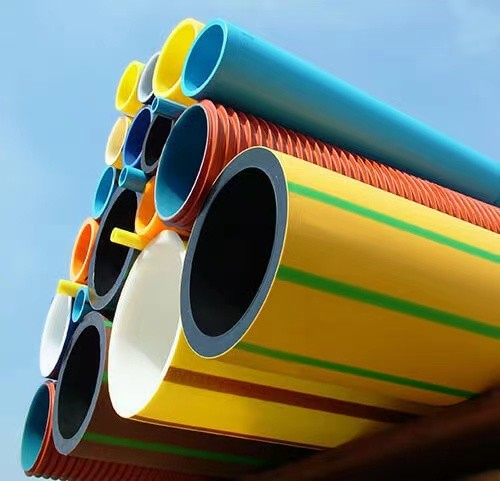

This kind of pipe is high temperature resistance, anti-erosion, anti-abrasion and with high strength, the pipe can be used as oil pipe in automobile braking system, and for high temperature egas, chemical liquid transferring.

Advantages of PE Pipe Extrusion Line

1) Simple structure in linear type ,easy in installation operation and maintation.
2) Adopting advanced famous brand components in pneumatic parts ,electric parts and operation parts.
3) Significant high out-put with low energy consumption.
4) Running in a high automatization and intellectualization.

PRE- AND AFTER-SALE SERVICES

• A great wealth of experience,

• A consistent focus on the highest quality

• A complete twin pipe vacuum sizing system;

• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;

• Optional length set and accurate adaption stacker.

• A highly motivated team

• Sophisticated process technology

• Customized solutions
