Advanced Full Automatic PVC PE Plastic Hose Tube Making Machinery Eqiupment With PLC Touch Screen Control

Pipe Extrusion Line PVC PE Plastic Hose Tube Making Machinery Eqiupmen

APPLICATION:

The PVC/PE Plastic Hose & Tube Extrusion Line is a state-of-the-art manufacturing solution designed for producing high-quality plastic hoses, tubes, and pipes from PVC (Polyvinyl Chloride) and PE (Polyethylene) materials. This fully automated extrusion line ensures precision, efficiency, and durability, making it ideal for industries such as construction, agriculture, automotive, and plumbing.

PE PIPE PRODUCTION SPECIFICATIONS:

WHAT’S INCLUDED IN A PE PIPE PRODUCTION LINE?

Every DRTS turnkey PE pipe production line comes with all the necessary machinery you need to start manufacturing high quality PE pipe. From the single screw extruders comprised of quality components to a high speed servo powered puller machines we offer you everything you need to become a successful pipe manufacturer.

Dripper sorting & inserting machine

Dripper identifying speed is more than 1100pcs/min, to ensure dripper supply

Dripper inserting is driven by servo motor, and sync controlled with PLC system

dripper space is direct set on PLC, with min. space 100mm

Auto feeder with dripper lack alarm

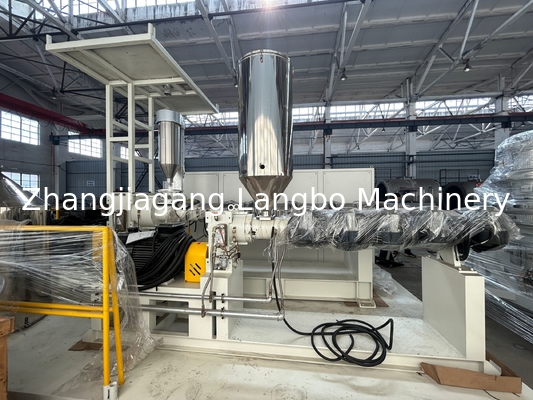

Extruder & Cross Die Head

Extruder driven by AC motor; with ABB converter,

SIEMENS PLC control system, to sync control with dripper inserting speed and haul-off speed

Special designed cross type die head; high quality mould steel 40Cr, which is processed by imported CNC machinery.

Vacuum tank & Cooling tank

made by high quality SS304; high quality vacuum pump & water pump

special design calibrator for drip tape making

air bubble detecting and alarm system; tape break down stop function; tape anti-rotation system etc

Perforating Machine & Tractor

driven by servo motor and servo controller, with high precision punching degree

Laser sentor to auto tracking dripper positon, and with image system to check punching hole condition

Intelligent control system with remote control system

Drip Tape Winding Machine

servo type traversing device, driven by SIEMENS servo motor

with tension control device to auto adjust winding speed

Auto tape cutting, and auto new coil changing , with protection

separate SIEMENS PLC control system

Advantages of PE Pipe Extrusion Line

High-output extruder with advanced screw design for uniform melting and extrusion.

Vacuum calibration system for precise diameter control and smooth surface finish.

Advanced cooling system to ensure optimal product solidification.

Programmable logic controller (PLC) for automated operation and real-time monitoring.

Customizable die & mold options for various tube/hose diameters and wall thicknesses.

Puller & cutter unit for consistent length cutting and winding.

PRE- AND AFTER-SALE SERVICES

• A great wealth of experience,

• A consistent focus on the highest quality

• A complete twin pipe vacuum sizing system;

• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;

• Optional length set and accurate adaption stacker.

• A highly motivated team

• Sophisticated process technology

• Customized solutions
