PE Corrugated Pipe Machine Production Line Bellows Water Electric Pipe Making Machine

PE Corrugated Pipe Machine Production Line Bellows Water Electric Pipe Making Machine

APPLICATION:

1. It is mainly used to produce all kinds of UPVC pipes for agriclutural water supply and drainage, building water supply and drainage and cable laying etc.
2. Saw cutter, dust freee cutter and planetary cutter for choice.
3. Changing some parts can also produce M-PVC pipe, C-PVC pipe, inner spiral wall pipe, inner hollow wall pipe, formed core pipe.
4. Conical twin screw extruder and parallel twin screw extruder for choice.
5. Double cavity and four cavity for choice for small pipes.

PE PIPE PRODUCTION SPECIFICATIONS:

Applications:

Drainage & Sewage Systems

Telecommunication & Electrical Conduits

Agricultural Irrigation & Land Drainage

Road & Construction Underground Piping

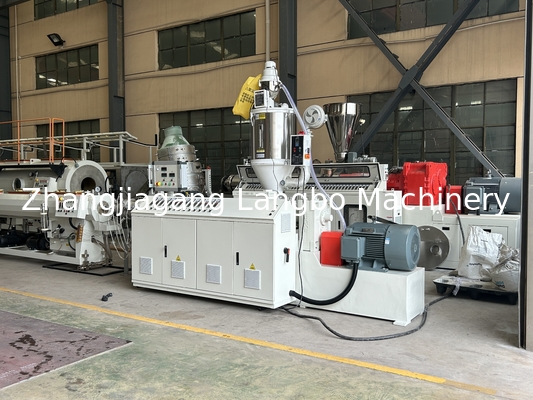

PE Production Flow:

Material →Color Mixer →Material Feeding →Single Screw Extruder →Extrusion Mould & calibrator → vacuum Calibration Cooling Tank → Spray Cooling Tank →Printer → Haul-off Unit →cutter →stacker or Coiler

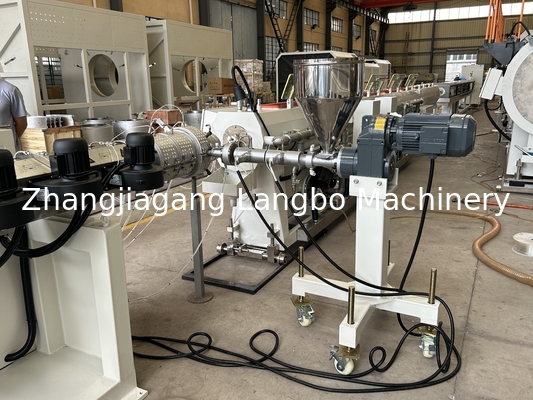

Raw Material Feeding

PE pellets are fed into the hopper of the extruder.

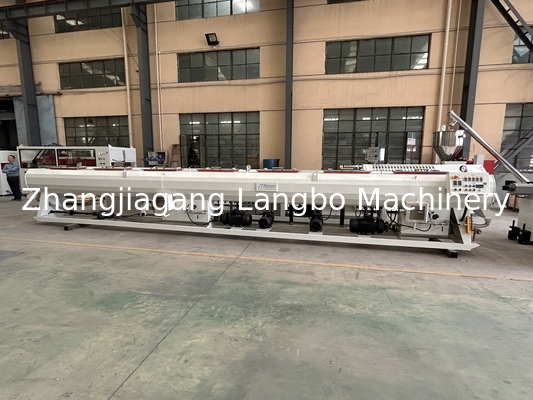

Vacuum & Cooling Tank

The vacuum and cooling tank cool and dry extruded pipe to help maintain ovality and pipe uniformity.

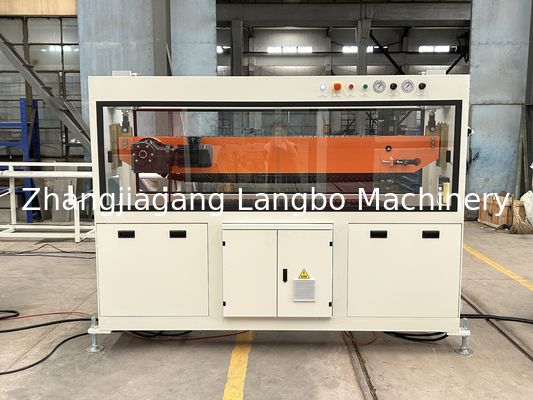

Haul Off (Puller) Machine

A pipe haul off machine pulls fresh pipe from the extruder through the vacuum and cooling tank.

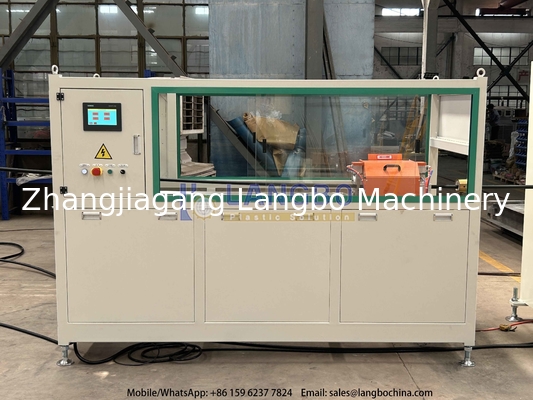

Cutter Machine

The pipe cutter machine cuts PE pipe to the desired length programed into the HMI.

Accumulator Machine

An pipe accumulator machine serves the purpose of maintaining a buffer between the change over of coils.

Coiler Machine

The pipe coiler machine allows you to coil pipe for sale and distribution (See also automatic coiler machine).

This automated process ensures high efficiency, precision, and durability in producing PE corrugated pipes for drainage, cable protection, and other industrial applications.

PE Pipe Extrusion Machine Features:

1. The optimum spiral bush highly improves the output of the pipe extruder

2. Accurate temperature control system ensures material melting performance

PRE- AND AFTER-SALE SERVICES

• A great wealth of experience,

• A consistent focus on the highest quality

• A complete twin pipe vacuum sizing system;

• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;

• Optional length set and accurate adaption stacker.

• A highly motivated team

• Sophisticated process technology

• Customized solutions

we will offer customers spare parts at cost prices all life long of the machines.
