Plastic PE Water Drainage Pipe Agricultural Drip Irrigation Hose Corrugated Pipes Extrusion Making Machine

Plastic PE Water Drainage Pipe Agricultural Drip Irrigation Hose Corrugated Pipes Extrusion Making Machine

APPLICATION:

This Plastic Pipe extrusion Machine is mainly used to produce agricultural/water supply pipes, architectural water supply/drainage pipes, cable laying pipes etc. This pipe extrusion line adopts advanced design concept to ensure the efficient extrusion of PE powder, combined with the unique concept of plasticization screw design to ensure uniformity of plastic extrusion, high capacity production.

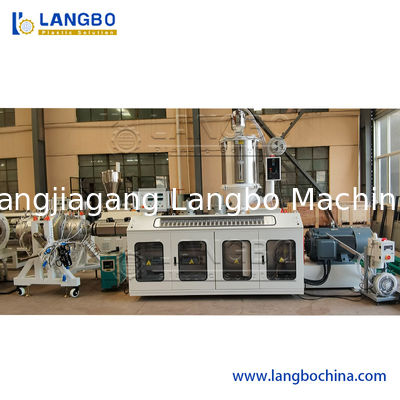

Plastic pipe making machine production line is consist of SJZ series conical twin screw extruder, mould, vacuum cooling tank, spray cooling tank(for big size pipe), haul-off machine, cutting machine, stacker, etc. It also need some auxiliary machinery. For example, hot&cooling mixer, crusher, milling machine, belling machine, etc. The hot&cooling mixer is necessary, others is optional

PE PIPE PRODUCTION SPECIFICATIONS:

PE Production Flow:

Material →Color Mixer →Material Feeding →Single Screw Extruder →Extrusion Mould & calibrator → vacuum Calibration Cooling Tank → Spray Cooling Tank →Printer → Haul-off Unit →cutter →stacker or Coiler

Raw Material Feeding – PE pellets are fed into the extruder hopper.

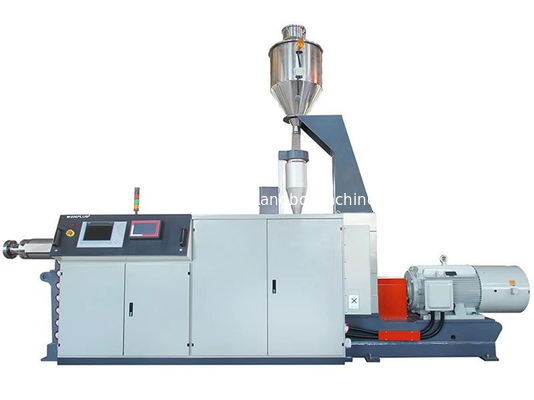

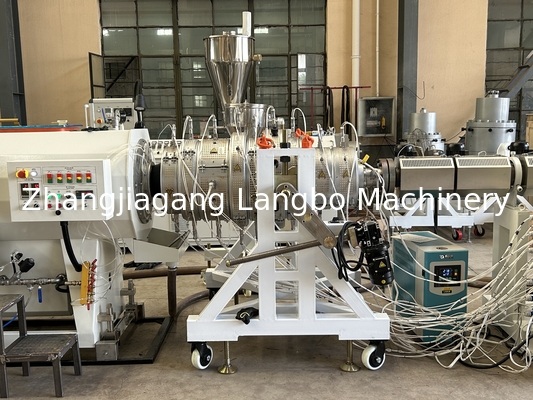

Melting & Extrusion – The material is heated and melted in the screw extruder, then pushed through the die head to form the pipe shape.

Corrugation Molding – The molten pipe passes through a corrugator mold to create the ribbed structure for strength and flexibility.

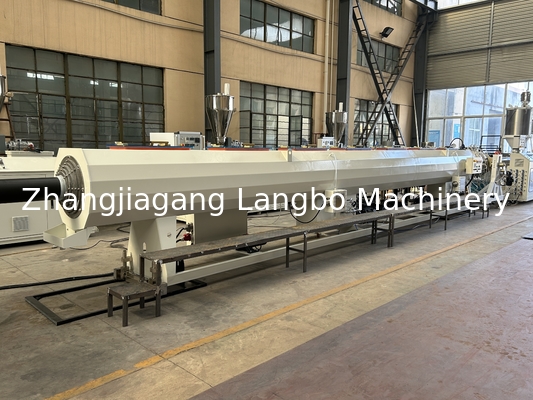

Cooling & Shaping – The pipe is cooled in a vacuum water tank to solidify its shape.

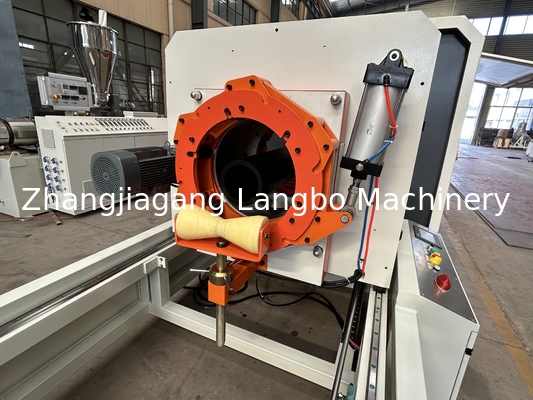

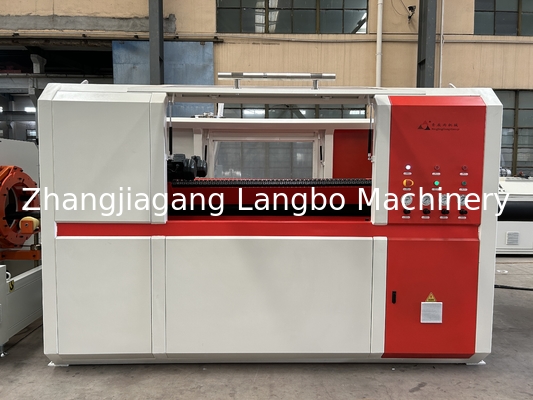

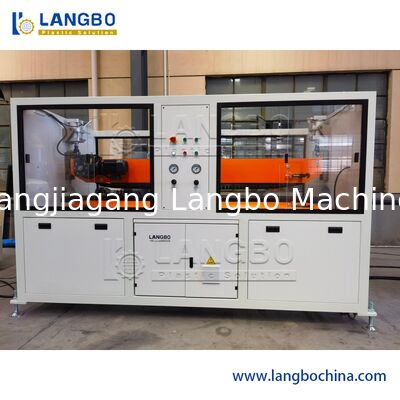

Traction & Cutting – A haul-off machine pulls the pipe forward, and an automatic cutter trims it to the desired length.

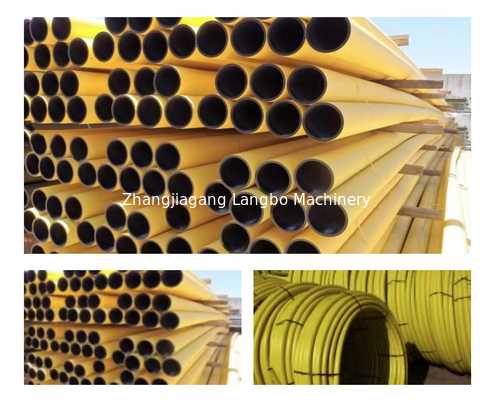

Stacking & Packaging – Finished pipes are collected, inspected, and packed for shipment.

Advantages:

1. CNC control for Plastic pipe threading, make the pipe threading process more precise and easy for operation.

2. This machine can be designed at customer's requests,It can work for one pipe threading at two-end at one time. Meanwhile, it can be designed for one pipe end threading only.

Offer different kind of Plastic pipe threading Machines:

1. PLC Control Automatic Plastic pipe threading machine.

2. CNC Autmatic Plastic pipe threading machine.

3. Semi-Automatic Plastic pipe threader machine.

PRE- AND AFTER-SALE SERVICES

• A great wealth of experience,

• A consistent focus on the highest quality

• A complete twin pipe vacuum sizing system;

• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;

• Optional length set and accurate adaption stacker.

• A highly motivated team

• Sophisticated process technology

• Customized solutions

we will offer customers spare parts at cost prices all life long of the machines.
