APPLICATION:

This advanced PE (Polyethylene) Pipe Extrusion Production Line is designed for manufacturing high-quality (High-Density Polyethylene) (Medium-Density Polyethylene) pipes used in water supply, gas distribution, oil pipelines, and industrial fluid transportation. The production line ensures high efficiency, precision, and durability in pipe manufacturing.

PE PIPE PRODUCTION SPECIFICATIONS:

Description of the production process

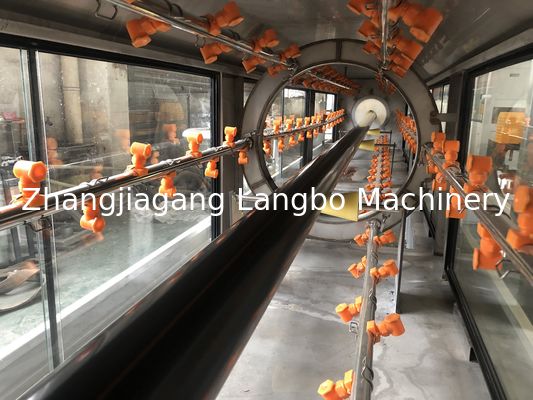

Material →Color Mixer →Automatic Feeder→Hopper Dryer →Single Screw Extruder →Extrusion Mould & Calibrator → Vacuum Calibration Cooling Tank → Spray Cooling Tank →Printer → Haul-off Unit →Cutter →Stacker or Coiler

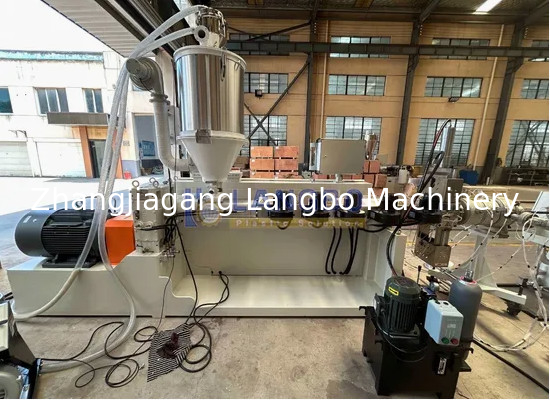

Single screw extruder with auto feeding machine.

Extruder size according to different requirements of pipe diameter.

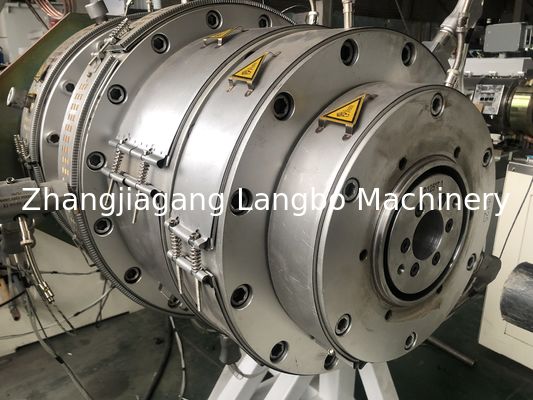

Pipe forming machine with forming mould

The forming machine can make vacuum type and normal type.

Vacuum type is suitable for making the corrugated pipe which with joint. Like washing machine pipe, shisha hookah hose etc.

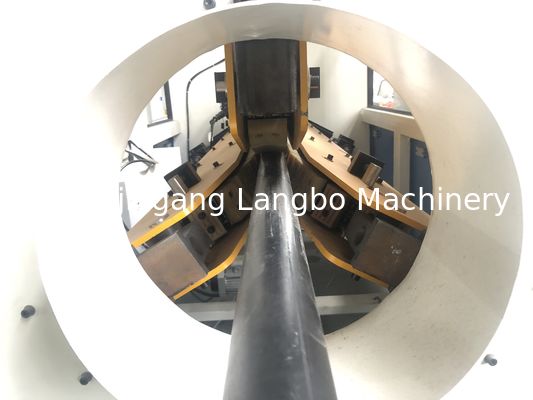

Haul Off (Puller) Machine

A pipe haul off machine pulls fresh pipe from the extruder through the vacuum and cooling tank.

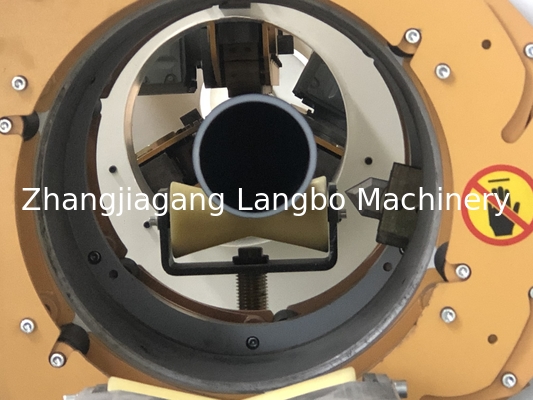

Cutter Machine

The pipe cutter machine cuts PE pipe to the desired length programed into the HMI.

Accumulator Machine

An pipe accumulator machine serves the purpose of maintaining a buffer between the change over of coils.

Coiler Machine

The pipe coiler machine allows you to coil pipe for sale and distribution (See also automatic coiler machine).

Key Features:

Single Screw Extruder: Ensures stable melting and uniform plasticization of PE material.

High Output & Energy Efficiency: Optimized for continuous production with low energy consumption.

Precision Sizing & Cooling System: Guarantees accurate pipe dimensions and smooth surface finish.

Advanced Control System: PLC-based automation for consistent quality and easy operation.

Customizable Options: Available in different diameters (20mm - 1200mm) and production capacities.

Compliance with Standards: Meets ISO 4427, EN 12201, ASTM D3035, and other international pipe standards.

PRE- AND AFTER-SALE SERVICES

• A great wealth of experience,

• A consistent focus on the highest quality

• A complete twin pipe vacuum sizing system;

• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;

• Optional length set and accurate adaption stacker.

• A highly motivated team

• Sophisticated process technology

• Customized solutions

we will offer customers spare parts at cost prices all life long of the machines.
